2020 Brand New RHD JAC 24 Seats Coach Bus with with factory price
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai)
Share on (60757695693):
Product Overview
Description
Product Description
| Specification and configuration | |||
| 1.1 | name | 6771 | |
| 1.2 | dimension (L×W×H)(mm) | 7710×2050×2730 | |
| 1.3 | wheel base (mm) | 4435 | |
| 1.4 | wheel track(front/rear)(mm) | 1665/1525 | |
| 1.5 | approach angle/departure angle | 15°/7° | |
| 1.6 | unload (kg) | 4600 | |
| 1.7 | full load | 6900 | |
| 1.8 | seat capability | 2+1 arrangement,23+1 seats; 1+1 arrangement,16+1 seats. | |
| Engine | |||
| 2.1 | model | YC4FA115-30 | |
| 2.2 | position | front | |
| 2.3 | type | 4 cylinders in line, intercooler, turbo charger diesel engine | |
| 2.4 | emission | EURO III | |
| 2.5 | displacement(L) | 2.66 | |
| 2.6 | rated power(kw/rpm) | 85/3200 | |
| 2.7 | max.torque(N.m/rpm) | 300/2200 | |
| chassis | |||
| 3.1 | model | HFF6750D23 | |
| 3.2 | max.speed(km/h) | 100 | |
| 3.3 | clutch | single,dry type,(Φ310) | |
| 3.4 | transmission | LC6T46 | |
| 3.5 | axle | chinese axle | |
| 3.6 | suspension | leaf spring (Fr4/Rr4) | |
| 3.7 | steering | power steering | |
| 3.8 | brake system | dual-circle air braking, drum brake | |
| 3.9 | capacity of fuel tank (L) | 90L | |
| 3.10 | tyre | 7.50R16 | |
| 3.11 | others | battery / dynamo: 120A.hX2 /100A | |

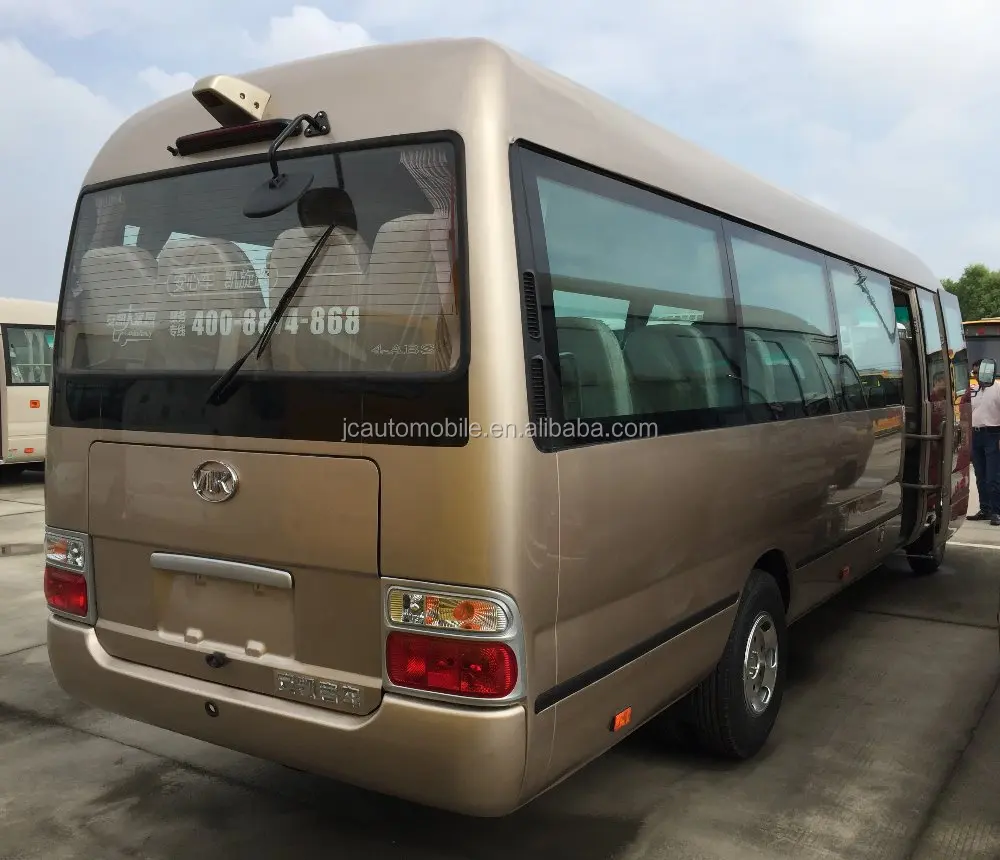

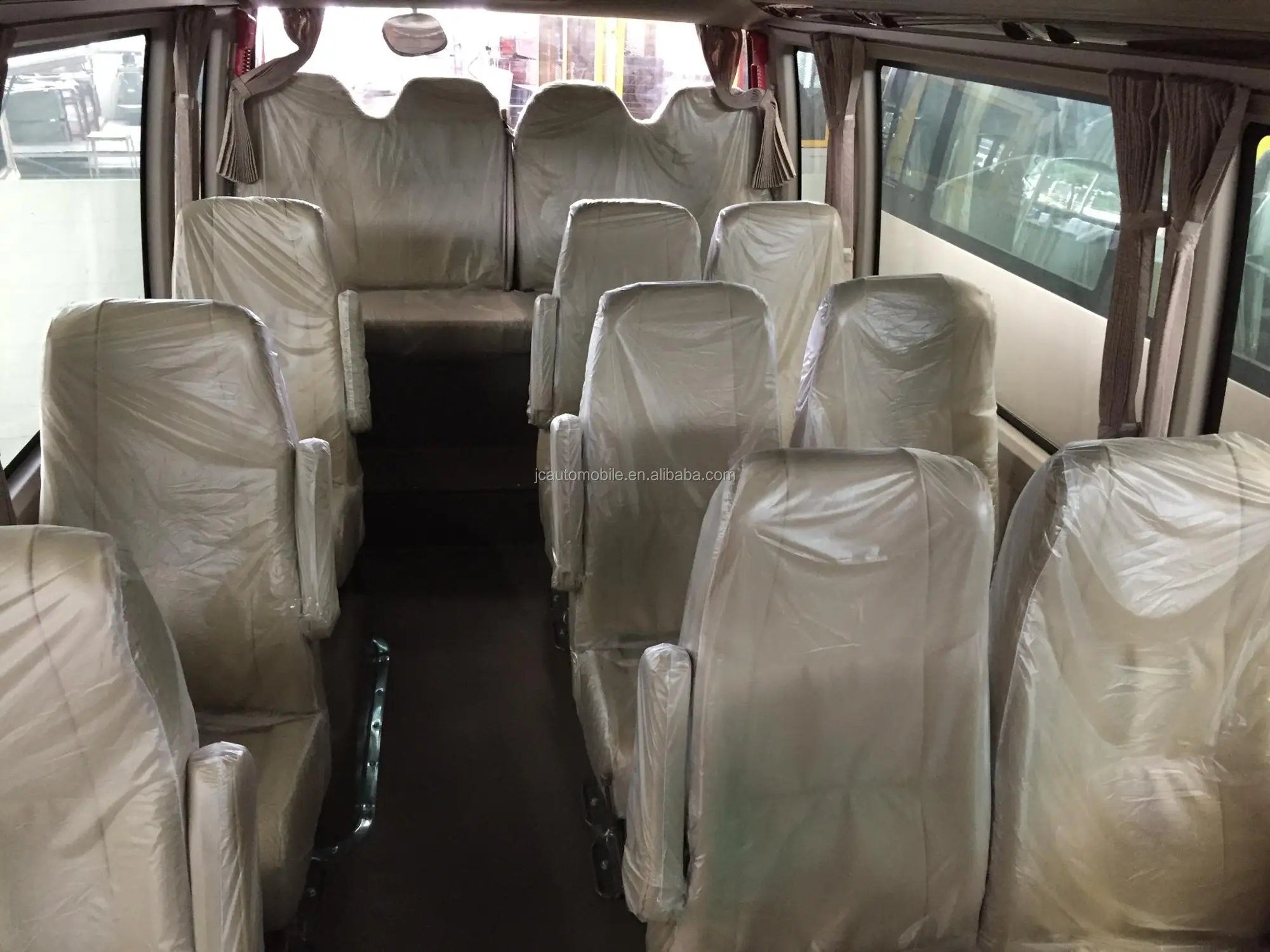

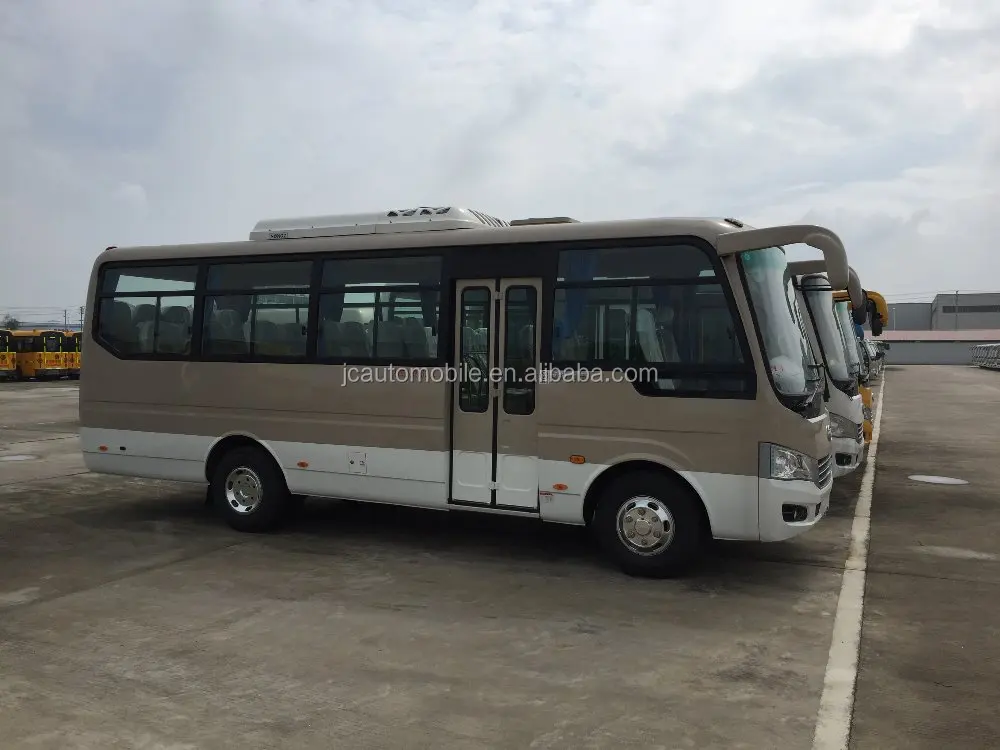

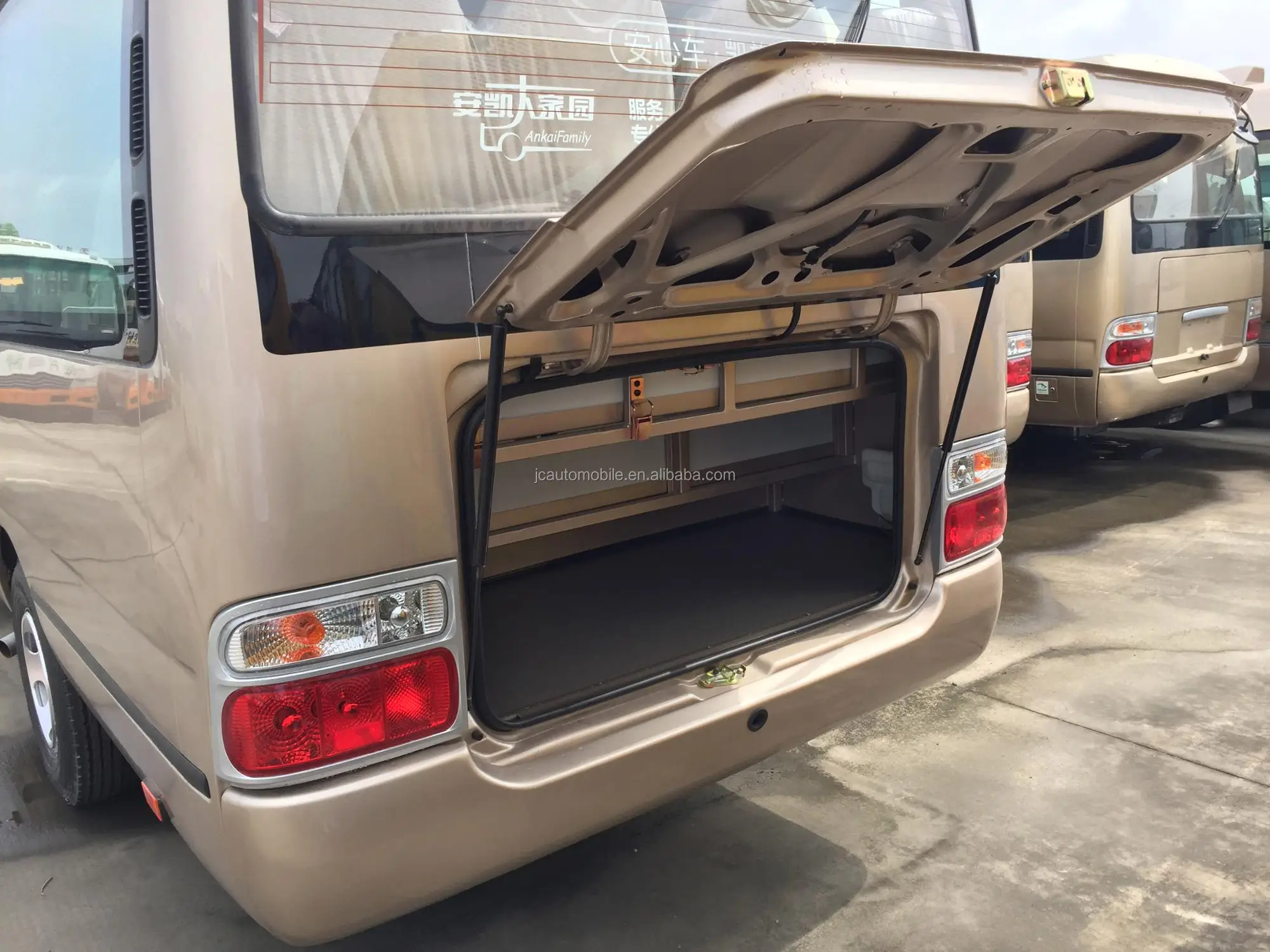

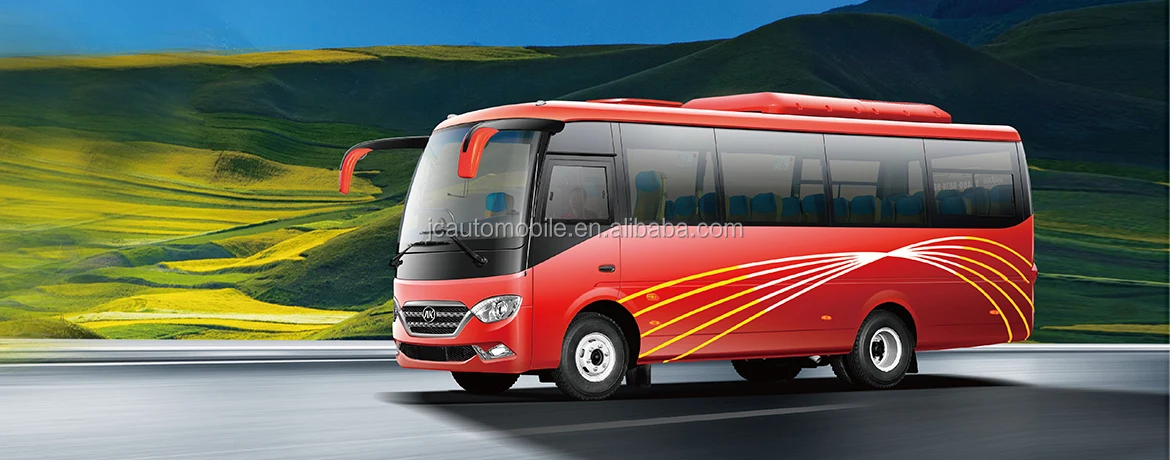

Detailed Images

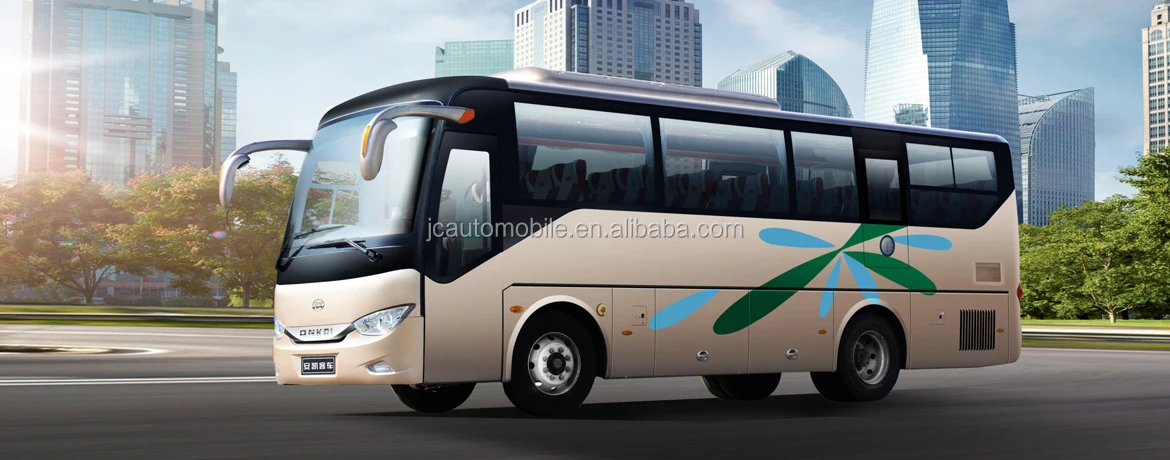

We have other bus models available for you and please kindly click below:
