Perforated metal storage racks industrial longspan shelving
Longspan metal shelving system adopt the structure that the beam hitching on the frame, the beam can be easily adjusted by step of 50mm. This kind of rack is suit of more bearing and longer beams, usually the bearing between 350kg and 800kg. The board can be steel plate or wood plate logs of wood, MDF, particle board with plastic, etc.
Features of the storage racking :
The Max. height could reach 16m
The beam could be adjusted at the step 75mm,and could better reach the warehouse storage requirements.
If there is any parts damaged, it could be changed conveniently.
The racking surface has been treated, and has high corrosion-proof ability.

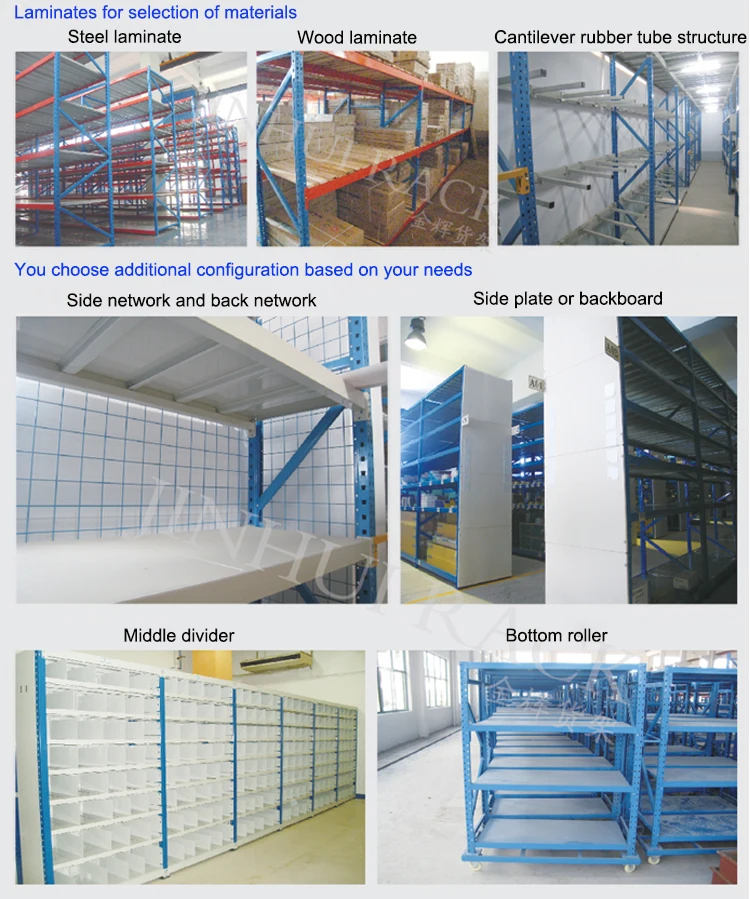

Could choose more various parts and safety accessories
Assembled structure, the rackings could be easily and speedily installed
The parts adopts hig quality material, and could be soldered firmly, installed closely.
Length | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 |
Beam Specification | Load/kg | |||||||
80×50 | 3000 | 2300 | 1800 | 1500 | 1200 | 1000 | 800 | 700 |
100×50 | 4000 | 4000 | 3000 | 2400 | 2000 | 1750 | 1400 | 1100 |
120×50 | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 | 2000 | 1800 |
140×50 | 4000 | 4000 | 4000 | 4000 | 4000 | 3800 | 3000 | 2500 |

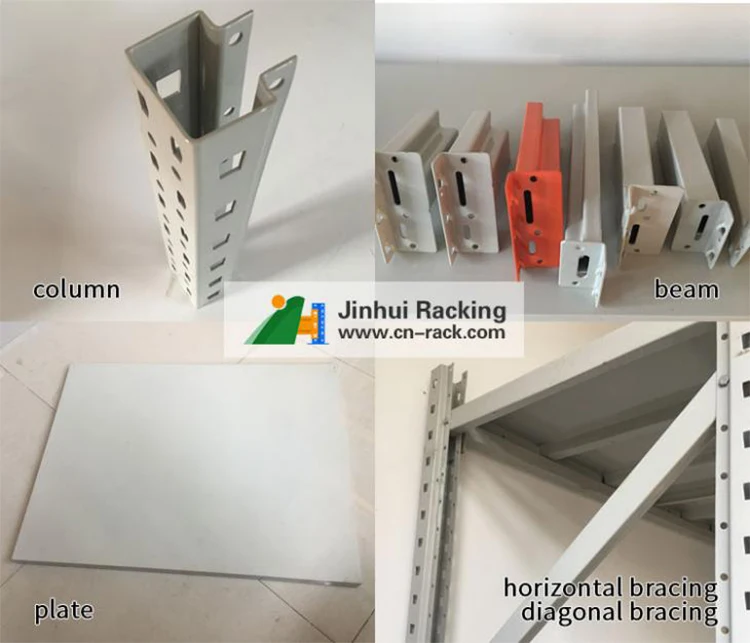

| Shelf structure | 1) Columns made from cold rolled steel, its positive double punch holes, hole distance 50mm, hole used to mount the beam columns for use; column connecting pipe pieces include horizontal, inclined connecting pipe, the two column and all the bolt root. 2) Beams with "P"-type pipe, commonly known as "ladder beam", step height and the height of laminate to match. 3) The steel plate cold rolled steel plate bending forming four sides of the desired size. 4) The beams and columns into the framework of the film mount assembly, and finally the laying of steel plate 5) The shelf parts good shape after processing all polished, acid, phosphate, automatic powder coating, drying process finished after assembly. 6) The surface of the shelf products to produce clean, beautiful; shelves up and down by 50mm pitch layer can be adjusted, to facilitate entry |

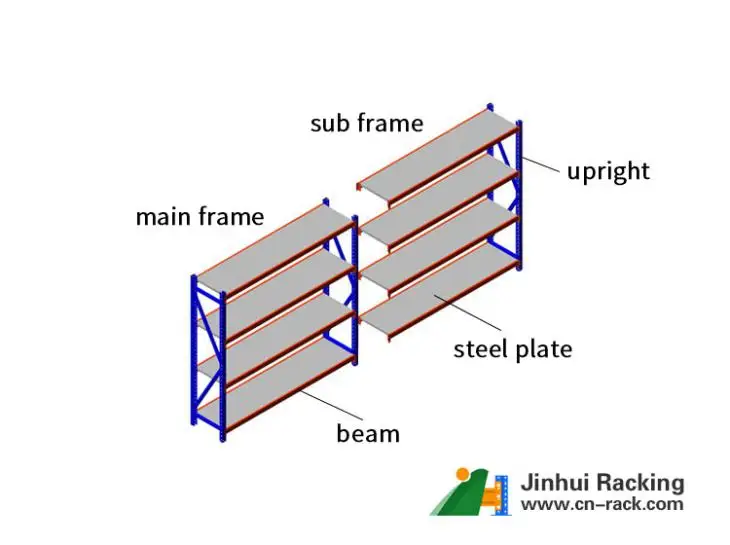

| MainFrame | 1) Two frames (one frame: Add a few horizontal pull the two cable-stayed columns.) 2) Beam (one layer have two beams.) Shleves (shelves are placed on top of two beams.) |
| Subframe | One frame (a frame: Add a few horizontal pull the two cable-stayed columns.) beam (layer have two beams.) Shleves (shelves are placed on top of two beams.) |

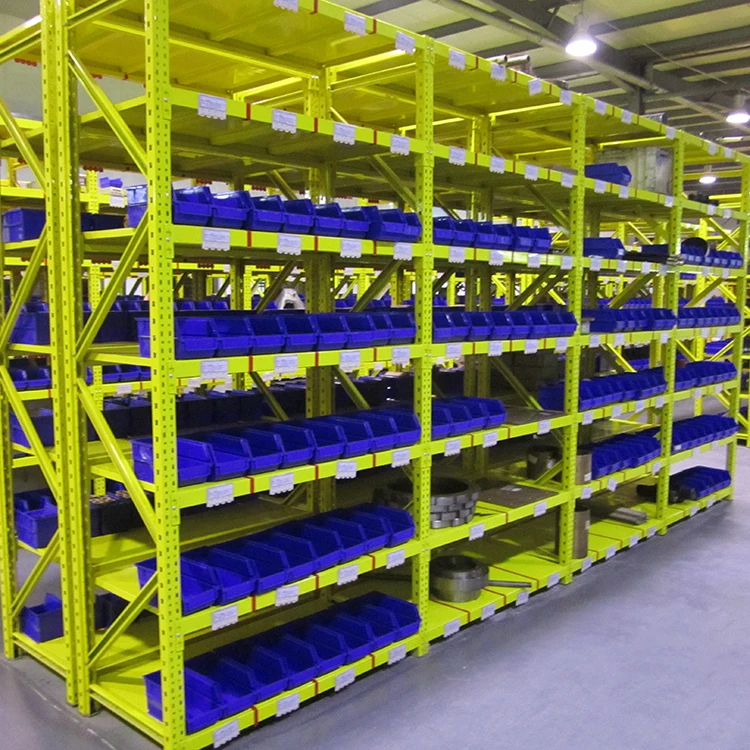

| Longspan shelf Scope | 1) It usually for small parts, heavy goods storage, the default load-bearing layer in the 150kg-600kg range. 2) It is widely used in human, manual handling, storage and selection operations based on various occasions such as storage and display. |
