Blister sealing machine for SD card sealing
- Category: >>>
- Supplier: Guangzhou Looker Packaging Machinery Co. Ltd.
Share on (60757881096):
Product Overview
Description
Product Description
Application
The machine uses the pulse fever from the mould/die with heating elements. It seals paper card and blister perfectly, and the sealed products are not only with moistureproof and dustproof function, but also with eye-catching appearance.
Applies to plastic blister(made by PVC, PET, PETG etc.)seal with paper card. It's suitable for the packaging process such as toys, stationery, foods, commodity, cosmetics, hardware, medicine, etc.
Features
1, The machine uses four guide pins to guide the pressure plate, it is flatter, the pressure is more stable, the paper card and blister adhesive perfectly.
2, Unique pressure plate heating delay design allows the sealed products much better and more attractive.
3, The round plate (square plate) can be rotated clockwise or anticlockwise freely.
4, Fix with Φ80mm cylinder, higher pressure, stable sealing and good looking.
5, Install the emergency stop button, can stop working anytime, ensure the safety of operator also reduce the output of defective products.
6, Arylic cover isolates the electric connection poles, which can avoid short circuit and also protect operator.
7, Small machine allows flexibility and space-saving, four wheels so can move freely.
8, Easy operation and high production efficiency
Model | LK-50 |
Power supply | AC220V 50/60HZ |
Power\t | 2.0KW |
Max. sealing size | 300*500mm |
Working table | Round Dia960mm\t\t\t |
Sealing mould Q'ty | 3pcs |
Productivity | around 10 times/min |
Machine size | 970*1135*1420mm |
Net weight | 100KG |
Detailed Images
Machine Parts
Name: Mould/Die table
Material: Wooden and plastic
Description:
Round wooden table, diameter is 960mm, can be mounted 3 moulds/dies at one time.
Arylic cover isolates the electric connection poles, which can avoid short circuit and also protect operator.
Main Features
Name: Pressing board
Material: Wooden and plastic
Description:
Size is 300×500mm, driven by a cylinder which diameter is 80mm, 4 guide rods make the board run stable.
Machine Parts
Name: Transformer
Brand: LOOKER
Description:
2000W, 8 steps of voltage, 25V/30V/35V/40V/50V/60V/70V/80V
Machine Part
Name: Emergency stop
Description:
Emergency stop button design, can stop working anytime, reduce the output of defective sealed products
Machine advantage
Emergency button | Safety cover | |||||
Our model | √ | √ | ||||
Others' model | Χ | Χ | ||||
Advantage | emergency stop button, can stop working anytime, ensure the safety of operator also reduce the output of defective products | Arylic cover isolates the electric connection poles, which can avoid short circuit and also protect operator | ||||
Our Factory

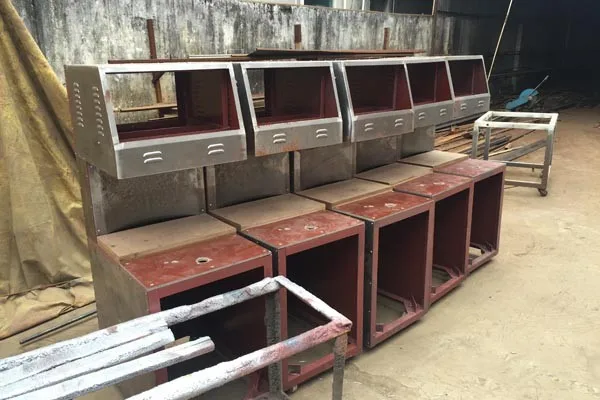

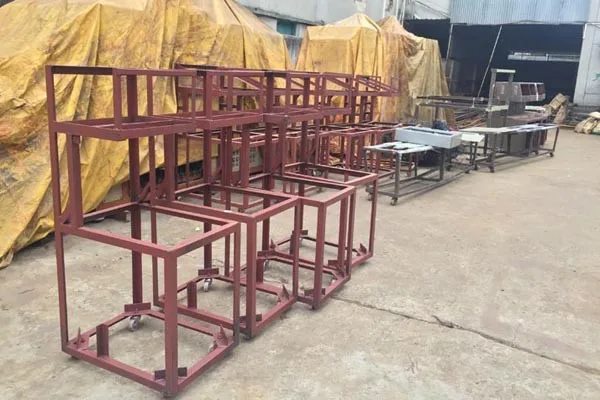

Factory
* 4000 square meters factory.
* Welding room, Printing room, Assemble room.
* 4 lathers, 6 milling machines, 2 metal cutting machines.
* Welding room, Printing room, Assemble room.
* 4 lathers, 6 milling machines, 2 metal cutting machines.
Worker
* Workshop technician, 15 people.
* Sales team, 8 people.
* Design engineer, 3 people.
* Sales team, 8 people.
* Design engineer, 3 people.
Our Service
Pre-Sales Service
* Operation manual.
* Machine assemble instruction video.
* Machine operation video.
After-Sales Service
* Our senior engineer is good at English and knows machine very well.
* Engineers available to service machinery overseas, we have rich experience on this field, here is Tunisia.
After-Sales Service
* Our senior engineer is good at English and knows machine very well.
* Engineers available to service machinery overseas, we have rich experience on this field, here is Sri Lanka.
After-Sales Service
* Our senior engineer is good at English and knows machine very well.
* Engineers available to service machinery overseas, we have rich experience on this field, here is The Philippines.
Customer visit
Certifications
