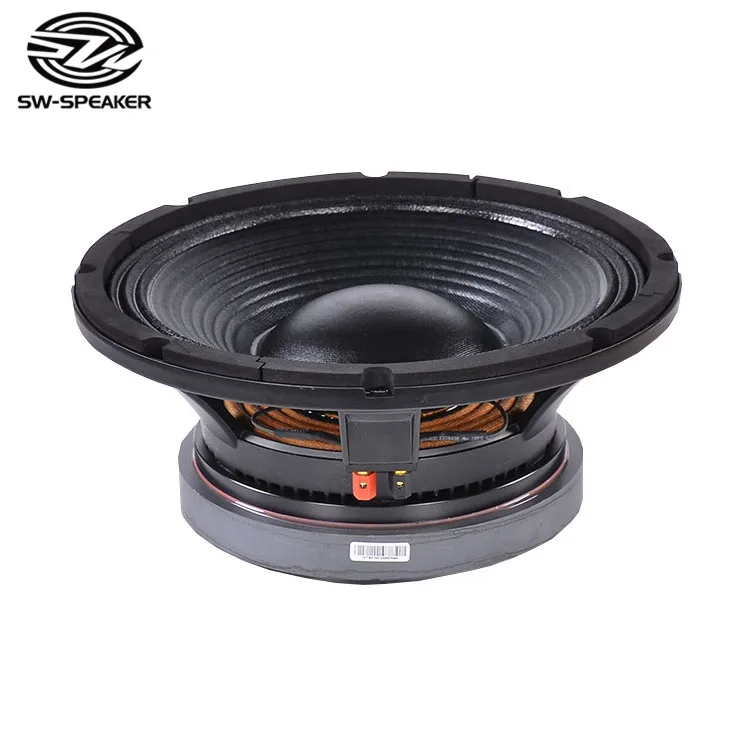

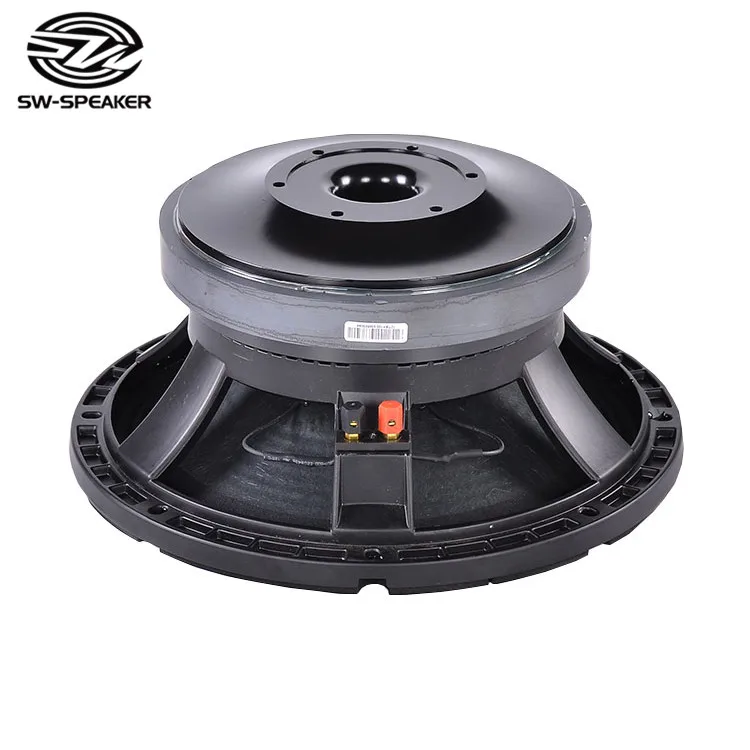

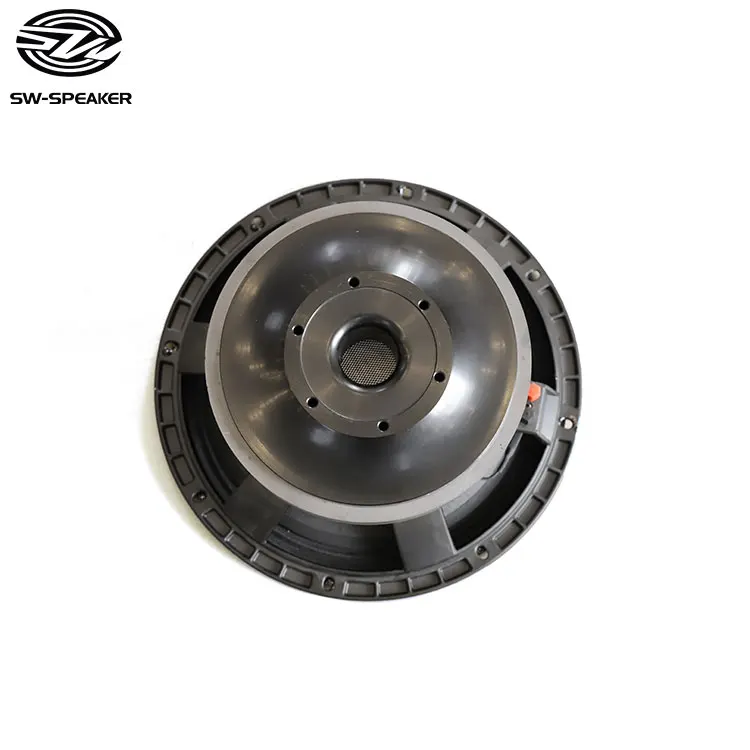

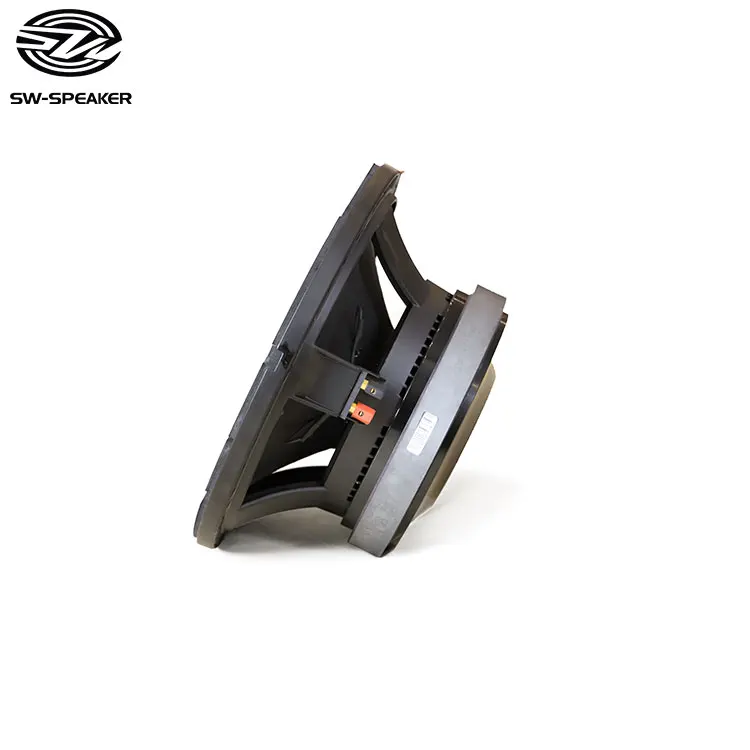

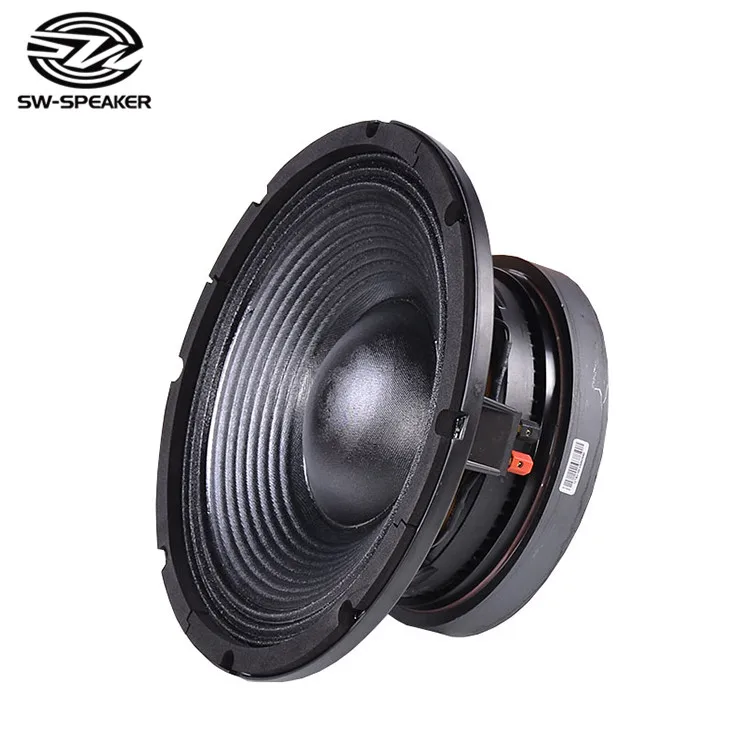

Woofer 12 inches woofer 8 ohm 1000w 12TBX100 Recone Kit
- Category: >>>
- Supplier: Guangzhou Soundwave Electronic Technology Co. Ltd.
Share on (60757993911):
Product Overview
Description
Woofer 12 inches woofer 8 ohm 1000w 12TBX100
2000 W continuous program power capacity
100 mm (4 in) copper voice coil
45 - 1000 Hz response
95 dB sensitivity
Aluminium demodulating ring allows a very
low distortion figure
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power
compression
| Model | 12TBX100 |
| Product name | LF Drivers |
| General Specification | |
| Nominal Diameter | 320 mm |
| Norminal impedance | 8 ohm |
| Minimum impedance | 6.3 ohm |
| AES | 1000 W |
| Sensitivity (1W/1m) | 95 db |
| Frequency Range | 45-1500 Hz |
| Voice Coil Diameter | 100 mm |
| Winding Maerial | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 25 mm |
| Parameters | |
| Fs | 42 Hz |
| Re | 5 ohm |
| Qes | 0.27 |
| Qms | 6.9 |
| Qts | 0.26 |
| Vas | 37.5 L |
| Sd | 531.0 cm2 |
| Xmax | ±11 mm |
| Mms | 119 g |
| Bl | 25.5 Txm |
| Le | 1.6 Mh |
| EBP | 155 |
Related products
Packaging & Shipping
Shipping
1. Fedex/DHL/UPS/TNT/ for samples, door to door
2. By air or by sea for batch goods, for FCL; Airport / port receiving
3. Customers specifiying freight forwarders or negotiables shipping methods!
4. Delivery time: 3-5 days for samples; 5-15 days for batch goods.
Trade Terms
1. Payment : T/T, Western Union, Cash, 30% deposit; 70% balance before delivery.
2. MOQ: 1pcs
3. After-sales service:offer one-year warranty. If parts are damaged (during warranty), we'll provide some free replacement parts.
4. package informations: 1pcs per box. / The volume of the box is 380×380×180mm .
