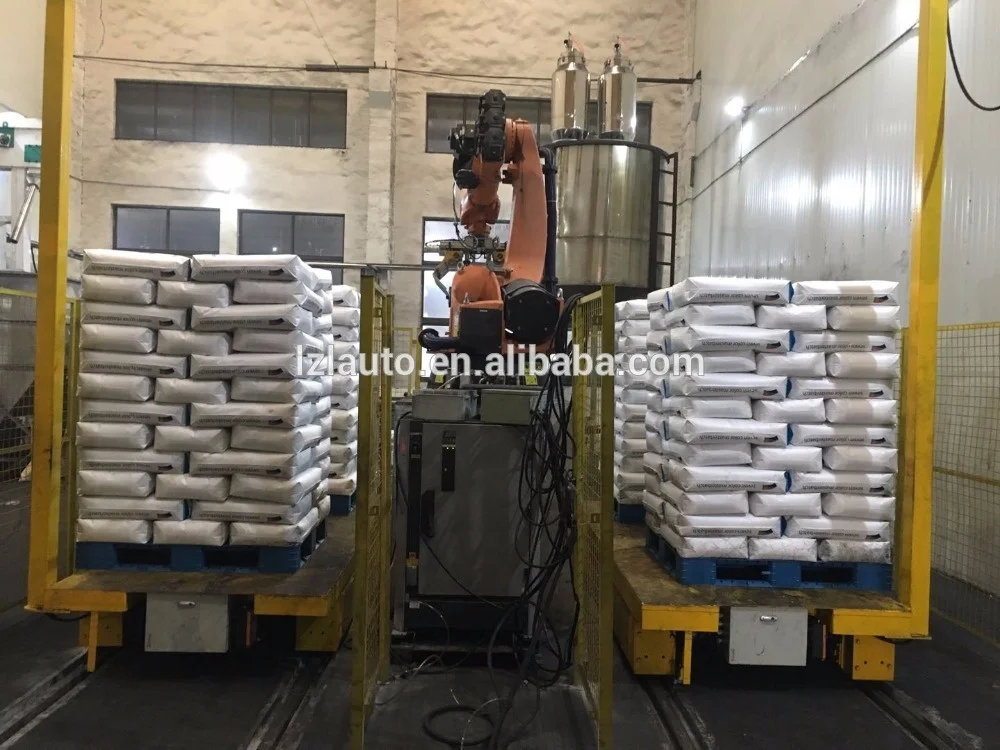

bag robot palletizer
- Category: >>>
- Supplier: Suzhou Lianzhilong Industrial Automation Co. Ltd.
Share on (60758011079):
Product Overview
Description
Robot Palletizer Robot For Beverage, food, chemical Industry, bag palletizer machine,bag palletizer,
Robot bag palletizer, bag palletizer robot,
Include palletizer robot, pallet supplier , pallet conveyor,
carton conveyor, rotate table control cabinet,
use high quality Panasonic or Schneider servo motor,
delivery time is in one or two months

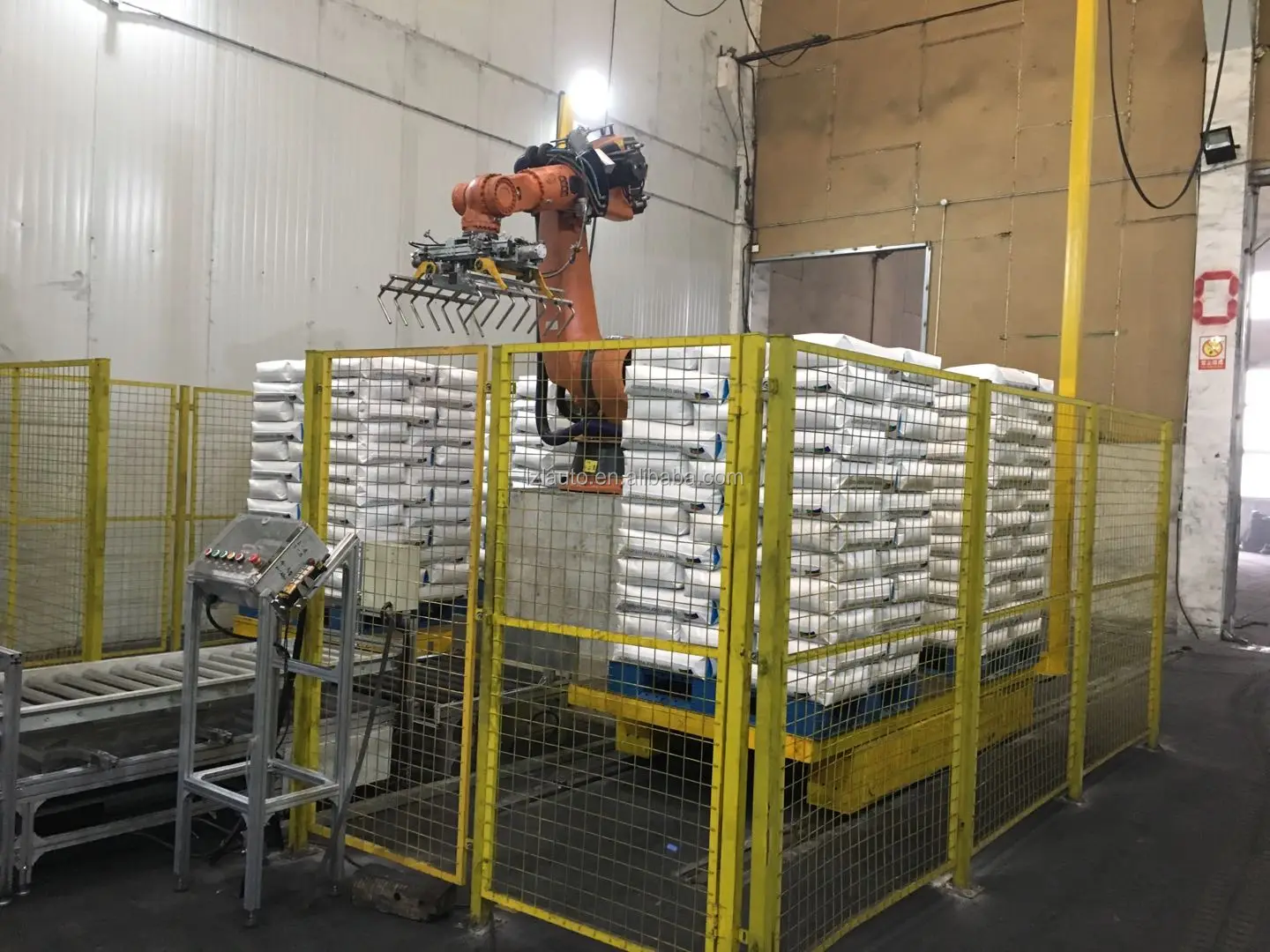

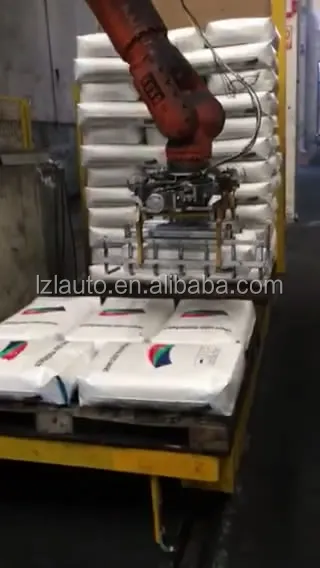

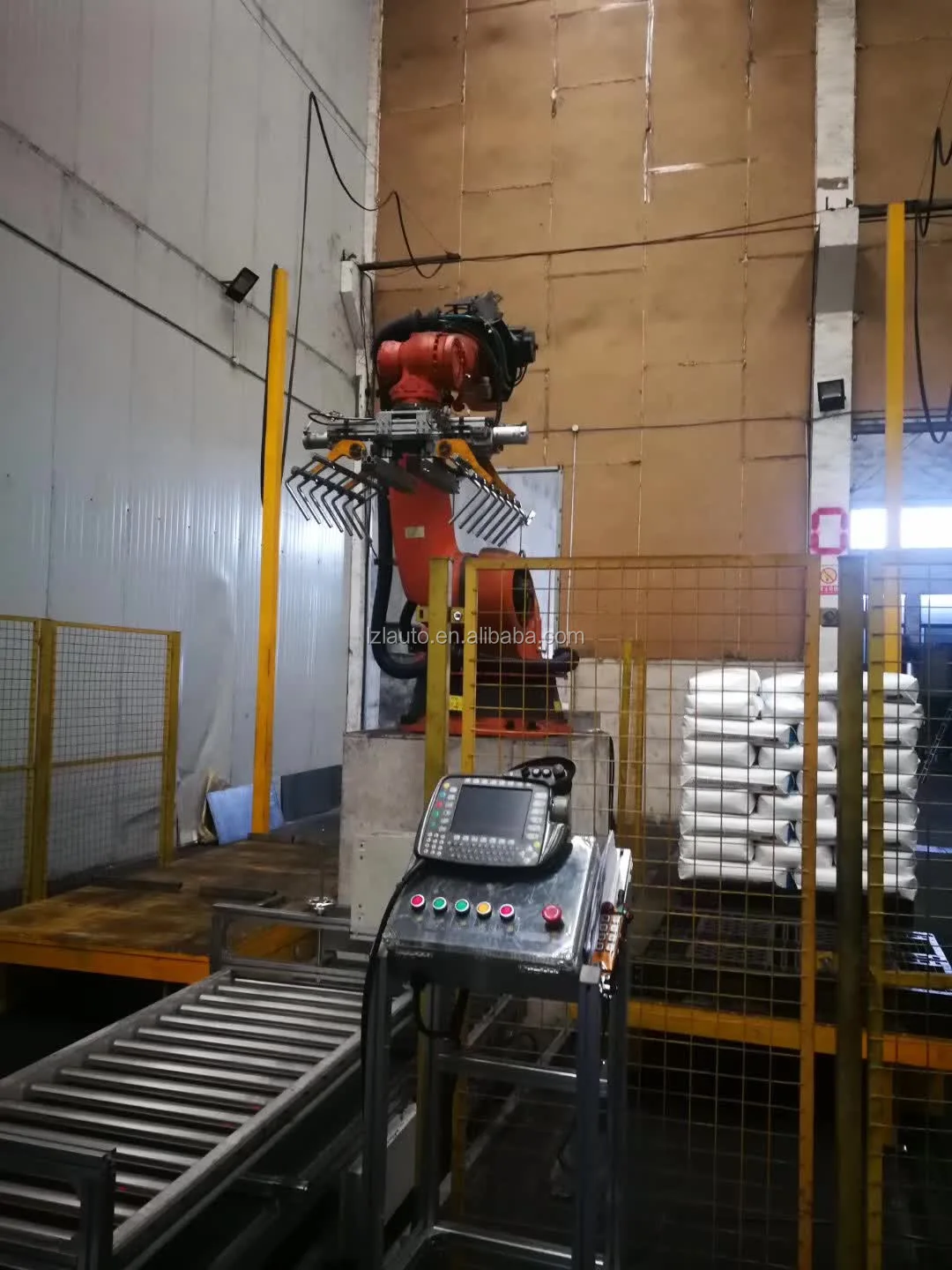

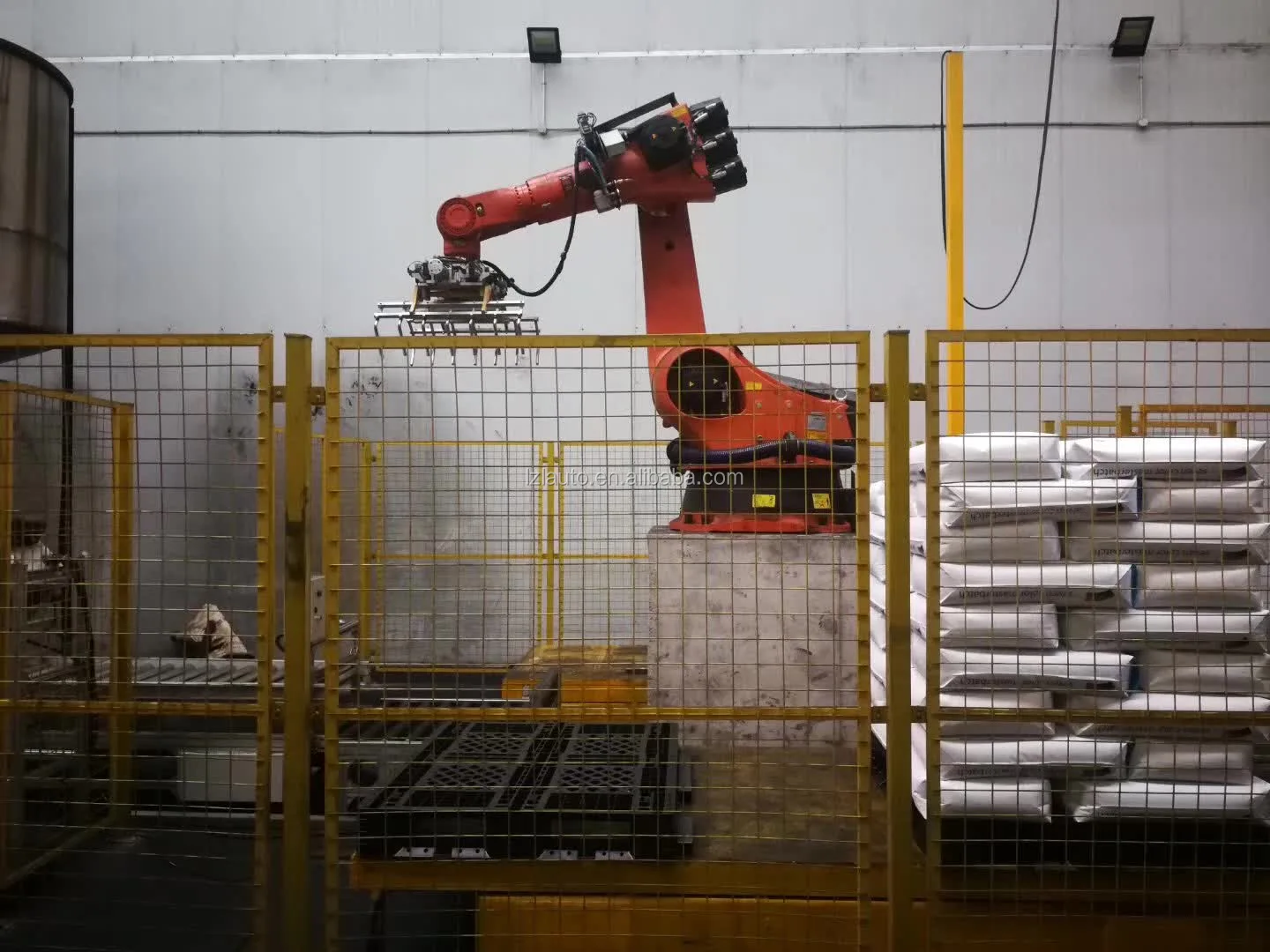

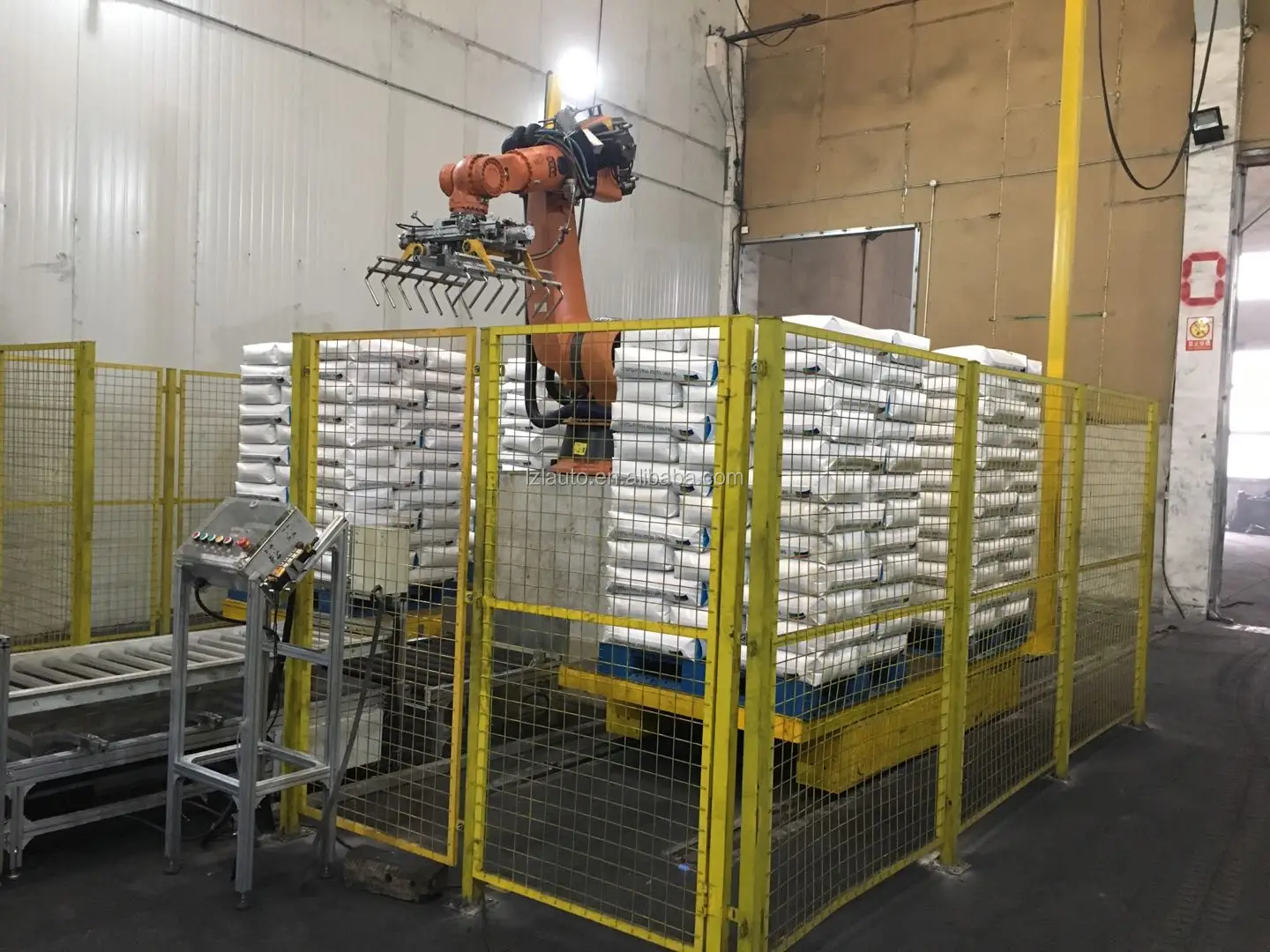

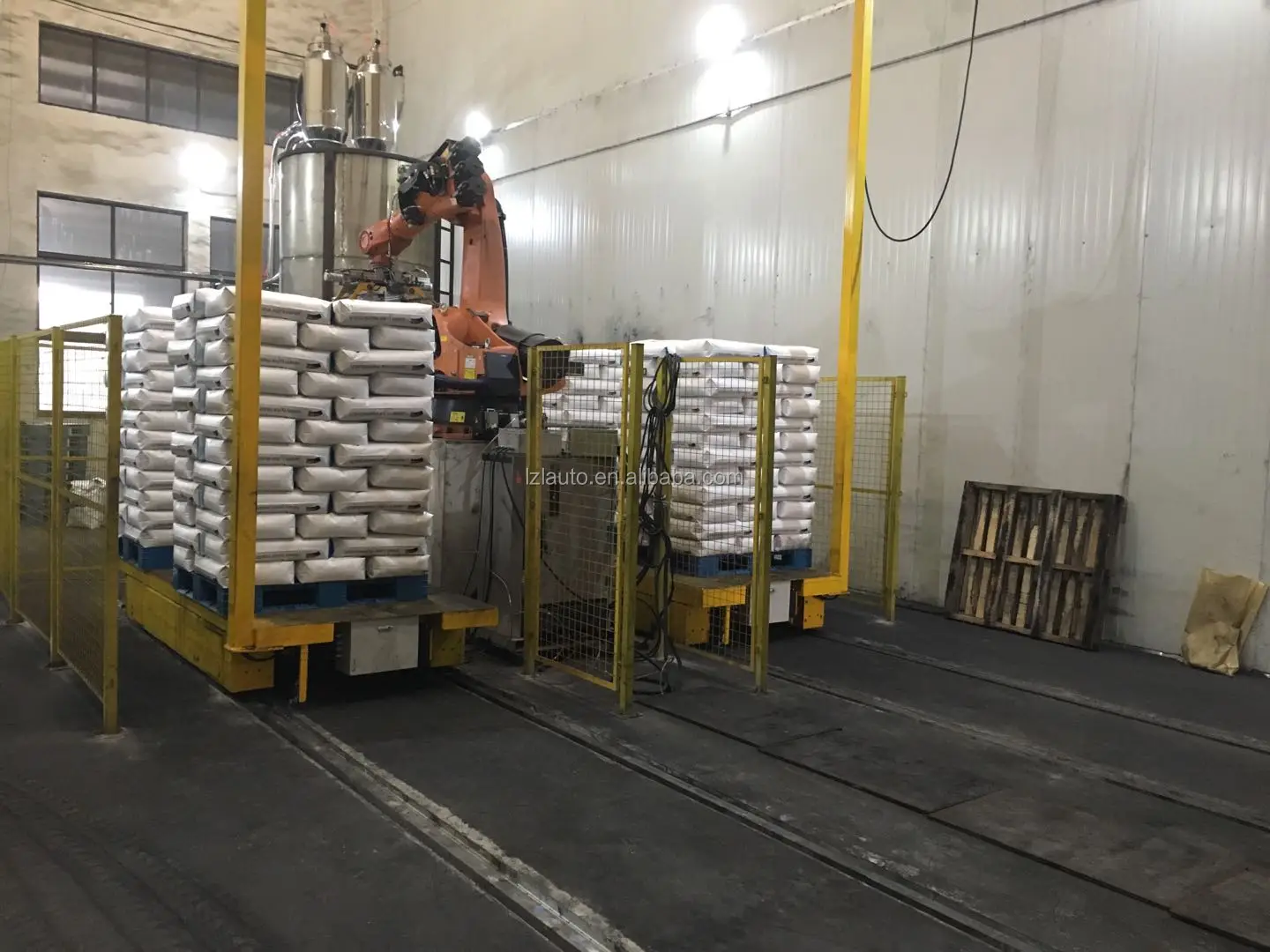

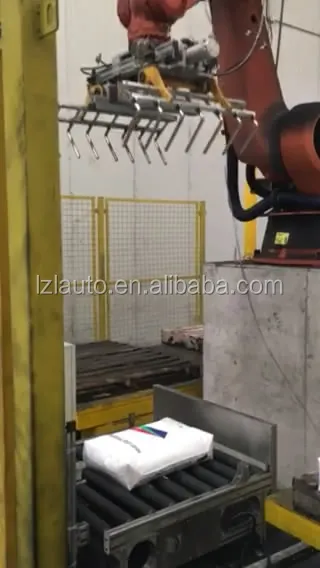

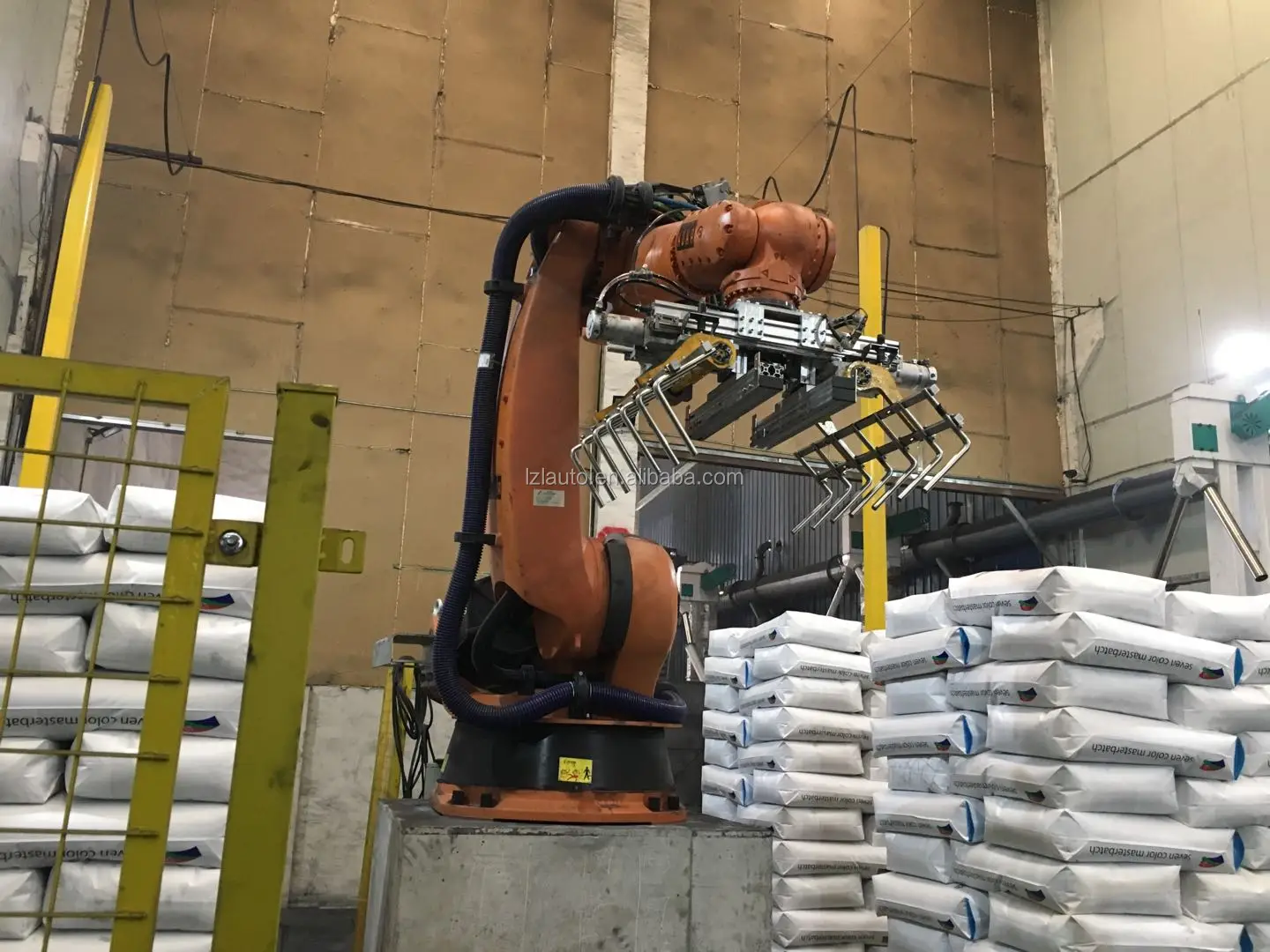

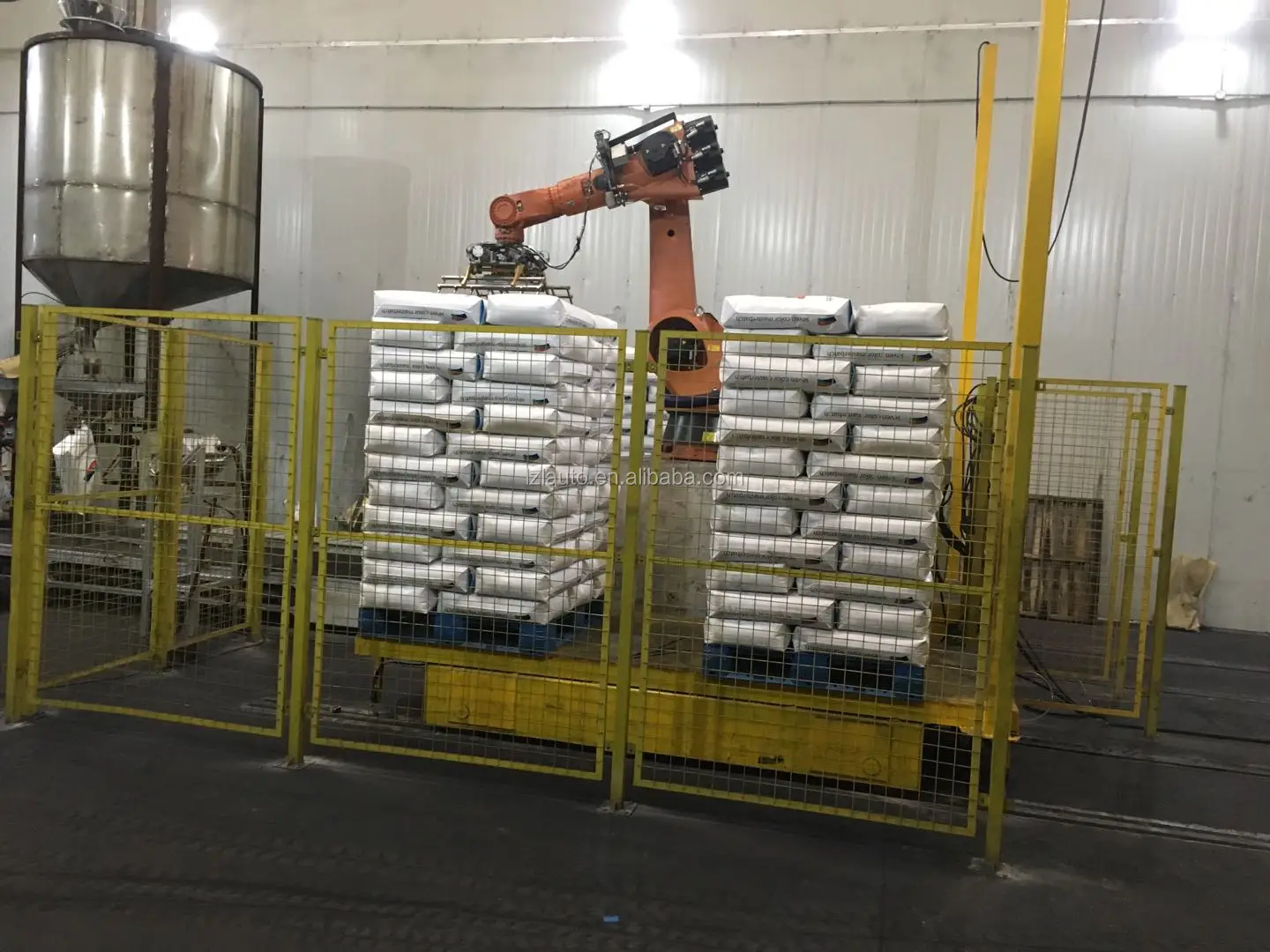

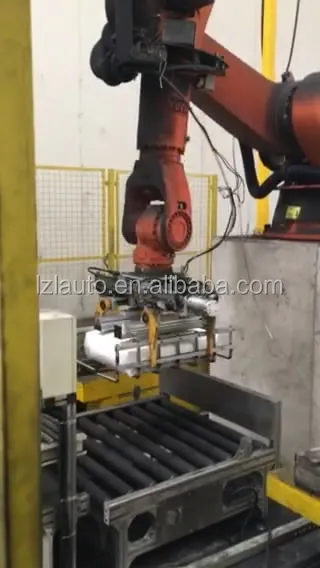

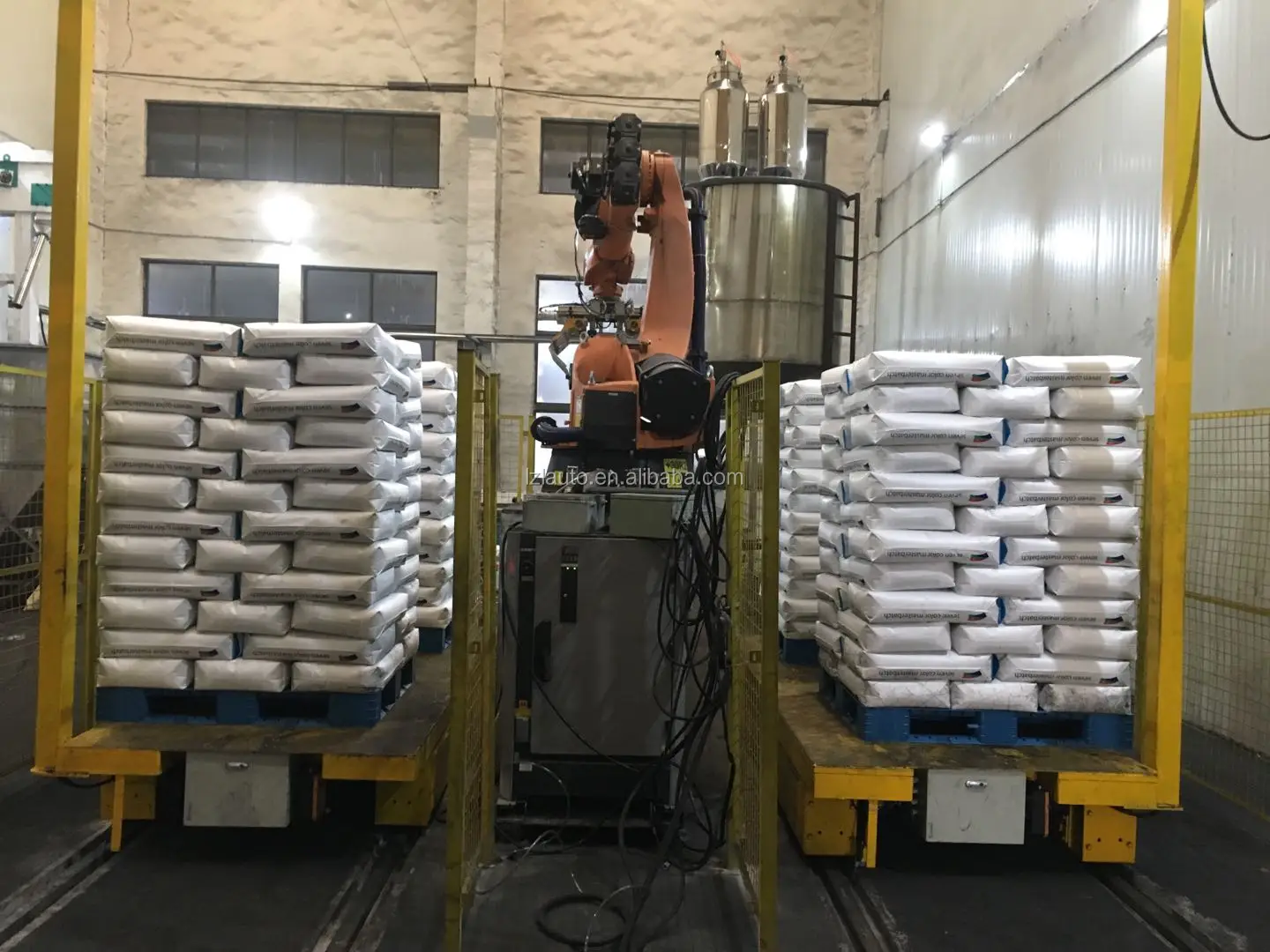

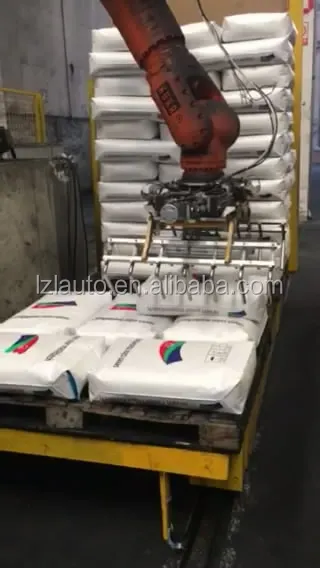

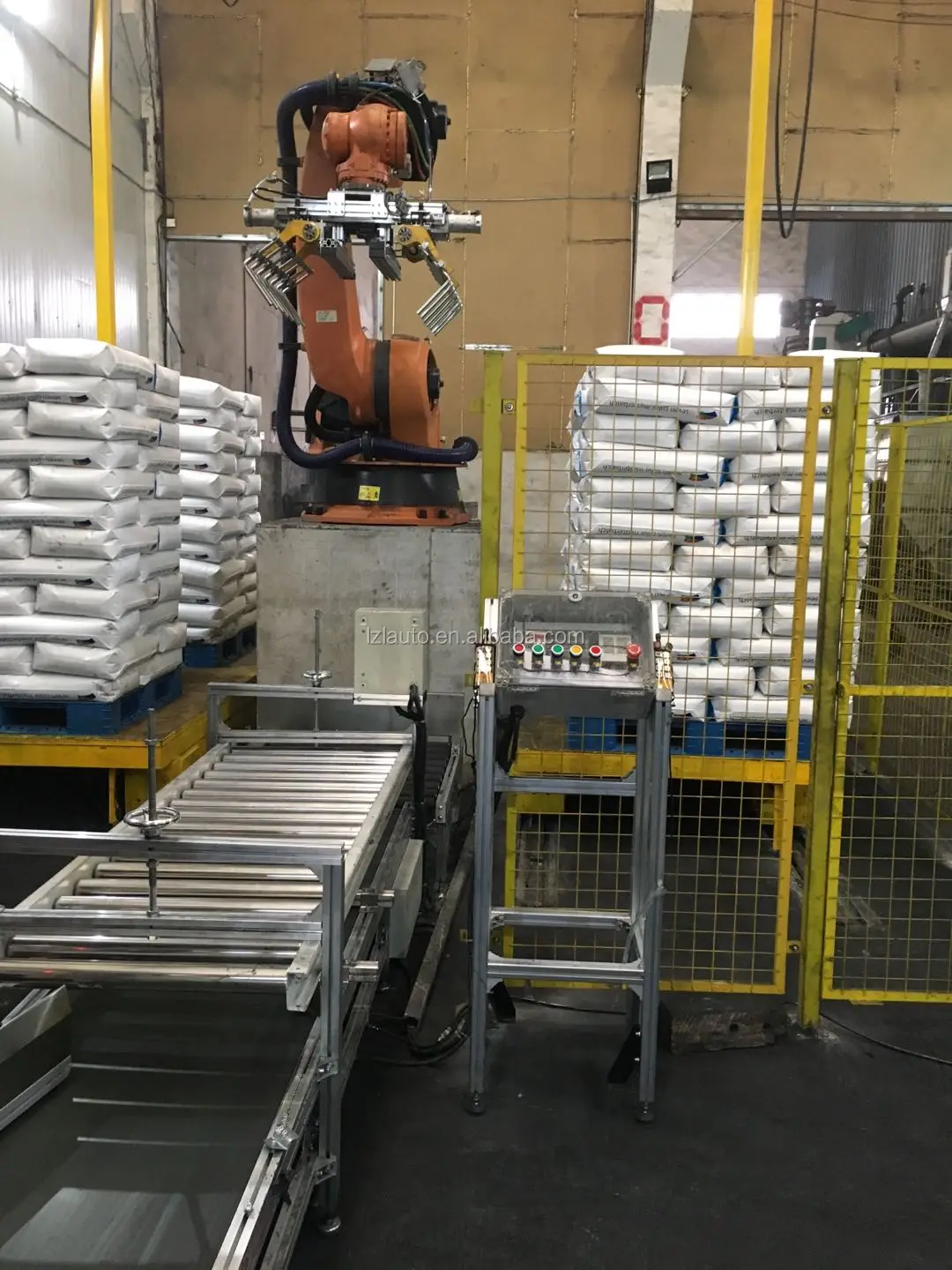

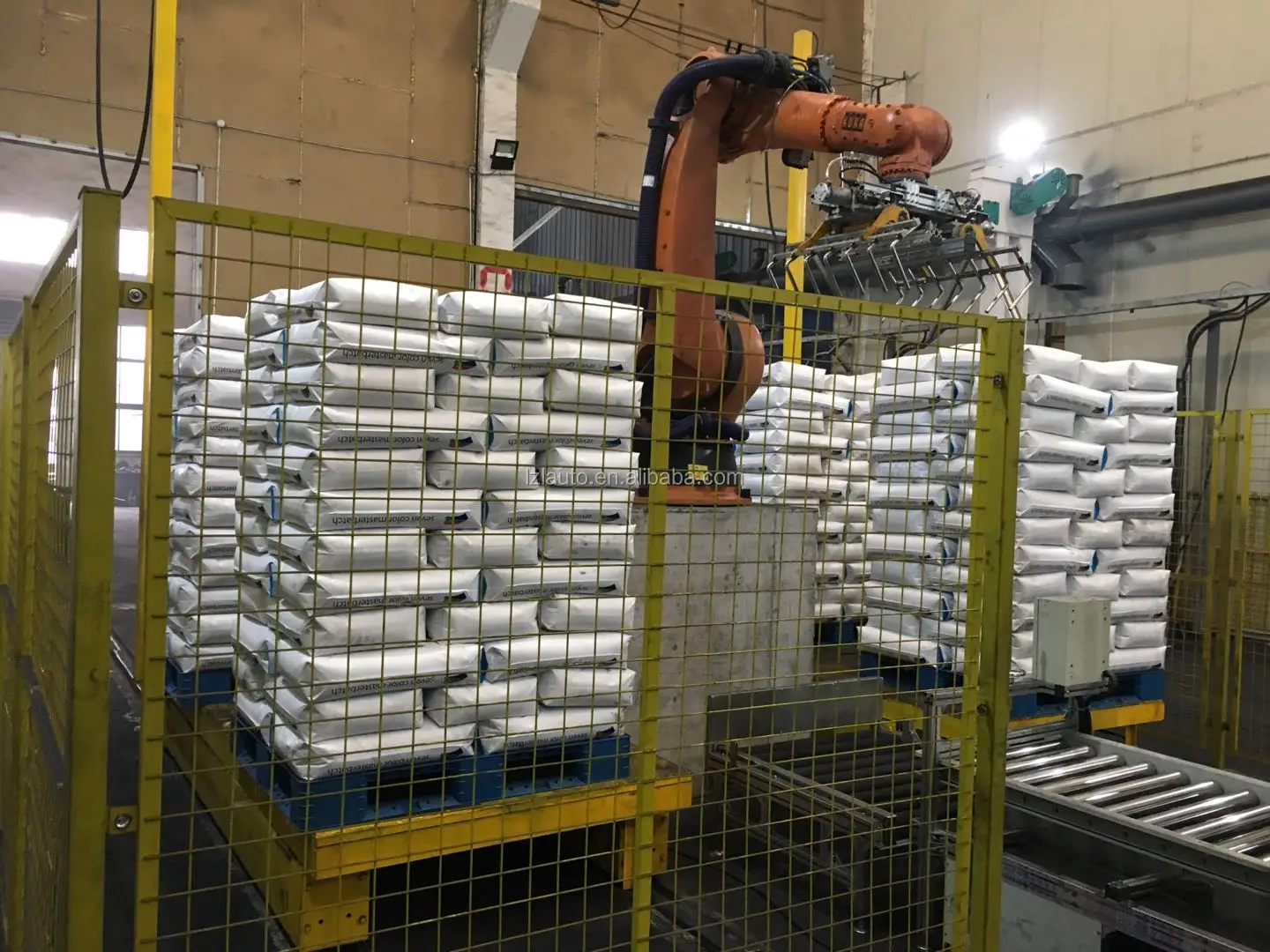

used second hand KUKA robot palletizer
Automatic Robot Palletizer
Machine application
This Automatic Robot Palletizer is widely used in Chemical,beverage, food,beer, plastic,air conditioner industry ect . Automatically pack and stack the carton ,bagged ,canned ,boxed and bottled products .The simple structure ,less components make it easy maintenance
and low maintenance cost.The Robot Palletizer takes less space and more flexible and accurate .

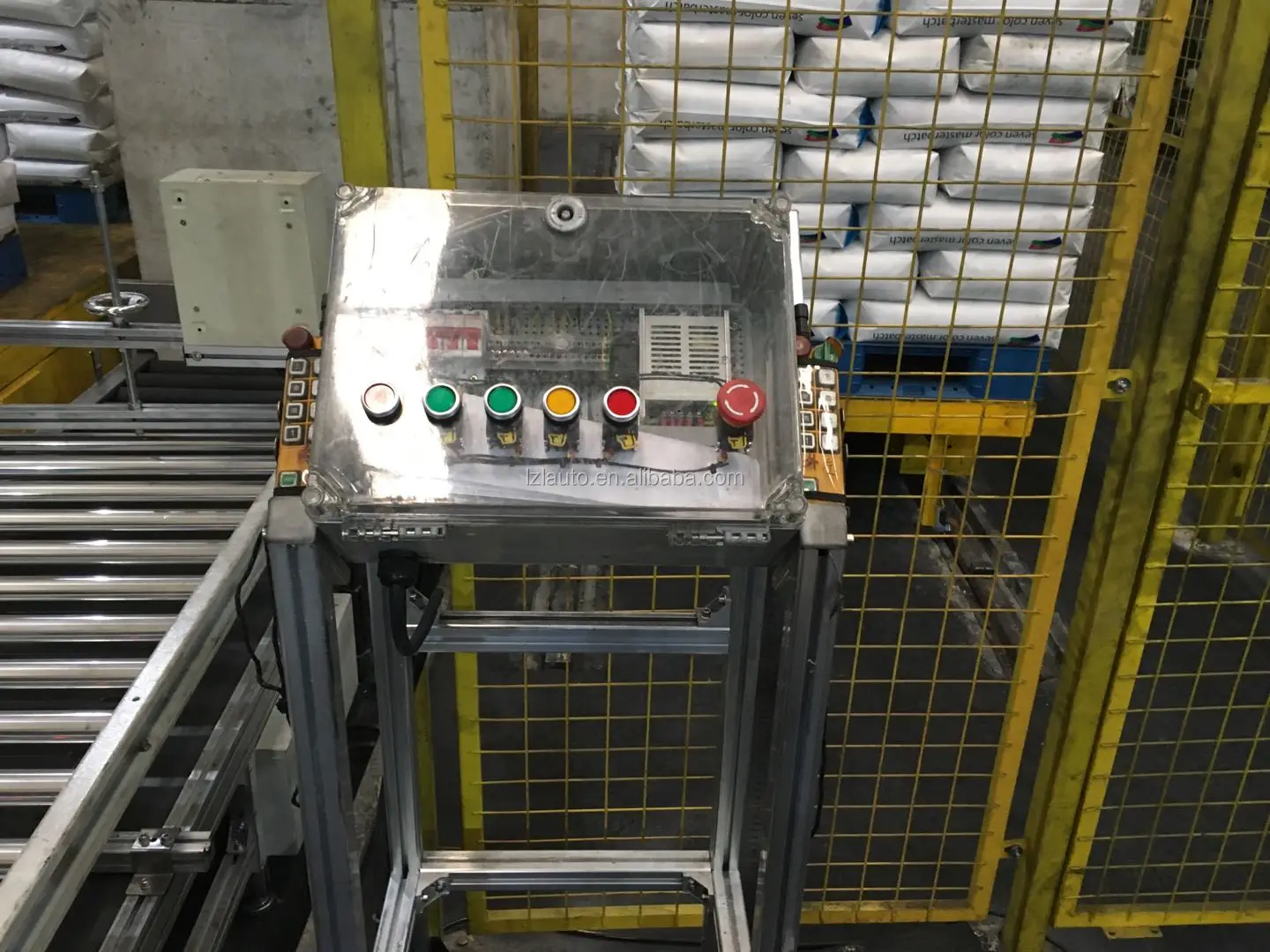

All the control can be implemented on the touch screen of the control box , easy operation .The
robot can work continuously for a long time, reduce a lot of labor and labor cost, more productive.
Applicable scope
Corrugated cartons, plastic boxes, barrel packaging, packaging bags.
l. Adopt the touch screen making it easier and simple operation , the speed ,error reason and place
can be shown on the touch screen ,high automation. Input the program of PLC to control the product
orientation, stacking layer number, empty pallet dispenser and full pallet output.
2. Safety door and safety hood are equipped with sensor, when the door or hood opens. Robot stops
working in order to protect the staffs.
3. Stacking pattern can be adjusted conveniently and easily on the touch screen,stable and high-efficiently stacking save a lot of labor.
4. Product infeed system use the brake motor control, ensure the products can be conveyed to the pre-set
position.
5. Pallet database is big, can hold 12 to 15 empty pallet, which can realize automatic supply pallet.
6. Don't have to change the stacking parts which can complete several stacking mode.
The composition of the robot
The robot is composed by two parts ,one is Controller and another is the Manipulator.
The space of robot manipulator is composed of six axis of six bar open chain institutions, in theory to achieve space any movement.
Robot palletizer is use for packing bags, cartons even other kinds products on one by one pallet. No problem make program to realize different pallet type according to your requirements.The palletizer will pack 1-4 angle pallet if you set. One palltizer is ok working along with one conveyor line, 2 conveyor line and 3conveyor lines.Its optional.Mainly use in automotive, logistics, home appliances, pharmaceuticals, chemicals, food and beverages industries,etc.
Robot Palletizer is used for beverage and food industry, it is suitable for film shrink-wrapping, carton and crate palletization.
General description:
The robot palletizer is widely used in food, beverage, beer and daily chemical products. It covers small floor space, of large production capacity, fully automatic working. It could handle different boxes. And when there is some change about the production line, just need to modify the software program. Whole processing is full automatically come true under windows interface program system, more than 20000 hours maintenance time space and more than 70000 hours malfunction time space make the robot palletizing system to be perfect in production.
Working program:
The Robot palletizer can do palletizing and carton layer separating same time. The shrink-wrapped packs or carton are conveyed to robot operation area, the robot system will palletize packs on pallet; after one layer’s palletization, the robot will pick one layer separating carton board and fix it between each layer of palletization, then it will go on palletizing.
Motion time: about 9~10seconds/ motion.
Payload: 40~500KG.
- Technical indicators of robot palletizer (no problem customized it)
Robot palletizer is mainly for packaging application design, is a small, can be integrated in the compact packaging machinery, and can meet your all requirements in reach distance and payload. With motion control and tracking performance, the robot is very suitable for application in flexible packaging systems, greatly shorten the cycle time packing. Has high precision, and excellent tracking performance, whether in a fixed position, or movement of the operation, its up to precision are first-class. Small volume, high speed, special optimization have been carried out according to package applications, is the inevitable choice of robotic automation. Equipped with a full range of ancillary equipment (from the integrated air and signal system to catch feeder), can form a complete set of packaging software, using simple mechanical aspects of integration, programming is very convenient. Says from the efficiency, palletizing robot not only can bear high weight, and speed and the quality is much higher than artificial.
Robot Palletizing System
General description
The system is composed by robot, clamp, direction turning device, case conveyor, case catching table and etc.
Working procedure: The robot catches the pallet to the palletizing position, while the full bottle cases from the previous stage are transported through the case distribution belt and direction turning device and are arranged in row on the case catching table. Then robot grip packages onto pallet of pallet conveying machine. Repeat the procedure instructions doing palletizing operations. Stacking can be set according to the technical procedures for the quantity of row/column and layers, and the robot will operate following the instructions.Production Logistics Solutions
From Analysis to Installation
Automatic palletizing robot system and its corresponding automatic production line plays a key role in production procedure,
which is inevitable in the development of modern packaging industry.
Automatic palletizing robot system Specification
handling capacity: 3-1000KG
Number of axes: 6
installation site: ground
integrated signal supply :12 poles 50v,250mA
integrated air supply : Max 6bar
Machine type
robot palletizer
Power supply
5 kw / 380 v 50/60 hz
Payload
80 kg to 700 kg (according to customer demand for selected models of robot)
Apply the product
box, revolving basket, film packaging beverage barrels, plastic, paper, drums, etc
Stacking velocity
10 or 40 cases per minute
Using air
6-7 kg/cm2
Working radius
800 mm - 3150 mm
