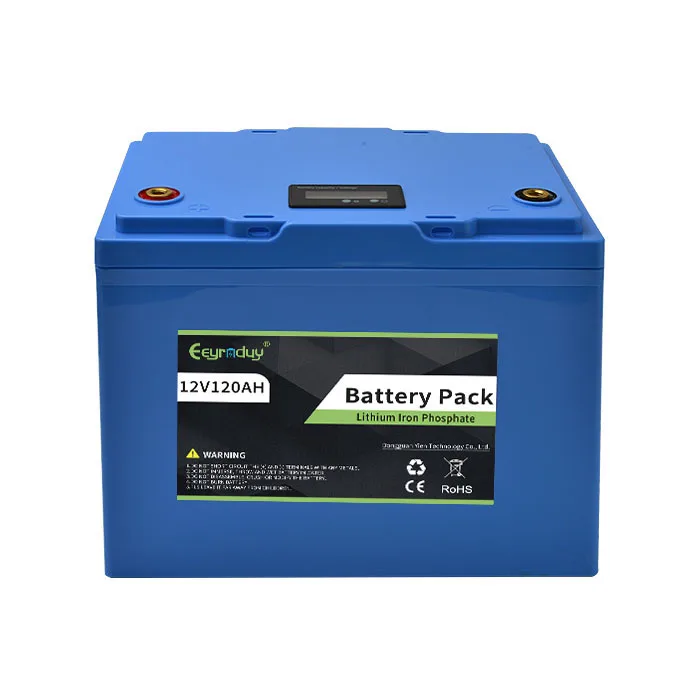

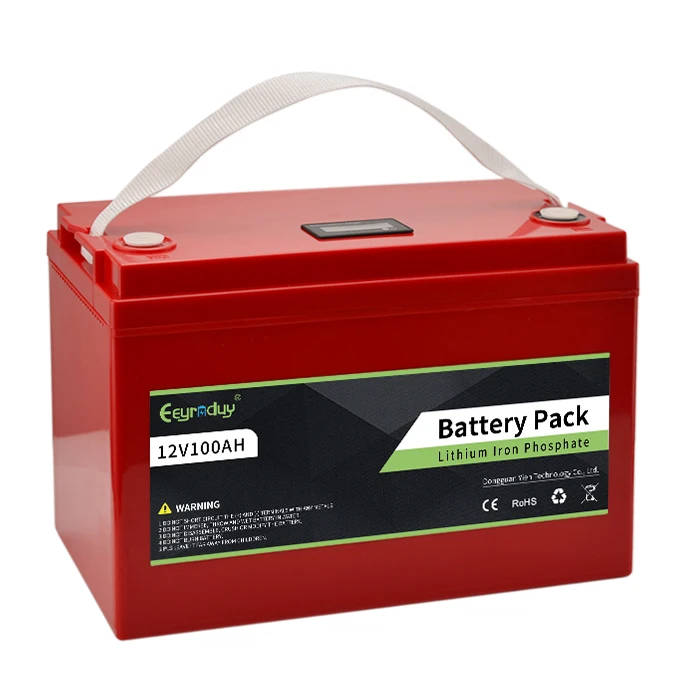

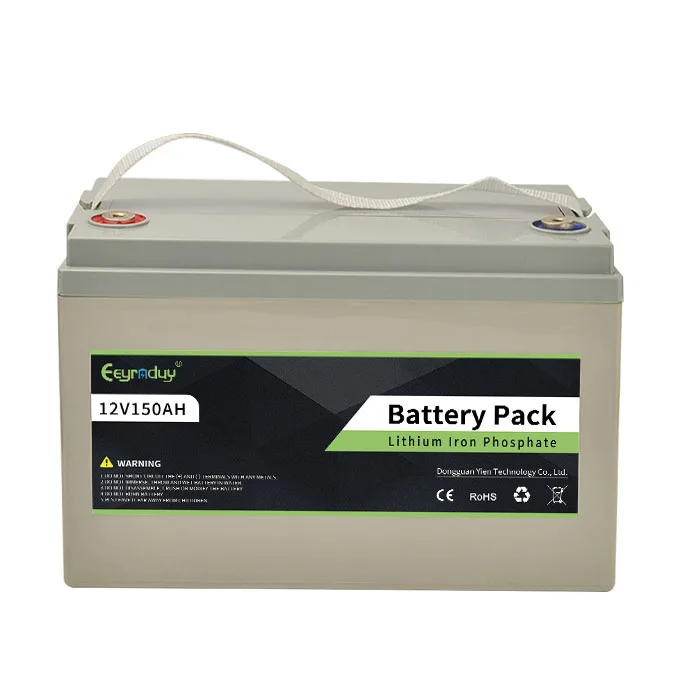

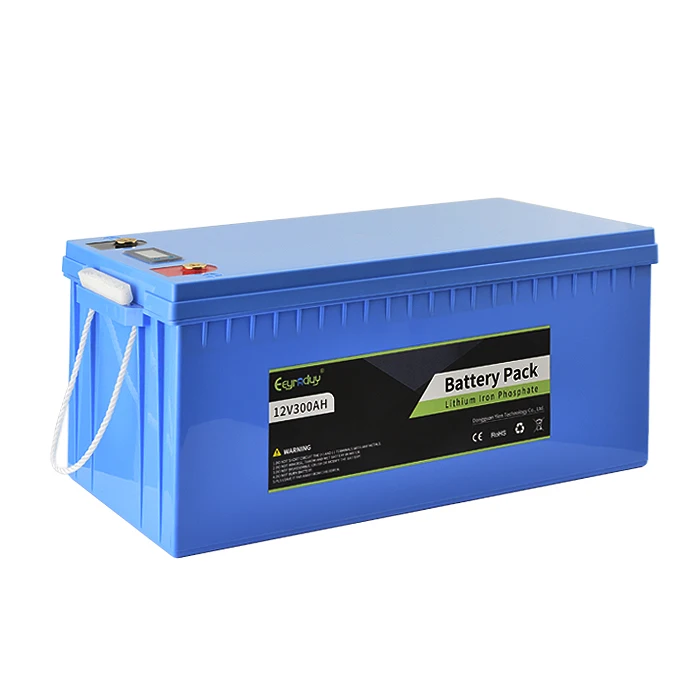

12V 100Ah 240ah 250ah 300ah LiFePO4 Lithium Battery Batteries for solar RV Vans Motor home Marine Boat Yacht
- Category: Digital Battery >>>
- Supplier: Shenzhen Chuangneng Ruiyuan Electronics Co. Ltd.
Share on (60758136683):
Product Overview
Description
Product Description
12V Deep Cycle LiFePO4 Battery Pack
1. Built-in multifunctional BMS.
2. Excellent safety and with long cycle life.3. Customized Voltage ： 12V / 12.8V / 24V / 25.6V / 36V / 48V / 51.2V / 60V / 72V / 96V
4. Customized Capacity ：7Ah ~ 1000Ah LiFePO4 Battery Module（ Lithium iron phosphate battery pack）

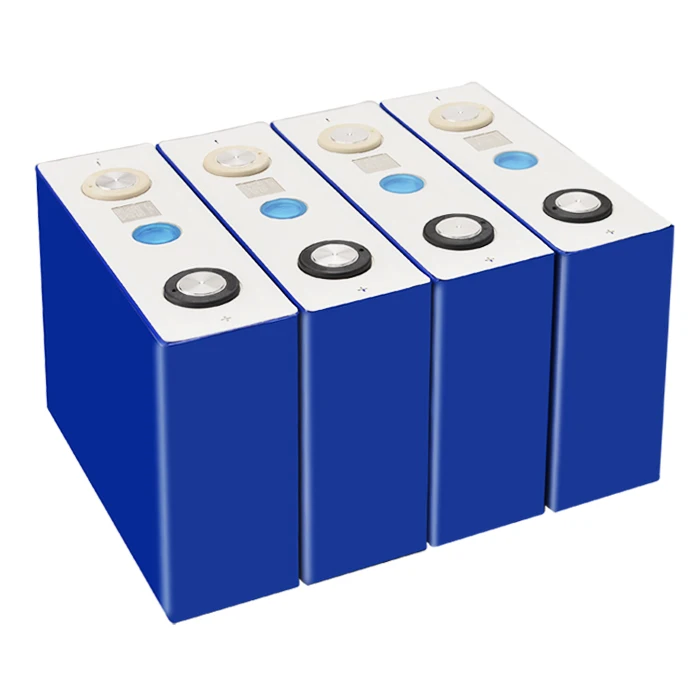

5. Battery Cell Type ：3.2V LiFePO4 Prismatic Cells.
6. Light weight: 40%-50% lighter than lead acid batteries.

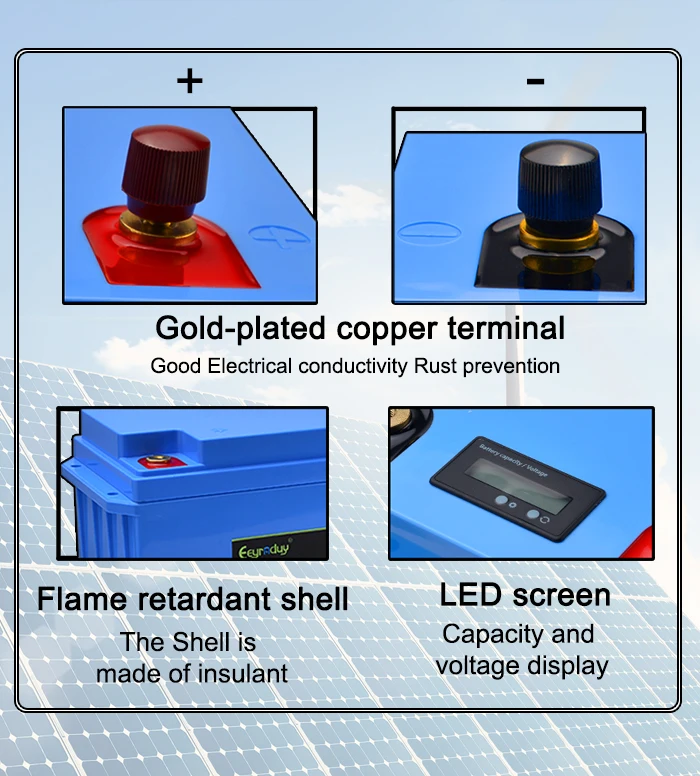

7. Customize with BT Communication, LCD screen, and Logo Brand etc.
NO. | Item | General Paramete | Remark | |

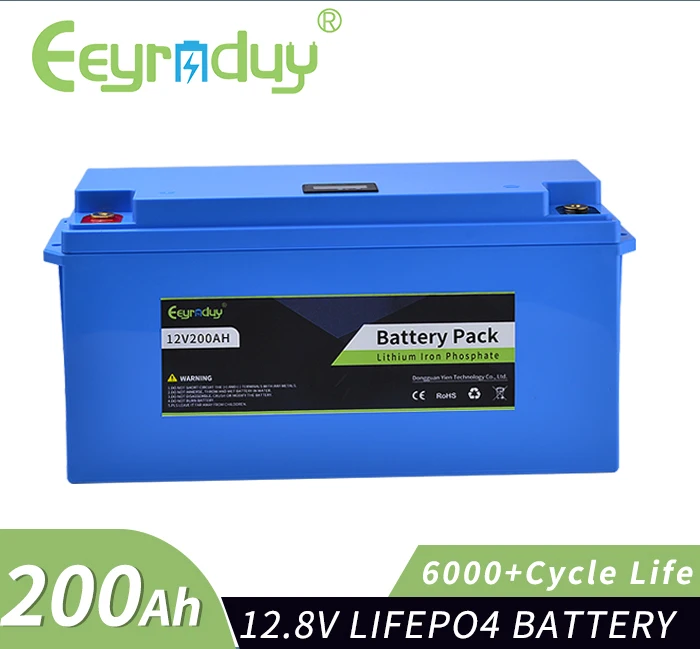

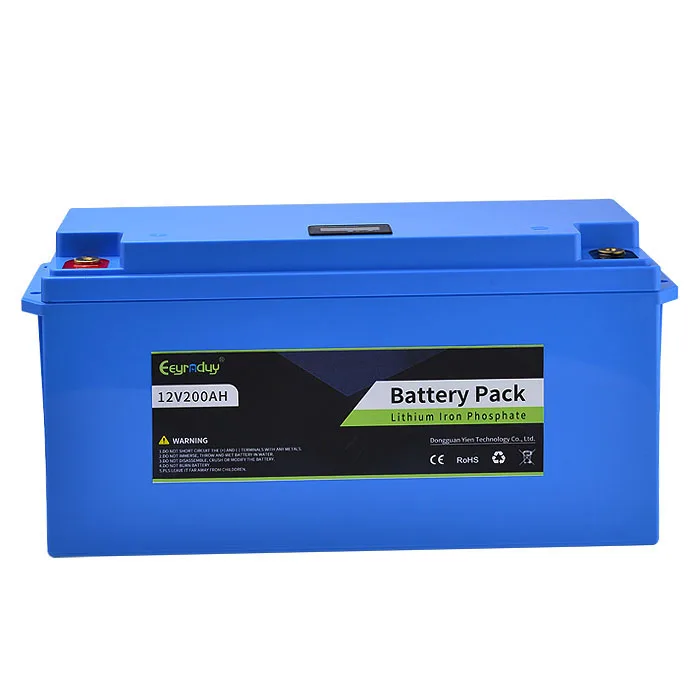

1 | Rated Capacity | 200Ah | Standard discharge （0. 2C5） after standard charge （0. 2C5） | |
Nominal Voltage | 12.8V | |||
2 | Cell and assembly method | 4S2P （Customize as per your requests.） | ||
3 | Standard discharge | Constant current 0. 2C Cut-off voltage 10.0V | ||
4 | Maximum Charge Current | 100A | ||
5 | Max Continuous Discharge Current | 200A | ||
6 | Peak current | 400A | ||
7 | Operation Temperature Range | Charge ：0～45"C | 60±25%R. H。23 ± 5° C（recommended） | |
Discharge ：-10～60°C （cell surface temperature ≤80°C） | ||||
NO. | Item | General Paramete | Remark | |

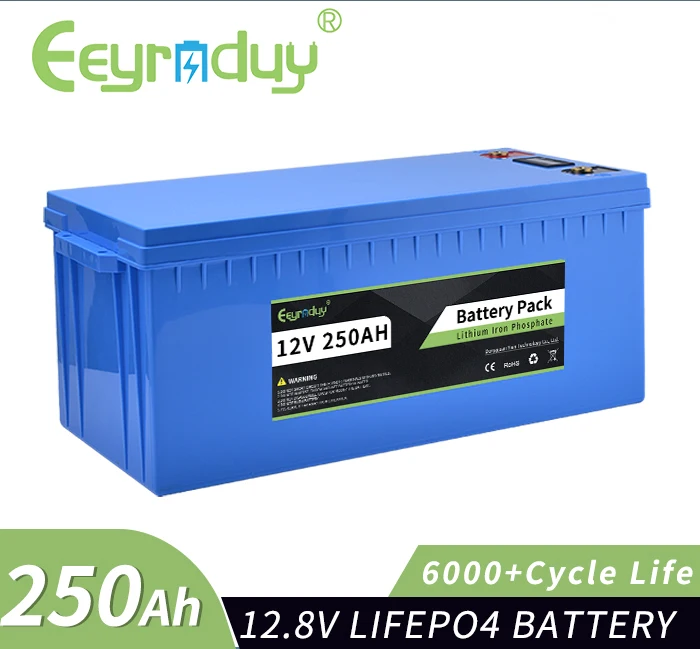

1 | Rated Capacity | 250Ah | Standard discharge （0. 2C5） | |
Nominal Voltage | 12.8V | after standard charge （0. 2C5） | ||
2 | Life Exception | Higher than 80% of the Initial Capacity of the Cells | ♦ Charge:CC@0.2Cto14.6V,then CV till current to 0. 05C ♦ Rest: 30min. ♦ Discharge: 0. 2Cto10.0V ♦ Temperature :20±5°C ♦ Carry out 6000cycles | |
3 | Housing material | Plastic Surgery | ||
4 | Cell and assembly method | 120Ah | 4S1P （Customize as per your requests.） | |
5 | Discharge cut-off voltage | ≥8V | 10.0V （recommended） | |
6 | Charging cut-off voltage | ≤15.6V | 14.6V （recommended） | |
7 | Maximum Charge Current | 125A | ||
8 | Max Continuous Discharge Current | 250A | ||
9 | Peak current | 500A | ||

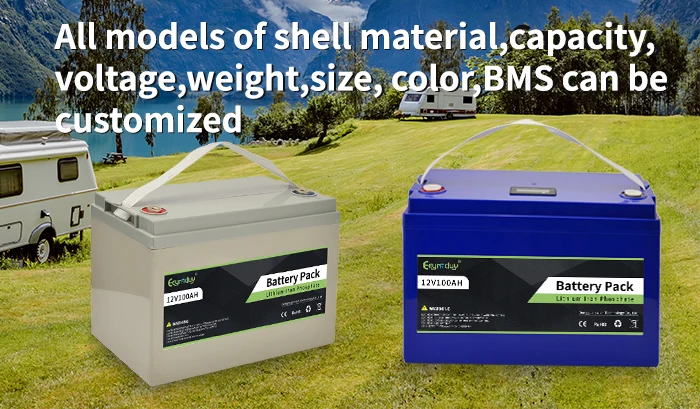

Support Customized

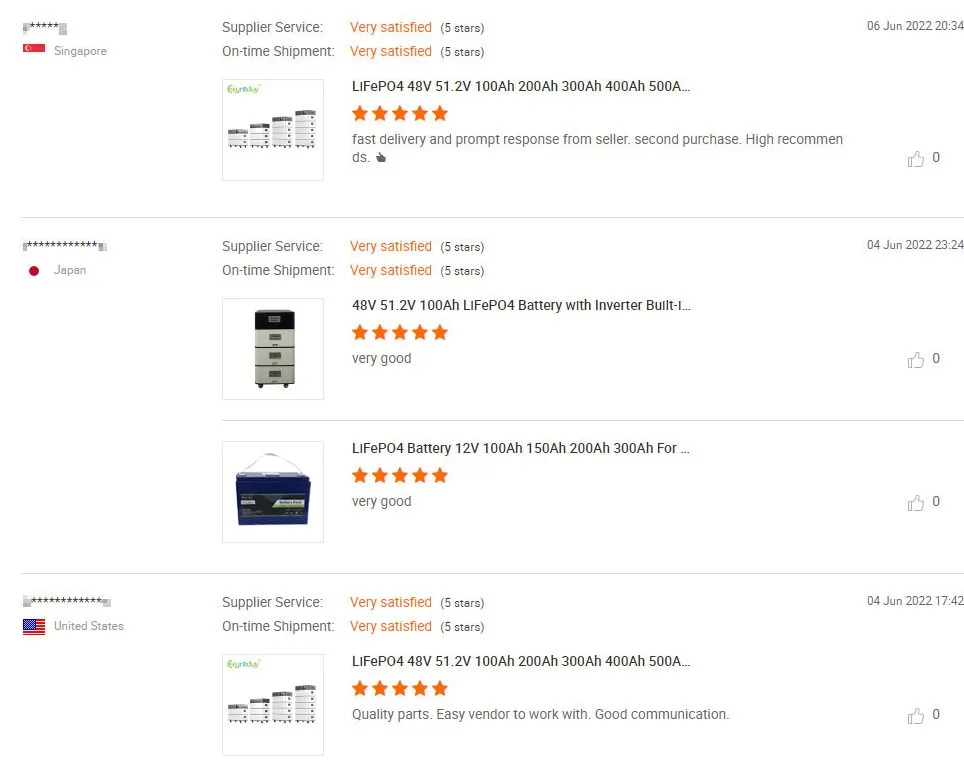

Customers Feedback
