GD 3536 1 Semi automatic Cleveland Open Cup Flash Point Tester

Product Overview

Description

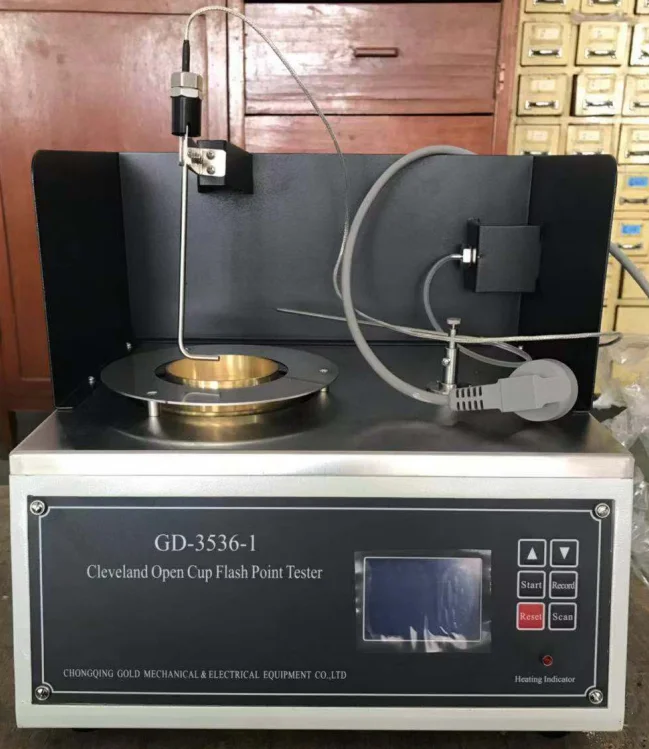

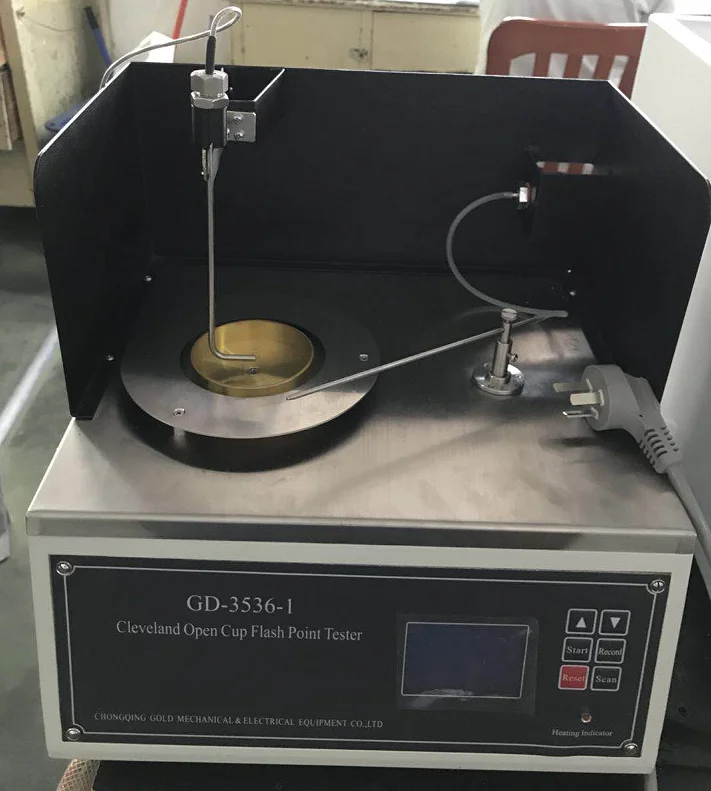

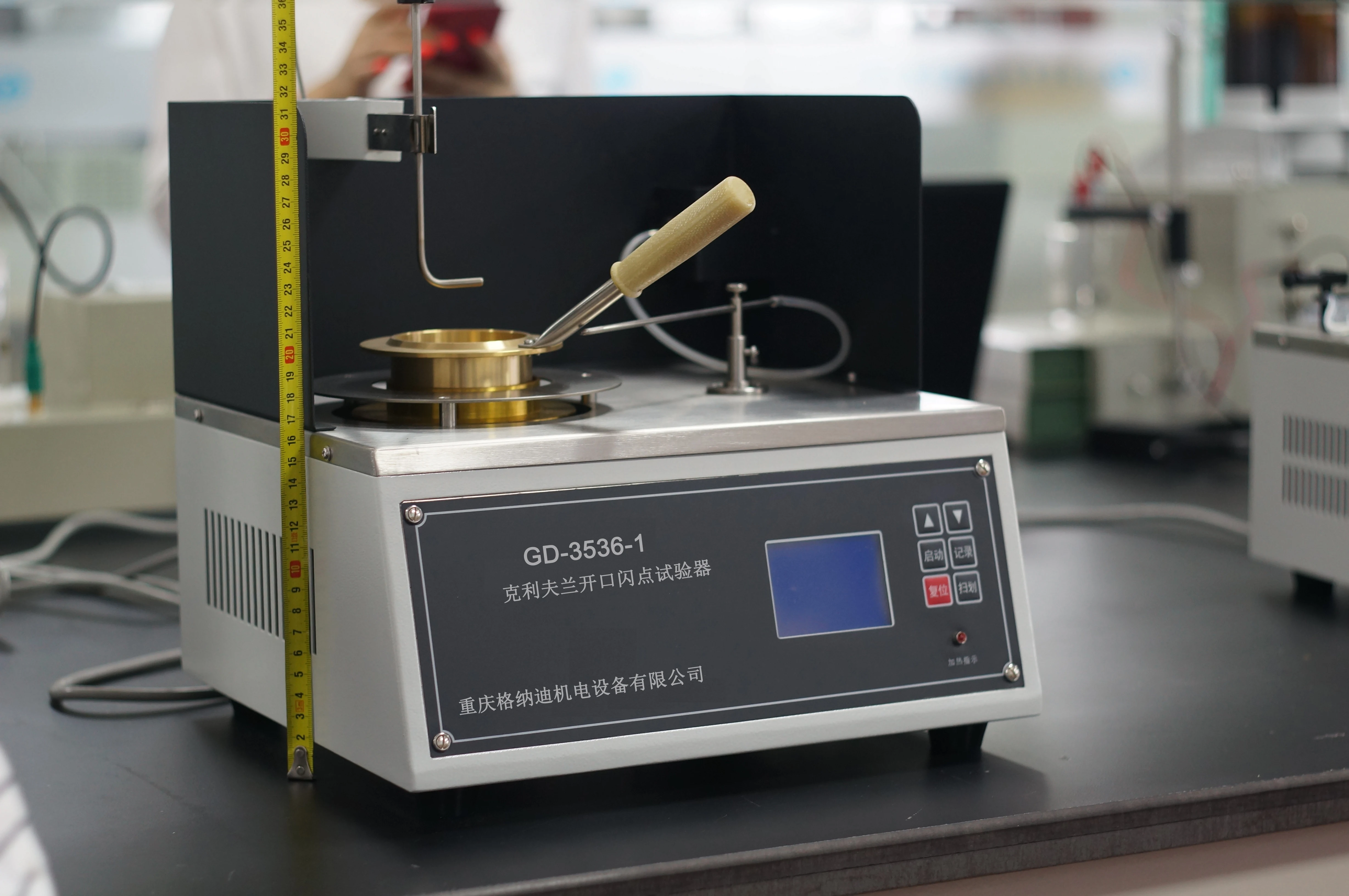

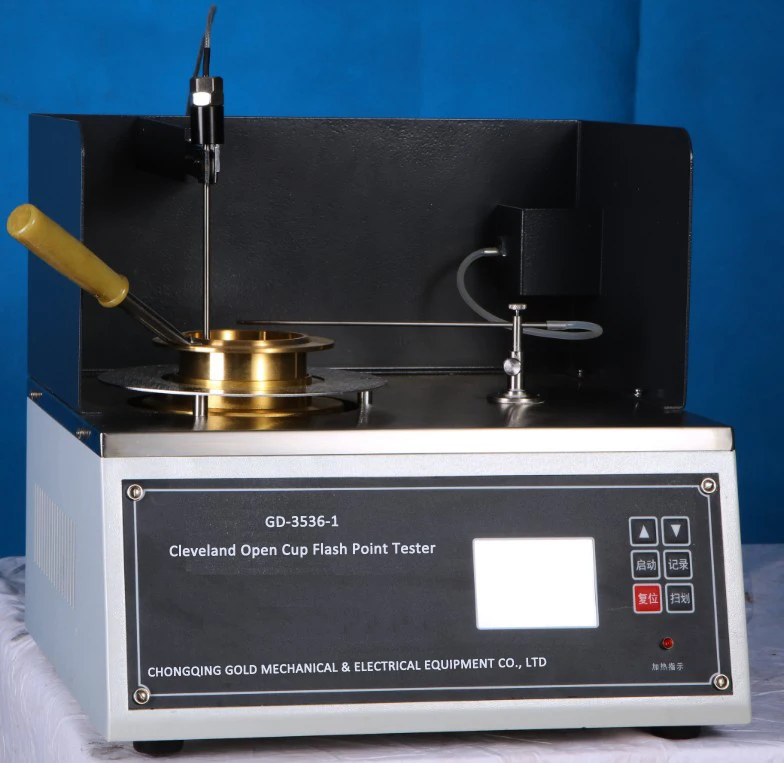

GD-3536-1 Semi-automatic Cleveland Open Cup Flash Point Tester



Introduction:
Semi-automatic Cleveland Open Cup Flash Point Tester is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.

Semi-automatic Cleveland Open Cup Flash Point Tester is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.







Features:

1.  It adopts technology of single chip micro-computer and LCD screen. English man-machine interface. The heating device is continuously adjustable. Easy to set parameters.

2.  The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.

3.  It is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.

4.  It is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.

5.  Accurate heating rate.The instrument can do test automatically.

6.  Operator only need to observe the flash point appearing. The cost performance is high.







 Specifications:

Product name	GD-3536-1 Semi-automatic Cleveland Open Cup Flash Point Tester
Power supply	AC (220±10%) V, 50Hz
Heating device	Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400℃
Temperature control	Single chip microcomputer.The heating rate can meet
Requirements of standards	GB/T 3536-2008 and ASTM D92
Temperature display	LCD shows temperature parameters
The display range and accuracy	0℃~ 400℃, 0.1℃
Flash point detecting device	It applies the test flame automatically
Temperature sensor	RTD, PT100
Igniting device	(1) Ignition source: coal gas (or civil gas) (2) Flame diameter is 3.2mm~ 4.8mm
Ambient temperature	(-10 ~ 50)℃
Relative humidity	≤85%
Maximum power consumption	650W
Dimension	340*320*450mm (Temperature sensor is included)





Accessories:

No.	Name	Unit	Quantity	Remark
1	Main unit	Set	1
2	Cleveland oil cup	Piece	1	We can provide more if you required.
3	Ignition device	Set	1
4	Thermometer	Piece	1	-6°C~400 °C, graduated scale is 2 °C
5	Thermometer support	Set	1
6	Power supply wire (250 V 6 A)	Piece	1
7	Fuse 5 A (Φ5×20)	Piece	2
8	Latex tube Φ6	Meter	1.5	Could not be used as coal gas tube
9	Joint for coal gas tube	Piece	1	Connect coal gas tube and latex tube
10	Extinguishing cover	Piece	1





GD-3536 Series ASTM D92 CLEVELAND OPEN CUP FLASH POINT TESTER

1	GD-3536 Cleveland Open-Cup Flash Point Tester
2	GD-3536-1 Semi-automatic Cleveland Open-Cup Flash Point Tester
3	GD-3536A Automatic Cleveland Open Cup Flash point tester
4	GD-3536D Fully-automatic Cleveland Open Cup Flash Point Tester





Product Packing:

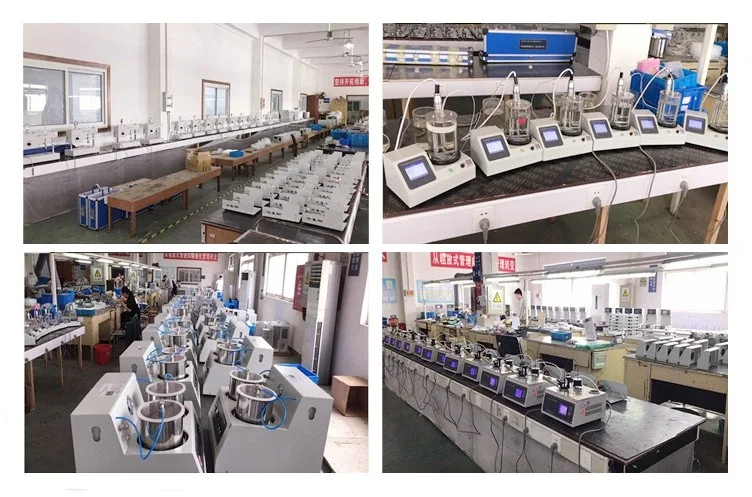

About US:



Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.



We mainly design and manufacture the petroleum testing instrument

After several years’ development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
