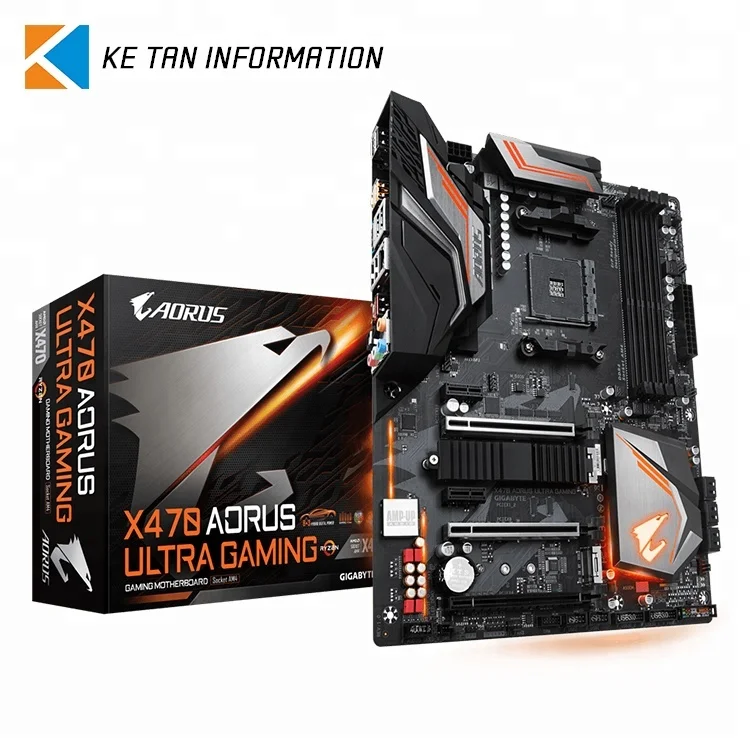

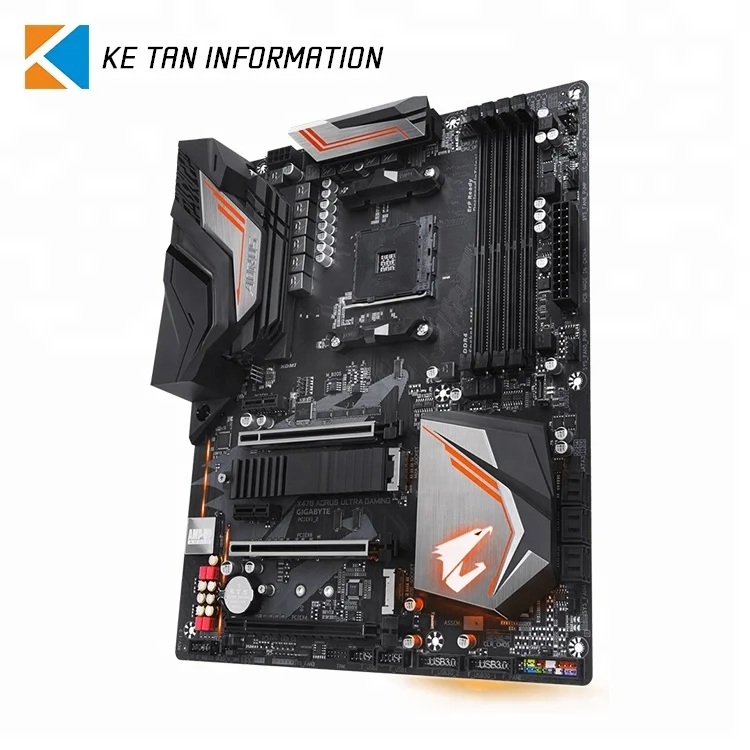

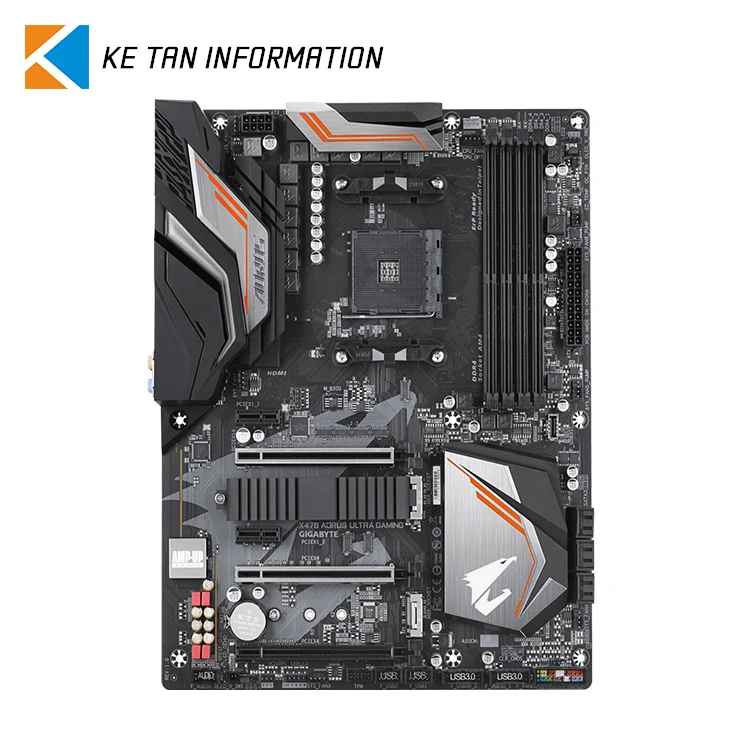

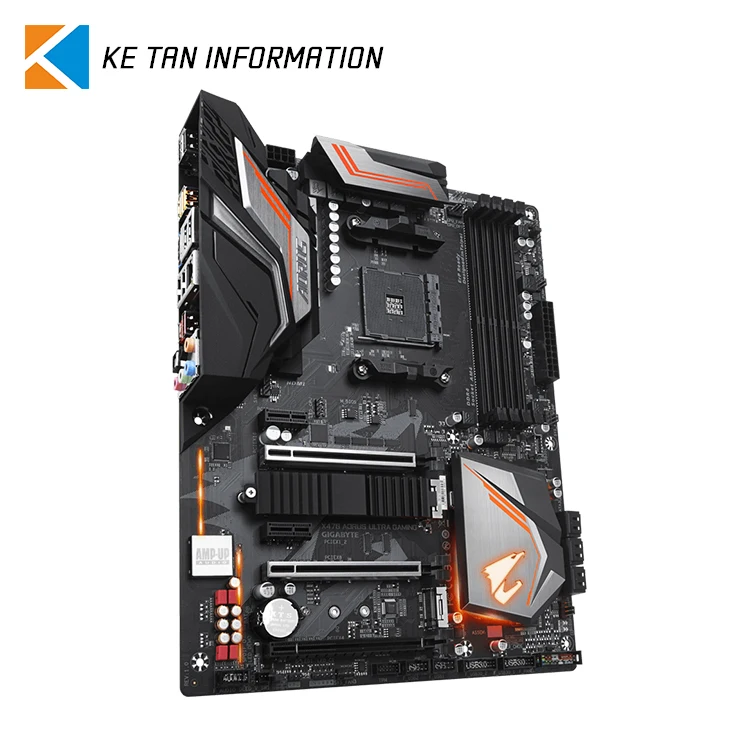

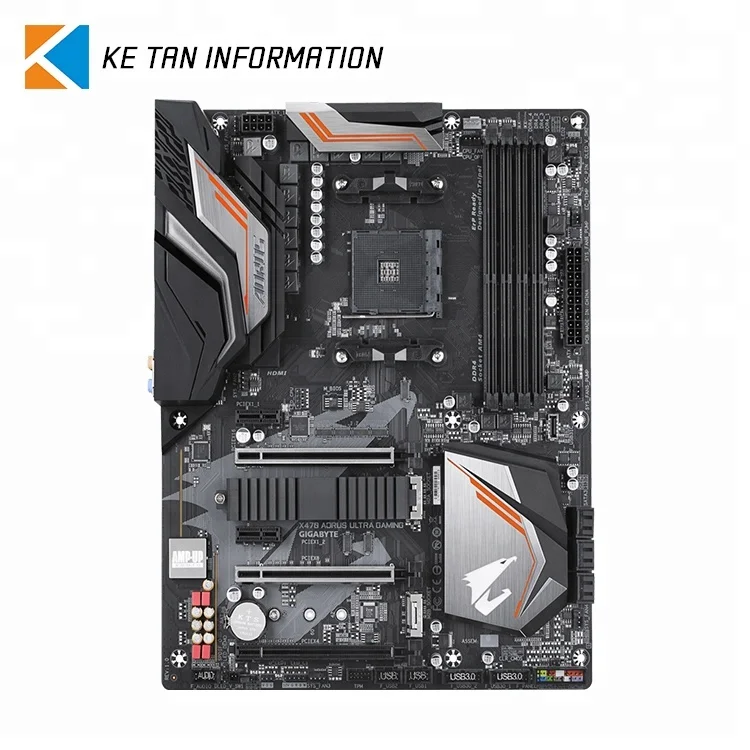

GIGABYTE X470 AORUS Ultra Gaming Used Motherboard with AMD AM4 Socket Supports AMD Ryzen 5000 series processors

Product Overview

Description

 Att:Page Price is Only for Reference, Actual Price is Subject to Our Confirmation.



AMD X470 AORUS motherboard with 8+3 Hybrid Digital PWM, Dual M.2 with Thermal Guard, ALC1220-VB, USB DAC-UP 2 Design, CEC 2019 Ready



Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Gaphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon™ X4 Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

8+3 Phase Hybrid Digital PWM Design

2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design

ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors

Dual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal Guard

RGB FUSION with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips

Intel® Ethernet LAN with cFOS Speed Internet Accelerator

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

USB DAC-UP 2 with Adjustable Voltage

Anti-Sulfur Resistors Design

Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

CEC 2019 Ready, Save Power with a Single Click

APP Center Including EasyTune™ and Cloud Station™ Utilities



Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x digital LED strip headers

2 x digital LED strip power select jumpers

1 x CPU cooler LED strip/RGB LED strip header

1 x RGB (RGBW) LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

1 x temperature sensor header



Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics Integrated Graphics Processor:

1 x High Definition Multimedia Interface port, supporting a maximum resolution of 4096x2160@60 Hz*

* Support for High Definition Multimedia Interface 2.0 version and HDCP 2.2.*

* Actual support may vary by CPU.

Maximum shared memory of 2 GB
