inline homogenize pump,batch mixer,emulsifier mixer

Product Overview

Description



Wide Range Use Emulsifier High Shear Mixer

Working principle:

High shearing-rate dispersing and emulsifying machine is consisted of a group or several groups rotors and stators, which are rotating at a very high speed during working.

 The high-speed rotating rotor sucks material into the rotors cavity very quickly, makes it influenced by shearing and dispersing effect. The material is forced to flow through tiny gap between stator and rotor and throw out of holes or slots in the stator.

 The huge shearing force generated by speed gradient in gap between static stator and high-speed rotating rotor strengthens the mass transferring intensity, improves dissolving ability of single material and macro-molecule material, makes the pumped media flow in turbulent state and promotes the distributing state for both solid and liquid particles. The three-dimension local speed fluctuation varying according to time phase leads to high frequency pressure fluctuation. Several smashing mechanisms work together and can disperse the media to very fine granularity.

 While the new material entering the rotor cavity, part of the thrown out material will change flow direction when it bounces on containers wall and reenter the rotor cavity to enduring shearing effect again.

 Thus, the material will be thoroughly refined, homogenized and dispersed and the best shearing effect is reached.

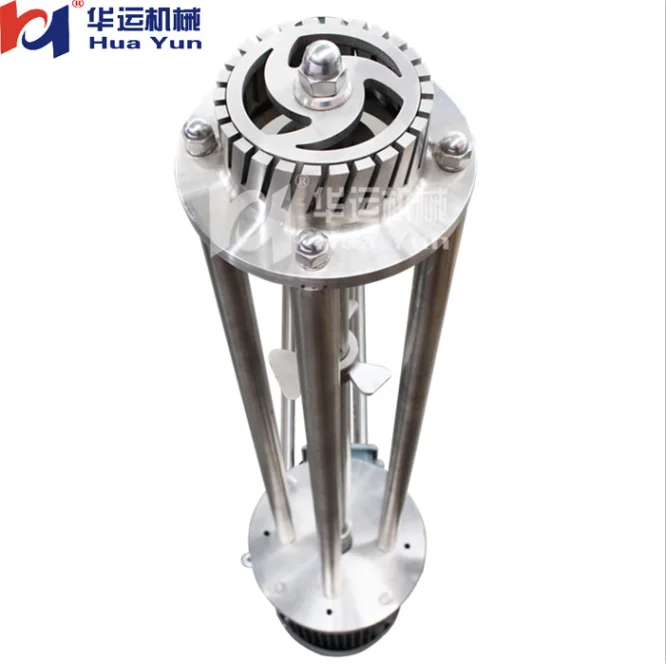

Pictures:

 Parameters:



Model	Power (KW)	Rotation Speed (rpm)	Rotor circumferential speed (m/s)	Capacity (L)
HIJ101-1.5	1.5	2900	20	15-100
HIJ105-4	4	2900	23	100-200
HIJ110-7.5	7.5	2900	23	150-400
HIJ115-11	11	2900	23	200-600
HIJ125-18.5	18.5	2900	25	300-1000
HIJ140-30	30	2900	18	500-3000
HIJ150-55	55	2900	17	1500-5000

Our services:

(1).  Rapid response to your enquiry in 8 working hours.

(2).  Experienced staffs answer all your questions in fluent English.

(3).  Customized design is available. Small orders, OEM & ODM are welcome.

(4).  Special discount and protection of sales area provided to our distributor.

      (5).  Inspection report shall be provided before shipment
