Grinder Machine Skew Rolling Mill for Making Casting Ball
- Category: >>>
- Supplier: Gongyi Hengyuan Industry Co. Ltd.
Share on (60758274426):
Product Overview
Description
Product Description

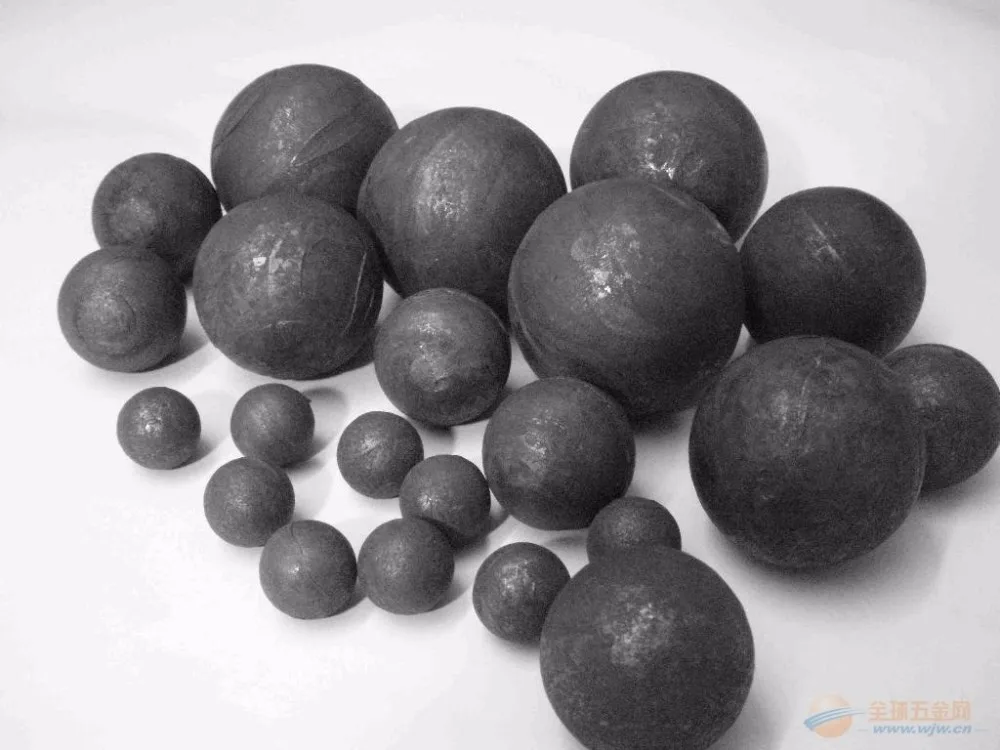

Brief introduction for skew rolling mill for making casting ball
Skew rolling mill for making casting ball is mainly in the two rotary cutting roller, steel ball and rotary cutting roller rotary circumference direct relationship. Less rotation of the steel ball forming irregular, rotation of the steel ball to produce hollow. This is a key quality control.
This machine provides service for hot rolling production line design, civil engineering drawing design, installation and commissioning, personnel training and so on, and provides steel ball production process for owners, helping customers quickly produce low cost and high quality wear-resistant steel balls.
Model | HY-20 | HY-30 | HY-40 | HY-60 | HY-80 | HY-100 | HY-120 |
Roller diameter (mm) | 170 | 220 | 260 | 340 | 450 | 600 | 690 |
Steel ball (mm) | 15-20 | 20-30 | 30-40 | 35-50 | 40-60 | 60-80 | 80-120 |
Roller angle range | 0 | 0-5 | 0-6 | 0-8 | 0-6 | 0-8 | 0-7 |
Capacity pcs/min | 120 | 102 | 90 | 72 | 72 | 65 | 40 |
Motor power | 30 | 40 | 130 | 185 | 450 | 650 | 1000 |
Working process for skew rolling mill for making casting ball

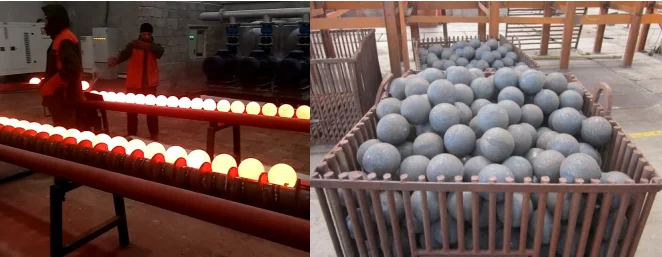

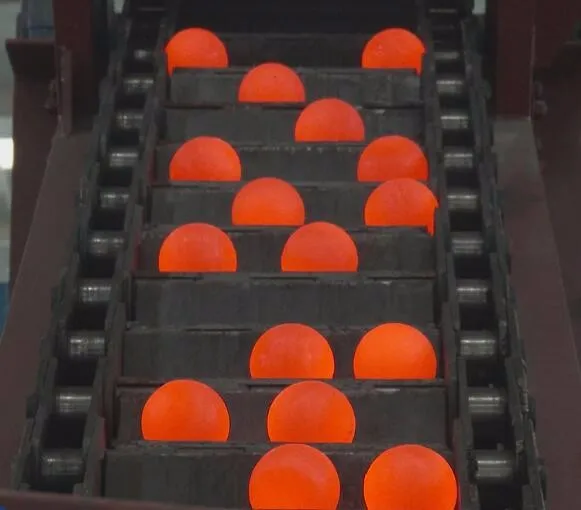

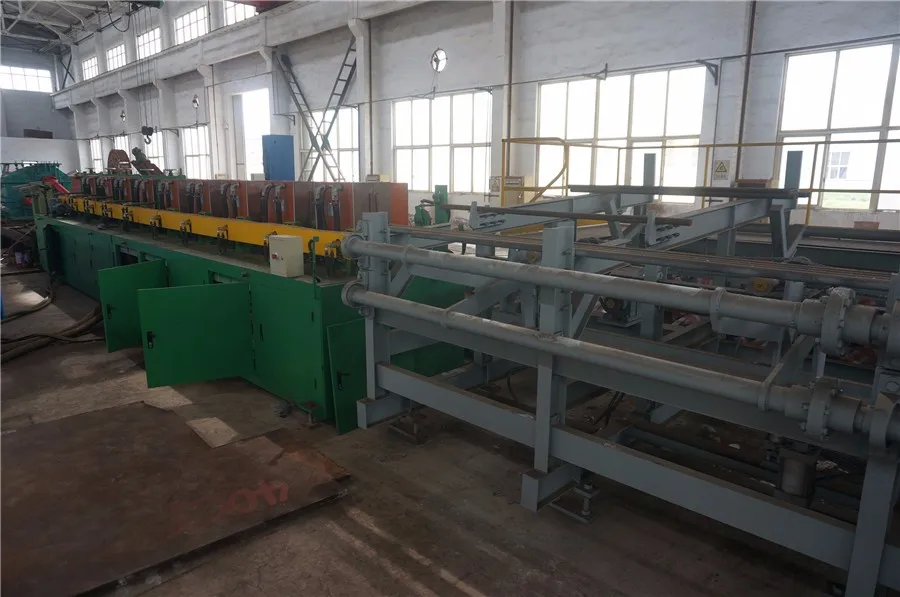

Raw materials----raw materials shaft----induction heating---skew rolling---cooling----sieving--
selecting---quenching---temperature keeping---cooling--package
Machine advantages for skew rolling mill for making casting ball
1.High and good strength, easy operate;
2.Exact dimensions and anti-corrosive nature;
3.Corrosion resistance and long life-time;
4.Applied international quality standards in manufacturing;
5.Available in various sizes, finishes and as per customer requirement.
2.Exact dimensions and anti-corrosive nature;
3.Corrosion resistance and long life-time;
4.Applied international quality standards in manufacturing;
5.Available in various sizes, finishes and as per customer requirement.

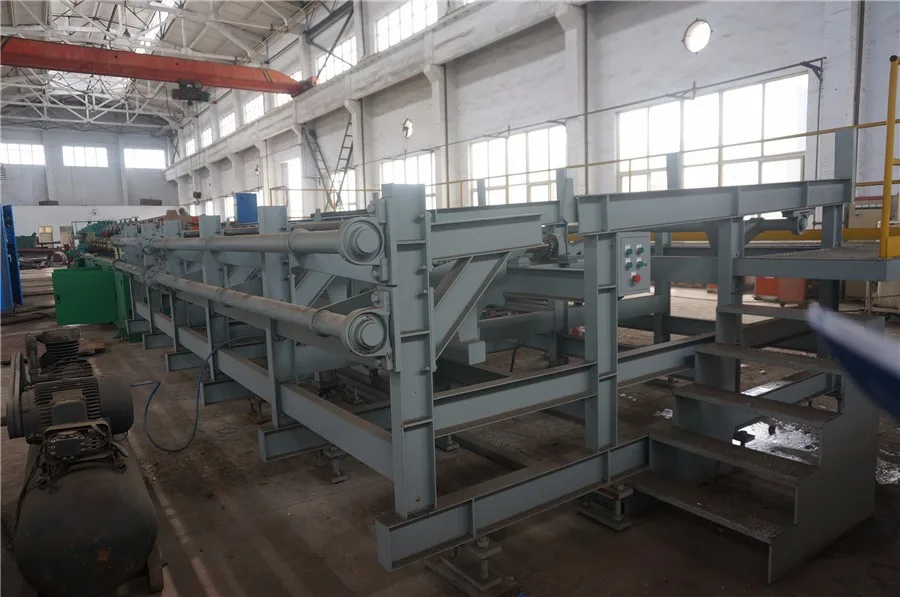

Semifinished Machine
MainParts of Machine
Machine Parts
Name: Rotary cutting machine base
Main machine base is rotary type, two sets rollers is on the left and right, they drive the machine separately, stopper plates is up and down.
Main Features

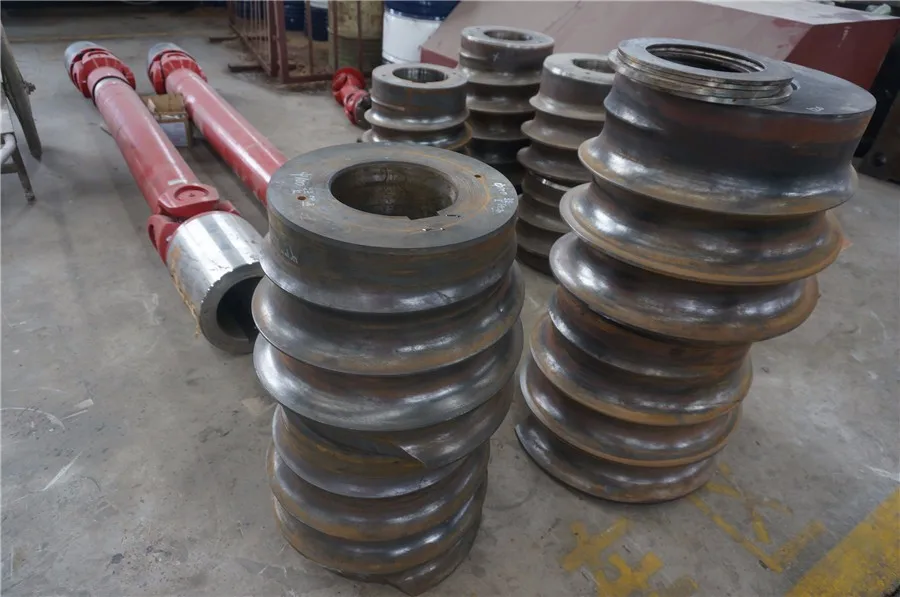

Name: Rotary Cutting Roller
Steel ball machine roller adopt the good quality H13 material forging, heat treatment and machined on the CNC machining center.
Machine Parts

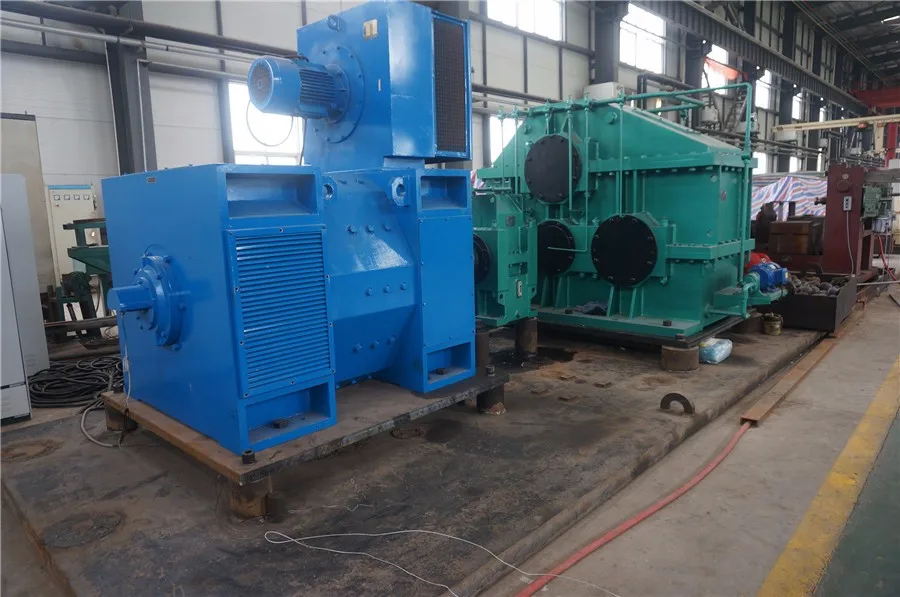

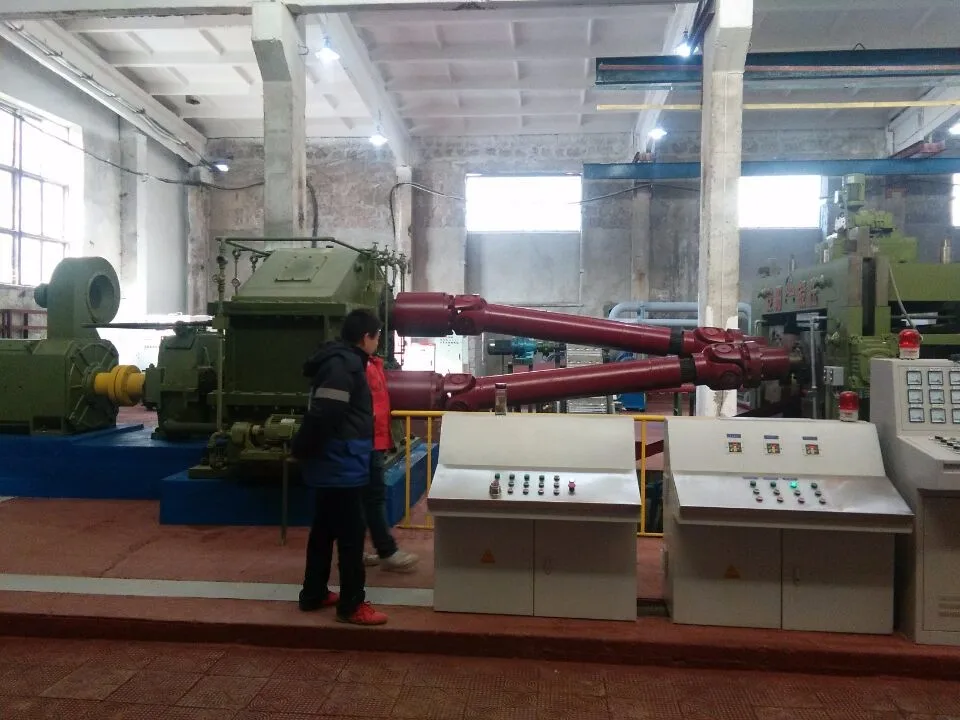

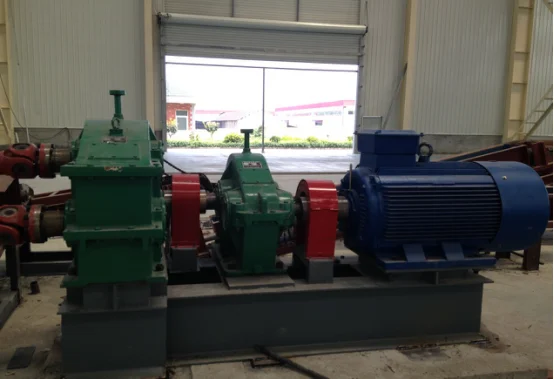

Name: Rotary cutting machine drive way
The machine body include: motor, frequency control, reducer, gear box, universal shaft and so on.
This design is for machine work smoothly.
Main Features

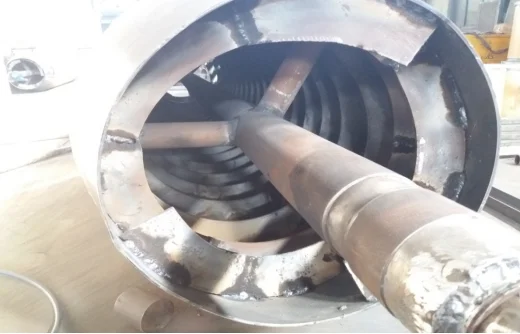

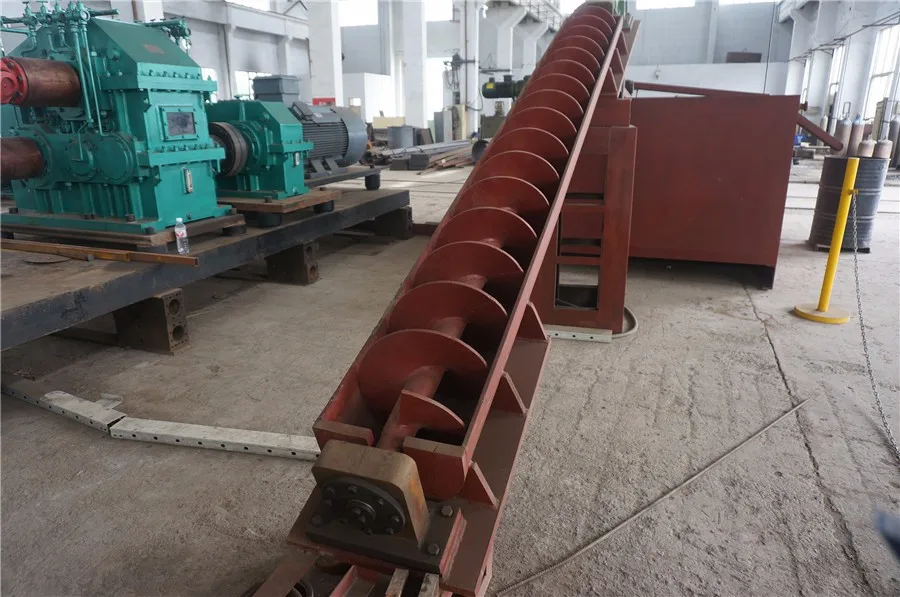

Name: Rotary Precooling
The roller type pre-cooling is conveyed by internal helix, and the steel ball is free rolling in the spiral compartment. The advantage is that the steel ball can be more evenly heat dissipating. Roller pre-cooling adopts variable frequency speed control to effectively control the pre-cooling time of steel ball.
Our Service
Pre-Sales Service
* Inquiry and consulting support
* 24 hours online service and reply
* View our factory and customer's machine
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* supply installation manual and machine base drawing.
Packing & Delivery
Shipment | ||
Size | At latest one 20 container | |
Weight | 8tons to up | |
Loading time | Shipment time is within 50 working days after getting prepayment Payment items: 30%T/T for deposit, 70% balance payment before shipment Packaging: small size parts is by wooden case, other parts by film. | |
