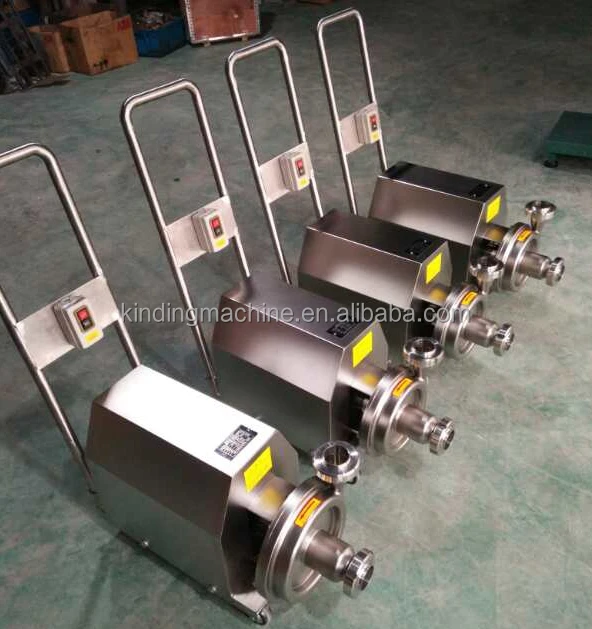

High Performance Sanitary stainless steel food and beverage centrifugal water pump
- Category: >>>
- Supplier: Wenzhou Kinding Machinery Co. Ltd.
Share on (60758275419):
Product Overview
Description
Products Description
Sanitary Pump is applicable in the industries of Dairy, Beer Bevrage, Pharmaceutical and Chemitry. It conveys not only normal low or middle viscous solutions but also suspension and corrosive fluids. Sanitary centrifugal Pump has types of single staye, single suctiona and open styled impeller with its elaborate design in shell and impeller.
Specifications | 3T--180T, 0.55KW--75KW |
Material | SUS304, SUS316L, the pump body, pump cover and impeller contact with medium made of SUS316L, SUS304 |
Standards | DIN, SMS |

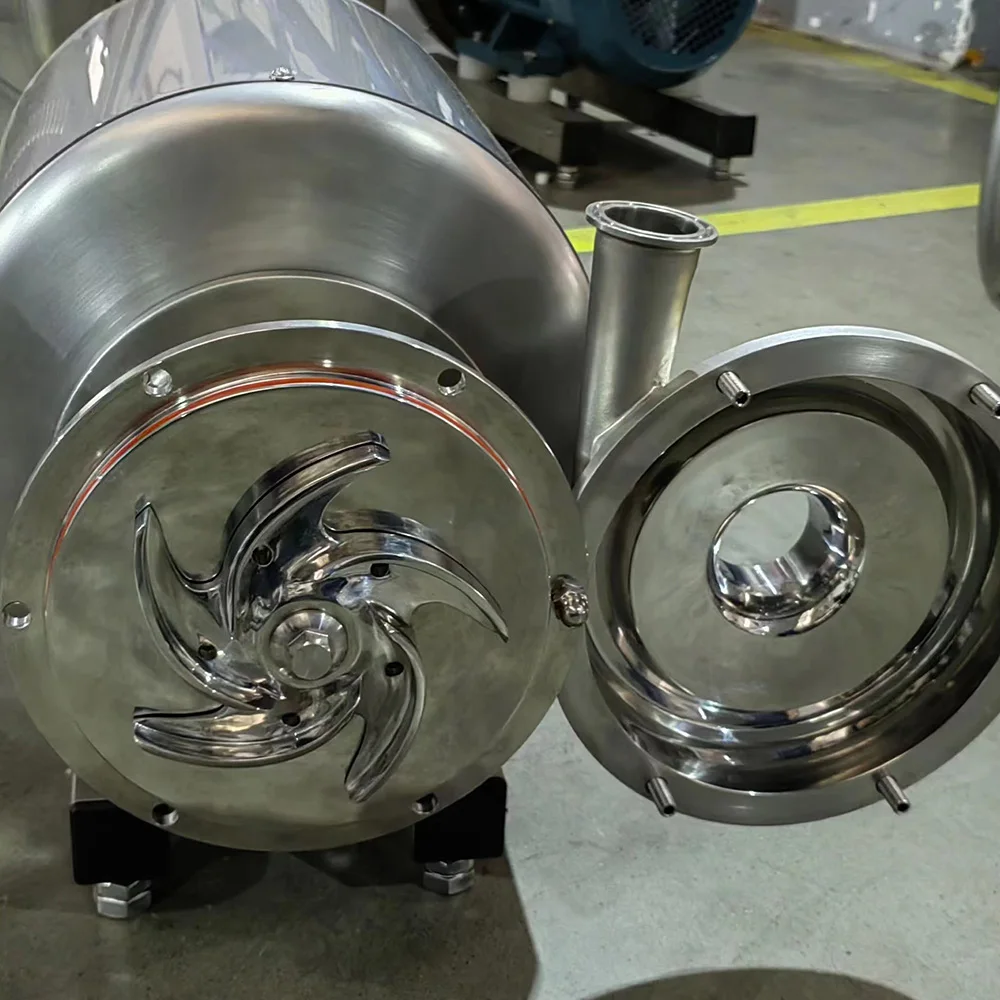

Impeller | Open type impeller, there is no dead end |
Operate condition | Health centrifugal pump is a few horizontal transport of high and low level, is not the self-priming type. |
Surface treatment | The part contact with mdedium is polished, and other partisglass painted and sand blasted |
Max inlet pressure | 0.5MPa |
Temperature range | -10℃--140℃(EPDM) |
Flushed shaft mechanical sealing | water pressure: Max 0.1MPa water lift: 0.25-0.5L/min |
The explosion-proof motor also available
It with excellent electric performance, and with low niose, low vibration, the protection grade is IP55, insulation grade is F.
Operate involtage：
≤3Kw, 220-240V/380-420V, △/Y
≤3Kw, 220-240V/380-420V, △/Y
>3Kw, 380-420V/660-690V, △/Y
Requency：50Hz/60Hz
Working method: continuous(SI）
Rotate speed: 2900r/min
Product wetted steel parts: Acidresistant steel AISI 316L(AISI304)
Other steel parts: Stainless ateel AISI 304
Outside surface: Ti
Inside surface: Bright
Product wetted seals: EPDM rubber
Other steel parts: Stainless ateel AISI 304
Outside surface: Ti
Inside surface: Bright
Product wetted seals: EPDM rubber
Model | Flow | Lift | Power | Inlet/Outlet |
SCP-1.5-14 | 1.5T | 14m | 0.55KW | 38/32 |
SCP-5-16 | 5T | 16m | 1.1KW | 38/38 |
SCP-3-30 | 3T | 30m | 2.2KW | 51/38 |
SCP-5-30 | 5T | 30m | 2.2KW | 51/38 |
SCP-10-36 | 10T | 36m | 3KW | 51/38 |
SCP-20-24 | 20T | 24m | 4KW | 51/51 |
SCP-25-35 | 25T | 35m | 5.5KW | 51/51 |
SCP-30-36 | 30T | 36m | 7.5KW | 63/51 |
SCP-20-60 | 20T | 60m | 11KW | 63/51 |
SCP-40-35 | 40T | 35m | 11KW | 63/63 |
SCP-60-30 | 60T | 30m | 15KW | 76/63 |
Our Company
Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, pharmacy, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Our Certifications
Best stainless
Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.

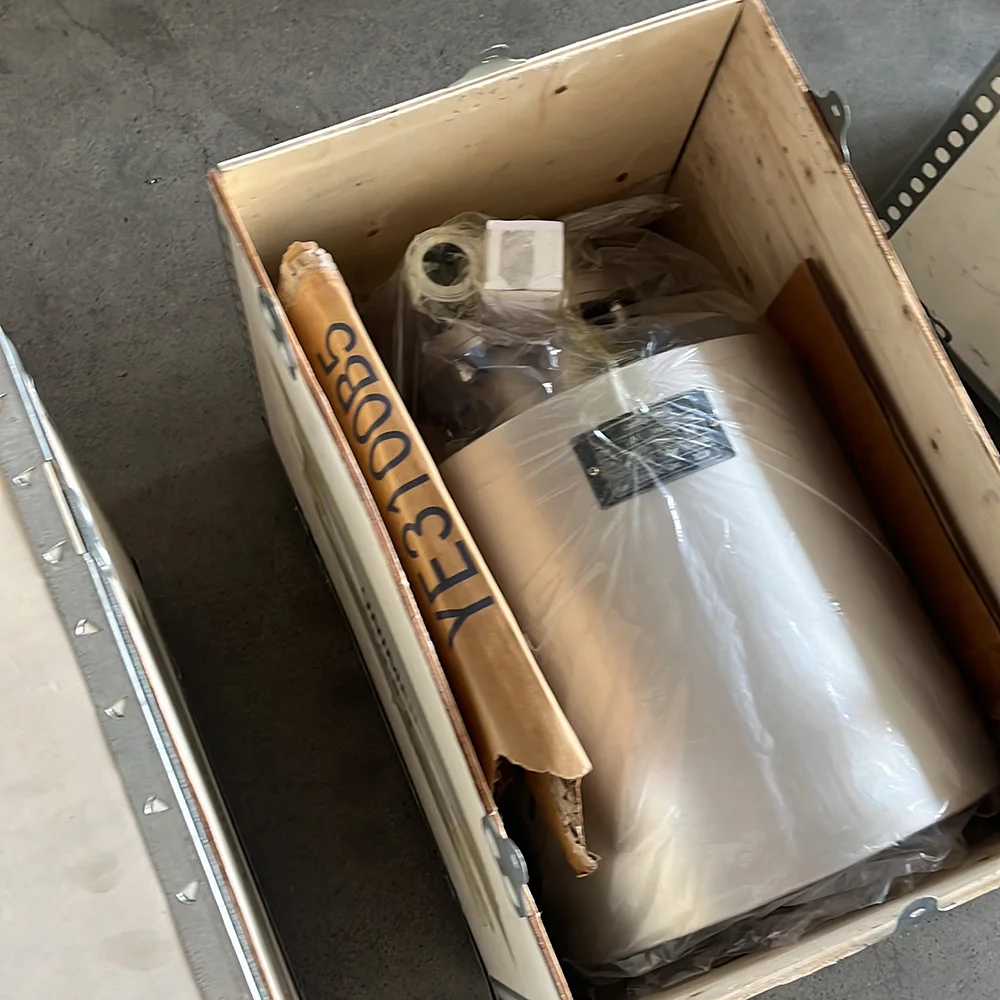

Package and Shipping
