B3CA82 push lok fittings
- Category: >>>
- Supplier: Cixi Poolke Hydraulic Pneumatic Co. Ltd.
Share on (60758331733):
Product Overview
Description

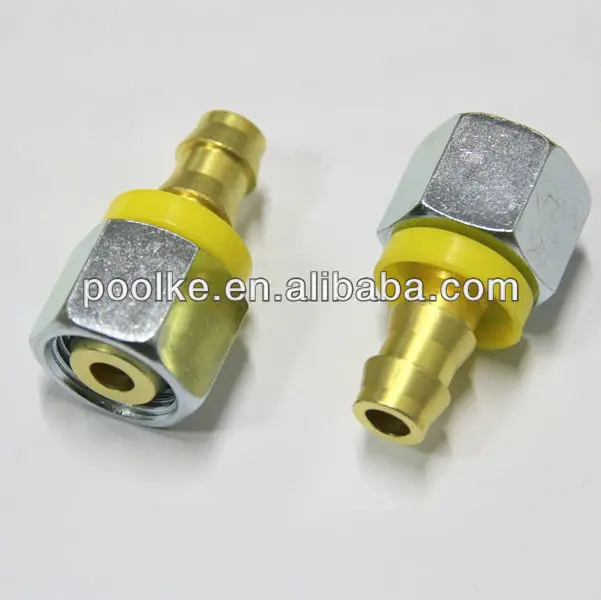

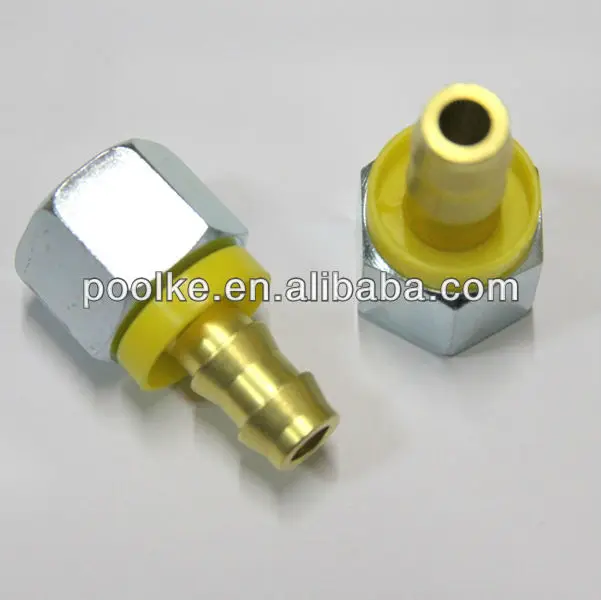

Push-lok fitting
Push-LOK Tube | |||||
I.D | O.D. | Working Pressure | |||
Inch | mm | Inch | mm | psi | Mpa |
1/4 | 6.3 | 0.5 | 12.7 | 250 | 1.7 |
3/8 | 10 | 0.63 | 15.9 | 250 | 1.7 |
1/2 | 12..5 | 0.78 | 19.8 | 250 | 1.7 |
5/8 | 16 | 0.91 | 23 | 250 | 1.7 |
3/4 | 19 | 1.03 | 26.2 | 250 | 1.7 |
1 | 25 | 1.28 | 32.6 | 175 | 1.2 |
| PART NO. | Thead | Tube | L1 | L2 | CH |
| 3CA82-8-4 | M14*1.5 | 1/4 | 36 | 17 | 17 |
| 3CA82-10-6 | M16*1.5 | 3/8 | 40 | 17 | 19 |
| 3CA82-12-6 | M18*1.5 | 3/8 | 40 | 17 | 22 |
| 3CA82-15-8 | M22*1.5 | 1/2 | 44 | 18 | 27 |
| 3CA82-22-12 | M30*2 | 3/4 | 58 | 21 | 36 |
