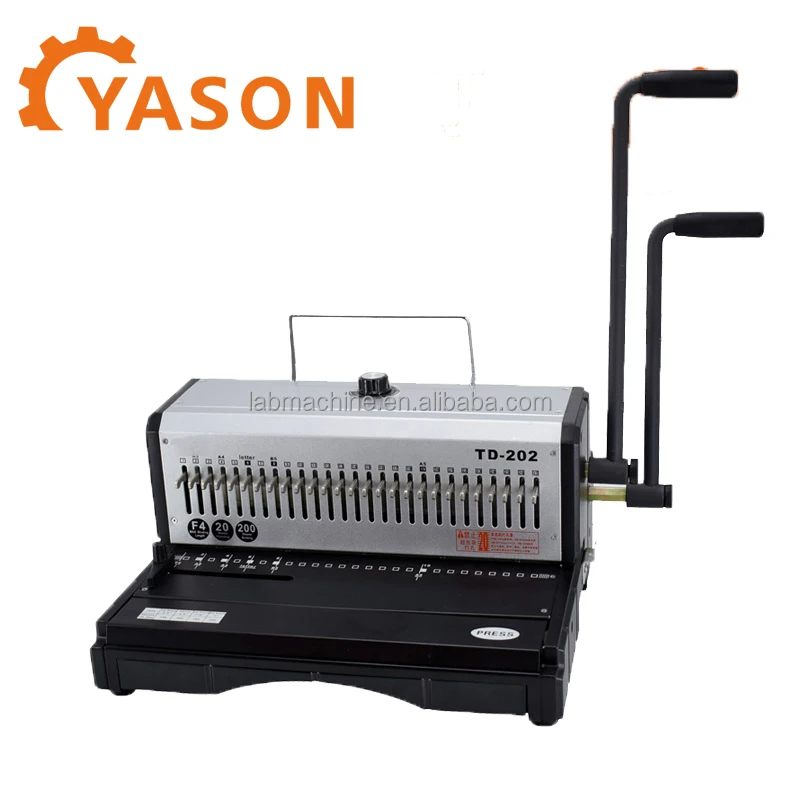

Desk Calendar Calendar Double Coil Binding Machine TD 202

Share on (60758353971):


Price:

Quantity:


Product Overview

Description



Product Description




01 metal structure is strong and durable
Inside and outside the metal structure, stable and durable

02 double handle design
Punching, pressure ring independent handle, practical, easy to play paper



03 Knob Locking Positioner
Use the locator to fix the paper position so that the printed paper is symmetrical and beautifully bound.

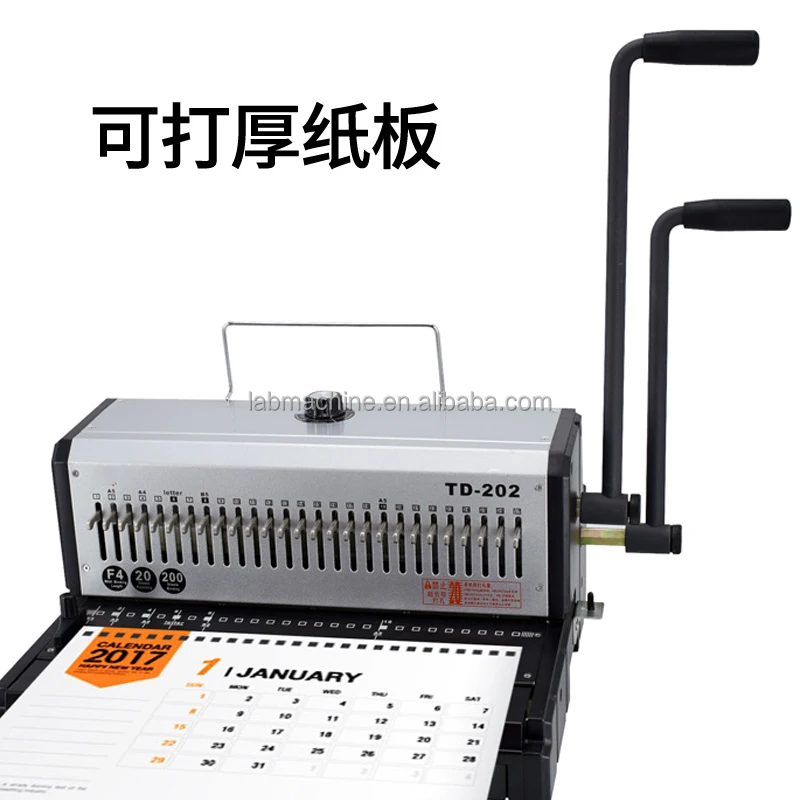

04 33CM paper width
20 sheets of paper 80 grams at a time, 200 sheets of bookbinding thickness, which can be used to make grey cardboard, calendar frames, and paper.



05 three margin adjustment knob
Left margin adjustment knob, turn the knob can be adjusted to three levels of 2.5mm, 4.5mm, 6.5mm, suitable for different binding thickness

06 27 steel knife
All-steel steel knife, 1 to 27 randomly selected, suitable for various sizes of paper



07 pressure ring knob
Overhead pressure ring knob of the machine is identified. Turn the knob to the corresponding position of the iron ring so that the pressed file can be easily read.

08 rear pressure ring plate
Pressure ring closure is good, roundness is high, pressure ring is easy



09 button type hanging ring board
Push-button hanging ring board, convenient hanging ring, iron rings on the hanging ring board specification data sheet, convenient selection

10 widening pull-out paper scrap box
Base pull-out paper scrap box for easy cleaning

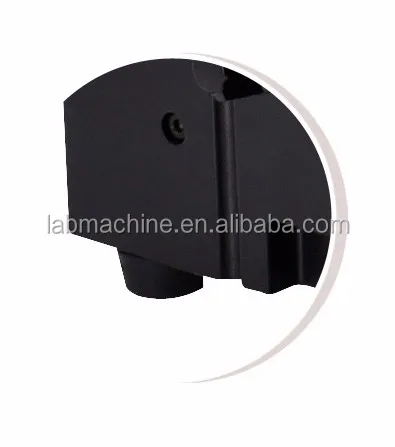

11 non-slip rubber mat
Base non-slip foot pad, non-slip, stable



Specifications




1
Pressure ring handle
8
Hanging ring board
2
Pressure ring knob
9
Metal base
3
Punching handle
10
Paper inlet
4
Paper stopper
11
Anti-skid rubber feet
5
Pressure ring entrance
12
Regulator
6
Draw block
13
Margin adjuster
7
Confetti box




Model
202
Machine Name
27 square hole iron binding machine
Handle Type
solid handle
Applicable Paper
F4 (up to 33CM)
Binding Capacity
200 sheets
Number Of Holes
27 square holes
Margins
2.5mm, 4.5mm, 6.5mm
Machine Size
505*340*505mm
Net Weight Of Machine
16.4KG

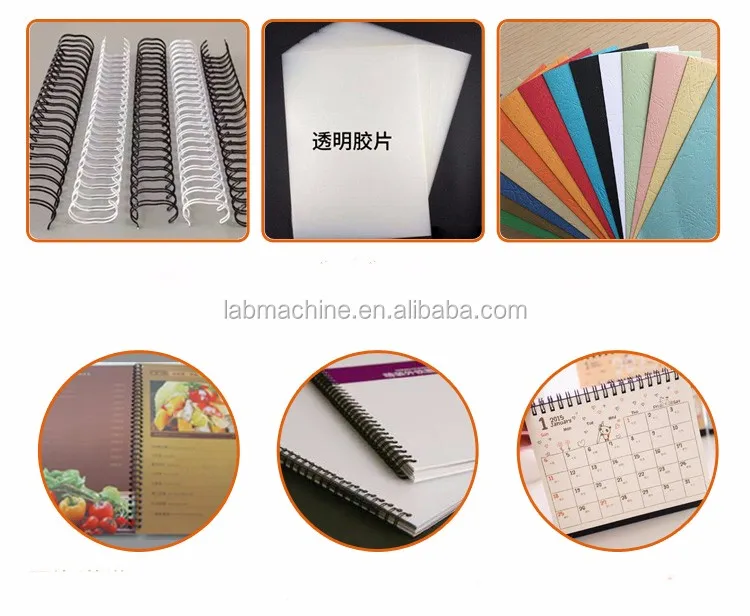

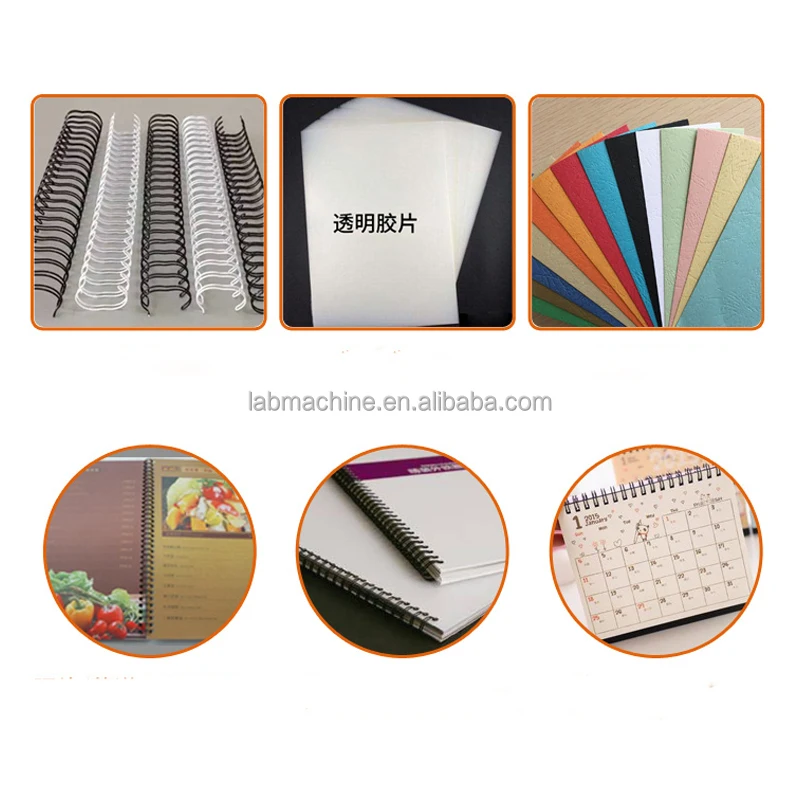

Applicable Consumables
double iron ring
Number Of Handles
2
Punching Capacity
20 sheets 80 grams
Punching Size
4*4.smm
Draw The Knife Number
27
Pressure Ring Size Range
15.9 to 25.4MM
Packing Size
510*410*275mm
Gross Weight
18.5KG
