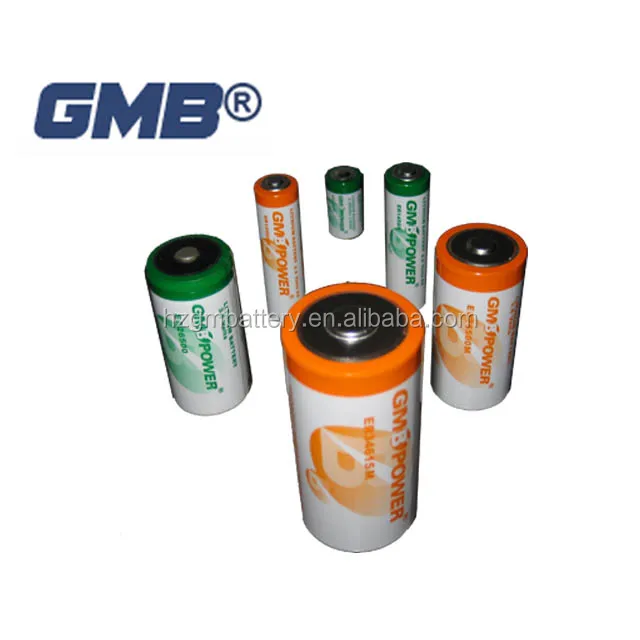

ER batteries' shapes Button,cylindricaland square shapes are available for your choice.
High Temperature ER battery
Application: CMOS memory chips for PC, office automation devices, remote data logging and data acquisition systems, medical instruments, water or gas gauges, security and alarm systems pulse-/event-counters, various industrial clocks, high temperature systems etc. Feature: (1) high energy density up to 420WH/Kg(800WH/dm3). (2) High operation voltage, 3.3V~3.6V upon loading resistance. (3) Long storage life, less than 2% of self-discharging rate per year, could be stored for 10~15 year at room temperature. (4) Non-magnetic stainless steel case, hermetically sealed. Be safe for transportation and general shock. No leakage problem. Due to the characteristics of Li-SOCl2 battery, there are three basic type: A. ENERGY TYPE BATTERY (1). Bobbin Type, high capacity, shelf life is ten years; (2). Wide operating temperature range, -55 °C~+85°C. (2). Smooth voltage level, 90% capacity could be outputted at high level.
B. POWER TYPE BATTERY (1) high discharge rate, and you can always consult our engineer for even higher discharge rate; (2) have large continuous or pulse current and large power output for over five years (3) lower resistance, smooth voltage level.
Li-SOCl2 battery Caution : (1) Do not make the battery short-circuit and do not try to charge it. (2) Do not over-discharge , press or burn the battery. (3) The battery should be removed from the instrument on time when finishing discharging. (4) The battery should be buried deeply in earth . (5) Do not try to solder directly on battery. (6) The high temperature type Li-soc12 battery can not be used at environment above +160
