6mm,8mm,10mm thickness high strength ABREX 400 450 500 Impact Abrasion Resistant Wear Steel Plate Suppliers
- Category: Steel Sheets (Old) >>>
- Supplier: Shanghai Hengtie Steel Trading Co. Ltd.
Share on (60758443511):
Product Overview
Description
Product Description
1. Steel Grade: Abrex 400
2. Product name: Abrasion Resistant Steel Plate abrex 400
3.Size: thickness:5-150mm width:1500-2500mm length;6000-12000mm
ABREX 400 Chemical Properties
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3-(8) | 0.15 | 0.7 | 1.6 | 0.025 | 0.01 | 0.3 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 08/20/13 | 0.15 | 0.7 | 1.6 | 0.025 | 0.01 | 0.5 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| (20)-32 | 0.18 | 0.7 | 1.6 | 0.025 | 0.01 | 1 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| (32)-45 | 0.22 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 0.5 | 0.6 | 0.004 | 0.57 | 0.31 |
| (45)-51 | 0.22 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 0.5 | 0.6 | 0.004 | 0.57 | 0.38 |
| (51)-80 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 1 | 0.6 | 0.004 | 0.65 | 0.41 |
| (80)-130 | 0.32 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 1.5 | 0.6 | 0.004 | 0.73 |
ABREX 400 Mechanical Properties
| Grade | Mechanical Property | Charpy V Impact Test | |||
| ABREX 400 | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -40 | J | |
| 1000 | 1250 | 10 | 45 | ||

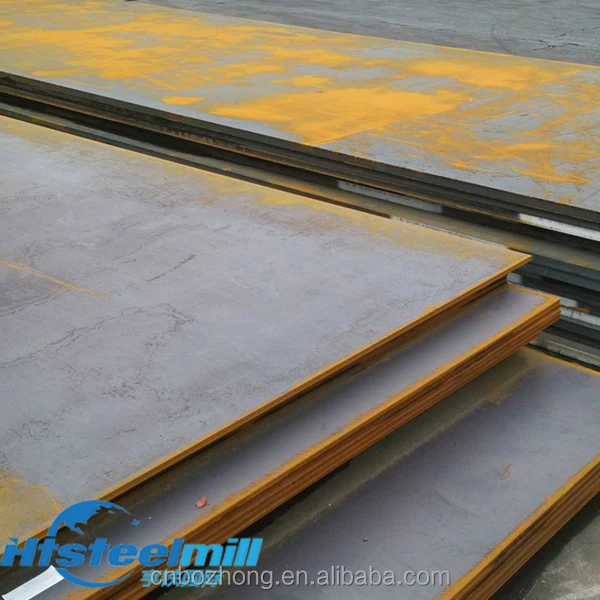

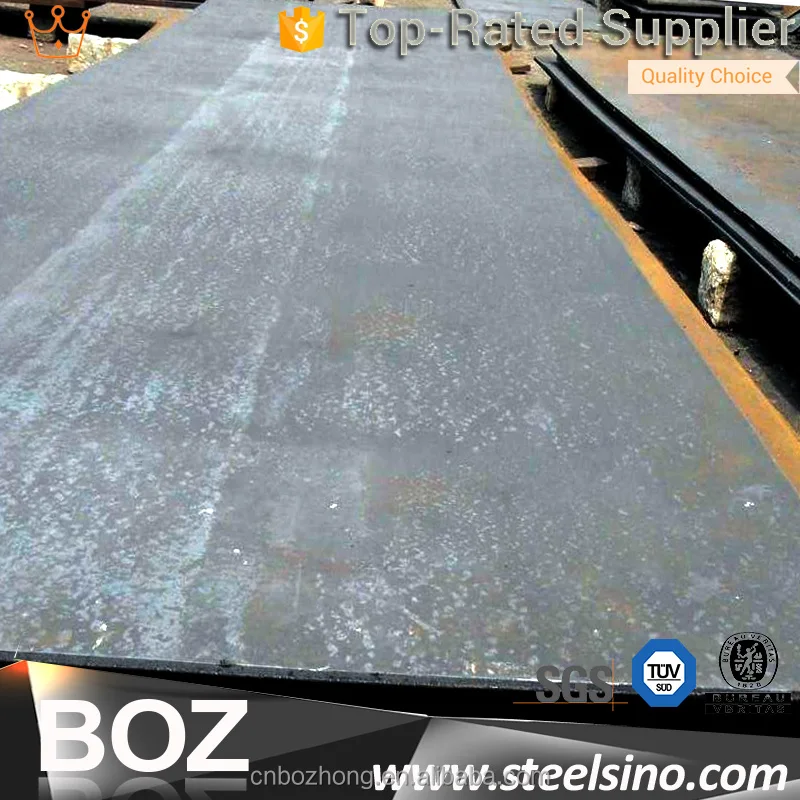

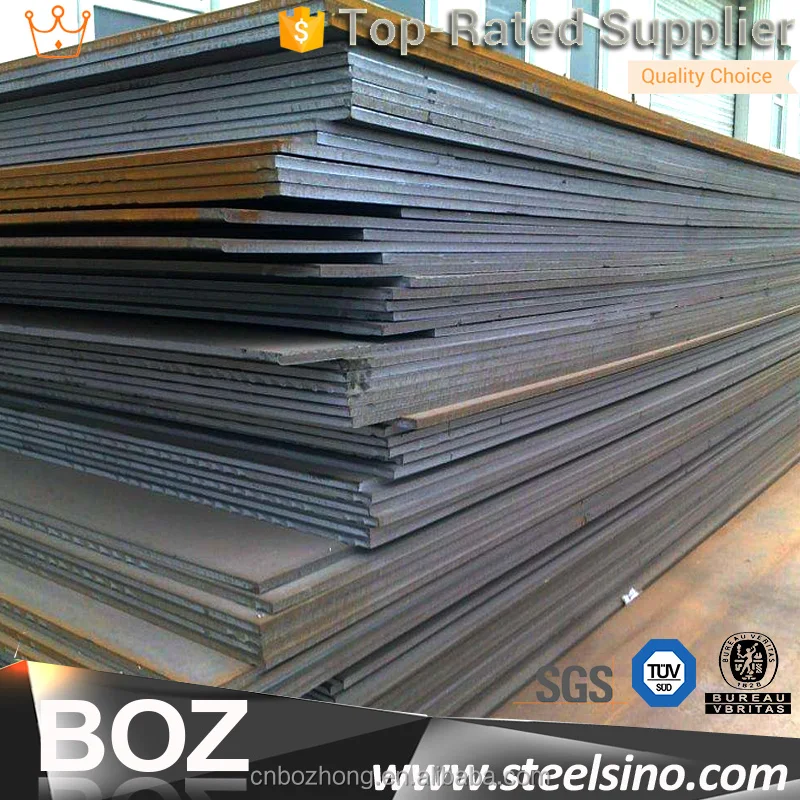

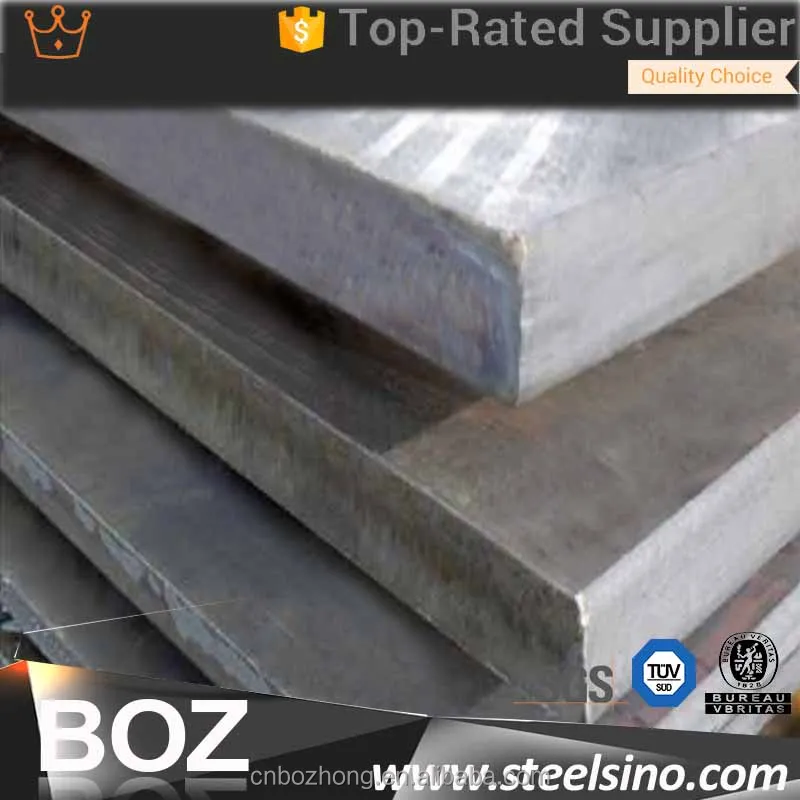

Product Photo
Company Information
Bozhong Group Mainly supply in forms of coil, sheet, plate, rod, bar, tube, pipe, beam, angle, flange, wire, strip, channel, etc., with various varieties, wide range of dimensions, high purity, stable chemical composition, high dimensional accuracy and excellent surface quality. The products are mainly used in the fields of industries such as automobile engineering, railway transportation, aviation, aerospace, machinery, petrochemical, energy, environmental protection, offshore, chemical, oil & gas, military, power plant, nuclear power, pressure vessel, boiler equipment, mold manufacture, etc.
l steel coil l steel plate l steel sheet
l steel bar/rod steel round bar steel flat bar steel square bar
l steel pipe/tube ( welded or seamless ) steel round piper steel square pipes steel welded tubes steel seamless tubes
l steel strip l steel beam l steel angle l steel channel l steel flange l Steel wire
Bozhong Group can supply a variety of structural steel, high-strength steel, wear-resistant steel plate, boiler and pressure vessel steel, marine engineering and stainless steel plate in the thick steel and various European standard bars and pipes and profiles.Our global sales and service network throughout all around the world to ensure that the goods reach the customer in the shortest time.
We can follow your drawings and requirements, to provide you with oxygen cutting, plasma cutting and laser cutting and other processing services. You can also perform ultrasonic testing in accordance with EN10160 standard, EN10164 standard test Z15, Z25, Z35, weld bending detection, PWHT detection,etc.
We have ISO9001: 2000 quality management system certification, and obtain the quality certification from all the well-known certification company, including TuV / LRS / GL / CE and so on.
Special steel includes as below:
Boiler and pressure vessel steel Pipeline steel Bridge steel Nuclear power steel Structural steel Die steel
High strength steel Abrasion resistant steel Weathering, corrosion resistant and fire resistant steel
High rise building steel Shipbuilding and offshore engineering steel
FAQ
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don’t have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
Customer Visiting
Warmly welcome! Pick up your phone and Call us!
Send us the inquiry here!
We will reply you at the first time.

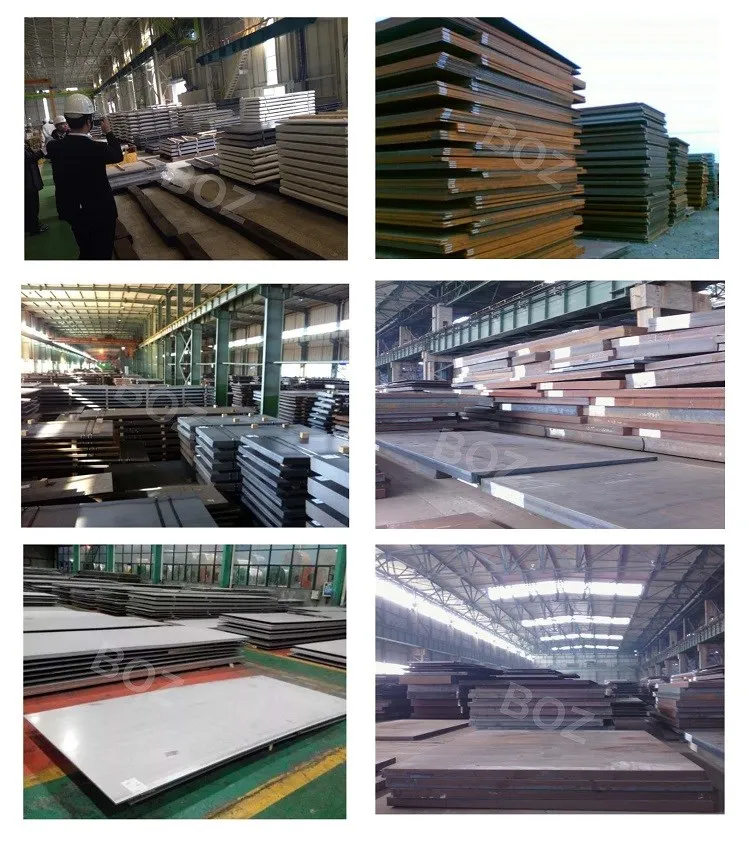

wrkshp&wrhse&shppg
