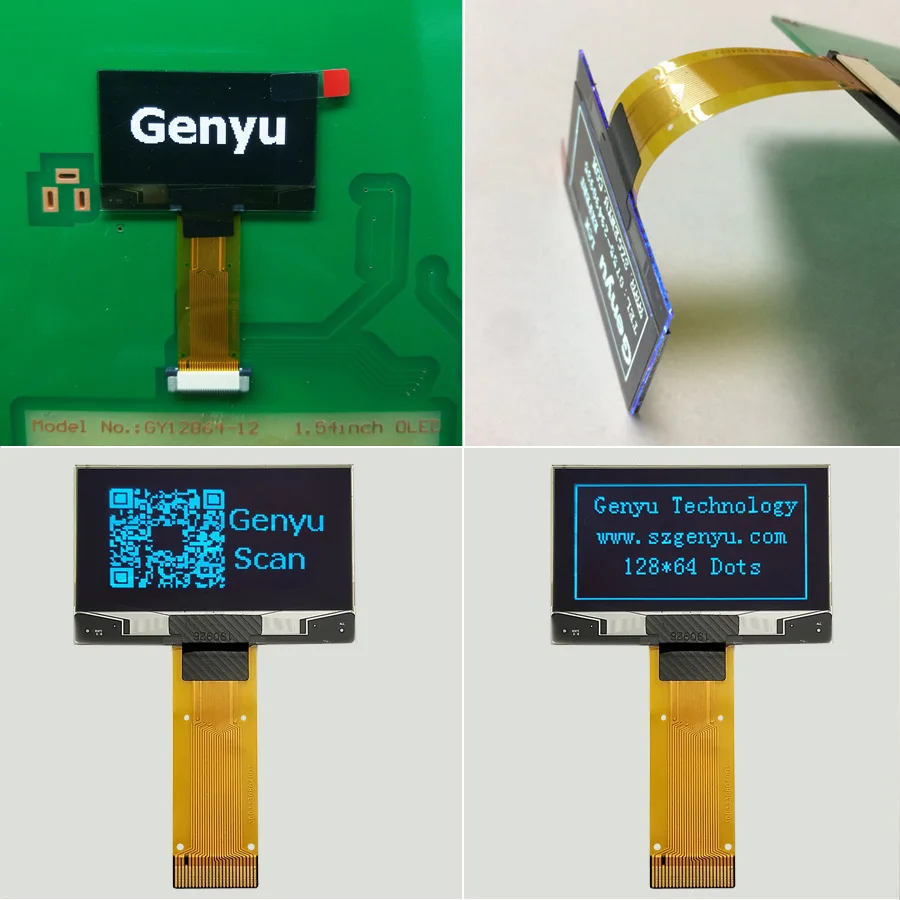

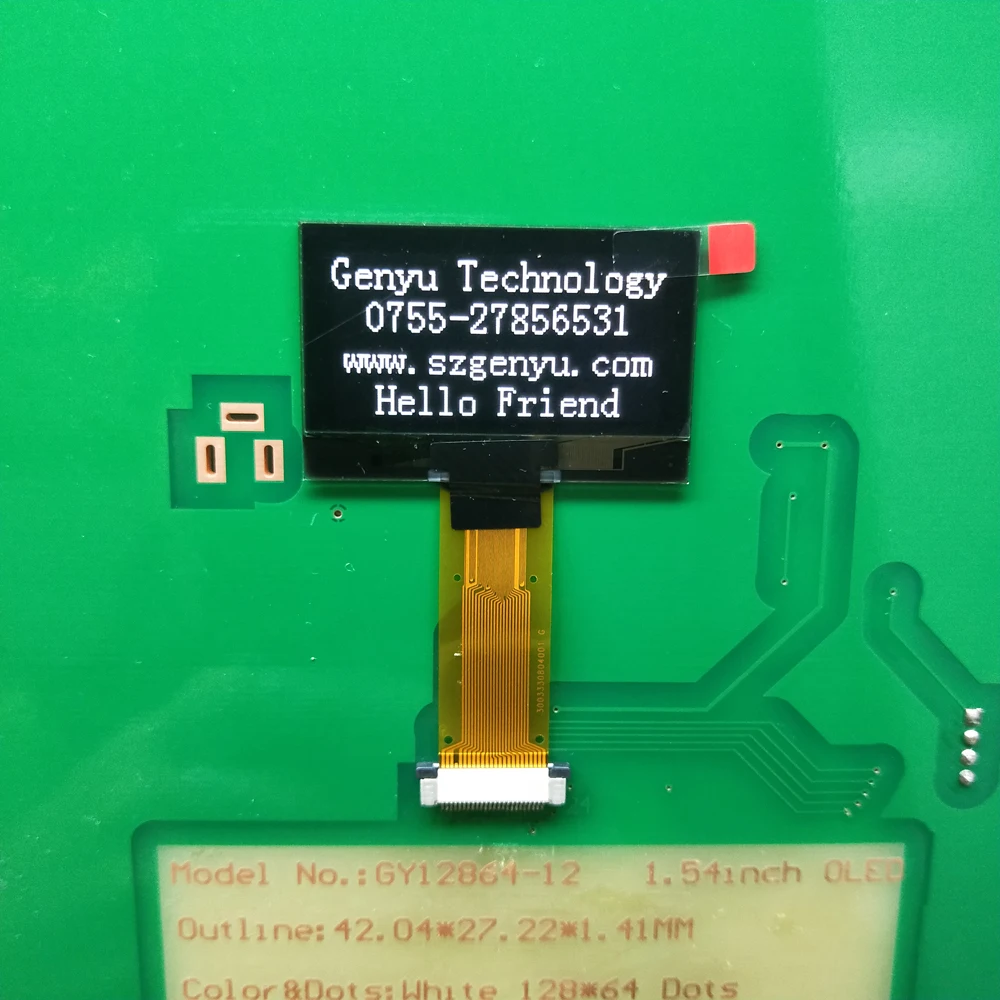

Genyu oled Display 128x64 dots 30pin OLED Display Module 1.54 inch Small Size lcd Display SPD0301 oled light panel flexible
- Category: >>>
- Supplier: Shenzhen Genyu Optical Co. Ltd.
Share on (60758459291):
Product Overview
Description

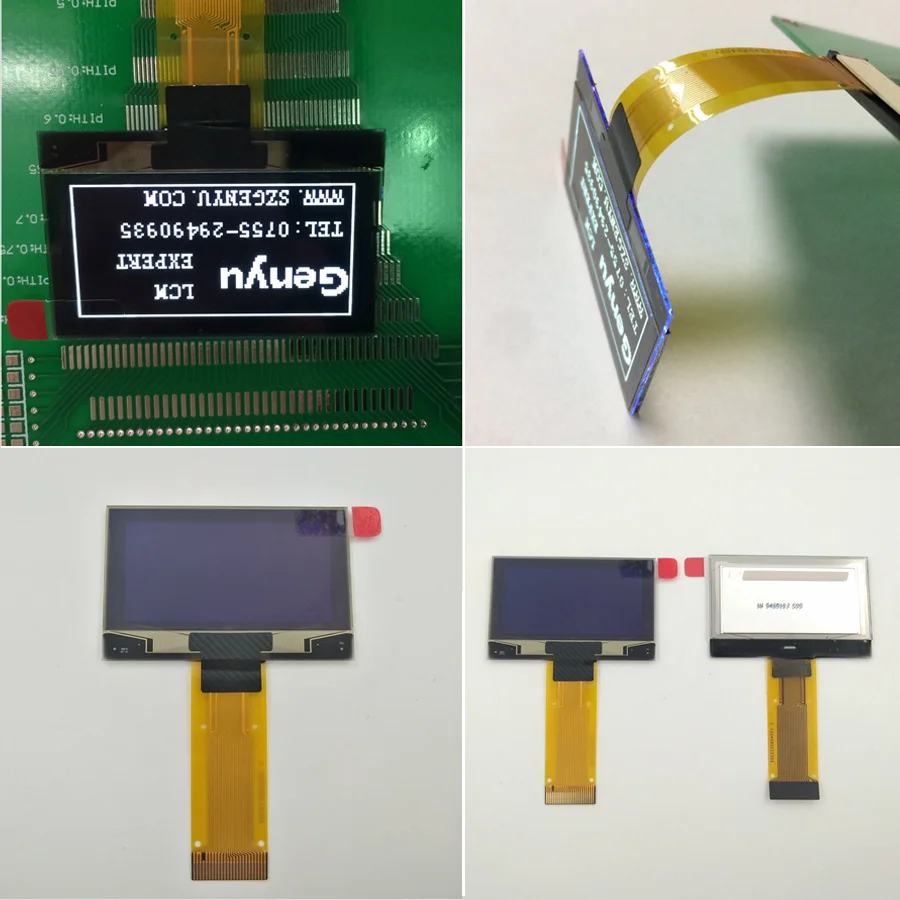

Genyu oled Display 128x64 30pin OLED Display Module 1.54inch Small Size lcd Display SPD0301
♣ Product Description
1. Pin
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13-20 | 21 | 22 | 23 | 24 |
| Symbol | NC | vlss | vss | NC | VDD | BS1 | BS2 | CS# | RES# | D/C# | R/W# | E/RD# | D0-D7 | IREF | VCOMH | VCC | NC |

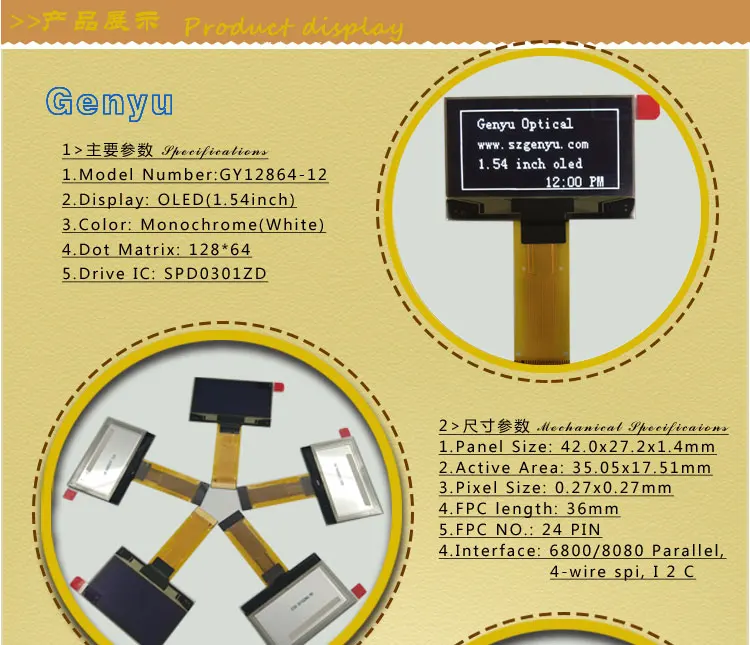

2. Features
Organic light emitting diode (OLED)
(1) Display Color : White LED
(2) Dot Matrix : 12864
(3) Drive IC : SPD0301ZD
(4) Drive duty : 1/64 duty
(5) Viewing Angle : 160°
(6) Interface : 8bit 6800/8080 parallel, 4-wire SPI, IIC I2C

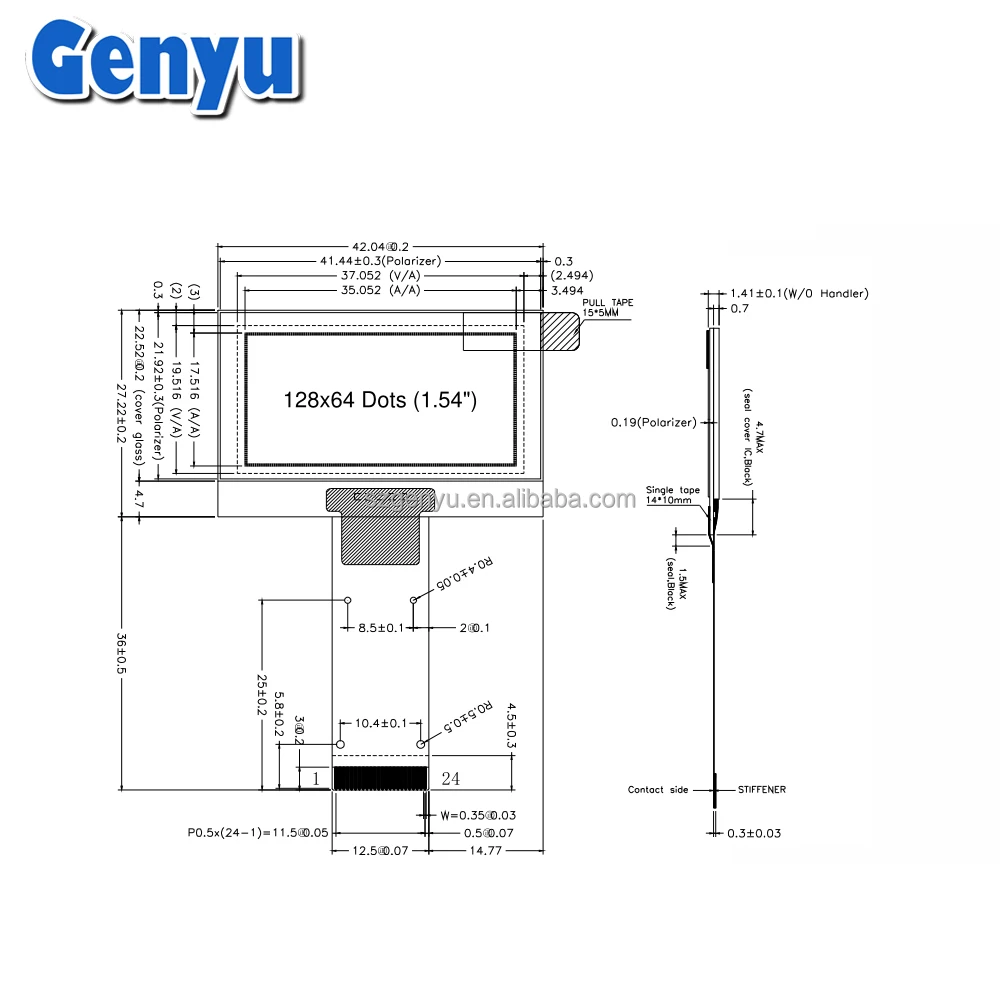

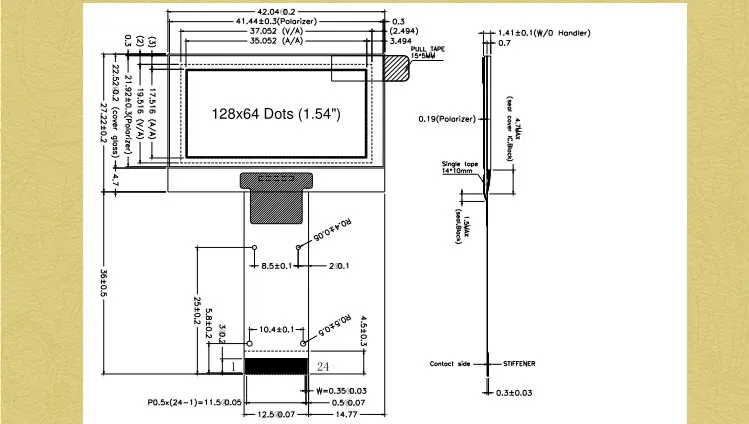

| MODULE SIZE | 42.04(W)x27.22(H)x1.41(D) |
| VIEWING AREA | 37.052 (W) x 19.516(H) |
| ACTIVE AREA | 35.052(W) x17.516(H) |
| ASSY.TYPE | COG |
| OLED should be grounded during handling OLED. | |
♣ Product Detail
Packaging & Shipping
Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....
Delivery
Items will be shipped within 3 working days on payment received.
By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.
Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.
Company Information
Related products

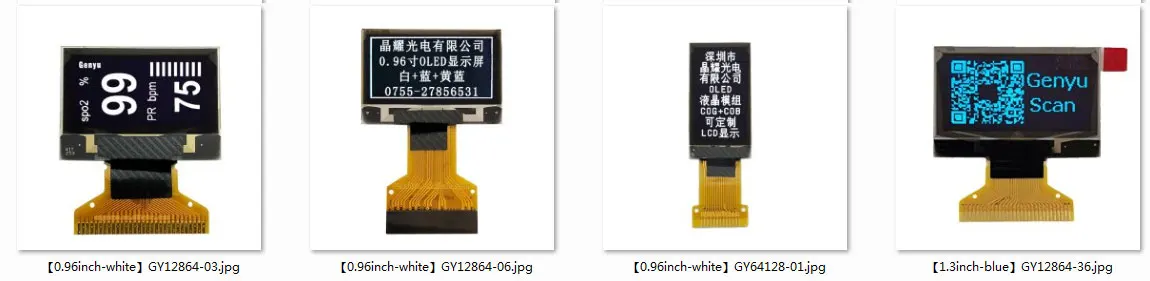

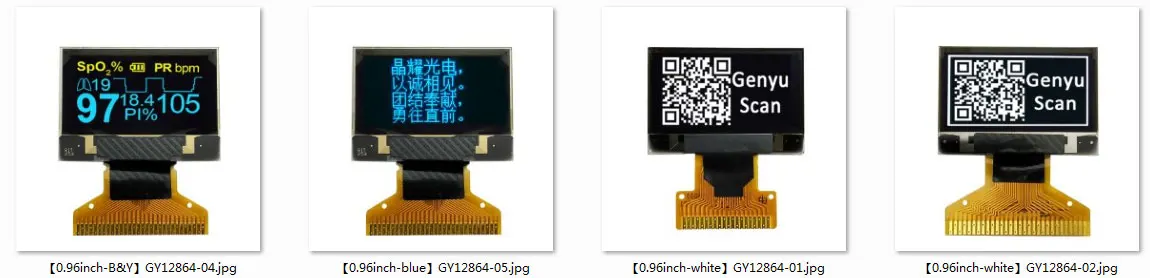

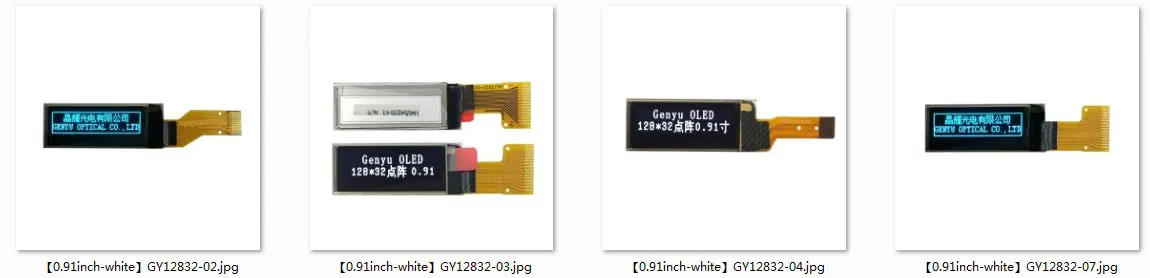

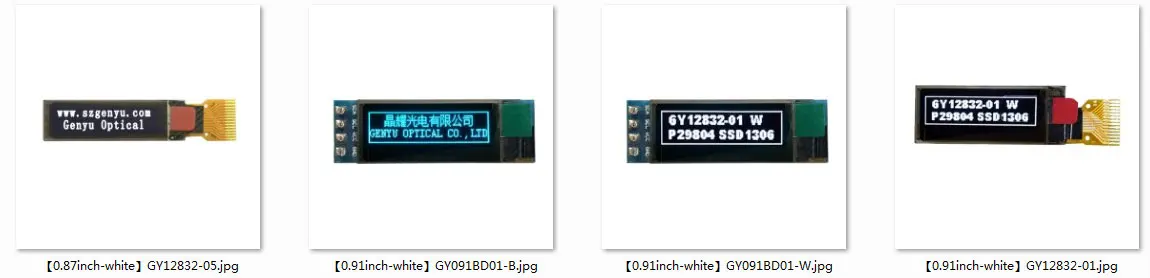

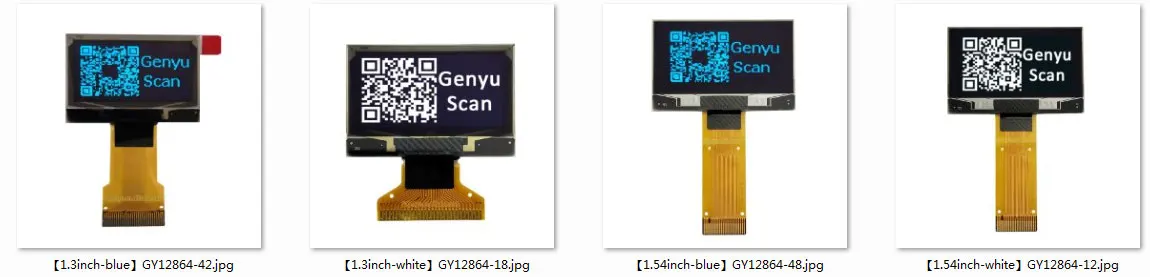

OLED Display, Monochrome OLED, OLED Module, Dot matrix OLED display, Graphic OLED displays

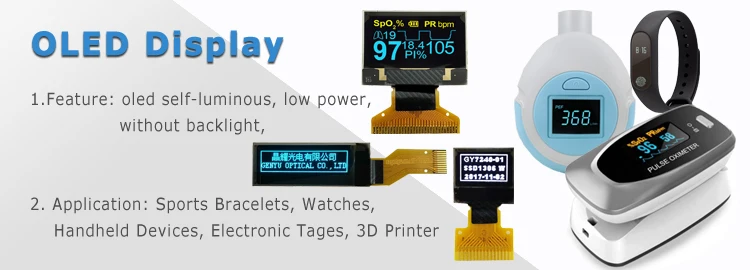

OLED (Organic Light Emitting Diode) .
Monochrome OLED Display modules are self- emitting without backlight so it makes OLED modules slimmer and lower power consumption. Genyu has many OLED displays in-stock and ready to ship today! Genyu is a professional OLED Display Supplier.
- Ultra thin– without backlight, self emitting
- Ultra low power consumption
- High Brightness
- Regular size, standing stock.
- Wide viewing angle: Up to 160 degree
- Wide Operation Temperature: -40 ℃ ~ 80 ℃
- Long Life Time: (60 cd/m 2 ) 50000 - hour
- Built-in drive IC
- RoHS Compliant
Genyu's OLED Display Great for handheld instruments, Smart Watch, wearable instrument, hardware wallet, E-cigarette, smart home applications, Medical equipment, industrial instrument, DJ mixer, sports watch, Oximeter, etc
