Passive 24v 60w 8 port poe injector for 24 volt Powered Devices

PASSIVE 24V 60W 8 PORT POE INJECTOR for 24 volt Powered Devices

Use with any ethernet switch

Flexible power(DC 12V TO 56V)

10/100Mbps fast ethernet

Ideal for IP Cameras,VOIP,WiFi

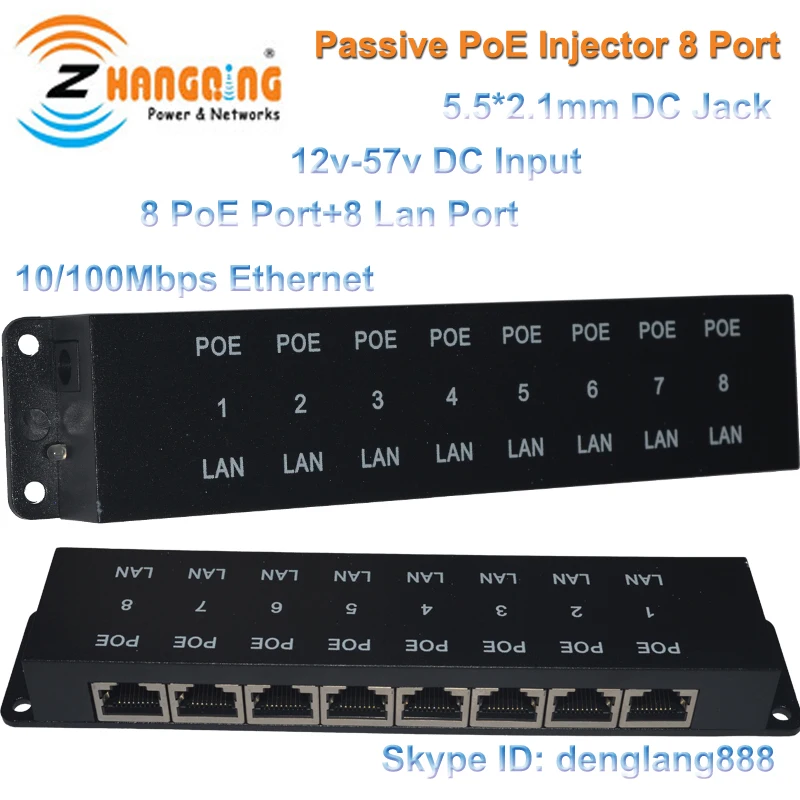

8 Port Injector(8 Lan&8 Lan+PoE port)

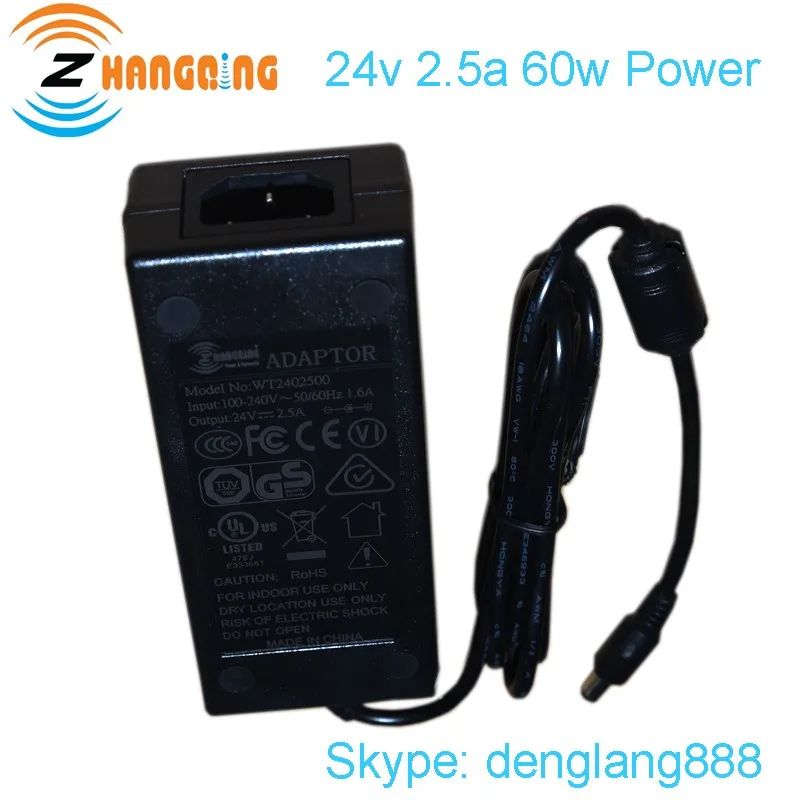

24 volt 60 watt POWER SUPPLY

OVERVIEW

The 8port passive Poe Injector is used 10/100M Ethernet, The LAN RJ45 sockets is form “Switch/PC/HUB” 1/2&3/6 are transmitting data. The POE RJ45 (power + data) socket is to deliver data and power. Pin 1/2 & 3/6 transmitting data, Pin 4/5(+) & 7/8(-) for power. Passive PoE is composed of 8 set of Rj45 sockets and one 60V DC power jack. Input power requests 60W or more Ac to Dc Power converter. The input dc hole diameter is 2.1mm and the other end OD id is 5.5mm

The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 8 x 10W = 80W for 8 port Passive PoE panel.

SPECIFICATION

Input : 12-56V DC 2.1MM
Output: 12-56V PER PORT(30W Max)

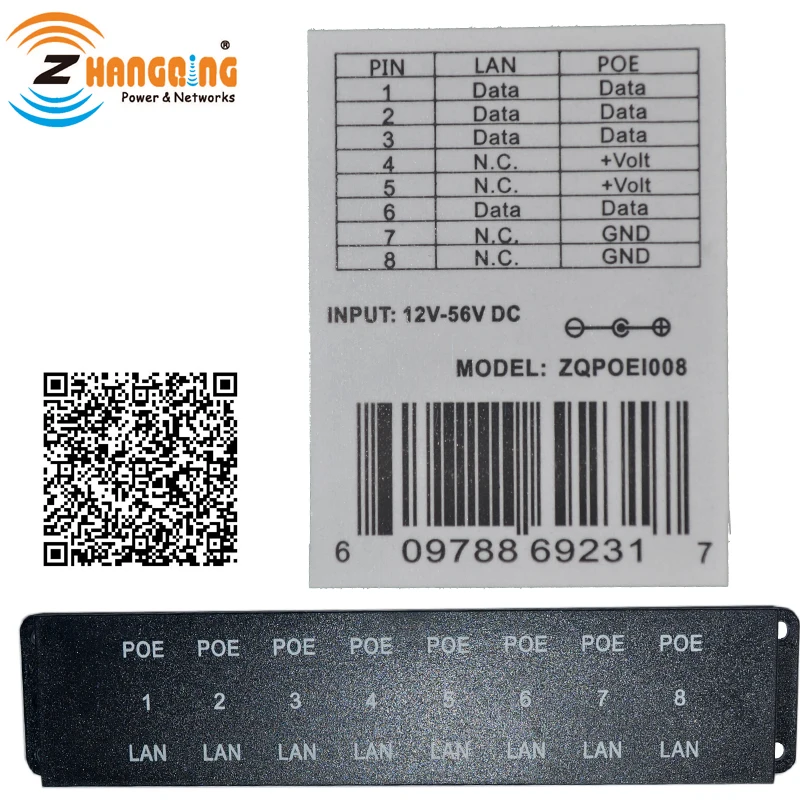

Data: 1/2&3/6
Power: 4/5 V+ & 7/8 VData In :Connects PC/HUB/Switch
Weight : 140g
Dimensions: 175mm×37mm×20mm
Ethernet Cable : TIA/EIA 568 Cat. 5
Data rate : 10/100Mbps
Connector: RJ-45
Operating Temperature : 0°C ~ 40°C
Storage Temperature : -40°C~+70°C
Operating Humidity : 10%~80%RH
Storage Humidity :5%~90%RH

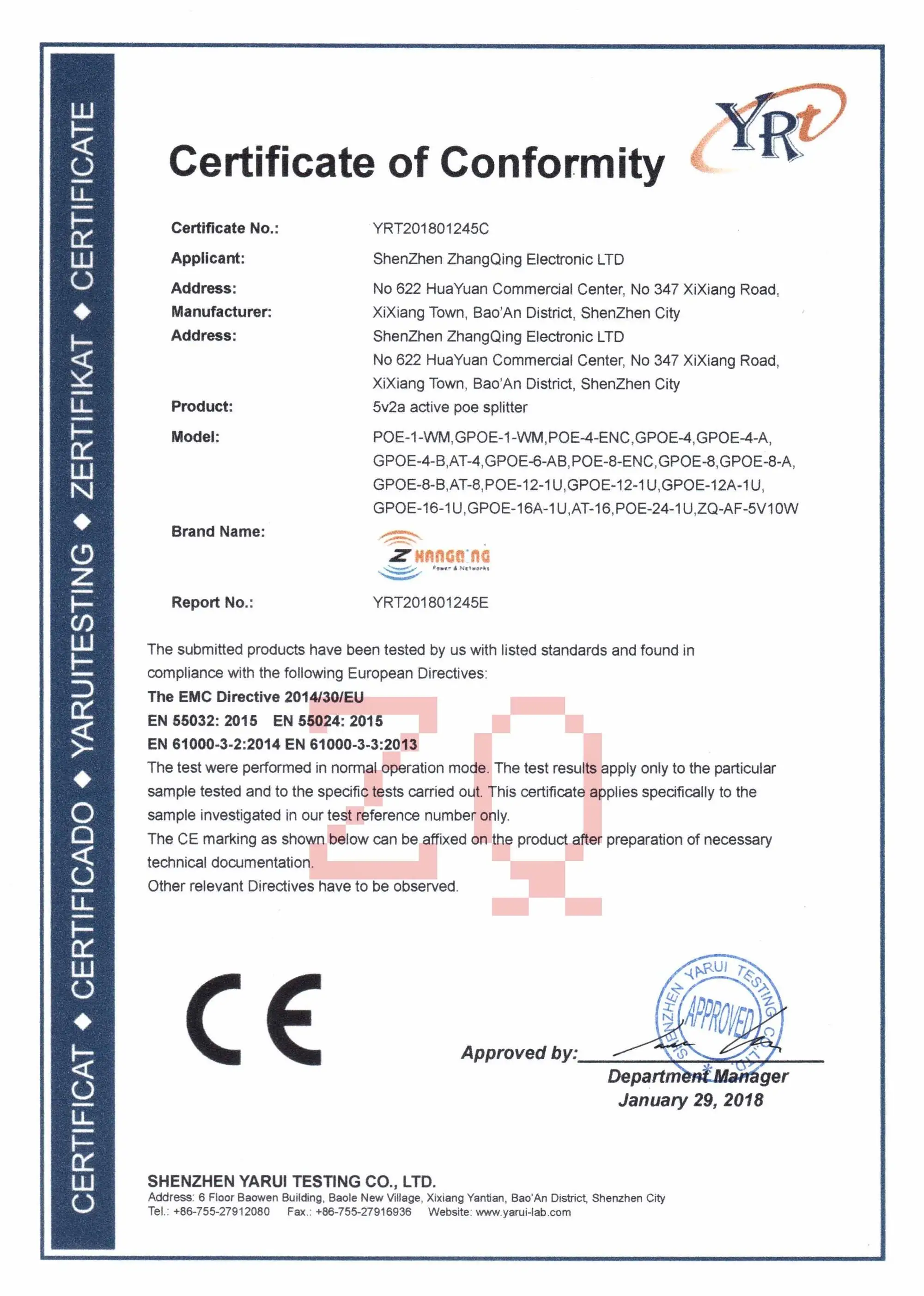

Certification: CE

HOW TO ORDER

POE-8-24v60w   24v 2.5a 60w power supply with 8 PORT POE Panel 4/5+,7/8-

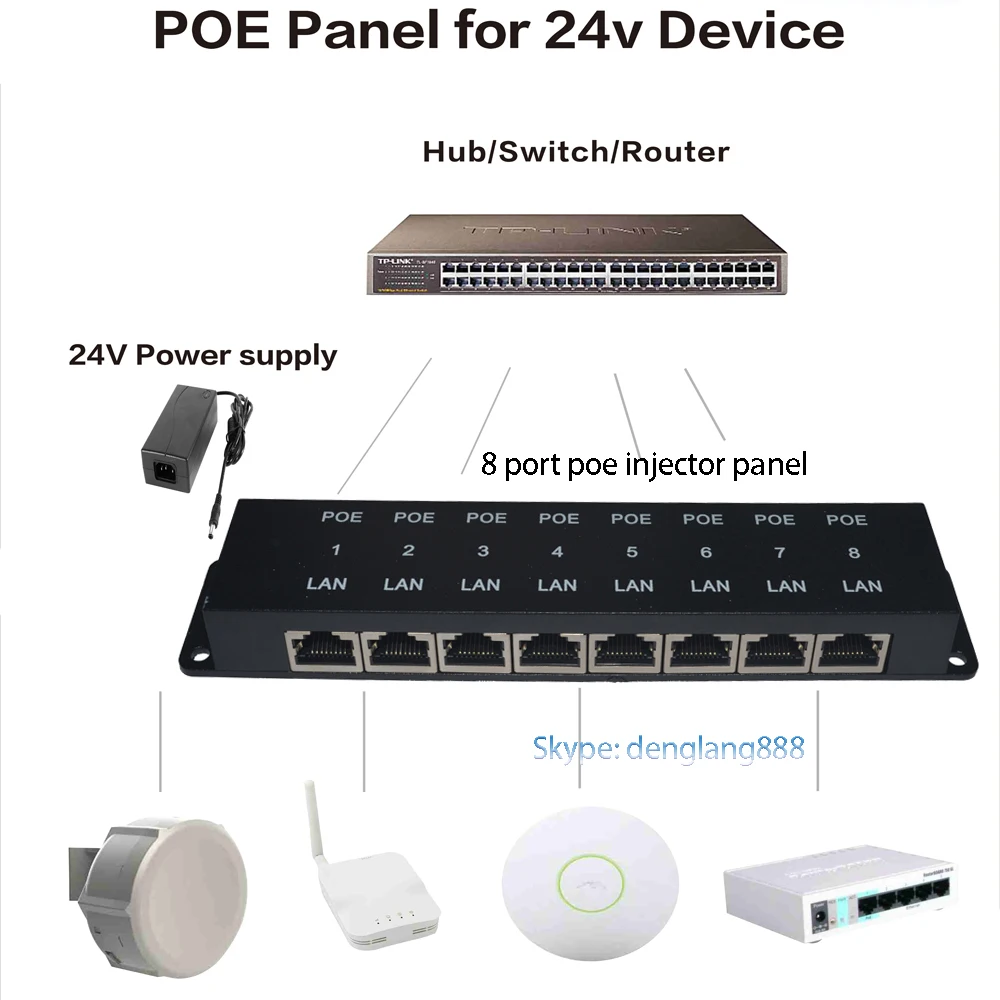

APPLICATION
