1/3 322CMOS NVP2441H 2.0MP Vandalproof Outdoor Mini Dome Security AHD Car Camera
- Category: >>>
- Supplier: Shenzhen Geniuspy Intelligent Technology Co. Ltd.
Share on (60758588419):
Product Overview
Description
car camera

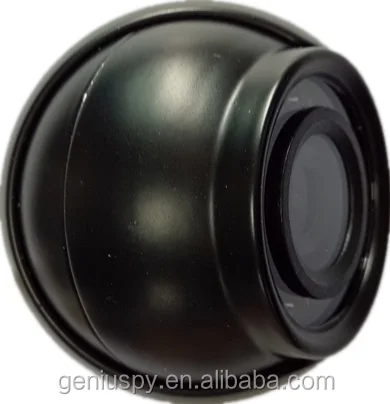

1/3 322CMOS NVP2441H 2.0MP Vandalproof Outdoor Mini Dome Security AHD Car Camera
Product Overviews
Product Description

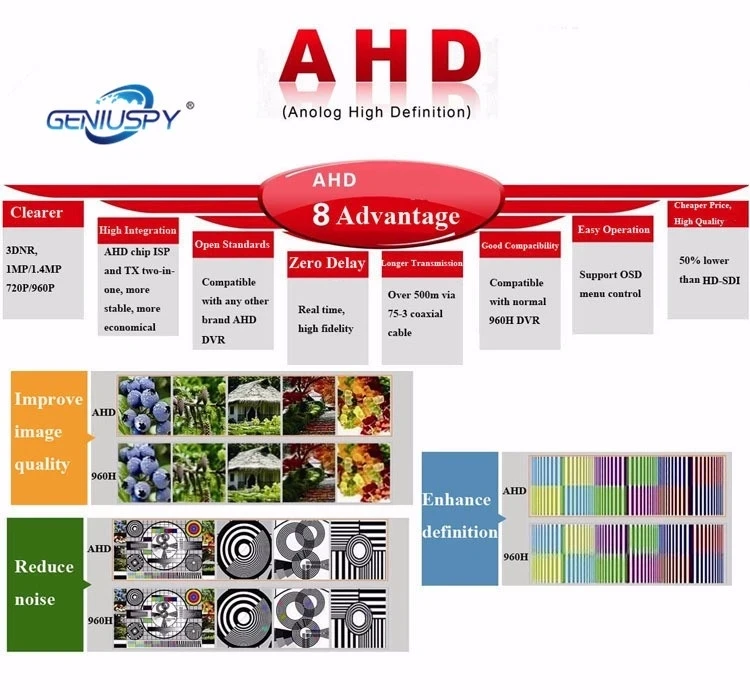

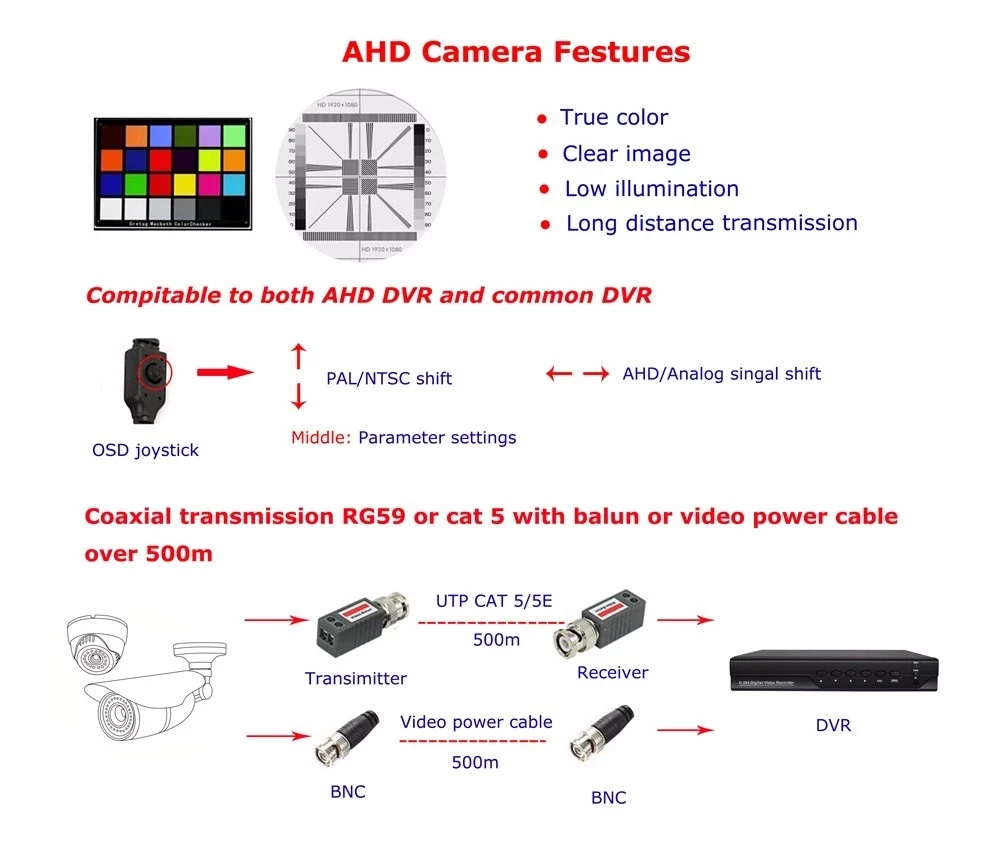

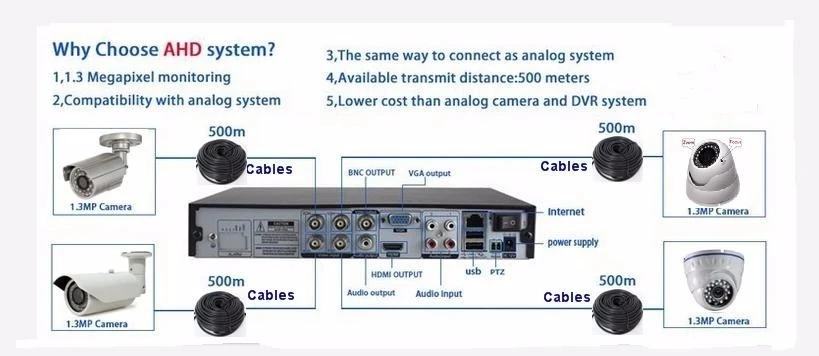

Why AHD(Analog High Definition)?
1.Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable.
2.HD video transmission without video quality loss & delay
3.Extremely long transmission distance(500m)
4.The same connection structure as original analogue system without cable (Coax / UTP) changing
5.High video quality on AHD 1080P/720P
AHD is short for Analog High Definition
Coaxial transmission, super long range, more than 500 meters by 75-3(HD-SDI can only reach less than 100 meters)
Advantages of Our HD AHD camera(Solution: 1/3" IMX322+NVP2441H)
1. Good compatibility
Support AHD output and CVBS output, can work with 1080P AHD DVR (Real 1080P output) and 960H DVR(can ONLY reach 960H resolution)
2. Convenience
Transmission via Coaxial cable, no need to change wires if changed from Analog cameras
3. Clear vision but Good prices
1080P, resolutoin up to 1920(H) x 1080(V), more than 2000TVL
Prices lower than HD-SDI and CVI
Features Of the Camera:
Image Sensor:1/4 AR0141+NVP2431H
Horizontal Resolution :1.0 Mega Pixel 720P
Effective Pixel:PAL : 1280*720P@25fps; NTSC : 1280*720P@30fps
Signal System: NTSC/PAL
Lens: Standard 3.6/2.8/4/6mmoptional
Camera Type: Indoor/Outdoor
Power Supply: 12V/75MA

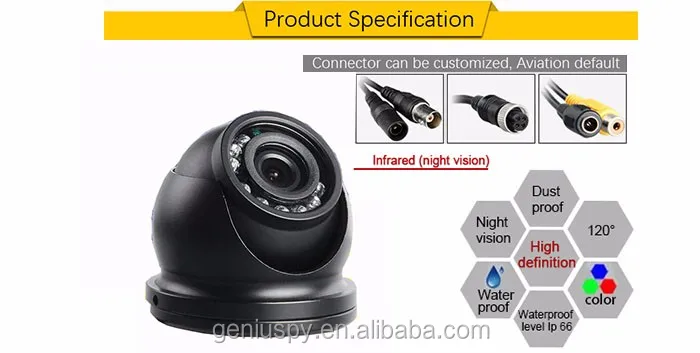

Specification Of the Camera:
| CMOS | 1/3 322CMOS+NVP2441H |
| Resolution | 1080P (2.0 MP) |
| Minimum illumination | 0 Lux when IR on |
| Sync system | Inter-sync |
| Scanning system | 2:1 interlaced |
| S/N | ≥50dB (AGC off) |
| Lens | 3.6mm, 2.8mm optional |
| Electronic shutter | Auto |
| White balance mode | Auto |
| Color to black | Ext |
| Gamma Correction | 0.45 |
| Audio | (Support band-pass filter) Optional |

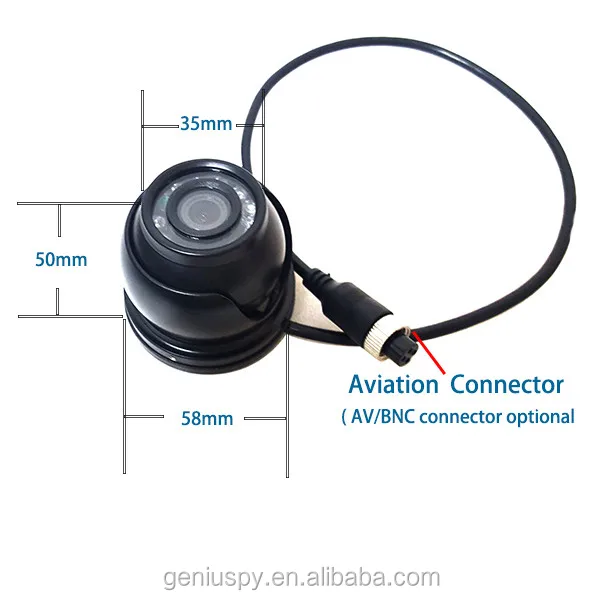

| Video output | AHD standard output, 4-pin aviation cable |

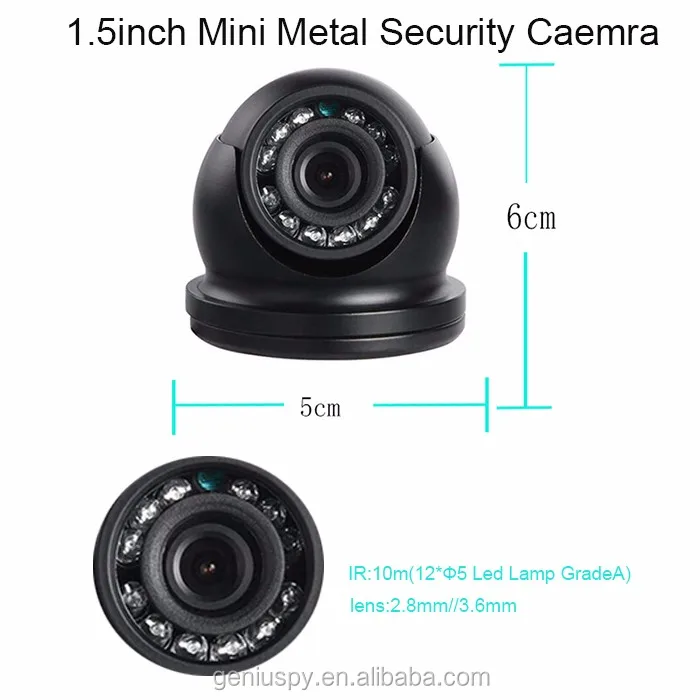

| IR | (12 IR LEDs, IR distance is about 10 meters) Optional |
| Power | 12V ± 10% |
| Consumption(Max.) | 180mA/ 12V±5% (IR on); 70mA/12V±5% (Without IR) |
| Working temperature | -40°C ~ 70°C |
| Weight | 380g |
Company Information
Certifications
Our Services
Work Flow
Packaging & Shipping
Payment
we accept T/T ,Paypal,Alibaba Trade Assurance,Escrow.Western Union,L/C etc
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for CCTV camera for more than 8 years!
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦ Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
♦What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
♦what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
♦.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
♦ What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
♦How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
A: Yes, Sample order available. we can also provide drop ship service.
♦What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
♦what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
♦.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
♦ What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
♦How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
