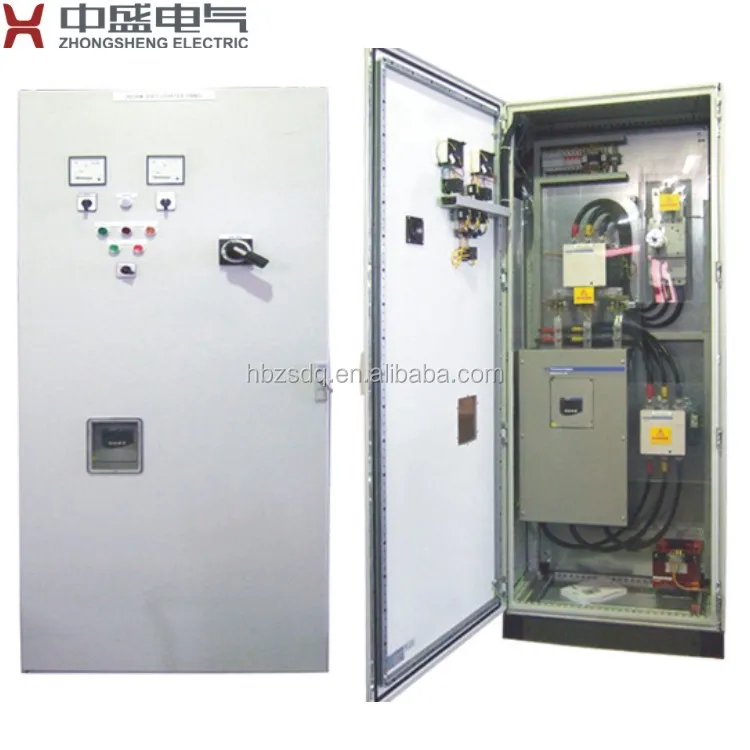

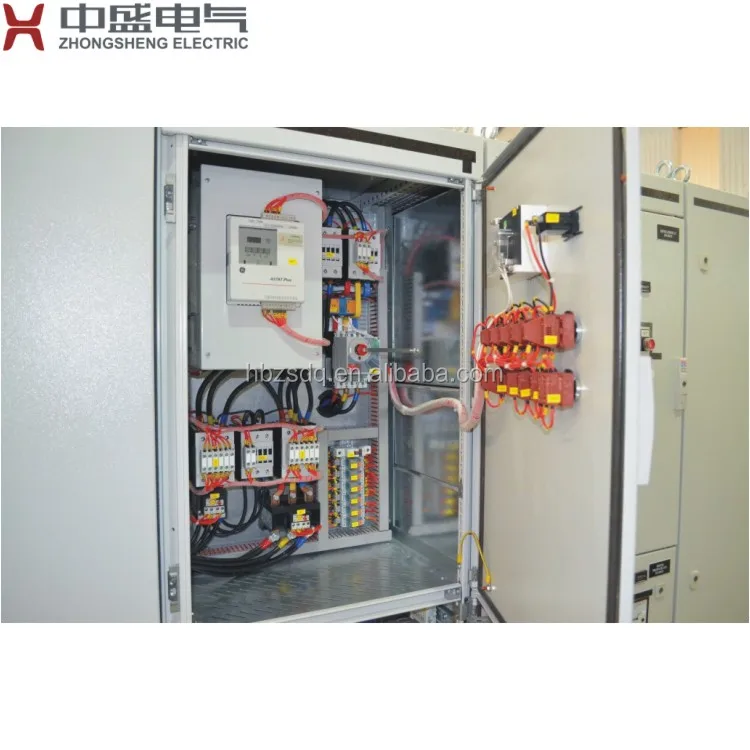

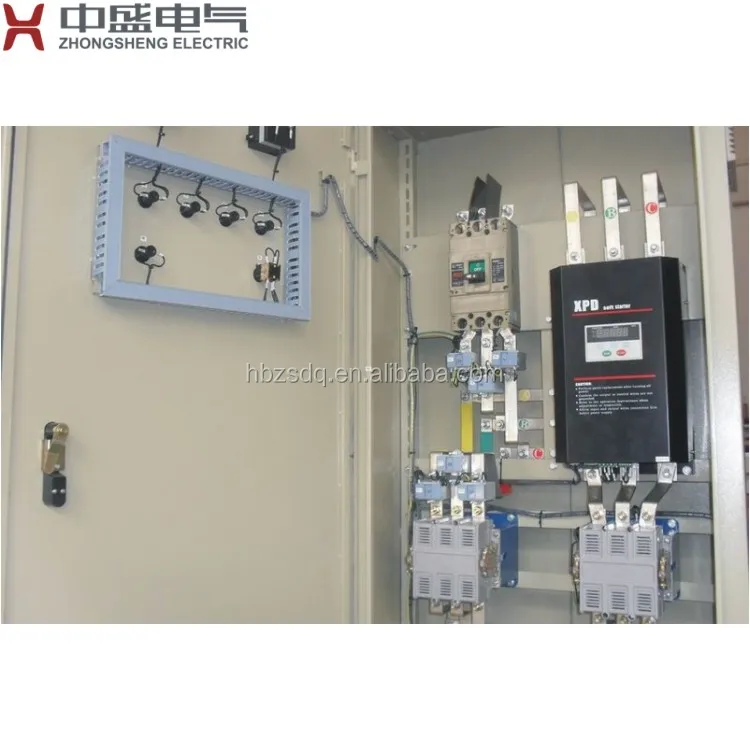

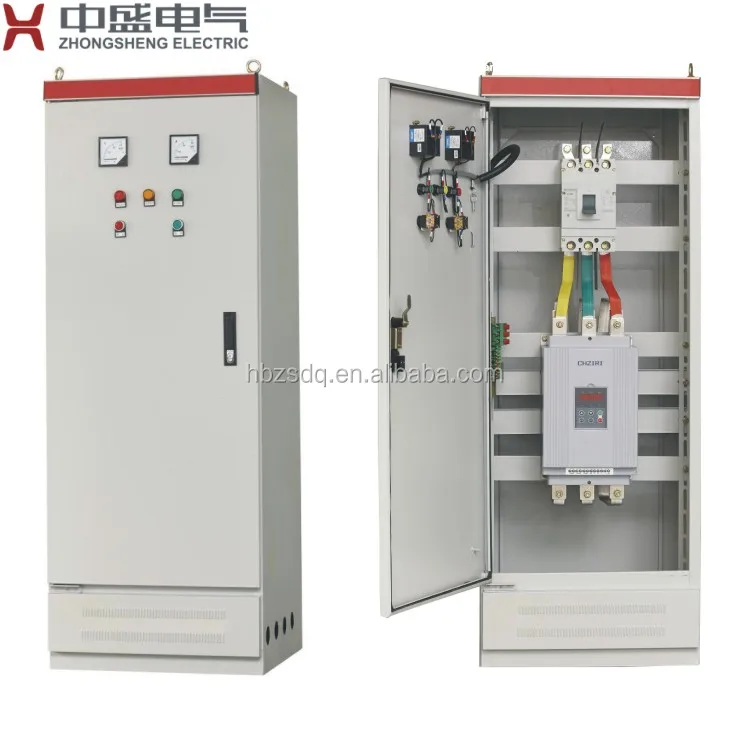

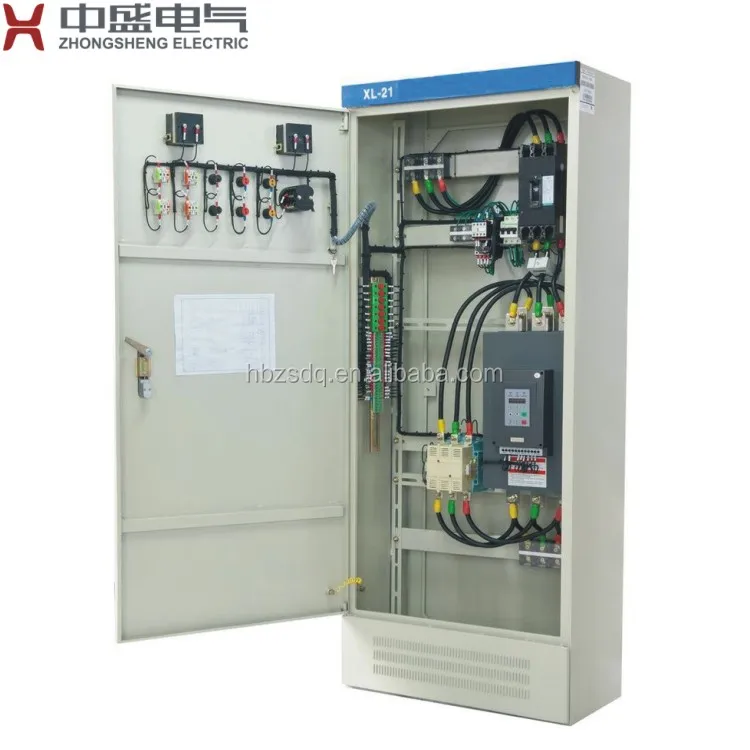

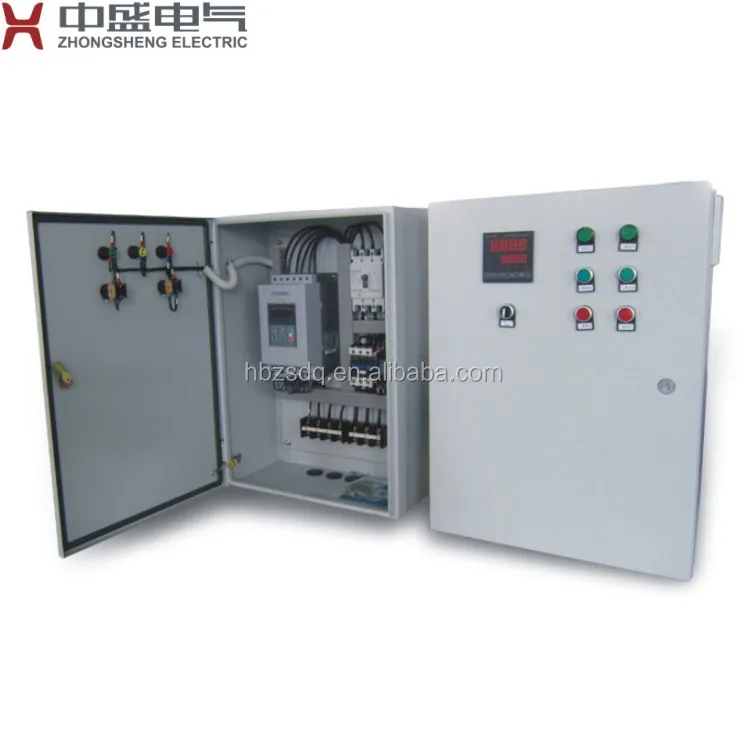

Product name: Solid state soft start pump control panel
Description:
Solid state soft start pump control panel is a device used with three phase squirrel cage asynchronous motors to temporarily reduce the load and torque in the power train and electric current surge of the motor during start-up.
Applied motor:
- Three phase squirrel cage asynchronous motor
- Rated voltage: up to 690V
- Rated power: 30kW to 800kW
- Rated frequency: 50 / 60Hz
Application: Pump, fan, compressor, conveyor, etc.
Size table:
| Rated power of motor | Panel size (W*D*H) |
| 30kW to 315kW | 600*600*1800mm |
| 400kW to 800kW | 800*800*2000mm |
