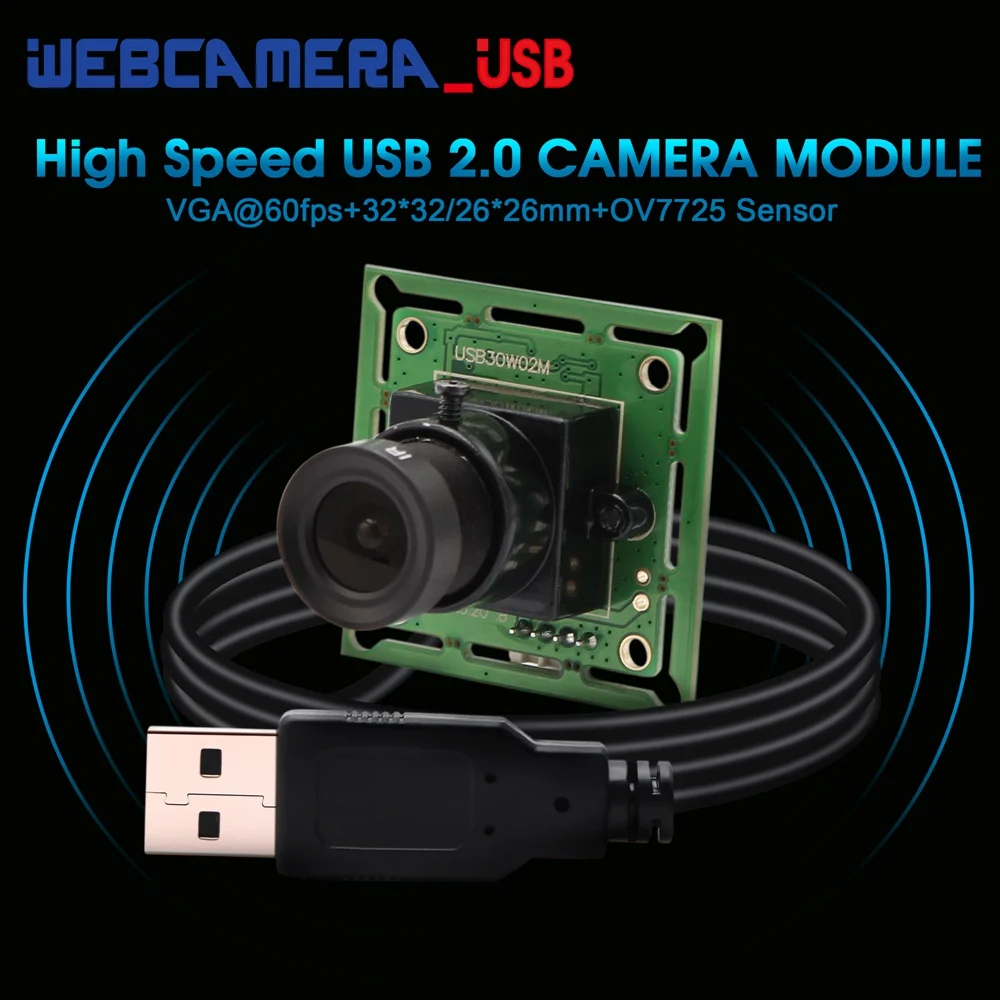

ELP VGA Camera USB External 640X480 MJPEG CMOS OV7725 Webcam Super Mini HD Camera Module 60fps With 32x32/26x26 size
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60758659826):
Product Overview
Description

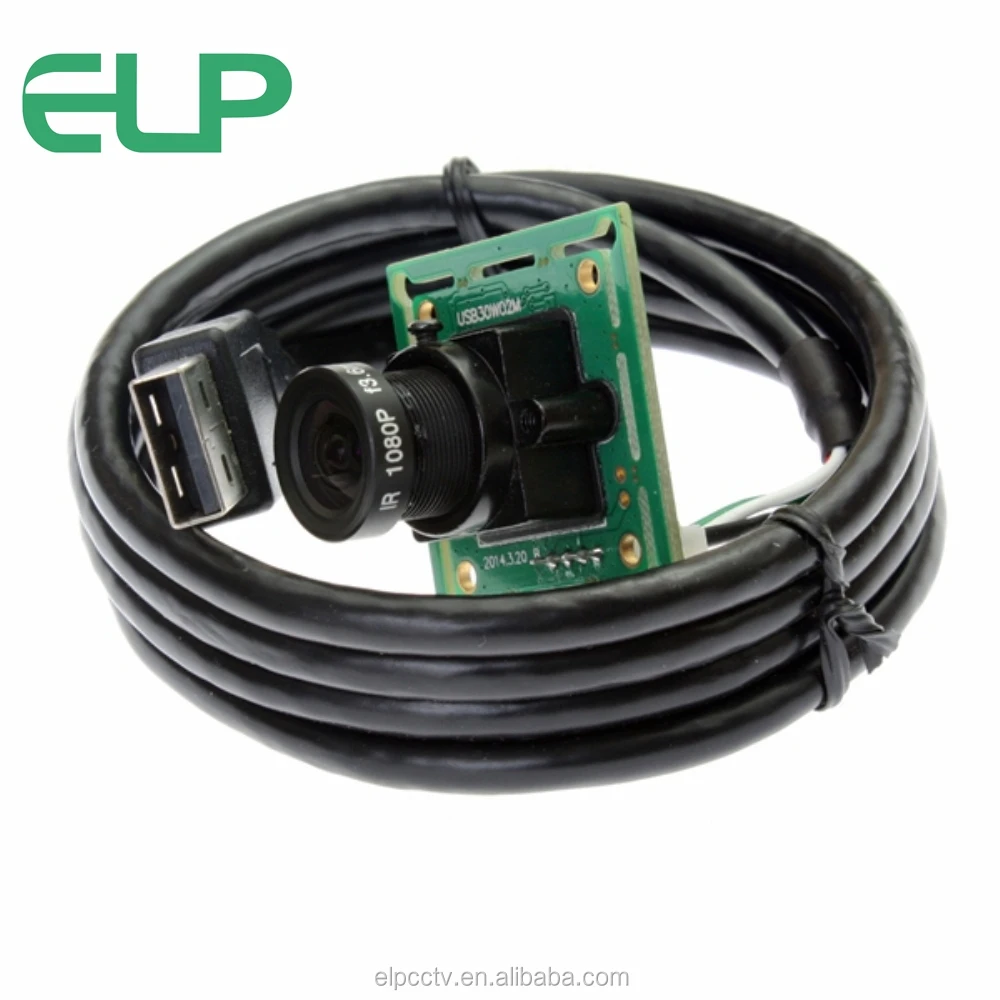

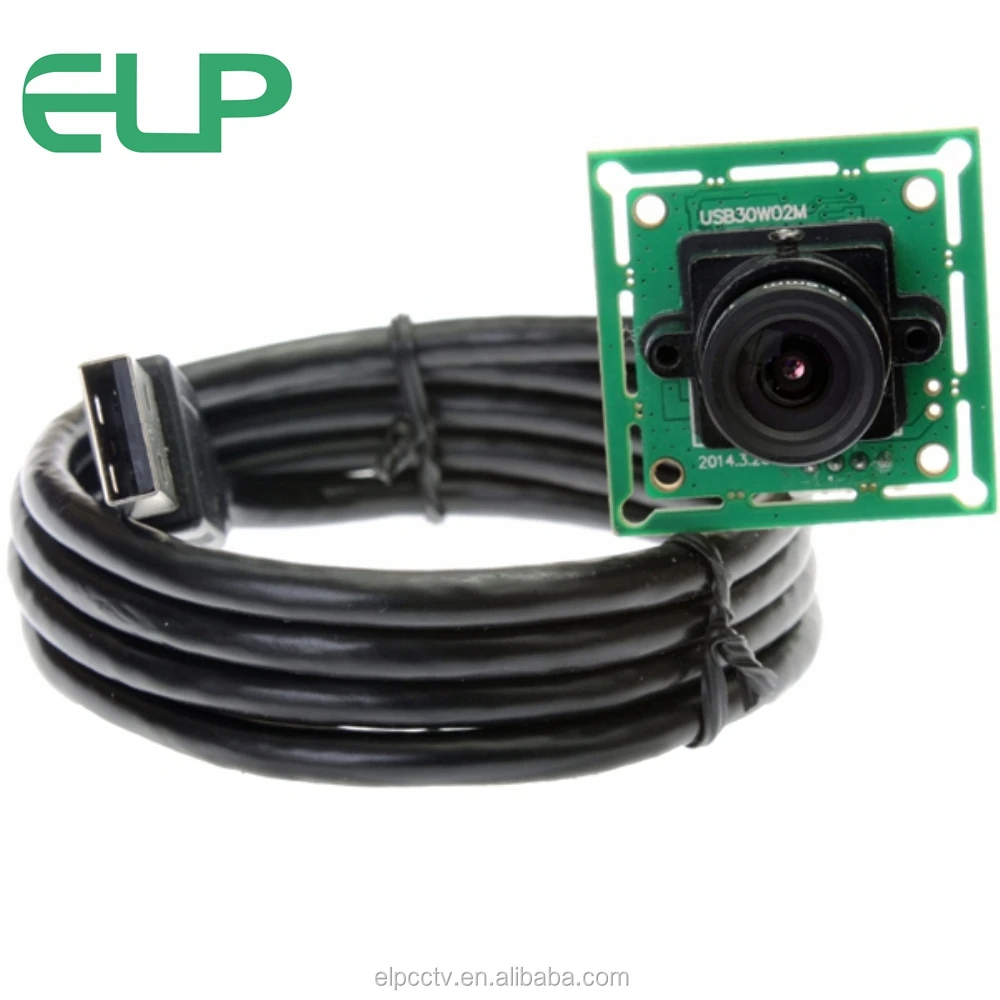

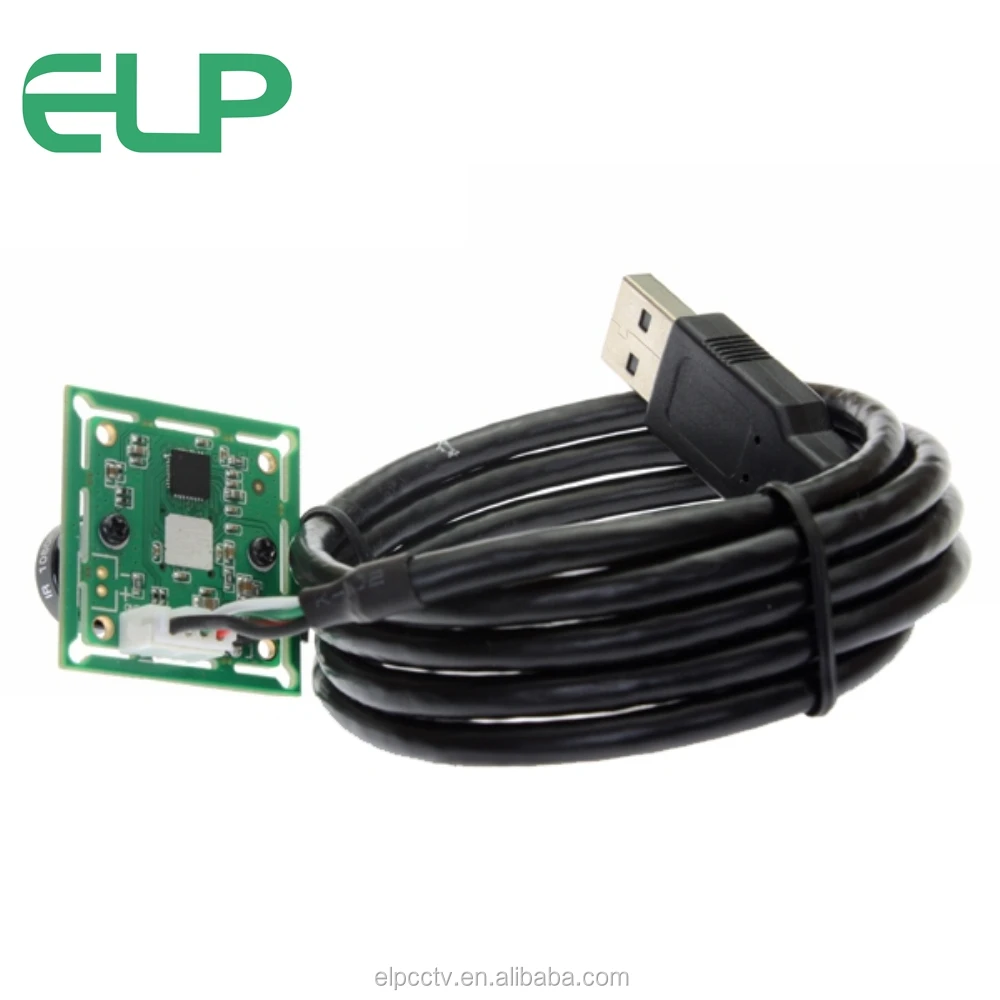

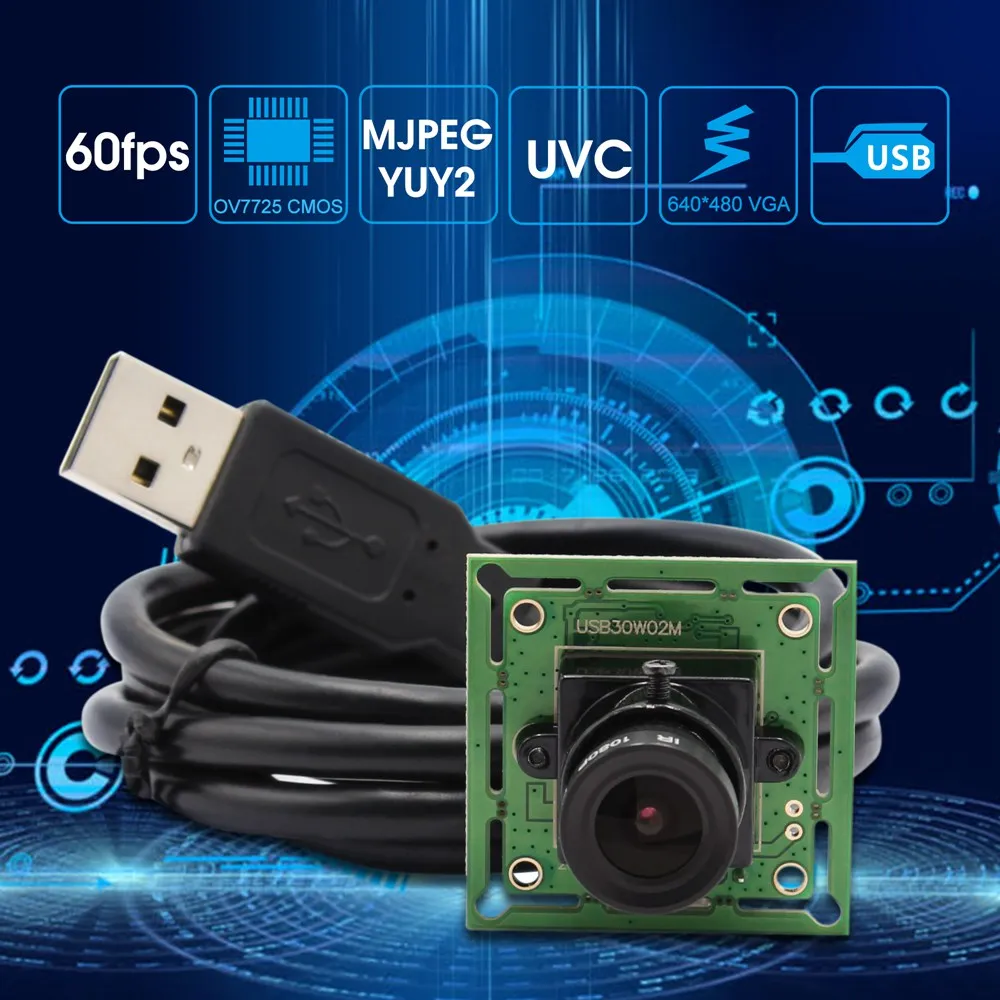

ELP VGA Webcam 640X480 MJPEG 60fps USB 2.0 CMOS OV7725 Mini Camera Module With 32x32/26x26 size
Model: ELP-USB30W02M-L36 is 0.3 megapixel 640(H)X480(V) VGA USB cameras with 3.6mm fixed focus lens for Linux Android Windows etc. OS system
Features

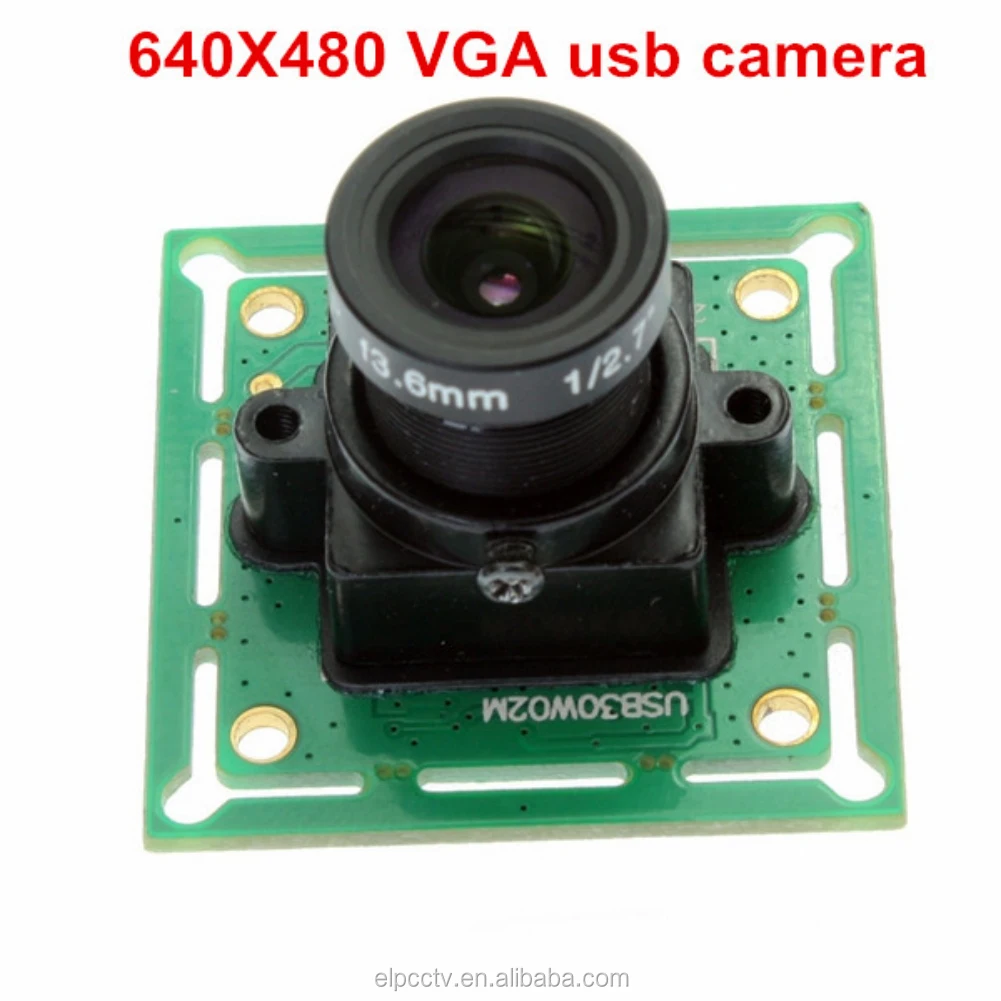

*VGA USB2.0 Camera Module.640x480, 0.3 mega pixels
*YUY2 and MJPEG compression format optional
*CMOS sensor 1/4" inch OV7725 for high quality image and low power consumption

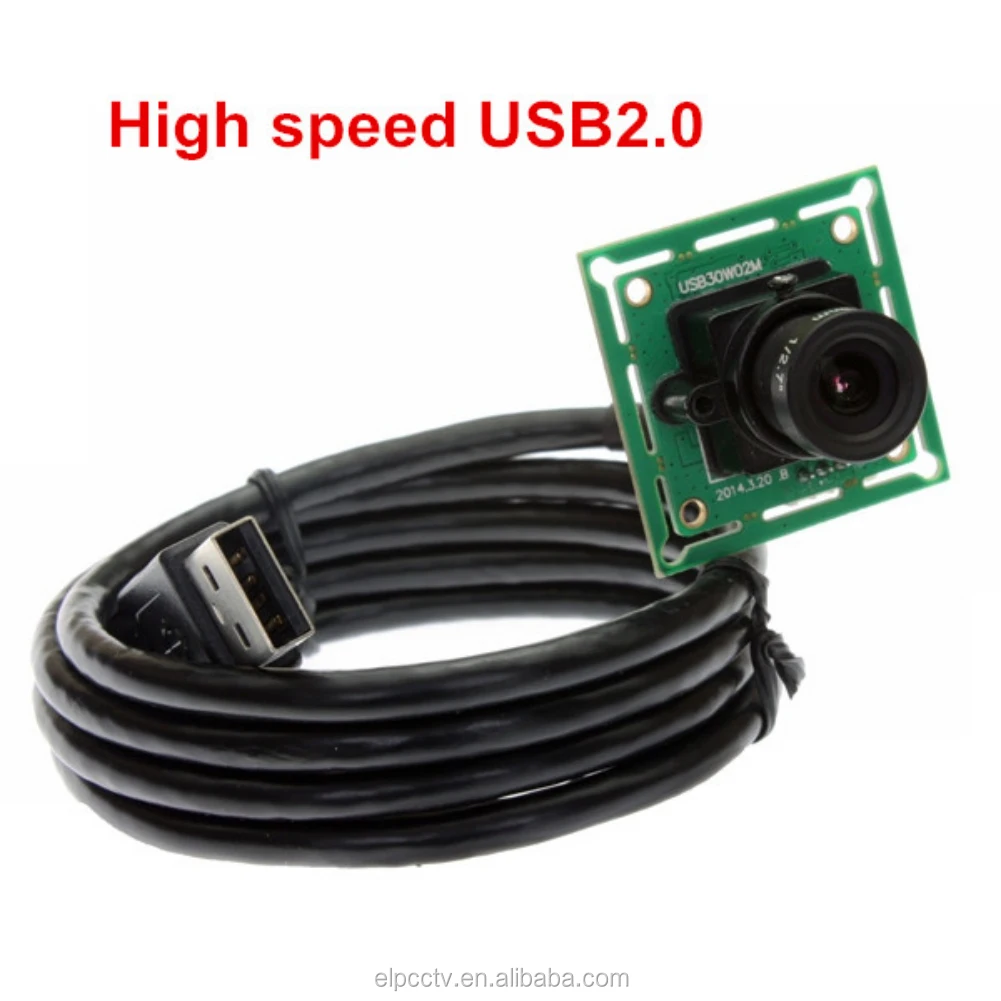

*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*Super small outline and thin profile for embedded applications(Mini size 32*32/26*26mm)
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification
| Model: ELP-USB30W02M-L36 | |||
Resolution & frame rate | 640X480 MJPEG@ 60fps YUY2@ 30fps/ 480X480 MJPEG@ 30fps YUY2@ 30fps 450X450 MJPEG@30fps YUY2@ 30fps/ 352X288 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@ 30fps/ 240X240 MJPEG@ 30fps YUY2@ 30fps | ||
| Sensor | 1/4" CMOS OV7725 | Picture format | MJPEG or YUY2(YUYV) |
| Pixel Size | 6.0μm x 6.0μm | Free Drive Protocol | USB Video Class(UVC) |
| Image Area | 3984 µm x 2952 µm | USB Protocol | USB2.0 HS/FS |
| Max. Resolution | 640(H)X480(V) VGA | OTG protocol | USB2.0 OTG |
| Cable | Standard 1M USB cable/ Optional 2m,3m,5m | Mini illumination | 0.2lux |
| Lens Parameter | Standard 3.6mm lens, optional 2.1/2.8/6/8/12Mmm, FOV170 degree | Adjustable parameters | Brightness/Contrast/Saturation, |

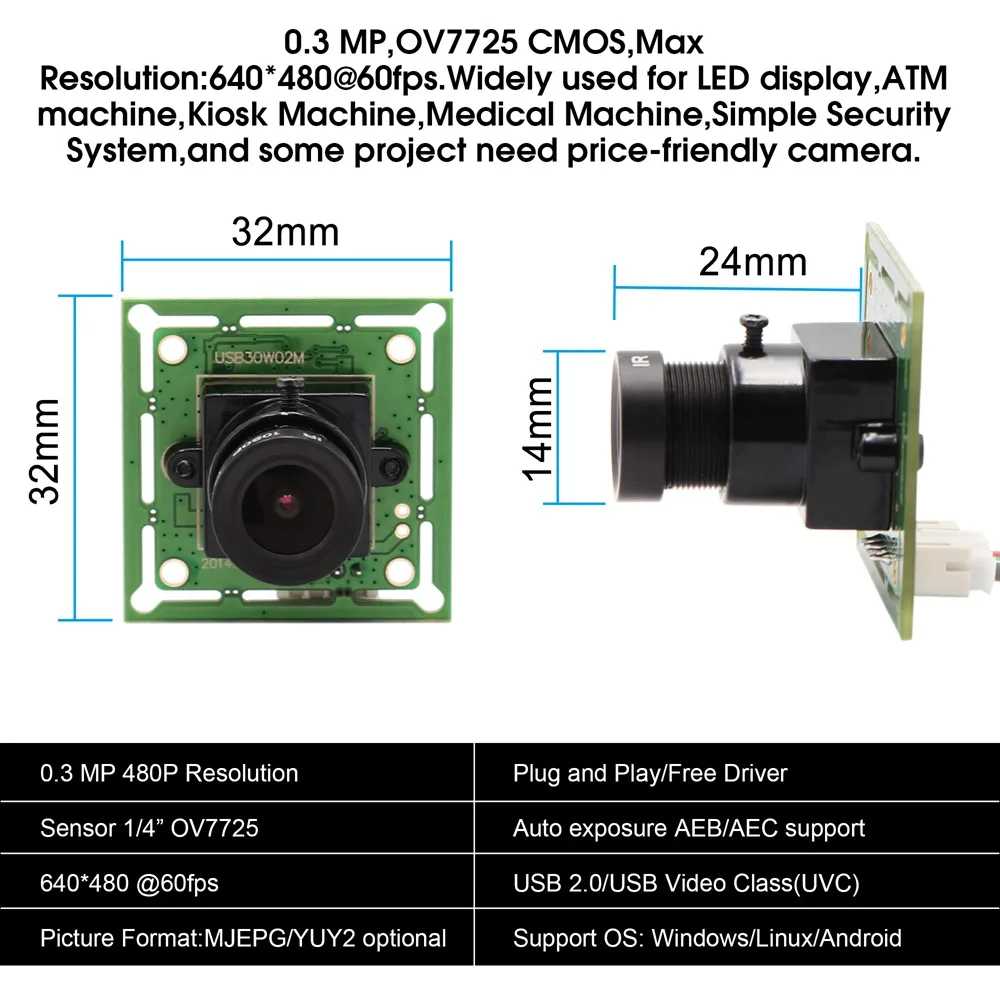

| Board Size/ Weight | 32X32mm(optional 26X26mm)/ about 30g | Shutter Type | Electronic rolling shutter/ Frame exposure |
| Sensitivity | 3.8V/lux-sec@550nm | S/N Ratio | 50dB |
| AEC, AEB, AGC | Support | Dynamic Range | 60dB |
| Work Temperature | -10~70 | Voltage | DC 5V |
Storage Temperature | -20~85 °C | Current | 100mA~160mA |
| Night vision | Need to equipped IR Sensor Lens and IR LED Board | LED board power connector | Support, 2P-2.0mm socket |

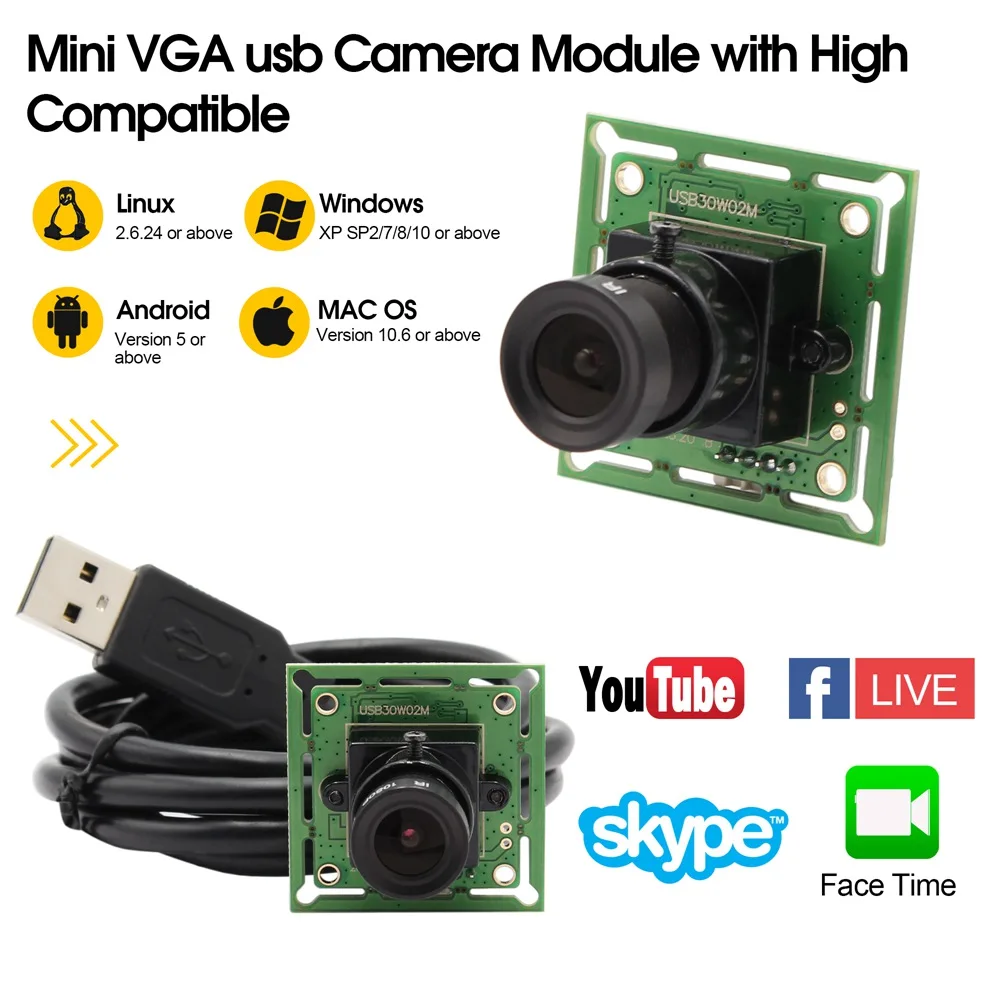

| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | ||

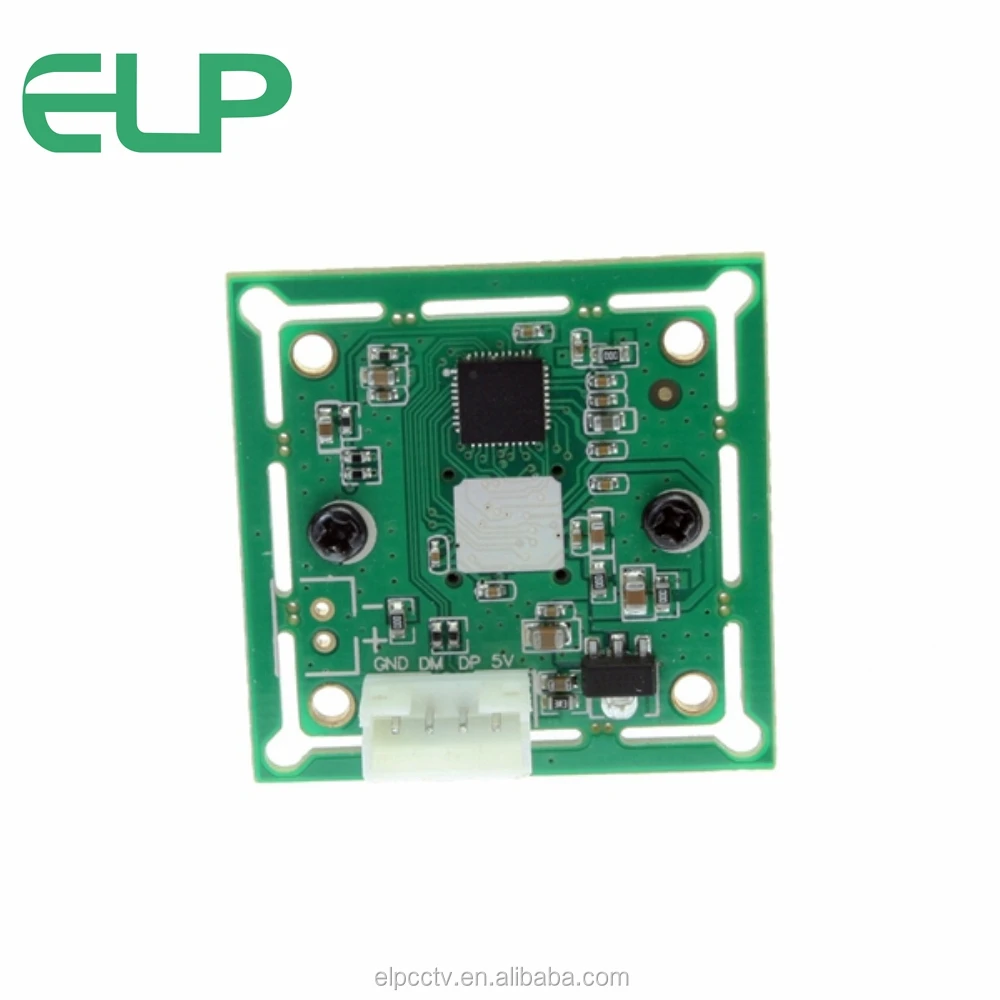

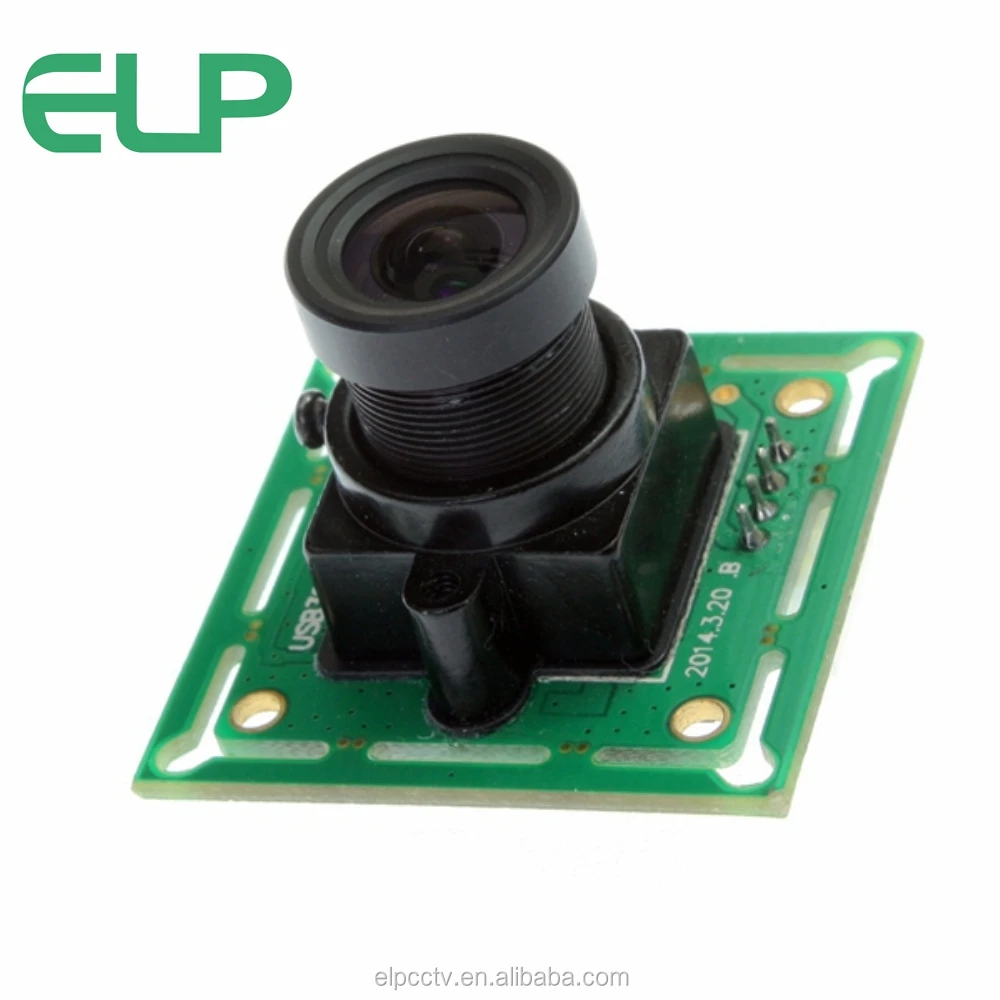

Products Display
Applications
Company Information
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
