Professtional Chinese Manufacturer

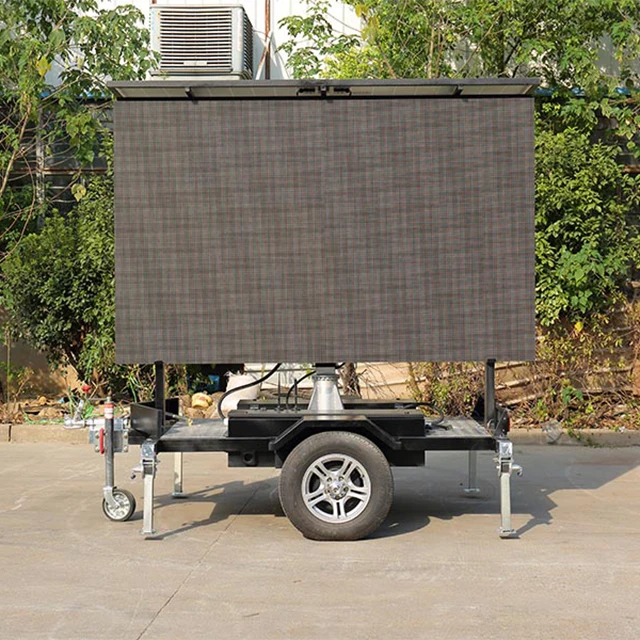

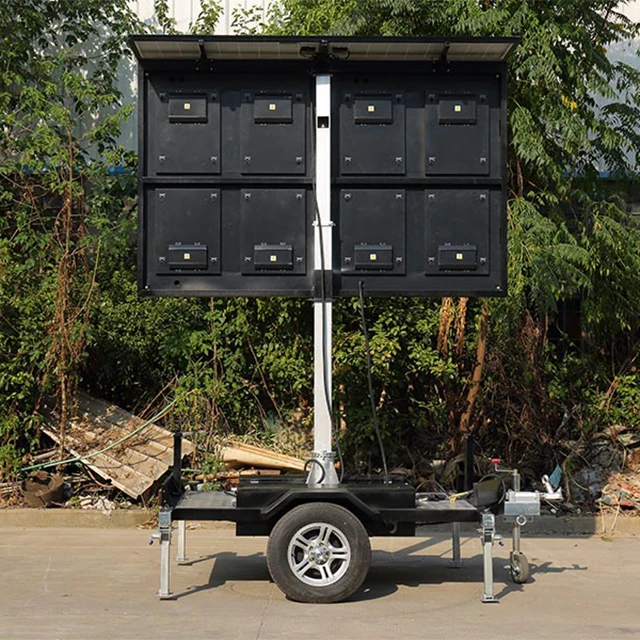

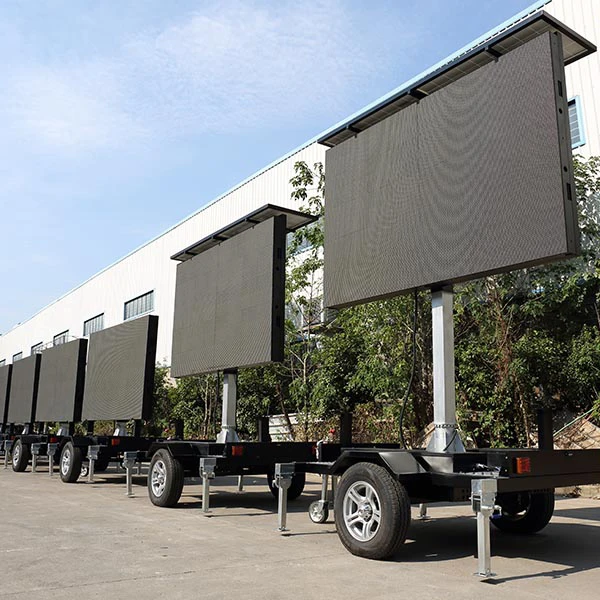

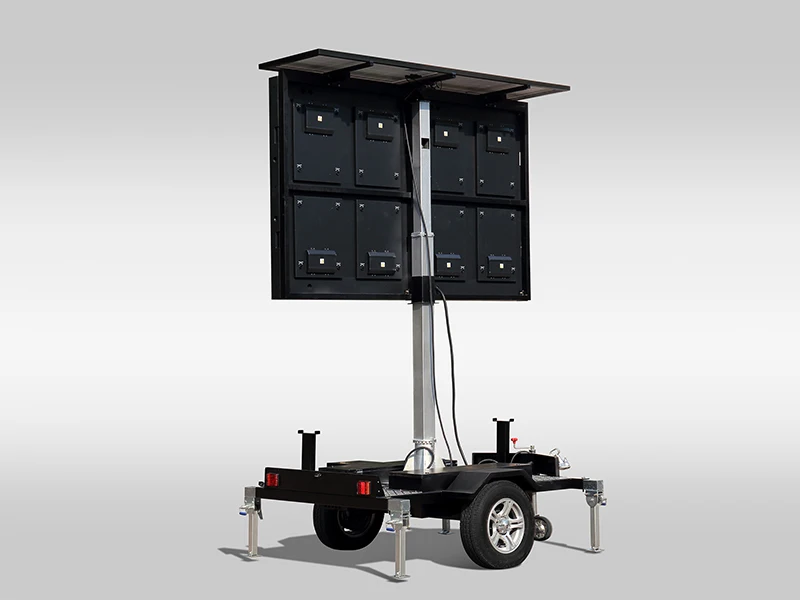

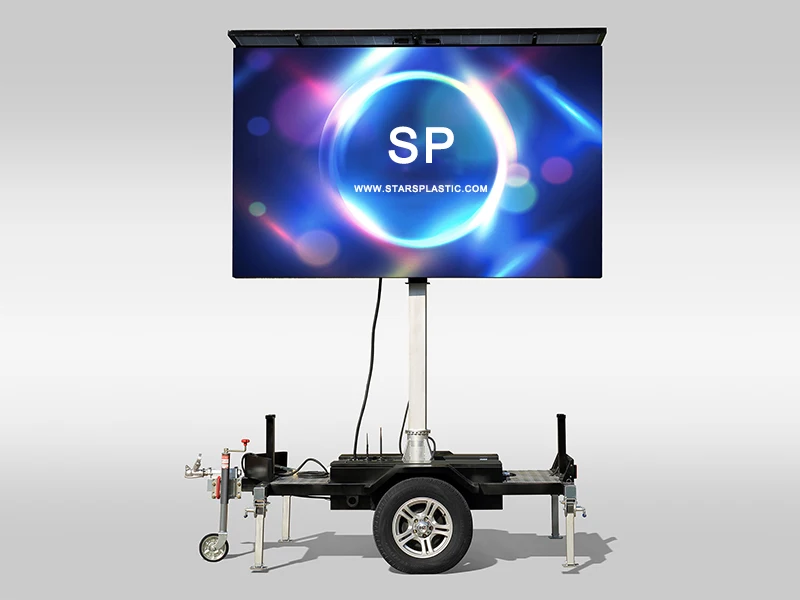

P6 Mobile Trailer
Full Color Commercial Advertising Outdoor Mobile Led Screen Trailer Advertising LED Display

Rotating Mobile LED Trailer
Model:HL-TR-R
The first design in China which the screen is 360° rotated
Integration supporting, and the functions of hydraulic lifting, rotating system, realize the LED screen visual range 360 ° no blind Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.The technology applied successfully for the first time in the domestic car LED media industry.
Fashion appearance , science and technology move feeling
Change product line style, traditional body adopts the design of no frame , clean lines, angular, which fully reflects the sense and modern science and technology.Especially suitable for traffic control, performance, hipster shows, such as electronic car launch, is the activity of fashion trends and cutting-edge technology or product, and other media to promote the best.
Imported hydraulic system, security and stability
Imported hydraulic system security and stability, can travel 1000 mm;Can be adjusted according to the requirements of the environment, LED screen, make sure the audience get the best viewing Angle.
Optional solar battery power supply
Independent power supply, high performance, uninterrupted power supply, not restricted by geographical location, safe and reliable, no pollution, no noise, environmental protection and beautiful, don't need too much maintenance.
HL-TR-R Technical Parameters
Mobile LED Trailer HL-TR-R creates IMPACT at your event!! Great for experiential promotions or for placement in the centre of crowds
Model | HL-TR-R | ||
Chassis | |||
Brand | SP | External Dimension | 2700mm(L)×1800mm(W)×2600mm(H) |
Aggregate Trailer Mass(ATM) | 710KG | Tire | Solid rubber tires |
Gross Trailer Mass (GTM) | 930KG | Brake | Handle/Hydraulic |
Supporting legs | 4pcs |
|
|
LED Screen | |||
Screen SIZE | 2560mm(W)*1600mm(H) | Dot Pitch | 6 mm |
Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m2 |
Max Power Consumption | 680w/m2 | Average Power Consumption | 288w/m2 |
Lifespan | 100,000hours |
|
|
Hydraulic lifting System | |||
Hydraulic Lifting System | Lifting Range 1000mm | ||
Hydraulic Rotating System | Screen can rotate 360degrees | ||
Wing-against Level | Against Level 8wind after screen lift up 1000mm | ||
Power parameter | |||
Power System | 48V,50AH | battery life | ≥6hours |
Inverter | 2000W | coulombmeter | 1 |
Input Voltage | 220V | Output Voltage | 48V |
Current | 15A | Average power consumption | 0.5kwh/m2 |
Multimedia Control System | |||
Optional configuration | LED Screen& Battery power & mechanical transmission is optional | ||
