high reliability standard keyless shaft locking assembly
Product Description
Description:
Type Z10 is a keyless shaft power lock. It can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.
Parameter of high reliability standard keyless shaft locking assembly

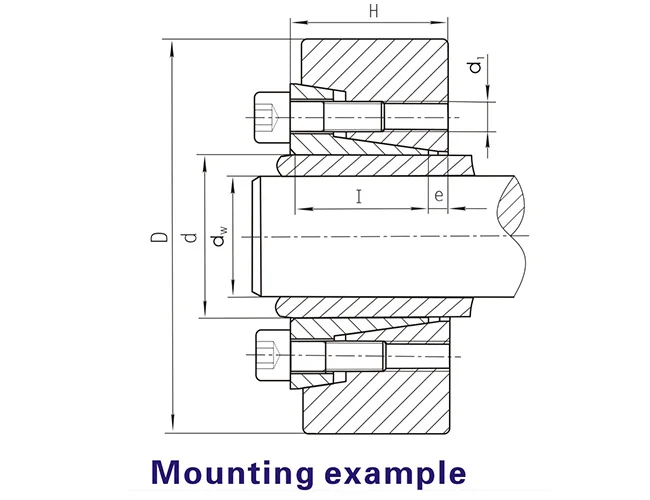

DIMENSION
[mm]
Bolt
Rated Load
Torque of
tighten
locking-bolt
MA
N·m
Weight
[Kg]
d
D
dw
I
H
e
d1
Axial
Force
Ft [kN]
Torque
Mt
[kN·m]
12 14 16 18 18
32 37 41 44 44
10 12 14 15 16
9 9 12 12 12
11 11 15 15 15
1 1 1.5 1.5 1.5
M5 M5 M5 M5 M5
8 9 13 10 14
0.038 0.052 0.09 0.08 0.112
5 5 5 5 5
0.06 0.08 0.12 0.12 0.12
20 20 24 24 24
47 47 50 50 50
17 18 19 20 22
12 12 14 14 14
15 15 18 18 18
1.5 1.5 2 2 2
M5 M5 M5 M5 M5
16 20 17 20 25
0.14 0.184 0.16 0.2 0.28
5 5 5 5 5
0.15 0.15 0.2 0.2 0.2
30 30 30 36 36
60 60 60 72 72
24 25 26 28 30
16 16 16 18 18
20 20 20 22 22
2 2 2 2 2
M5 M5 M5 M6 M6
23 25 27 37 43
0.28 0.32 0.36 0.55 0.68
5 5 5 12 12
0.3 0.3 0.3 0.4 0.4
36 44 44 44 50
72 80 80 80 90
31 34 35 36 38
18 20 20 20 22
22 24 24 24 26
2 2 2 2 2.5
M6 M6 M6 M6 M6
46 41 44 47 55
0.74 0.7 0.77 0.85 1.1
12 12 12 12 12
0.4 0.6 0.6 0.6 0.8
50 50 55 55 55
90 90 100 100 100
40 42 42 45 48
22 22 23 23 23
26 26 29 29 29
2.5 2.5 3 3 3
M6 M6 M6 M6 M6
64 72 54 66 77
1.32 1.54 1.13 1.5 1.85
12 12 12 12 12
0.8 0.8 1.1 1.1 1.1
62 62 62 68 68
110 110 110 115 115
48 50 52 50 55
23 23 23 23 23
29 29 29 29 29
3 3 3 3 3
M6 M6 M6 M6 M6
69 77 84 73 90
1.6 1.92 2.17 1.8 2.44
12 12 12 12 12
1.3 1.3 1.3 1.4 1.4
68 75 75 75 80
115 138 138 138 145
60 55 60 65 60
23 25 25 25 25
29 31 31 31 31
3 4 4 4 4
M6 M8 M8 M8 M8
103 97 117 133 108
3.1 2.7 3.52 4.3 3.25
12 29 29 29 29
1.4 1.7 1.7 1.7 1.9
80 80 90 90 90
145 145 155 100 100
65 70 65 70 75
25 25 30 30 30
31 31 38 38 38
4 4 4 4 4
M8 M8 MB M8 M8
121 133 145 170 190
3.97 4.7 4.7 5.98 7.2
29 29 29 29 29
1.9 1.9 3.3 3.3 3.3
