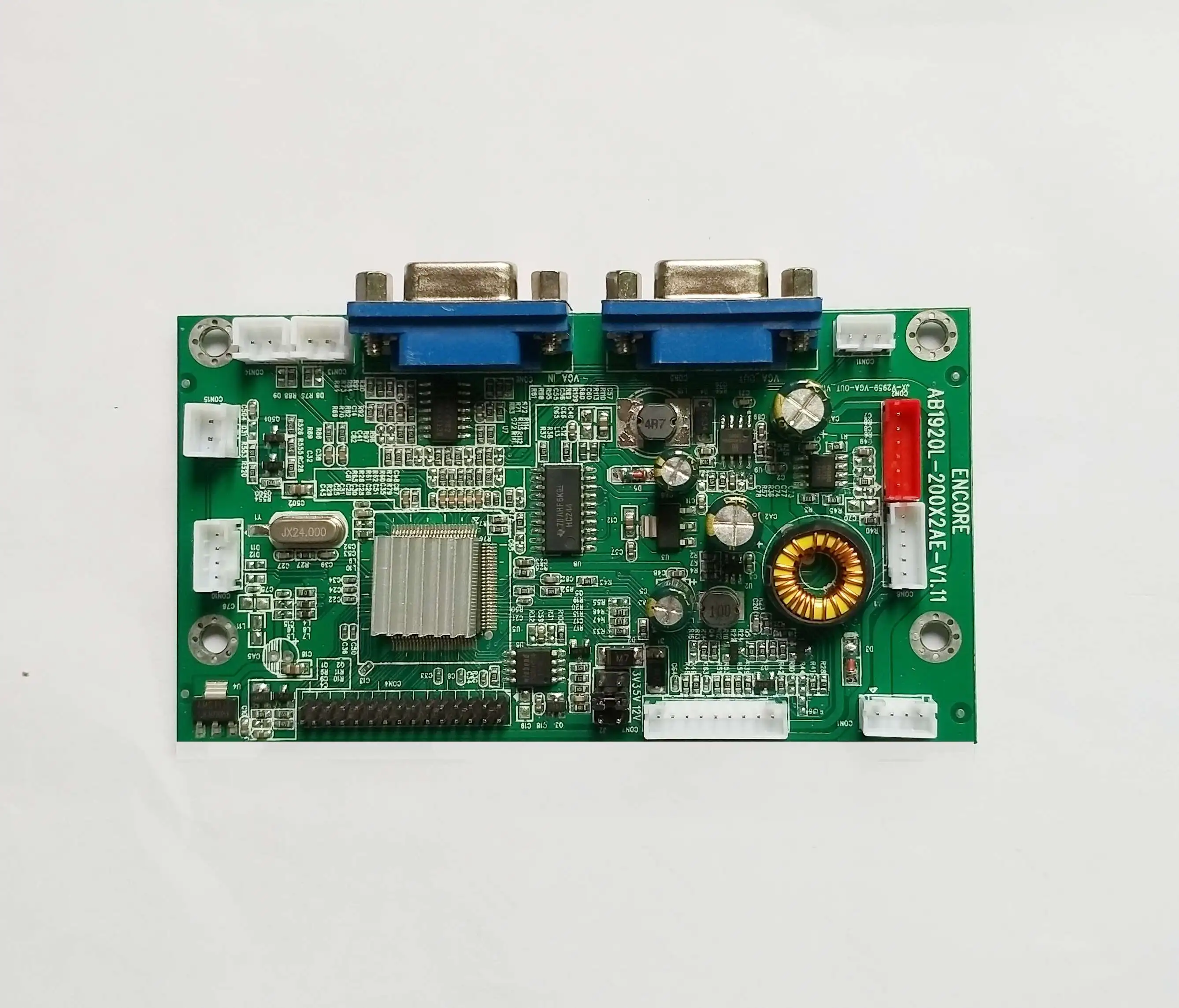

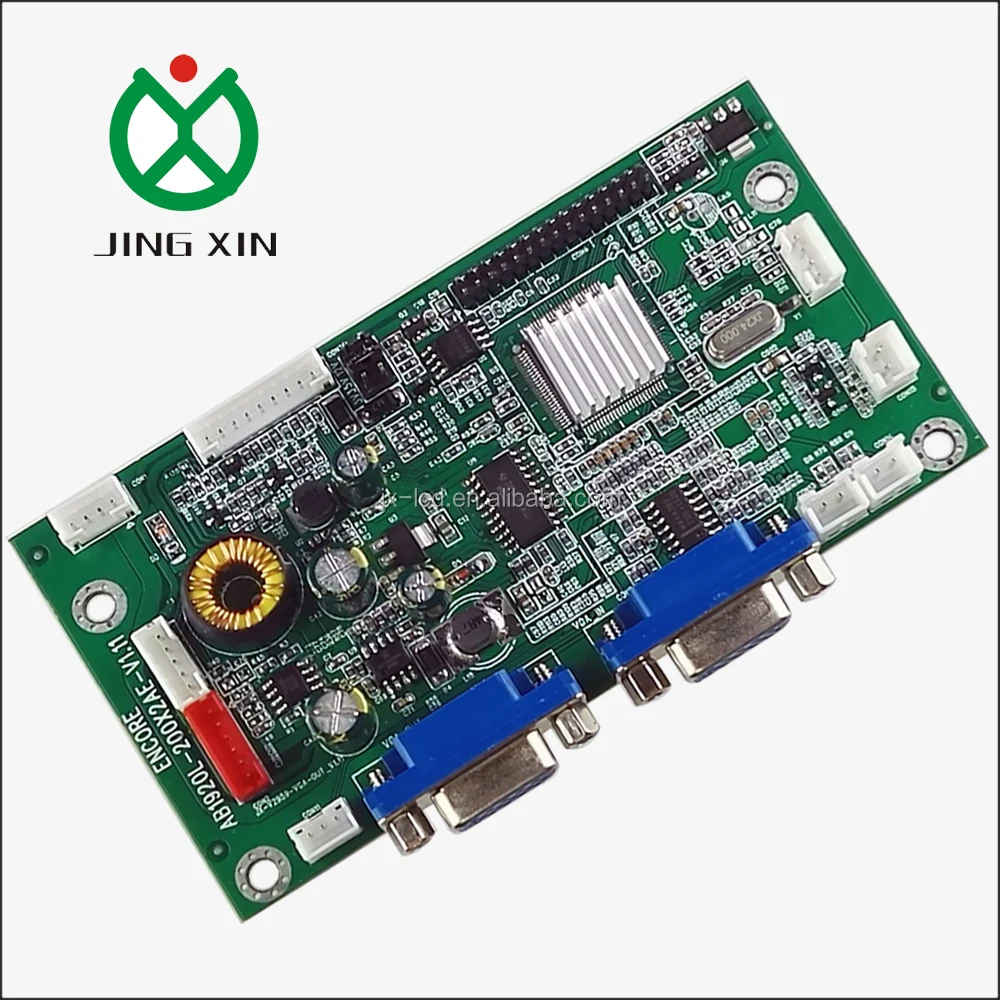

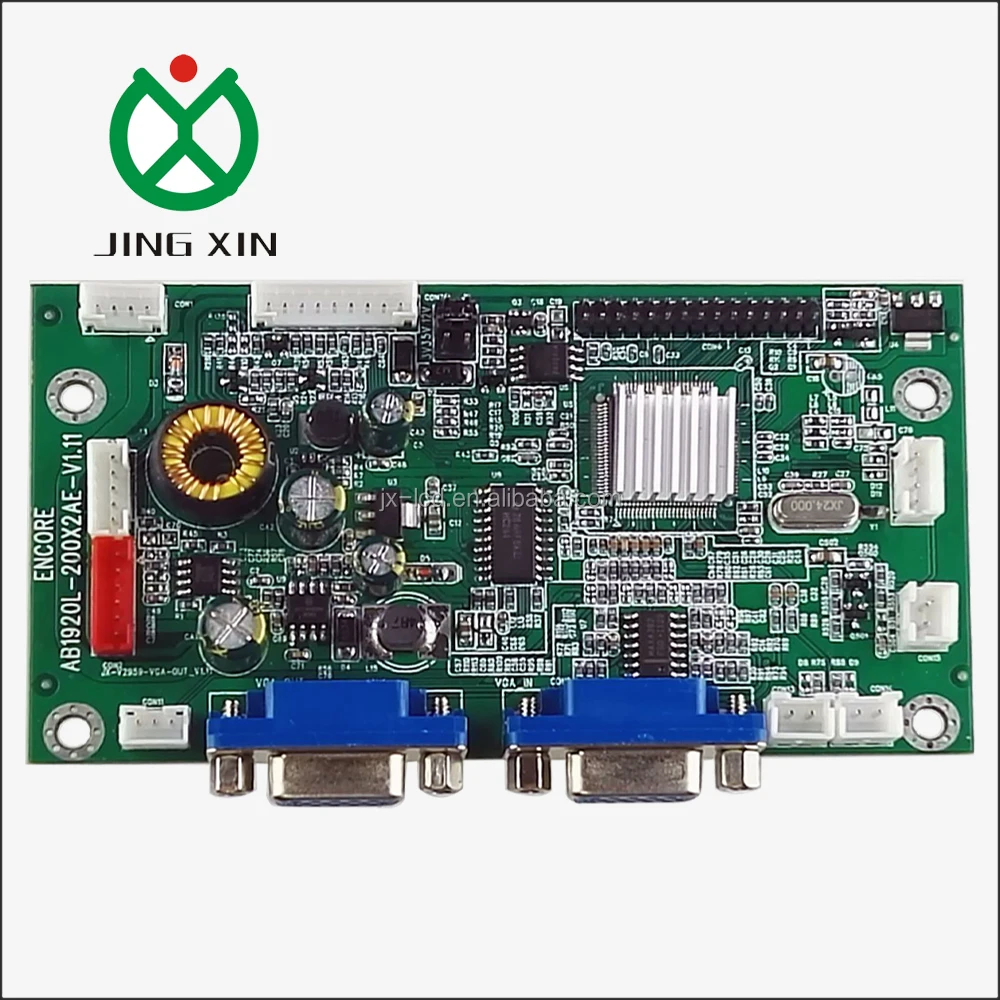

JX HD In and Out use Mstar V59 Universal Tablet Lvds Interface Lcd monitor Controller Board for security

Share on (60758704462):


Price:$15.00 - $40.00

Quantity:


Product Overview

Description


2022 VGA Out 40 Pin V29 Universal Tablet Lvds Interface Lcd Controller Board





Product Description







Specifications of the lvds lcd interface board:







































































Model:



JX-VGAOUT-0022

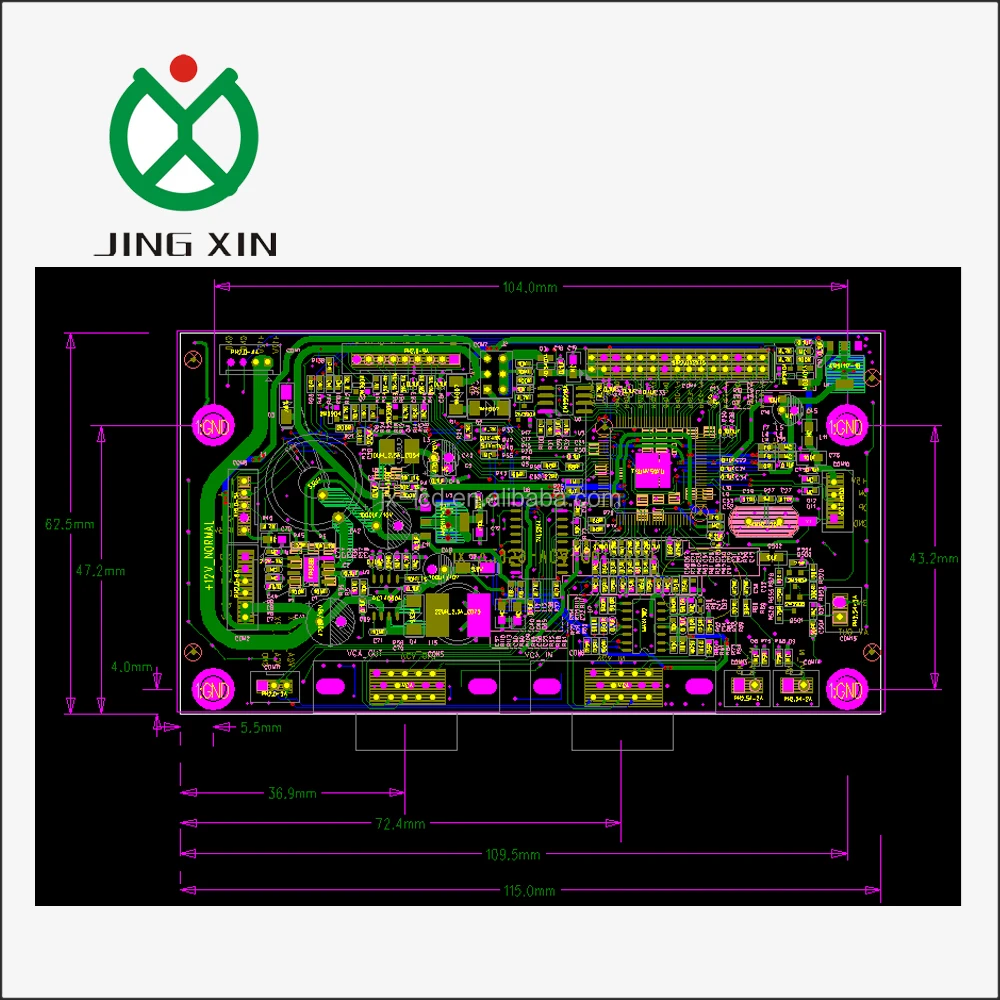

Size :



115x62.5mm



Amplifer:



2*3W



Screen Voltage:



3.3V/5V/12V



Key function:



power/menu/source/up/down/left/right











VGAin:



Input



AGVout:



output



GND:



Ground



Working voltage:



8~15Vdc



Standby voltage:



4.75~5.6V



Standby current:



10-40mA



Storage temerature:



-40~85°C



Working humidity:



40-95%



Storage Humidity:



40-95%



Brand:



JX/SOL/HYY/OEM/ODM

















About Us


Shenzhen Jingxin Quartz Technology Co., Ltd is located in Shenzhen China. We are one of the most professional electronic wholesalers for 10 years, with an excellent and experienced R&D team, we provide you one-stop service, competitive price and advantage help to save your purchase cost and precious time.
    We specialized in all kinds of electronic components such as LCD Driver board, Android SBC, RK3288 board, A64 board, PCB Board etc.





FAQ


1. Quality of products
All of our product will be testing before shipment. So you can be assured the quality of our products. However, If you found any problem after received the goods, Please feel free to contact us at any time. We will solve your problems at the first time .


2. Payment terms
Sample order :A Alibaba B Paypal C Western Union
Large order: HSBC bank (Company bank account)
If you choose A, Then we will send the payment link to you soon.
If you choose B or C ,Please send your shipping information (Name, address, postal code, telephone number) to me , Then I will send the PI for your payment (PI include our Paypal or Union Western account).


3. Warranty
We will give our customer a best after-sale service, so we will offer one year warranty for most of our products and professional technical support.
