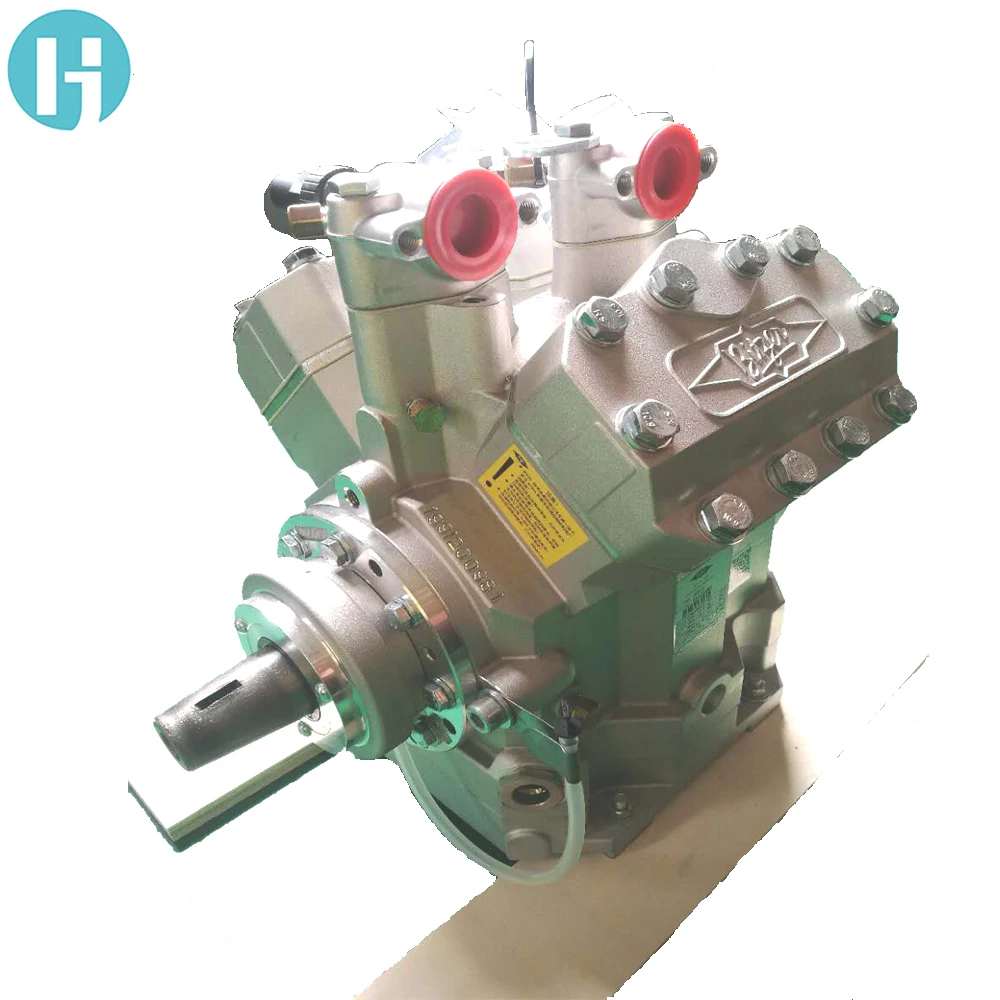

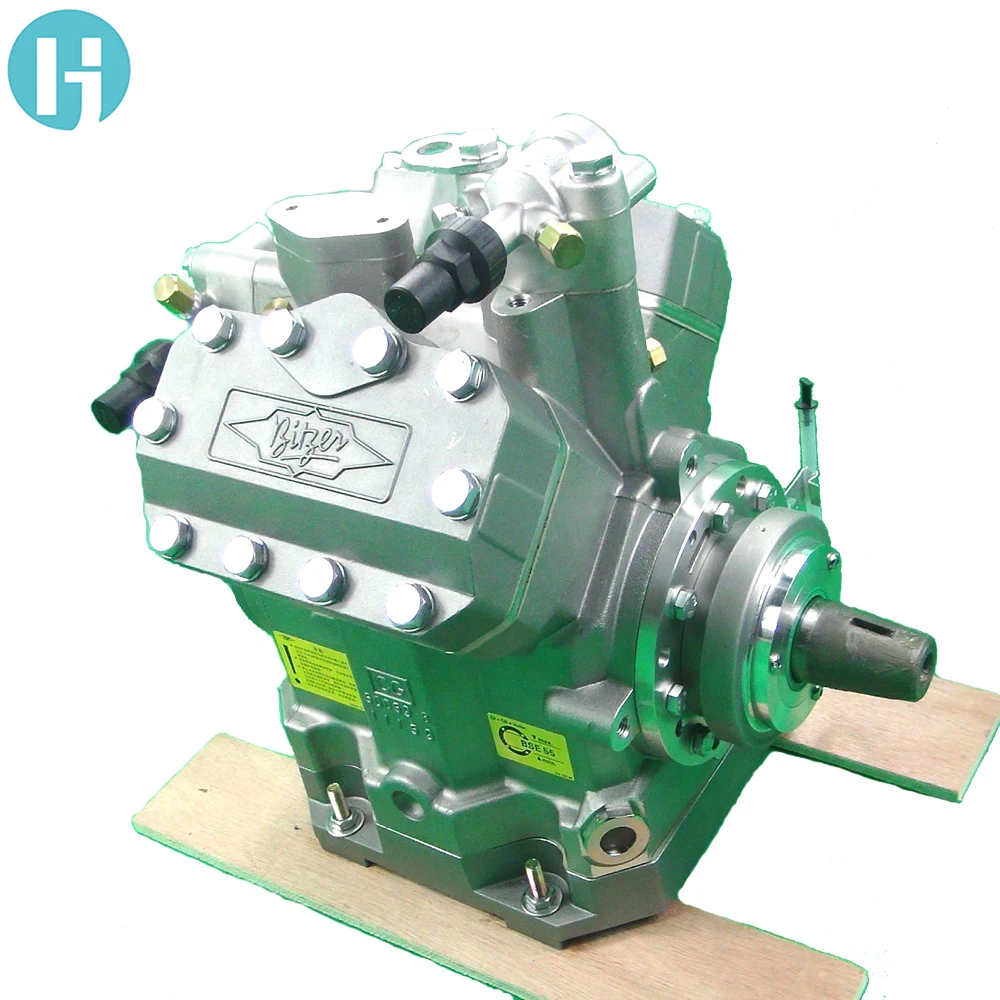

Genuine Air Compressor with Unloader Head 4NFCY 4PFCY
- Category: Air Compressors >>>
- Supplier: Shenzhen J-He Industrial Co. Limited
Share on (60758793116):
Product Overview
Description
Product Description
Compressor is used for bus air conditioner, it suitable for 7meters to 13.5 meters bus and double-decker bus.Create a healthy,comfortable,environment friendly and fashionable travel environment.(Suit for CHINESE Yutong, Kinglong, etc, KOREAN Hyundai, Daewoo, JAPANESE Hino, Suzuki, UD, NISSAN, etc. EUROPEAN Scania, Caterpillar, Volvo,etc.)
Compressor Technical Data
| 4NFCY | 4PFCY | |
| Number of cylinders | 4 | 4 |
| Bore | 70mm | 65MM |
| Stroke | 42mm | 42mm |
| Cylinder volume | 647 cm3 | 558 cm3 |
| Displacement(1450/3000 rpm) | 56.20/116.40 m3/h | 48.5/100.30 m3/h |
| Allowed speed range | 500...3500 1/min | 500...3500 1/min |
| Magnetic clutch 12V or 24V DC | LA16 Option | LA16 Option |
| Mass Moment of intertia | 0.0043kgm2 | 0.0043kgm2 |
| Max. pressure(LP/HP)1) | 19/28 bar | 19/28 bar |
| Connection suction line SV | 35MM - 1 3/8" | 35MM - 1 3/8" |
| Connection discharge line DV | 35MM - 1 3/8" | 28MM - 1 1/8" |
| Lubrication | oil pump | oil pump |
| Oil type R134a | BSE 55 (Option) | BSE 55 (Option) |
| Oil type R22 | B5.2 (Standard) | B5.2 (Standard) |
| Oil charge | 2.0 dm3 | 2.5 dm3 |
| Crankcase heater | 70W 12V or 24V DC (Option) | 70W 12V or 24V DC (Option) |
| Pressure relief valve | Standard | Standard |
| Net Weight | 33kgs | 34kgs |
| Gross Weight | 35kgs | 36kgs |
| Dimensions | 385*325*370mm | 385*325*370mm |
| Packing Size | 440*350*400mm | 440*350*400mm |
Company Information
WELCOME TO VISIT
Shenzhen J-he Auto AC Parts Co.,Limited is one of biggest auto ac parts exporter in China,as well as a professional Service supplier.
We mainly supply & export many different kinds of valve reeds, bus and car air conditioner
compressor,shaft seal,valve plate,gasket,piston compressor parts, and other air conditioner
parts condenser fan and motor,clutch,drier filter,control panel,expansion valve,etc.
All products are manufactured with advanced equipment and strict QC procedures in order
All products are manufactured with advanced equipment and strict QC procedures in order
to ensure high quality. Our products are well selling in America(North and South America),
Europe, Southeast Asia, the Middle East, Africa and other countries all over the world.
Guaranteed, stable and timely supply, credible quality and sincere service.Our company has gained a good reputation in this range both at home and abroad.
