cold drawn astm a106 gr.b 89mm sch 40 carbon seamless steel round pipe
- Category: >>>
- Supplier: Shandong Wan Steel Imp. & Exp. Co. Ltd.
Share on (60758838228):
Product Overview
Description

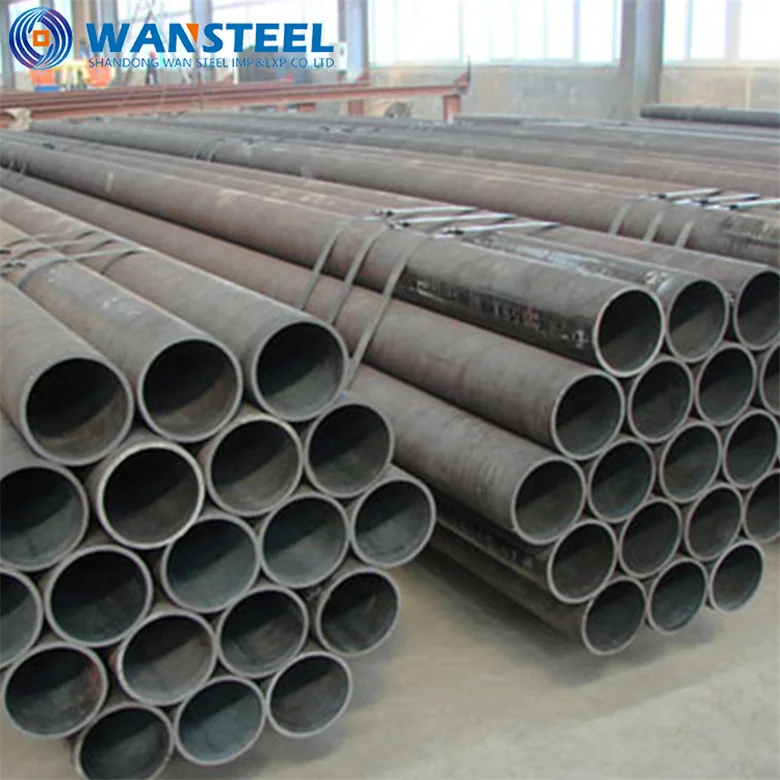

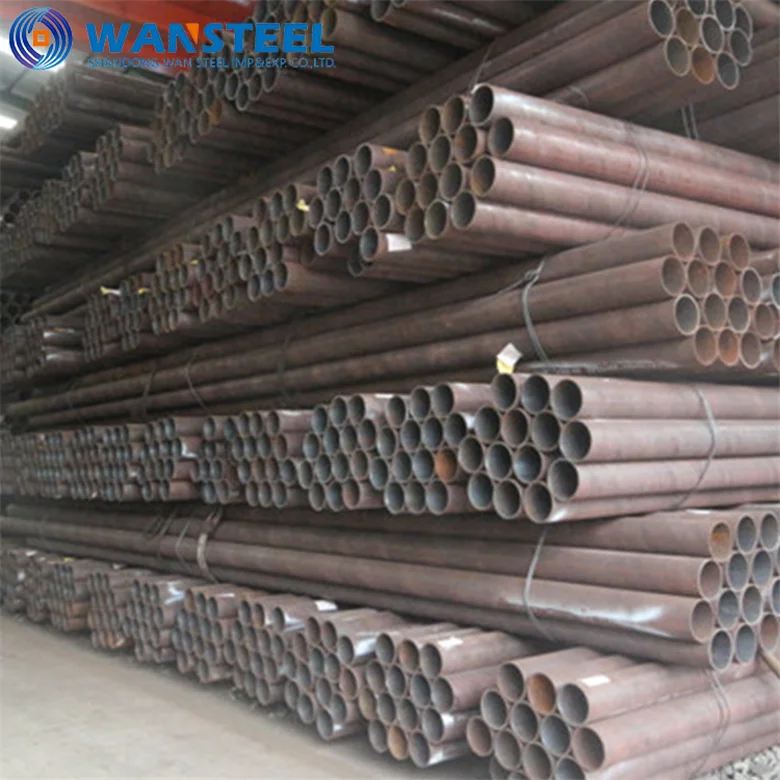

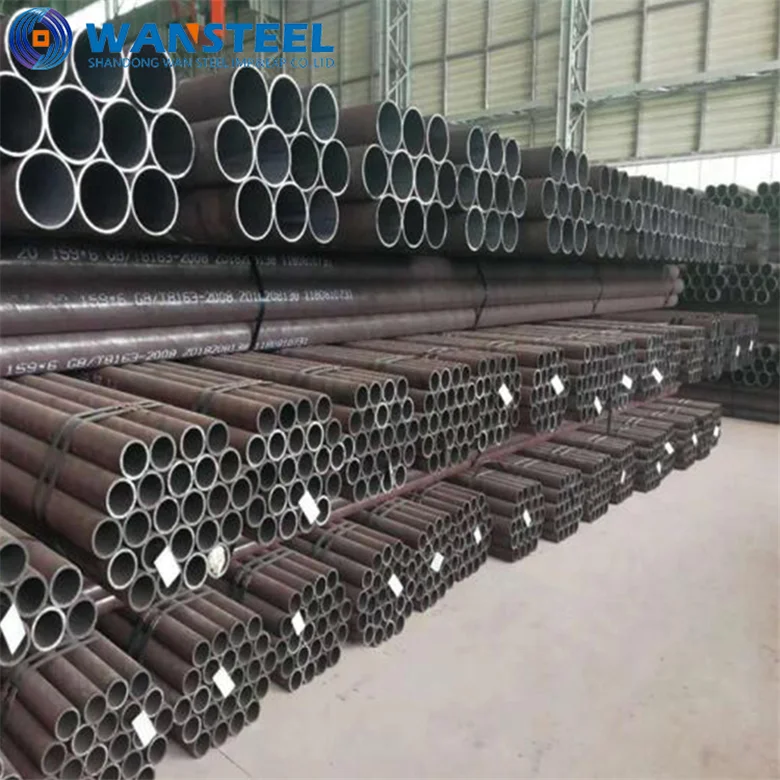

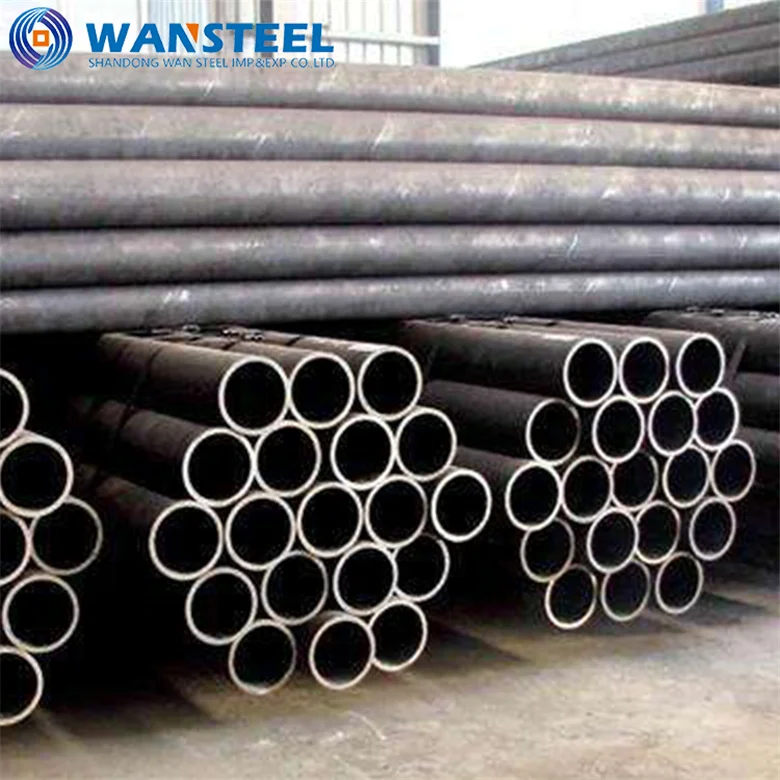

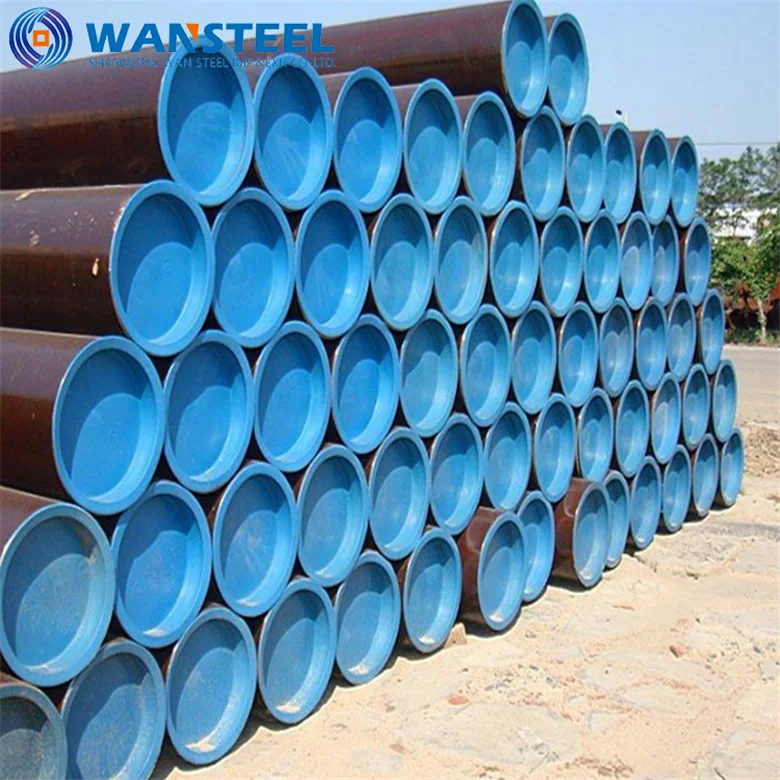

cold drawn astm a106 gr.b 89mm sch 40 carbon seamless steel round pipe
Product Brief:
Seamless steel pipe is a long strip of steel with hollow section and no joints around it.
| Material | 10#,20#,Q345,45#,20G,ST37,ST52,etc. |
| Out Diameter | 20mm~508mm |
| Wall Thickness | 2.0mm~30mm |
| Surface Treatment | Galvanized (hot galvanized only), painted (black) |
| Technique | Cold drawn,Hot-rolled,Finishing rolling |
| Length | 60-273mm or as customers required |
| Standard | ASTM A106,A53,A179,A192,A333,A519,A795,A335,A500 API 5L, API 5CT JIS G3452,G3454,G3455,G3456,G3444,G3460,G3461,G3464 DIN1629,DIN2391 EN10210,EN10025 GB/T 8163, GB/T 5310,GB/T 3087and so on |
Mechanical Property :
| Standard | Grade | Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) |
| GB/T8163 | 10 | 335~475 | ≥205 | ≥24 |
| 20 | 410~550 | ≥245 | ≥20 | |
| Q345 | 490~665 | ≥325 | ≥21 |
| Standard | Grade | Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) | |
| ≤16 | >16-30mm | ||||
| GB/T8162-1999 | 10 | 335 | 205 | 195 | 24 |
| 20 | 390 | 245 | 235 | 20 | |
| 35 | 510 | 305 | 295 | 17 | |
| 45 | 590 | 335 | 325 | 14 | |
| 16Mn | 490 | 325 | 315 | 21 | |
Application:
1.GB/T8162-1999 (structure with seamless steel pipe, not used for conveying liquid). It is mainly used in general structure and mechanical structure.
2.GB/T8163-1999 It is mainly used for conveying fluid pipeline on engineering and large equipment.
3.GB3087-1999 It is used to manufacture superheated steam pipe of low and medium pressure boiler, superheated steam pipe for boiling water pipe and locomotive boiler, big smoke pipe, small smoke pipe and arch brick pipe. High quality carbon structure steel tube for hot rolling and cold drawing (rolling) seamless steel pipe.
4.GB5310-1995 Seamless steel tube for high pressure boiler is a kind of high quality carbon steel alloy steel and stainless heat resistant steel seamless steel pipe used for making high pressure and above pressure water tube boiler heating surface.

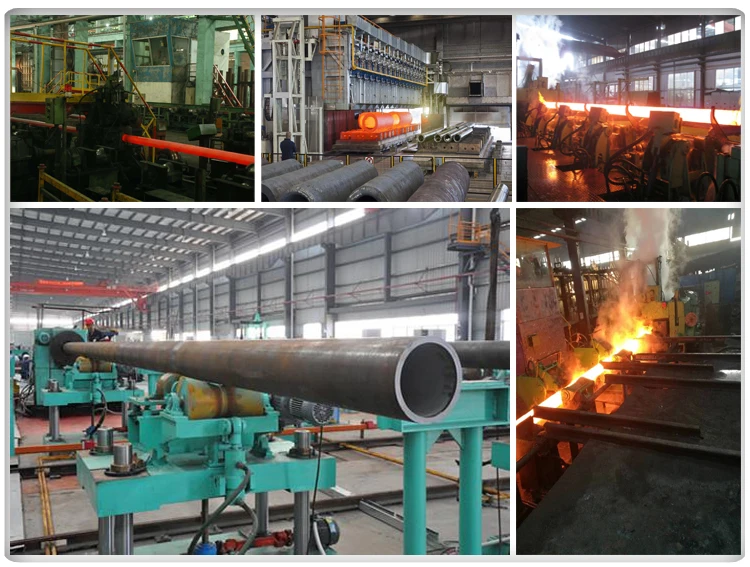

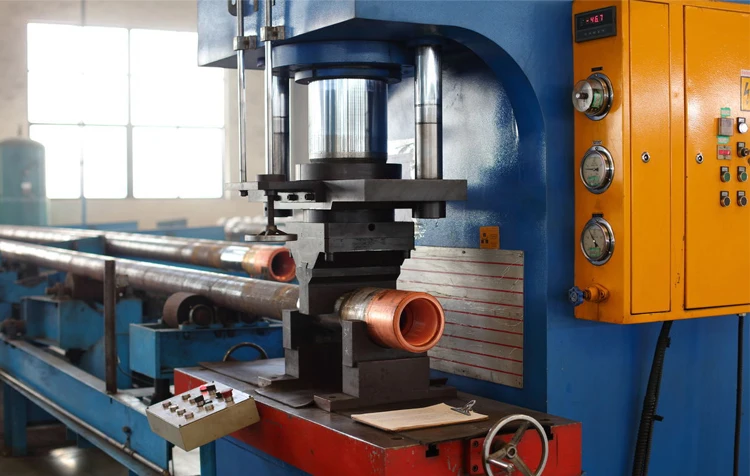

Factory Equipment:

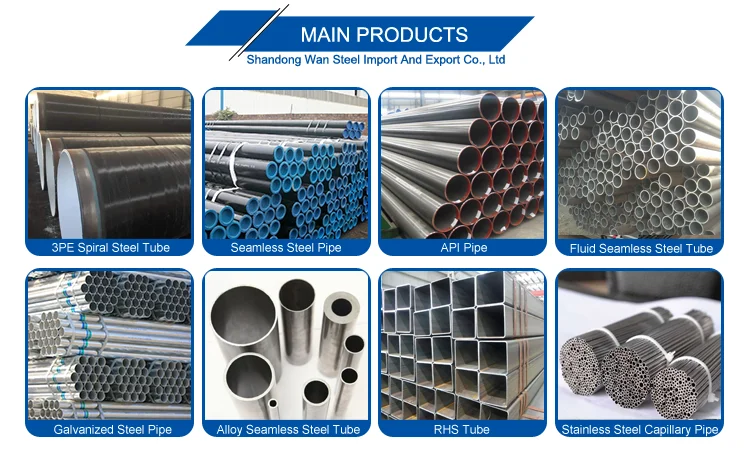

SHANDONG WAN STEEL Import and Export Co., Ltd., belong to WAN STEEL Group, located at Taishan steel Industry park, Tai’an City, Shandong province. We are professional steel pipe supplier with more than 30 years experience. We cooperate closely with many large companies at home and abroad, and have set production base in Shandong, Jiangsu, Tianjin, Foshan, etc. Our main products are seamless steel pipe, spiral steel pipe, welded steel pipe, hot dipped galvanized steel pipe, precision alloy | |
seamless steel pipe and stainless steel seamless pipe. We have various kinds of pipe in large stock at any time, can meet your individual requirements in terms of quantity and quality. Our products get the ISO9001 quality certificate; French BV, SGS, China CCS. API; Britain CE certificate, the approval of ISO14000 environmental management system and OSHMS occupational health and safety management system. WAN STEEL customers spread all over the world. We always adhering to the "so creates brand" as the belief. Warmly welcome to WAN STEEL Group for business negotiation. Let’s hand in hand, create brilliant together. | |
