ELP High Definition 1080P 30fps CMOS Mini Industrial Face Detection USB 3D VR Camera Module With Dual Lens
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60758998292):
Product Overview
Description
Company Information

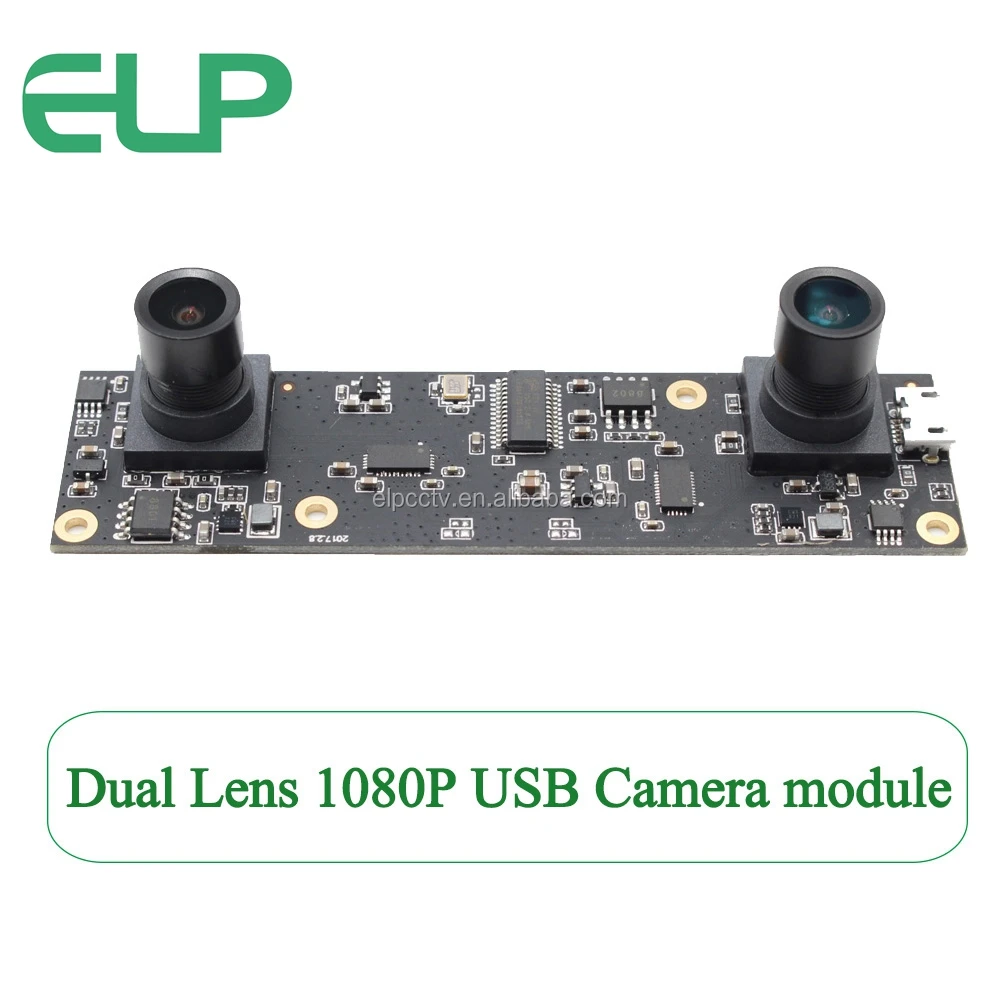

ELP 3D VR Webcam Full HD 1080P 30fps CMOS Machine Vision USB Camera Module With Dual Lens VR
Model :ELP-1080P2CAM-V90 is 2megapixel 1920(H)X1080(V) dual lens USB cameras with 90degree lens each for Linux Android Windows etc. OS system
Many of our customer buy it to use for VR or eye recognize system, person count system, and also mobile phone with eye view system etc.
This camera are good to use for second time developing, our customer normally has their own software and device, integrated with this dual lens camera to capture or view dual image.
We can supply SDK and display software to customer for integrated .
Camera can owrk with Android, Linux and Windows, system, Linux, and Linux recognize it as 2 cameras . This is just like two eyes of a person .
Features
*Full HD 2Megapixels 1080P Dual Lens USB2.0 Camera Module
*Synchronization technology,suitable for Stereo 3D VR application
*High speed USB 2.0 interface
*High frame rate, can get MJPEG:1920x1080@30fps
*Low power consumption
*Small outline for embedded application,86x32mm
*UVC compliance for use in OS Windows, Linux, Android, Mac

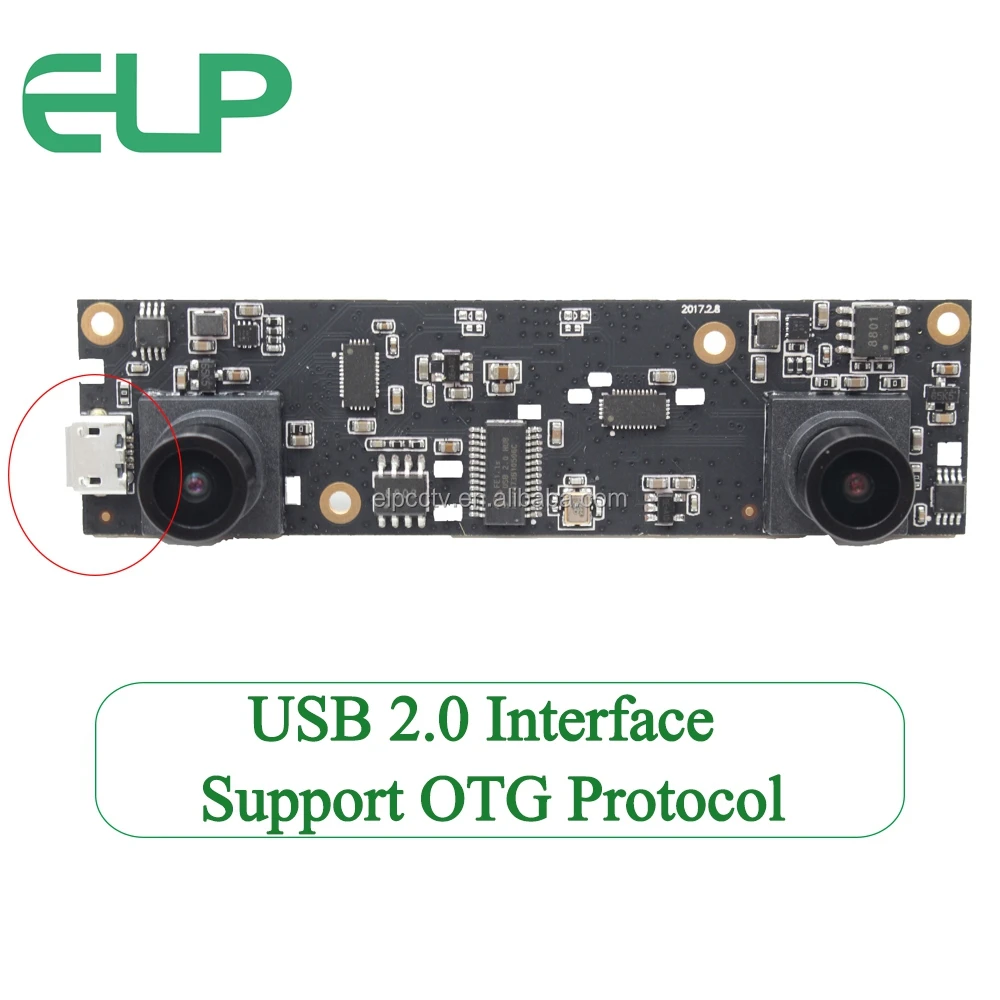

*OTG support
*High quality M9 90degree lens, help get high quality image
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification
| Model:ELP-1080P2CAM-V90 | |||
| Performance | 1920X1080 MJPEG@ 30fps, 1904X1080 MJPEG@ 30fps 1280X720 MJPEG@ 30fps 640X480 MJPEG@ 30fps YUY2@10fps 320X240MJPEG@ 30fps YUY2@30fps | ||

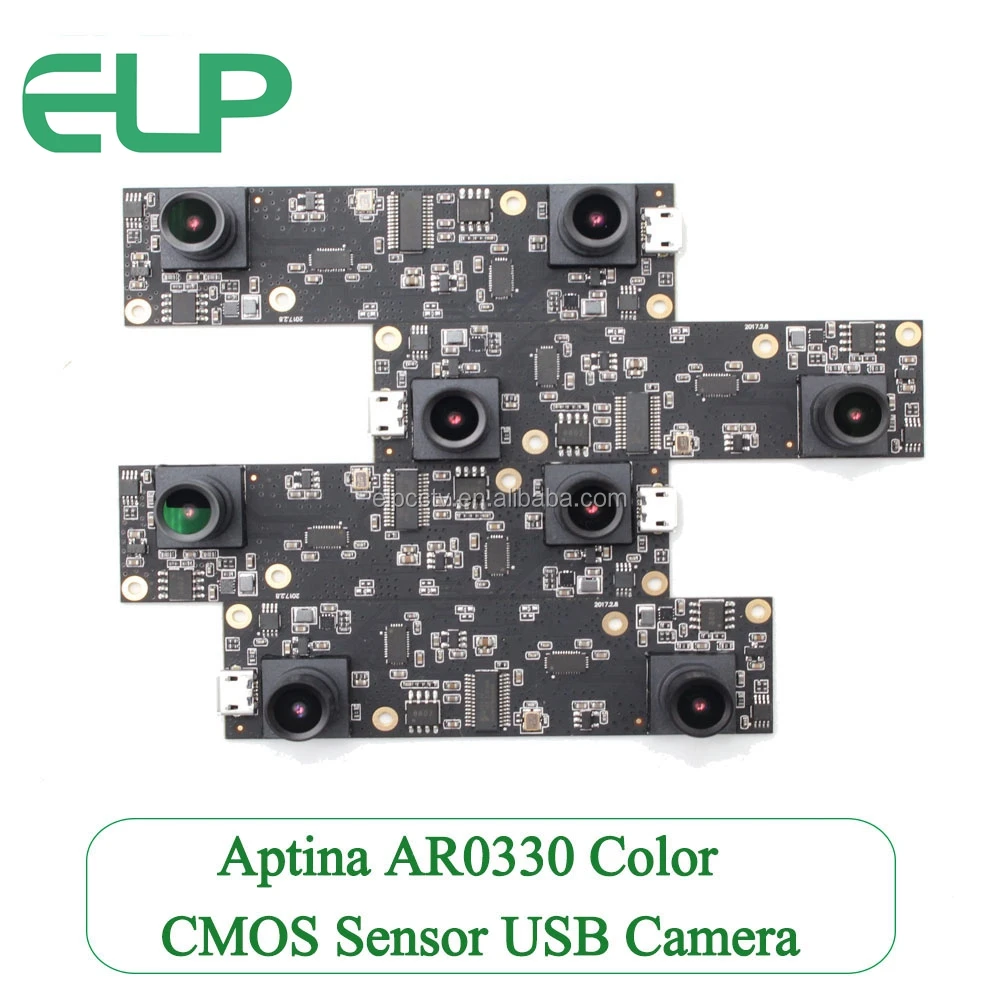

| Sensor | AR0330 | Compression format | MJPEG / YUV2(YUYV) |
| Lens Size | 1/3 inch | Connecting Port type | USB2.0 High Speed |
| Pixel Size | 5.07um X 3.38um | Connector | Micro USB |
| Max. Resolution | (Left)1920(H)X1080(V) (Right)1920(H)X1080(V) | Shutter Type | Electronic rolling shutter / Frame exposure |

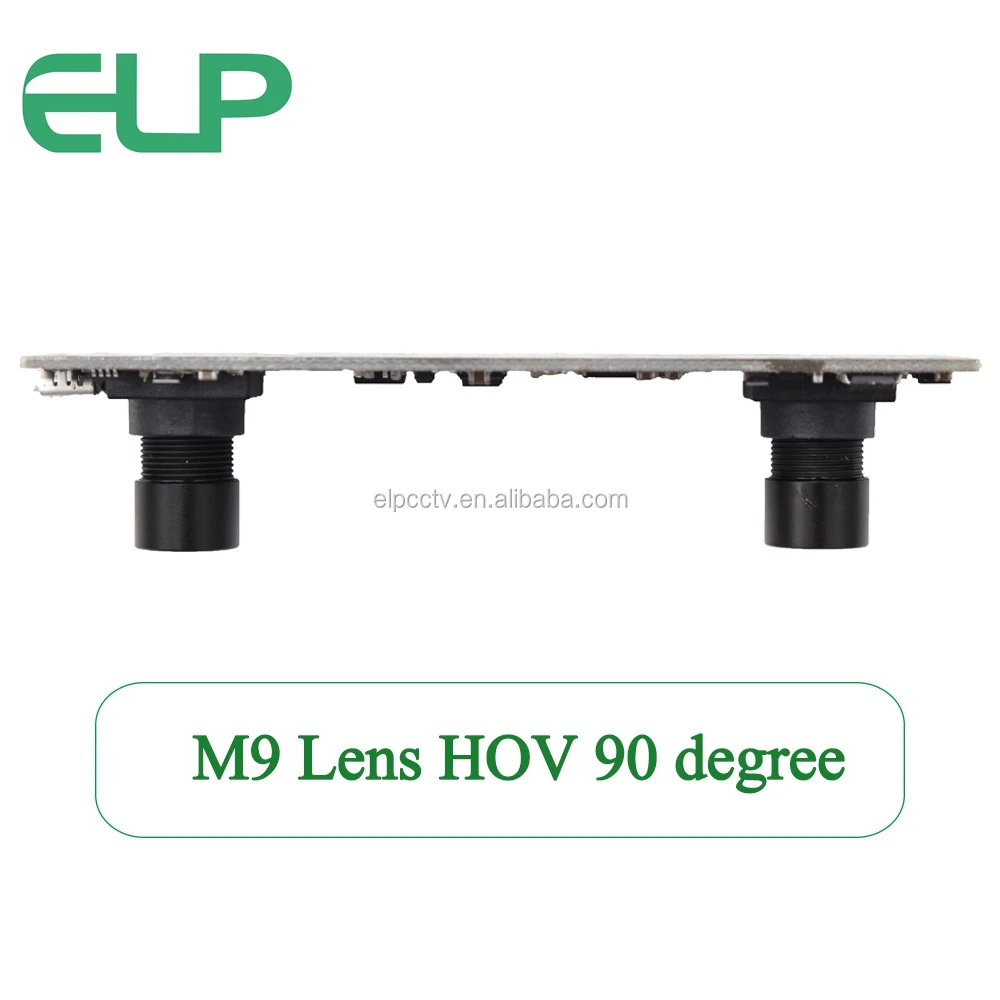

| Lens Parameter | M9 Lens HOV 90 degree | OTG Protocol | USB2.0 OTG |

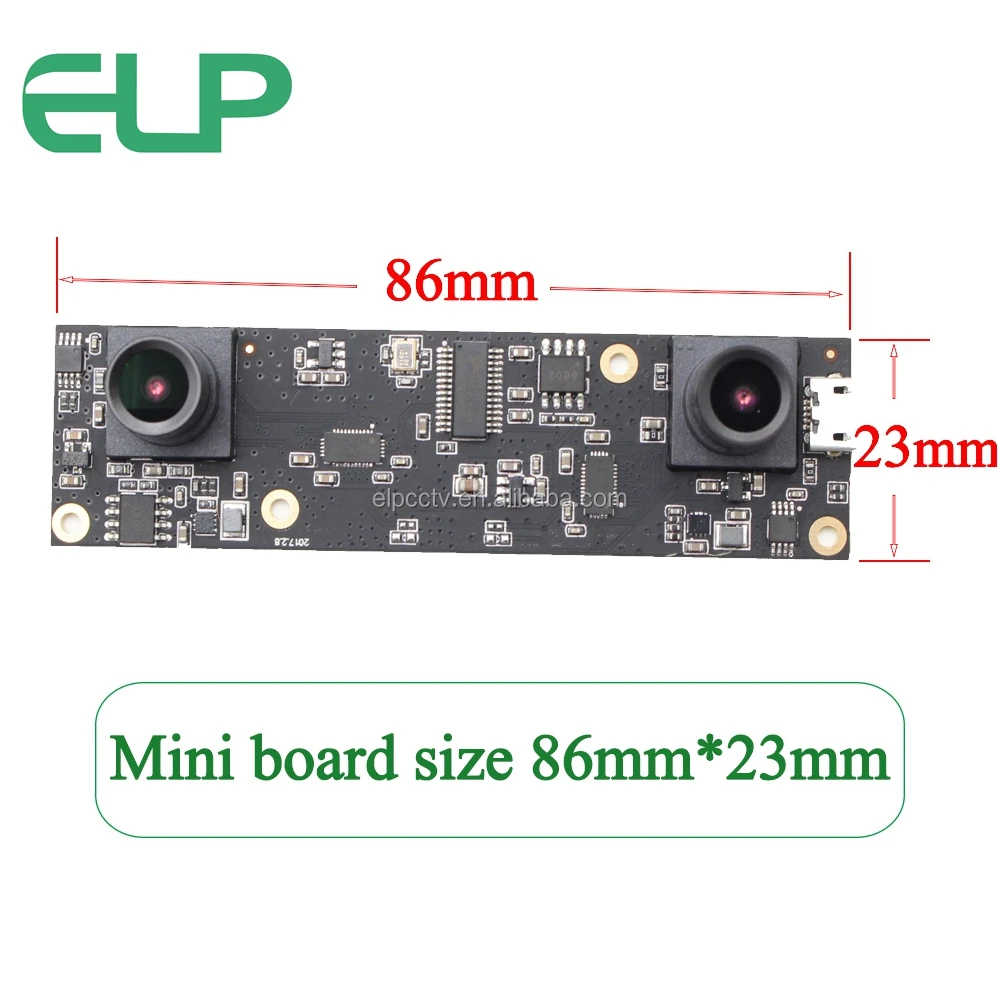

| Board size/Weight | 86X23mm, About 30g | Free Drive | USB Video Class(UVC) |

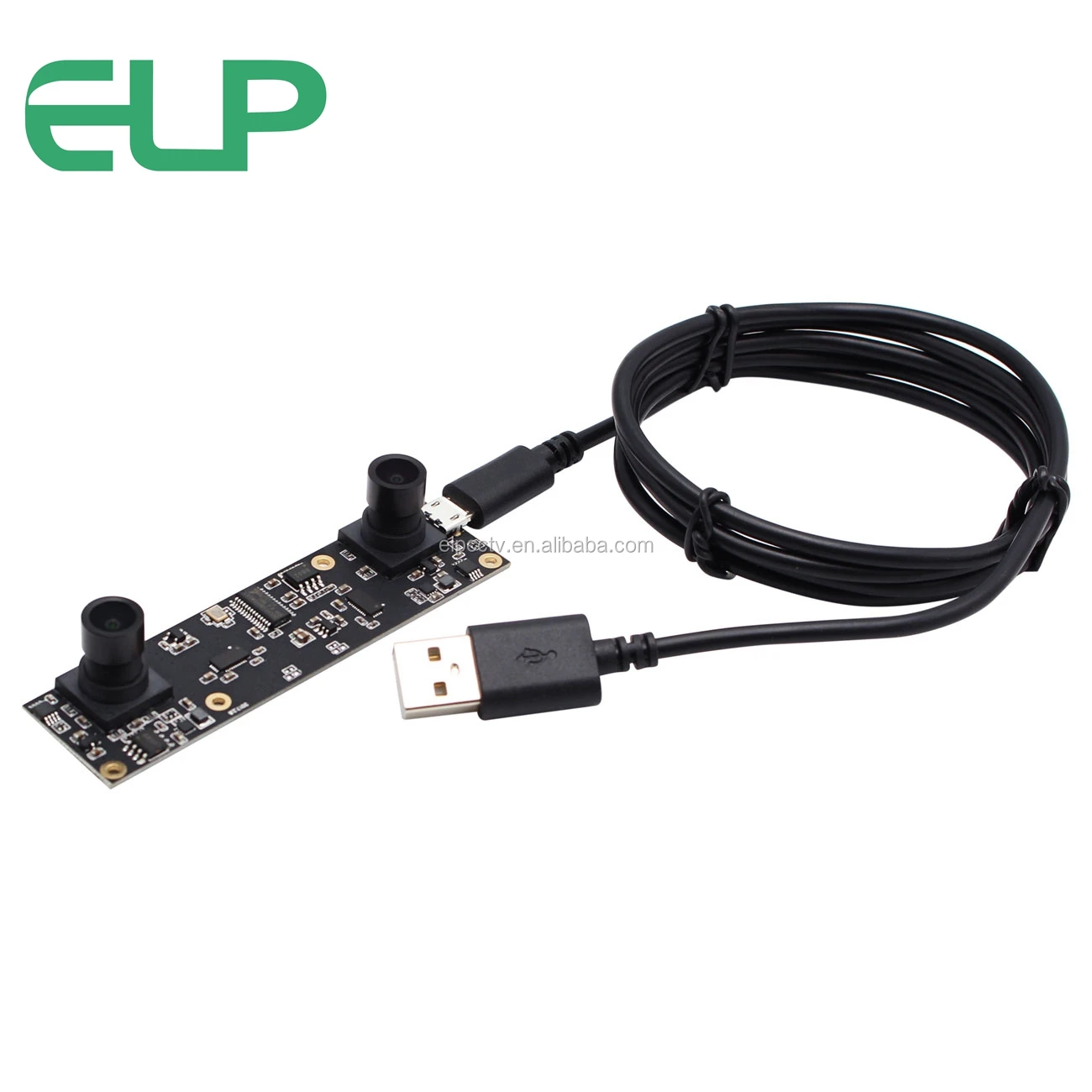

| Cable | Standard 1M | Support | AEC AEB |
| Mini illumination | 0. 1lux | S/N Ratio | 39dB |
| Sensitivity | 2.0V/lux-sec@550nm | Dynamic Range | 72.4dB |
| Voltage | DC5V | Work temperature | -10~70 °C |
| Current | 220mA~280mA | Storage Temperature | -20~85°C |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure | ||
Operating system request | Win XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC | ||
Products Display
Applications
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
