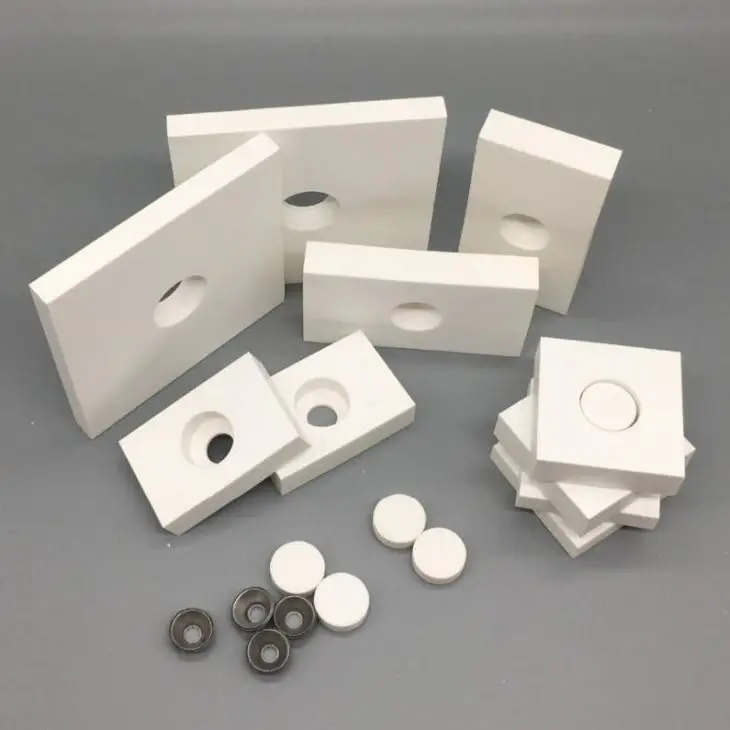

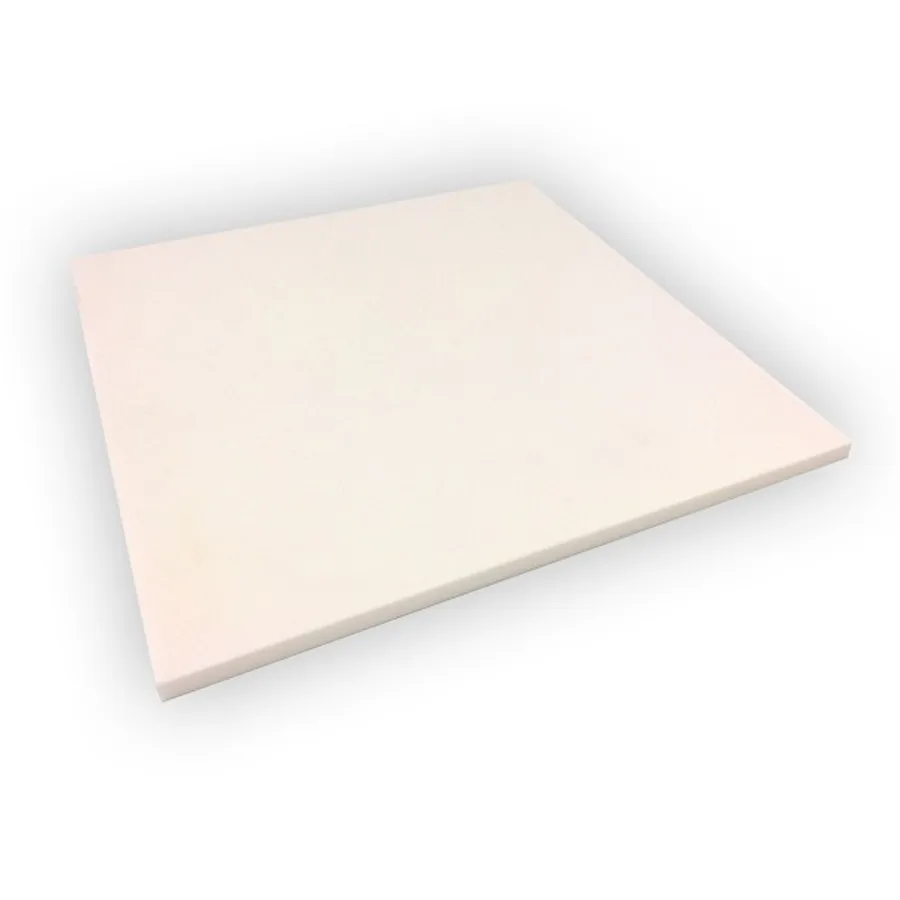

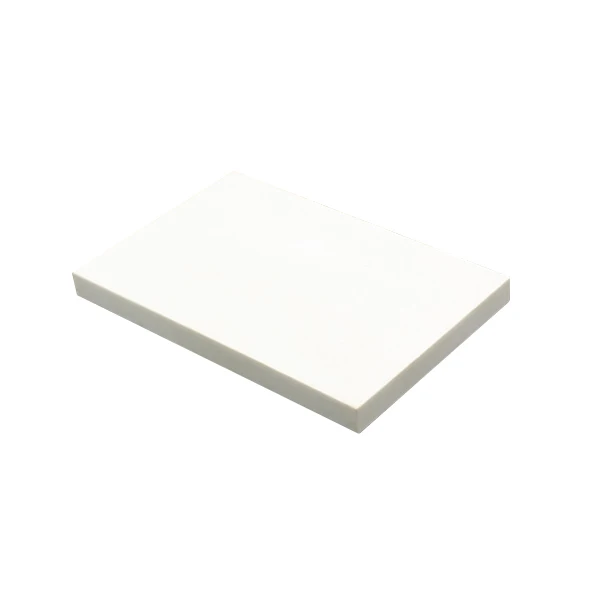

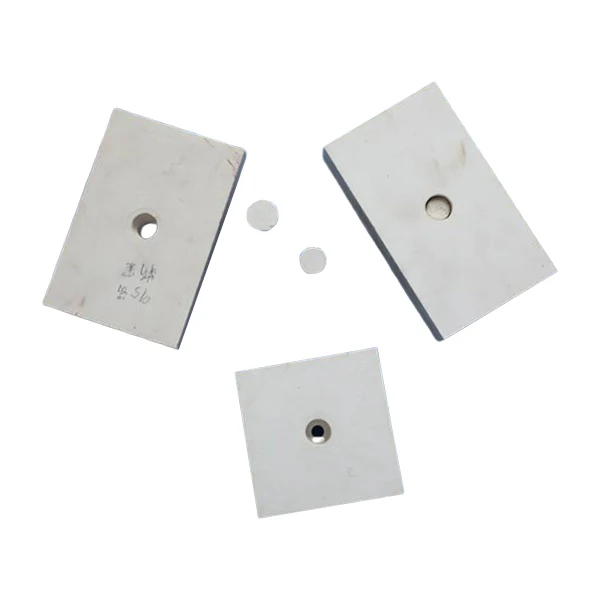

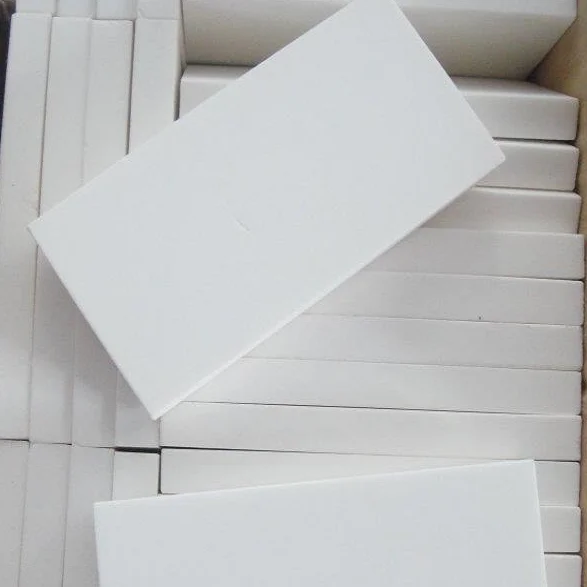

3Y and 8Y zirconia ceramic substrate tiles for chute

Share on (60759011537):


Price:RUB 765.11 - RUB 7,651.02

Quantity:


Product Overview

Description

3Y ZrO2  Tiles
8Y ZrO2 Tiles
Composition
ZrO2>/=94.2%
ZrO2>/= 85%
Model No.
ZT3Y
ZT8Y
Density
>/=6.0g/cm3
>/=5.93g/cm3
Water Absorption
0%
0%
Sintering Temperature
1550C
1550C
Hardness
1100-1300HV
1400HV
Fracture Strength
1000Mpa
300Mpa
Compresstive Strength
1500Mpa
2000Mpa
Maximum Application Temperature
1600C
1600C
Thermal Expansion 0-1000C
9.6/10-6 /C
10 /10-6  /C
Thermal Shock resistance
350C
Thermal conductivity
3 W/m.k
3 W/m.k
Volume resistivity
>1012
Dielectric strength
15 KT/m
Our Company
Morden Factory
Complete Equipment
Advaned Technology
Strict Management
Solidary Team
High quality Materials

ZIRAE is a leading high-tech enterprise in Nanjing city, which located in eastern coastal area of China.


The company specializes high pure, ultra fine namometer zirconium oxide powder, zirconia beads and advanced ceramic parts. We adopt international leading hydro-thermal technology, which achieves ultra fine, high pure and less hard agglomeration zirconium oxide raw powder, that is key point to prepare high quality zirconium oxide powder.


The factory is equipped and managed according to Pharmaceutic Factory Cleaning Standard. The preparation environment is fully clean and isolated, so as to ensure the stability of quality.

We have completed equipment and reliable procedures to ensure the quality stability. Zirae possesses a high-educated team. Zirae’s technical personnel have graduate diploma or above, and the company also hired experts from Germany and Austria as technical consultants.


Our goal, which is continuous innovation, to provide customers with steady high quality, a variety of advanced ceramic materials, has never changed.
