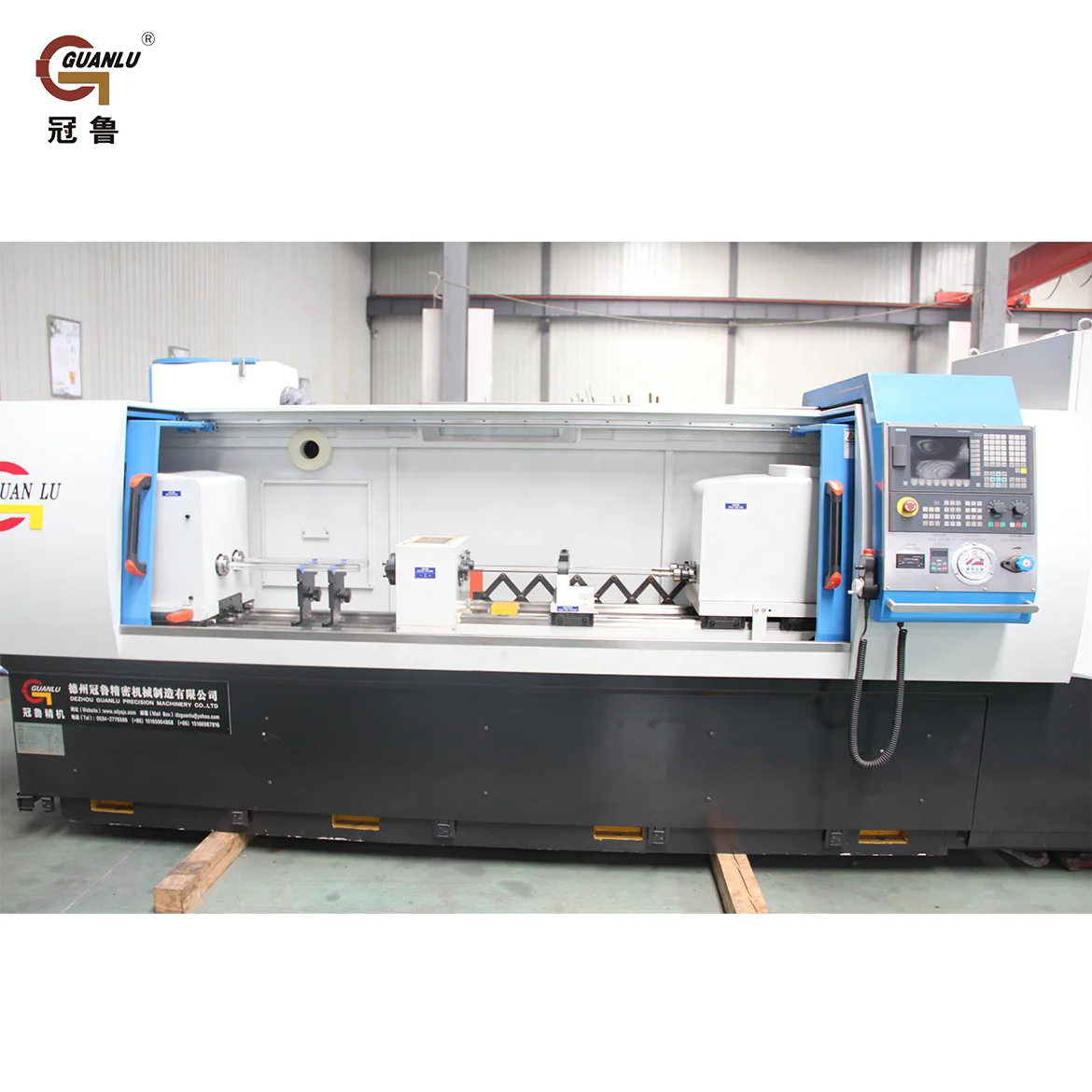

Double spindle CNC deep hole Gun drilling machine

Machine Tool Frame Brief:

Machine Tool main parts: Machine body, Drill box, Main Spindle, Coolant system, Lubrication System, Hydraulic system, Electric device system, Guiding Rest, Guide frame, Safety Guard and other spare parts:

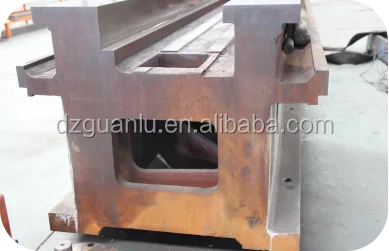

Machine body:

(1) Machine base, work table and other basic main parts are made from good quality casting steel. Rolling linear guide on the bed drives the tooling doing infeeding processing. Infeeding AC servo motor directly installed in the back of the bed, through the elastic coupling and precision ball screw connection, to achieve deep hole processing infeed movement.

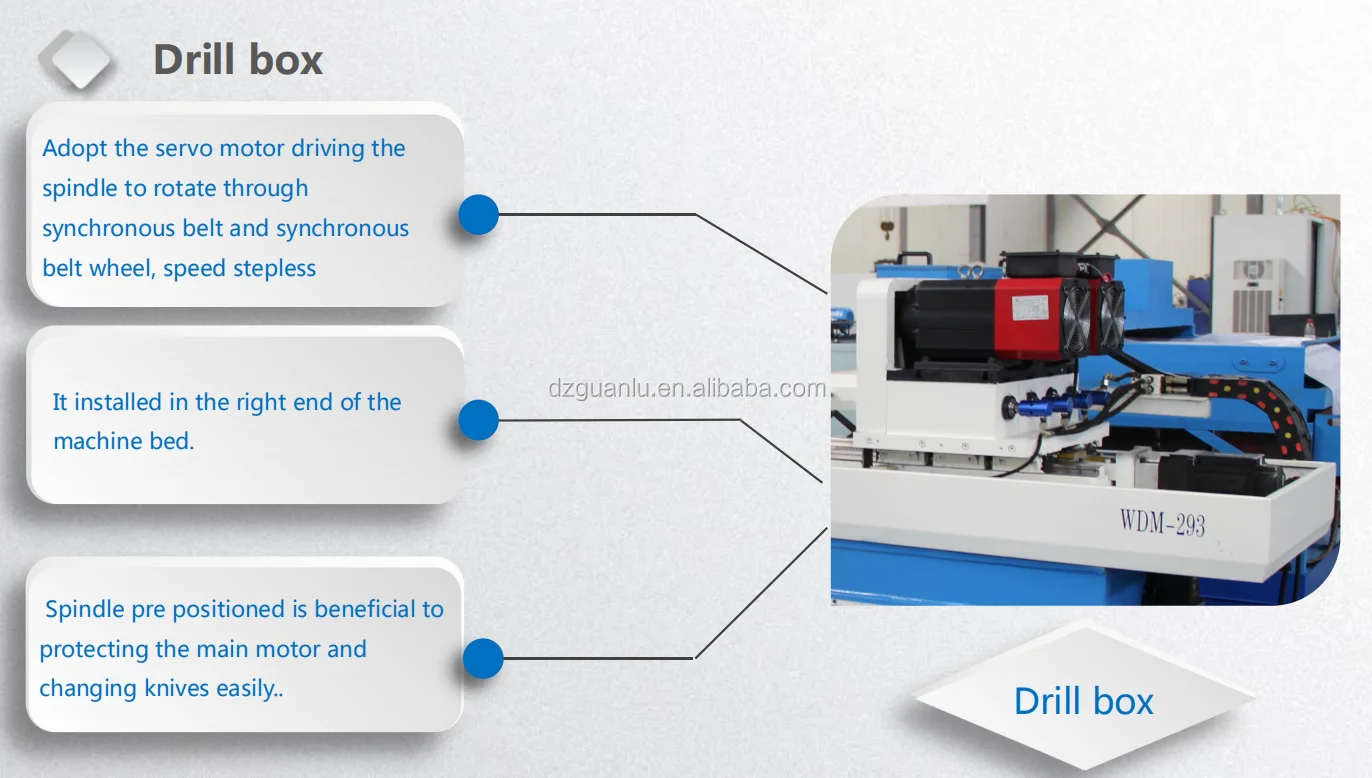

Drill box:

Double spindles structure. Using the power spindle and high-speed machinery sealing, Max. coolant pressure up to 15Mpa, main spindle Max. Rotation speed 20000r/min. The drill box moves on the rolling linear guide rail. The hydraulic hose and the cooling water pipe are connected through the transition joint at the rear of the drill box.

The lower part of the drill pipe is provided with a screw nut for driving the drill box carrier.

Coolant System:

With special coolant system, supply high pressure and high flow clean cutting oil for the gun drill processing.

Coolant and filter system: The tank volume should ensure that the machine can work continuously and that the oil temperature is within the normal operating range. Workpiece cooling is through coolant oil, temperature and flowing is adjustable. There is cooling device in the coolant system. The filter oil supply to ensure continuous operation of the machine.

Automatic chips remover: Cleaning the chips automatically

Filter system: 3 classes filtering: magnetic filtration paper belt, wire nets, improving the cleanliness of the cutting fluid.

High press pumps: Supplying the cutting oil for the toolings, flowing and pressure is adjustable.

The cooling system consists of a water tank for cooling the spindle, and the three-phase pump supplies the rust-proof cooling water into the spindle. The water tank has rollers on the bottom, moving freely.

Machine mainly parameters:

1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.

Dezhou Guanlu Precision Machinery Co., Ltd. located in Dezhou, Shandong, is a professional manufacturer of deep hole drilling machine (gun drilling machine), deep hole boring machine, deep hole drilling and boring machine, deep hole honing machine, deep hole skiving roller and burnishing machine as well as their relative accessories, such as gun driller sharpen device, BTA deep hole indexable drill head, deep hole boring head, deep hole pressing head and so on. Our company can also offer the customized deep hole machine solutions according to the customers' requirement.

About our deep hole drilling machine (gun drilling machine) series, we can manufacture micro gun drilling machine, deep hole diameter is from 1.5mm to 10mm. The length-diameter ratio is 1:150. The deep hole depth can be 2500mm. And normally deep hole diameter is from 3mm to 40mm. The CNC system, you can choose Chinese brand, like KND, GSK or you can also choose Faunc or Simenz. Our gun drilling machine is famous for high accuracy, good surface roughness and reasonable price.

In order to equips suitable deep hole machine tools for our customers, we have workshop to manufacture the cutting tools and accessories. So customer can inform the exactly deep hole diameter and workpiece dimension, we can provide the cutting tools and accessories to them accordingly.

Welcome to visit our factory. And thanks for choosing our deep hole machinery.

Exhibitions keep attending

Customer keep visiting us !
