Product Overview

Description

Chinese Clock Machine Sweep High Torque Clock Movement
  Using: wall clock, table clock, decortive clock,wonden wall clock,home clock, 3D clock,DIY clock
LOGO: Customize logo is available
 Choose the suitable model:
 For example: clock dial 5mm JHS001HTSA-17mm is suitable for your clock
   Type  Shaft Length(mm) Centre Screw Height(mm)
Minute Hour
S001HTSD - 9mm 9.0  6.0  *
S001HTSA - 11mm 11.0  7.5  3.2
S001HTSA - 12mm 12.0  8.5  4.8
S001HTSA - 13mm 13.0  9.5  5.2
S001HTSA - 14.5mm 14.5  11.0  6.7
S001HTSA - 17mm 17.0  13.5  9.0
S001HTSA - 20mm 20.0  16.5  11.7
S001HTSA - 22.5mm 22.5  18.8  15.0
S001HTSA - 28mm 28.0  24.0  20.5
S001HTSA - 31mm 32.0  28.5  25.0

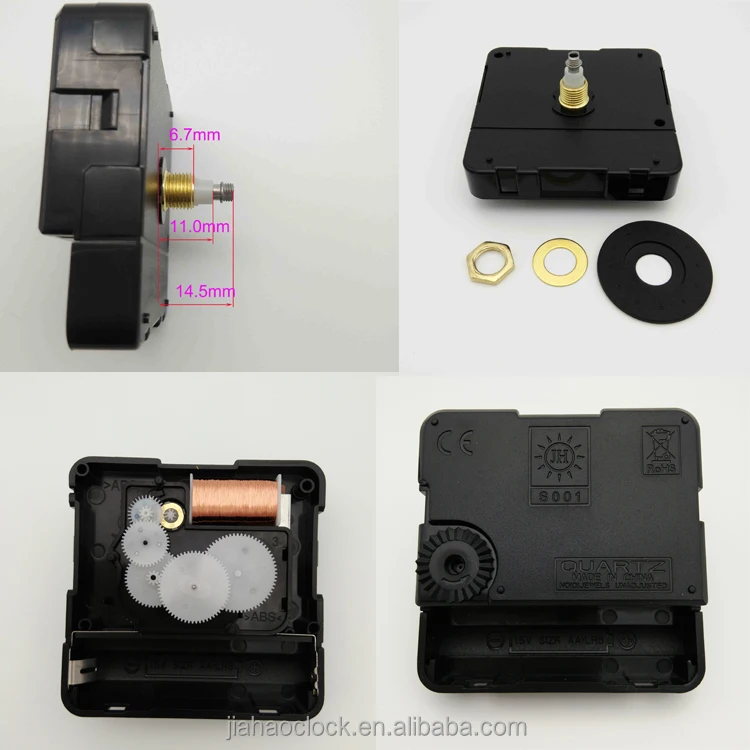

 Pictures for your reference

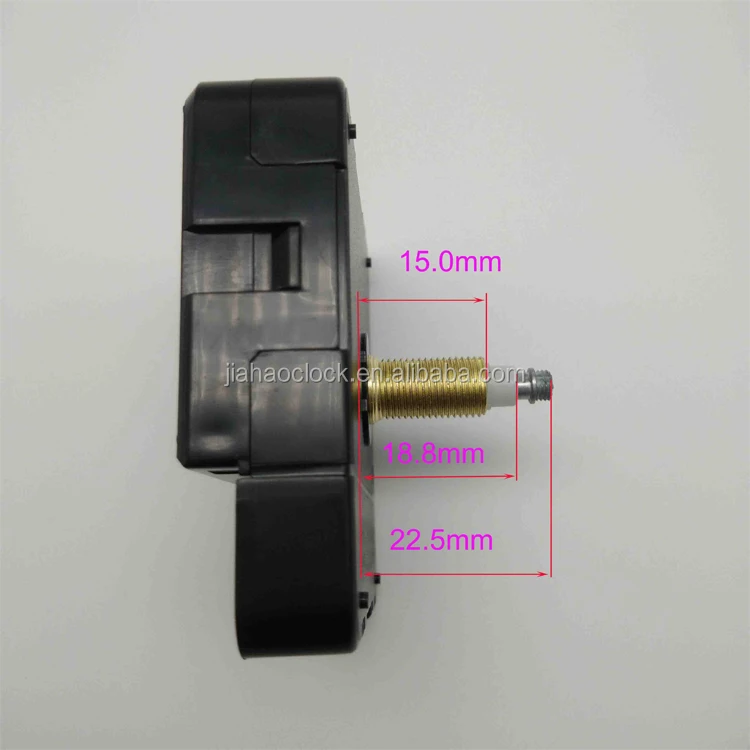

22.5 .jpg
clock movement

 Technical Parameter
Crystal Oscillator                                     : 32.768KHz Dutput Torque : 0.8gf-cm /1.50v
Accuracy at 25°±3° : ±30 sec/month at 1.5V Battery Size : AA size(R6)
Operating Voltage : 1.30V to 1.7v Battery Life About 1 year
Operating Temperature : -10℃ to 50℃ Allowed Hand Length Weight
Motor Type  : Two-pole stepping motor Minute  : Less than 160mm,6g
Average Consumption Current Second : Less than 130mm,6g
Normal  : Less than 180uA at 1.5V Pendulum Length : 200mm
  Pendulum Weight : 40g
 Package and shipping
 inside the foam to protect the clock movement. 500pcs/ctn
 1>Minute shaft :9mm to 17mm carton: 40cm*36*38.5cm 0.059CBM/CTN
 1Gross weight :14.5kg Net weight: 13.5kg

2> Minute shaft : 20 to 23mm Carton size: 47*41*42CM
Gross weight :17kg Net weight: 15kg
3>Minute shaft: 28mm to 31mm Carton size: 60*40*41CM

  Delivery time: 7-20 days
Payment terms: T/T ,WESTERN UNION AND TRANDE ASSURANCE ORDER
