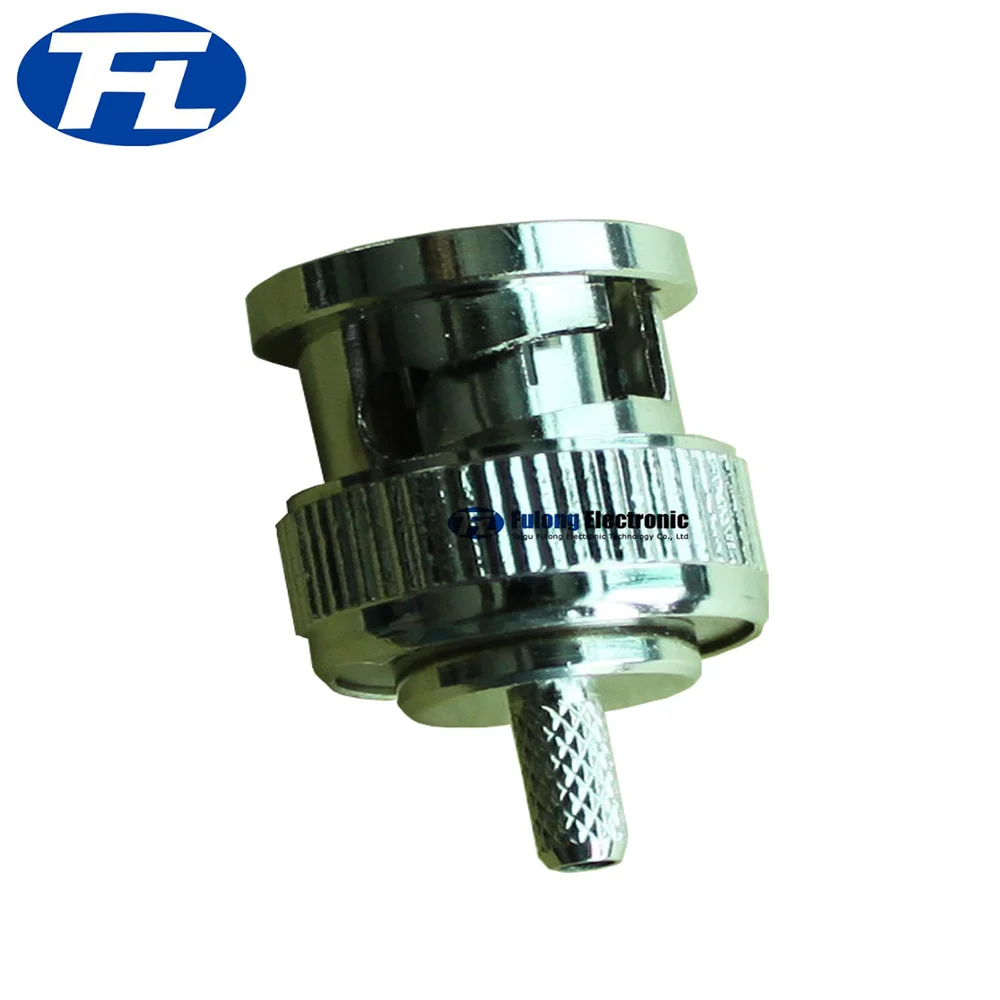

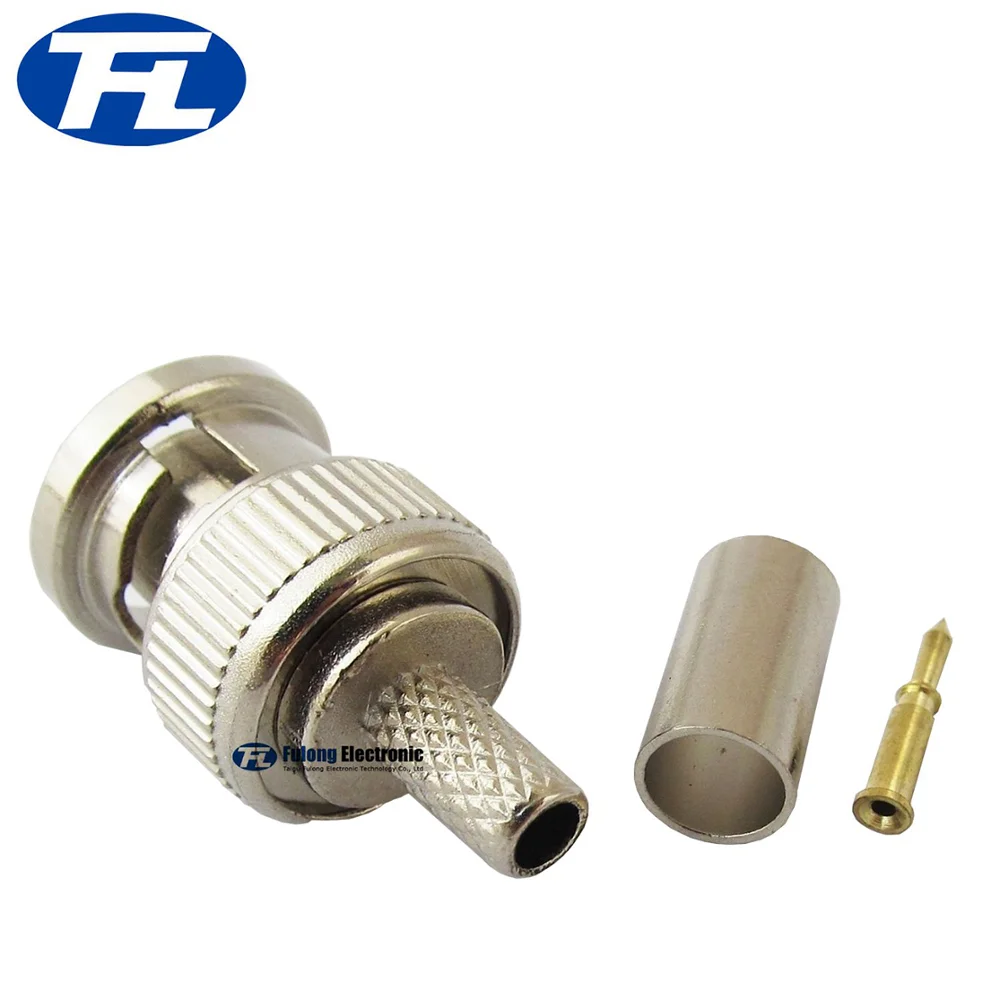

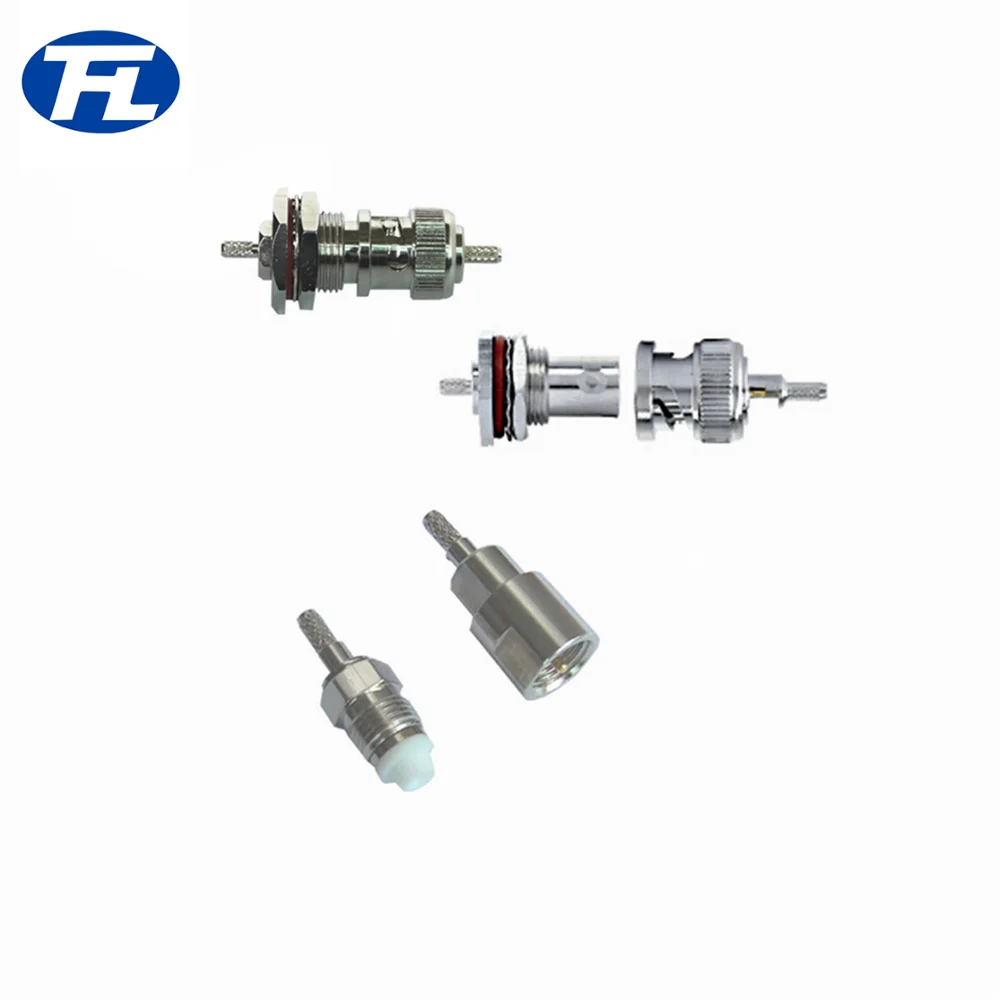

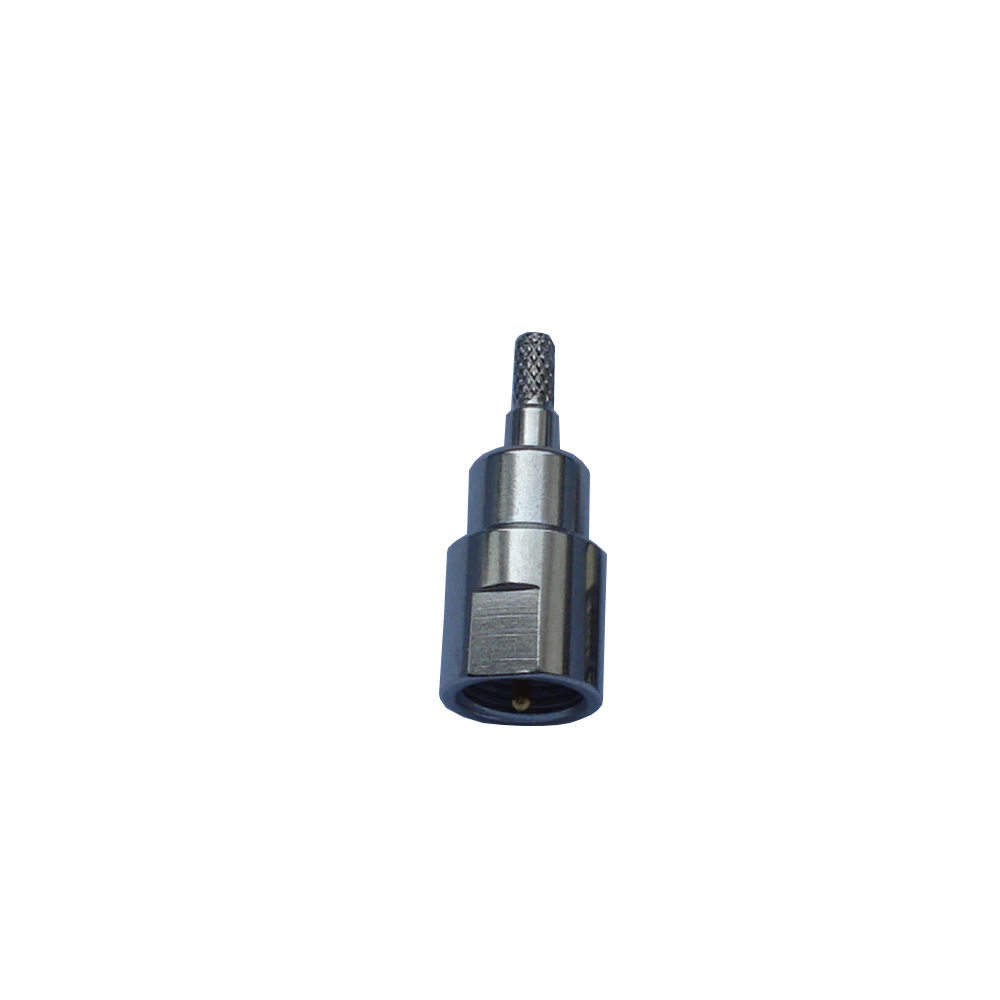

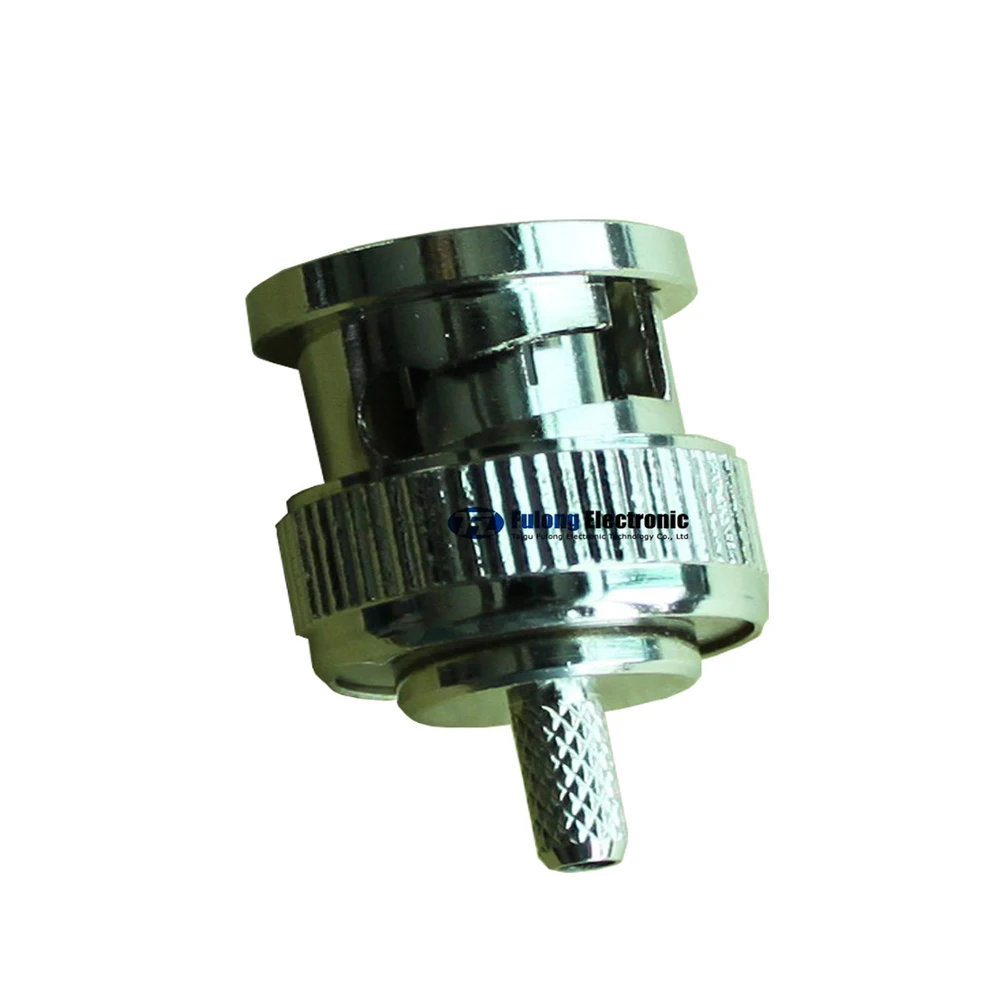

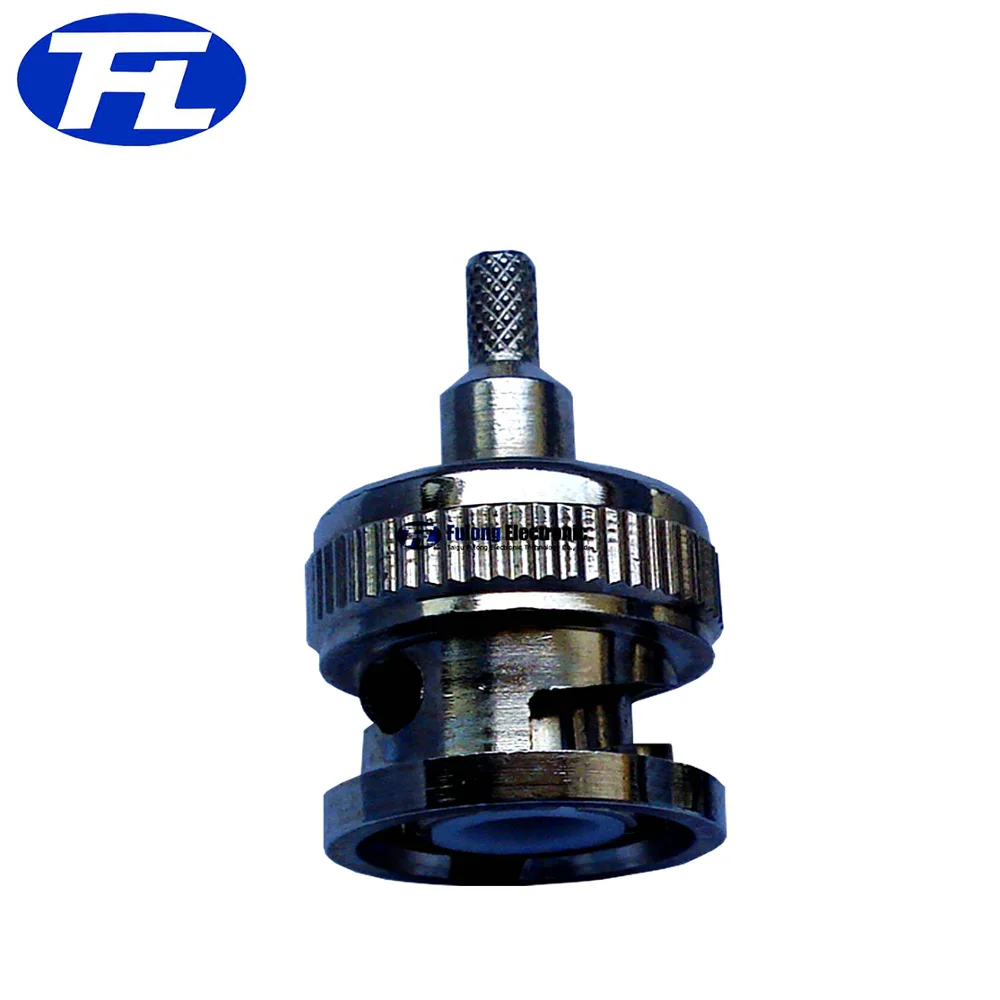

2023 Hot selling BNC Jack straight bulkhead to FME Plug straight crimp for RG174 RG178 coax cable

i. RF coaxial cable and RF coaxial connector are customized according to customer's request.
ii. We will provide you the drawings once the specification is approved.

(i) Materials\t

Body,coupling nut: Brass,Zinc alloy(diecast)
Insulator: Teflon,Delrin
Center contact: Beryllium cooper or Phosphor bronze for female
Body plating: Nickel(Ni)
Center contact plating: Gold(Au)
Crimping sleeve: Annealed Brass

(ii) Electrical\t

Impedance(ohm): 50/75
Frequency range(GHz): 0~4 for 50ohm
\t0~1 for 75ohm
V.S.W.R: Straight type≤1.3max
Dielectric withstanding voltage(V): 1500 rms at sea level
Working voltage(V): 500 rms at sea level
Insulation resistance: ≥5000MΩ
Center contact resistance: ≤1.5 MΩ(Millliohms max.)
Noise Figure(dB): ≤2.0 MΩ(Millliohms max.)

(iii) Mechanical\t

Contact retention: 6 lbs. min.
Coupling: 3/8-32 thread
Mating durability: 500 cycles min.(Only for Beryllium copper contact)

(iv) Environmental\t

Temp. range\tTeflon: -65℃~+155℃
\tDelrin: -55℃~+85℃
Vibration: MIL-STD-202 Meth. 204
Coupling nut retention: 100 lbs. min.
Corrosion resistance: MIL-STD-202 Meth. 101

Necessary information:

i. RF coax connector type type.

ii. RF coax cable type for both ends.

iii. Cable length (Please advise if include coax connector or exclude coax connector)

Others:

i. Working frequency (Please advise if it is over 3GHz for 50 ohm or 1GHz for 75 ohm coax cable)

ii. For 1.13mm/0.81mm/1.37mm micro cable with coax cables, the shortest coax cable we could custom is 15mm.

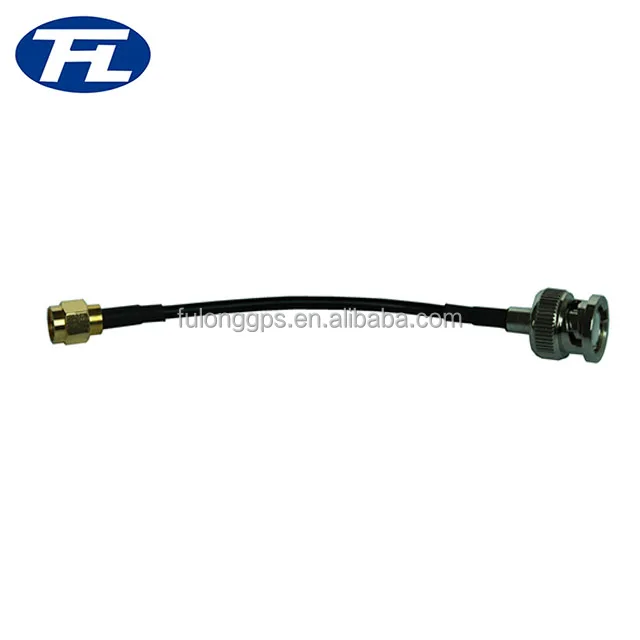

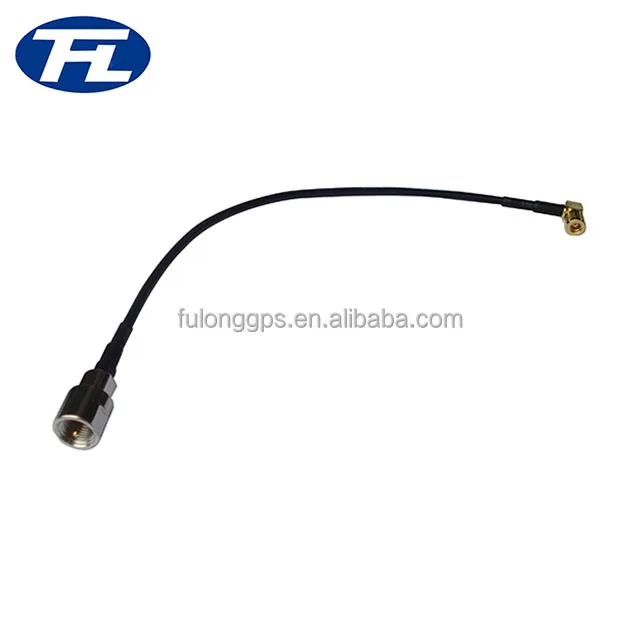

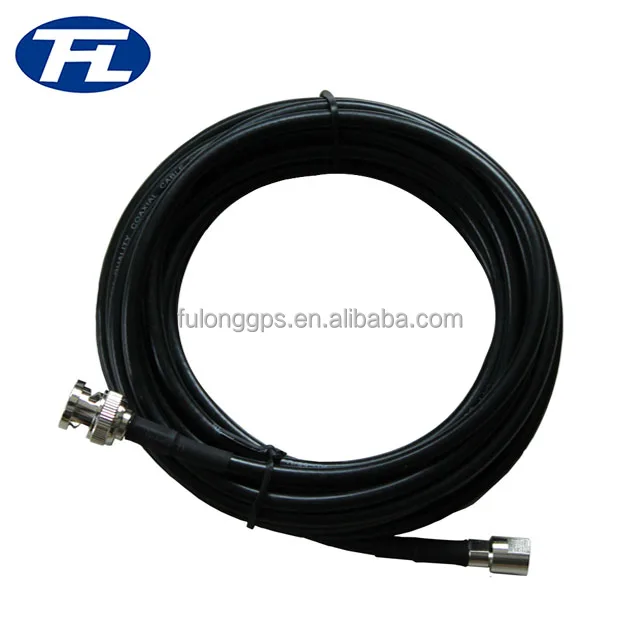

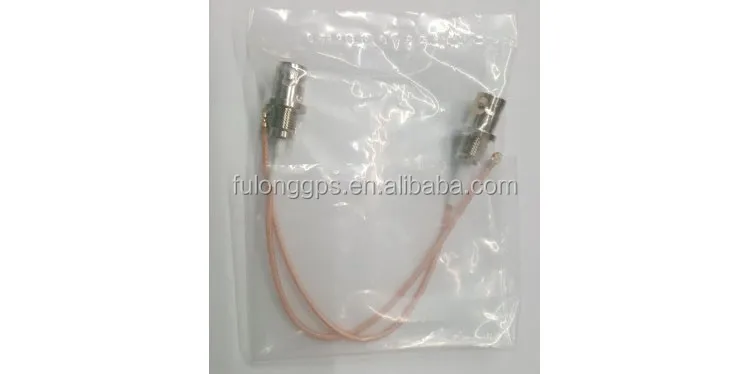

RF coaxial cable assembies is used as jumper cable to connect with both devices for signal transmission. Such as GPS modules, GSM modules, Radio VHF, 2.4G(Wi-Fi/Wlan) and more.

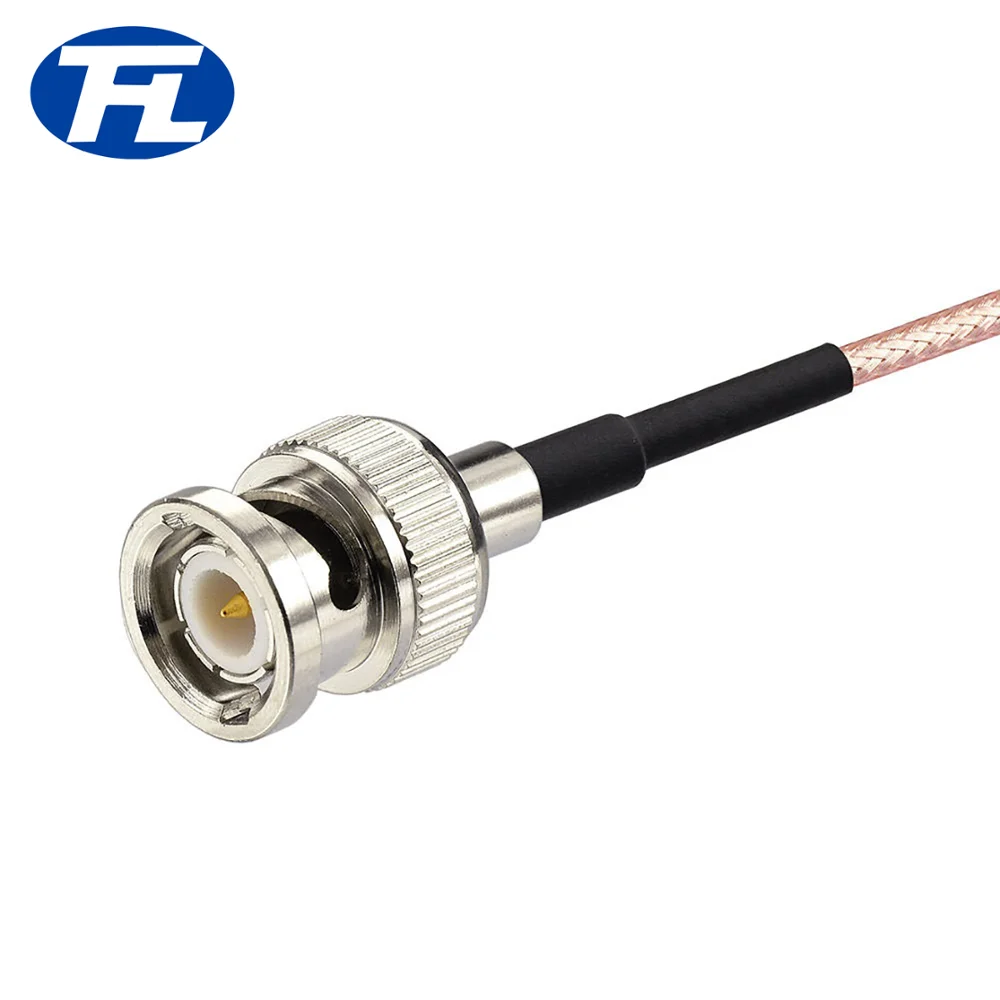

Interface cable: Bulkhead BNC Jack straight+150mm/RG178 coax cable+IPEX MHF connector
