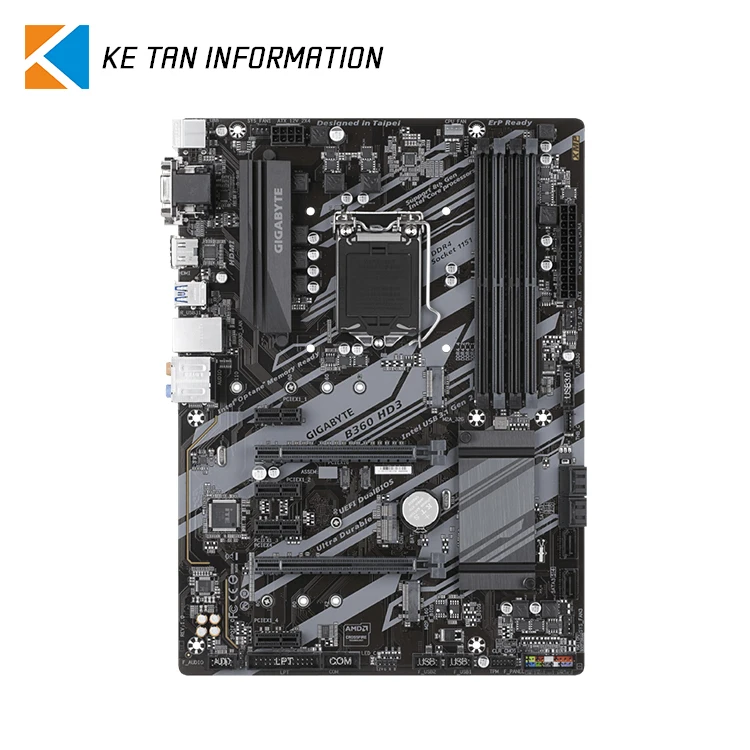

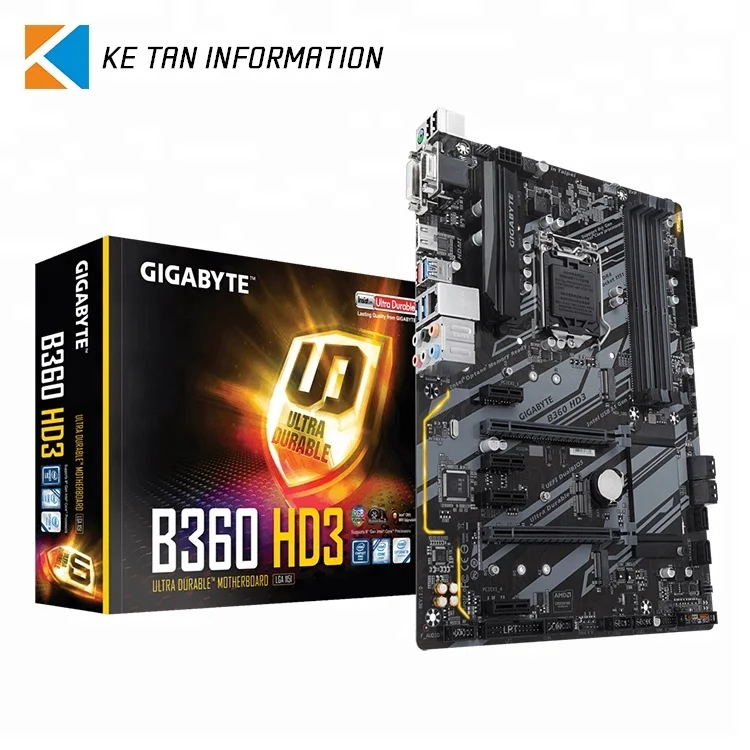

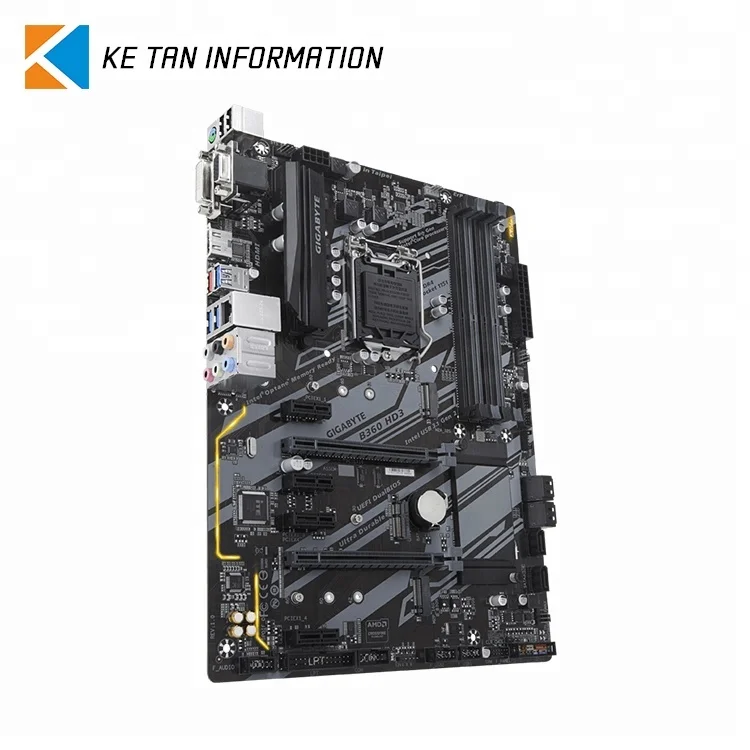

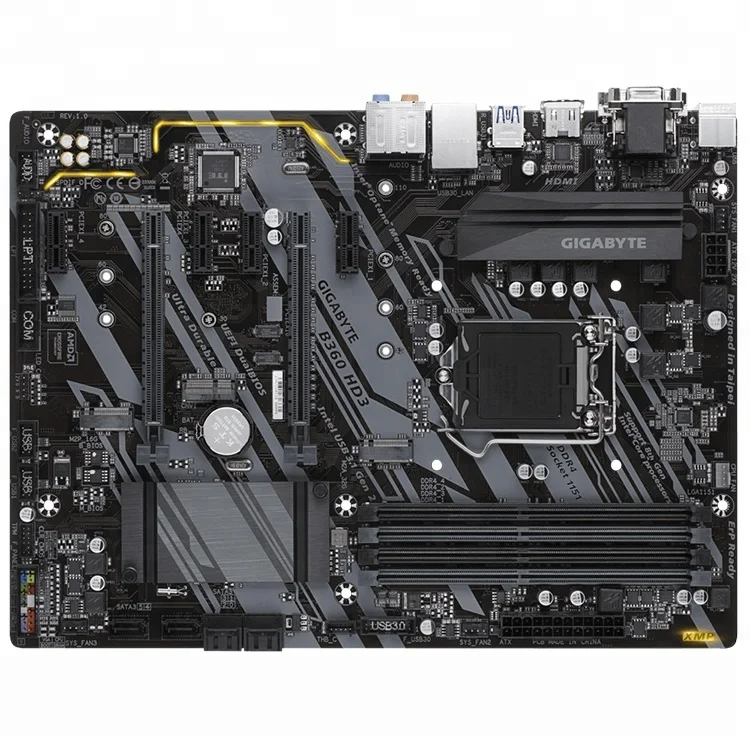

GIGABYTE Intel B360 HD3 Motherboard Intel B360 LGA1151 Motherboard B360M Motherboard

Product Overview

Description

Att:Page Price is Only for Reference, Actual Price is Subject to Our Confirmation.



Intel B360 Ultra Durable motherboard with USB 3.1 Gen2 Type-A, GIGABYTE 8118 Gaming LAN with 25KV protection, Dual M.2, 7 colors RGB LED strips support, Intel CNVi WIFI upgradable slot, Anti-Sulfur Resistor Design, Smart Fan 5, CEC 2019 ready



Supports 8th Gen Intel® Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4

New Hybrid Digital PWM Design

Intel® CNVi 802.11ac Wave2 2T2R WIFI Upgradable

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface

RGB FUSION supports RGB LED strips in 7 colors

Intel® Native USB 3.1 Gen2 USB Type-A

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

CEC 2019 Ready, Save the Power as Easy as One Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Ultra DurableTM 25KV ESD and 15KV Surge LAN Protection

Intel® Optane™ Memory Ready

Lightning-Fast Intel® Thunderbolt™ 3 AIC Support



Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x RGB LED strip header

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Thunderbolt™ add-in card connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x parallel port header

1 x serial port header

1 x Clear CMOS jumper



Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the PCIEX1_2, PCIEX1_3, and PCIEX1_4 slots. When the PCIEX1_2, PCIEX1_3, or PCIEX1_4 slot is populated, the PCIEX4 slot operates at up to x1 mode.

4 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

* The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.



Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

(Please refer "Memory Support List" for more information.)
