Магнитный Мобильный 360 градусов Янтарный аварийное освещение, светодиодная мини световая панель TBD0696 8e

Share on (60759230053):


Price:79,00 $ - 102,00 $

Quantity:


Product Overview

Description


 _01


Product Description

Product Description









TBD0696-8E




    This Mini 360° LED Emergency Light Bar is the icon of utility vehicle lighting. The magnetic mounts allow you to secure your light bar without drilling into your vehicle, perfect for leased fleet vehicles.


    The TBD0696-8E is unlike any other mini lightbar in the industry. This lightbar is made with powerful Generation III TIR 1W LEDs for a blinding light that are ideal for high brightness LED applications. The innovative 360 degree, low profile design ensures maximum visibility in emergency situations with no "dead" spots! This light bar is ideal for policia, fire, EMS, public safety, roadside assistance, waste removal, tow, tractors, utility, and DOT vehicles. the TBD0696-8E is a brilliant pick.










































































Specifications


Beam Angle


360 degree


Bracket Thickness


2mm


Connection Type

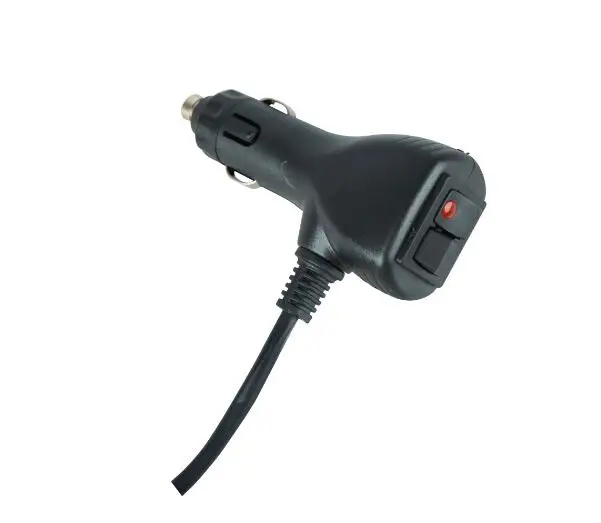

Cigarette Lighter Adapter


Mount Type


Surface


Max Power


48W


Individual LED Wattage


6W


LED Lifespan


100,000H


Colour Available


Amber


IP Rating


IP65


LED Quantity


48 leds


Length


 440mm / 17.3 inchs


Material


Aluminium baseplate, Transparent Polycarbonate Lampshade


Standards And Certifications


CE& E9


Special Features


Magnetic Mounting, Multiple Flash Patterns, Strobing


Power Consumption


48W


Type


Off Road Light Bar


Operating Voltage


12V/24V


Total Wire Length


3.5m/  137 inchs


Package Weight


3.1KG


Package Dimensions


470*230*90mm






1.The TBD0696-8E streamlined style provides superior aerodynamics and greater fuel savings, while the strong outer plastic case makes the lightbar both remarkably lightweight and durable.


2.This mini light bar also features an Polycarbonate housing and a fully sealed and weatherproofed flasher, guaranteeing that your light will be bright and clear to withstand all extreme weather conditions.
3.The TBD0696-8E is programmed with 15 user-selectable flash pattern
4.Permanent mount option also available.


Materials
    High quality Aluminium baseplate and iron bracket with Nd-Fe-B magnet.
    High performance plastic ABS bezel made by POLYLAC® PA-757 ABS
    Non-fading transparent lens made by Mitsubishi Iupilon®S2000UR, UV Stabilized Polycarbonate materials.
    Non-fading polycarbonate lenses made by Covestro Makrolon® 2805 Polycarbonate
Warranty


    Golddeer offer a 12 month guarantee on compact LED beacons subject to the item being fitted and used in accordance with the correct instructions.
    Any problems caused by misuse or negligence will not be covered under the golddeer guarantee.golddeer will in all circumstances only offer to replace faulty product should failure occur.





























Applications


LED Emergency Lights


 Waste Removal Lights


Roadside Assistance Lights


 Wreckering & Utility Vehicles Lights


Tractor Lights


Strobe Light


Public Safety Vehicles


Leased Fleet Vehicle Lighting







Detailed Images

Detailed Images

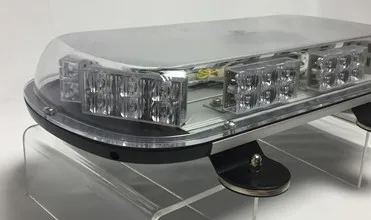

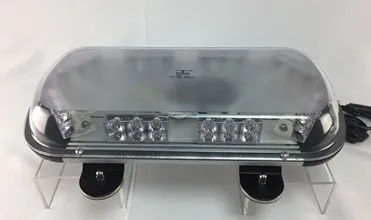

    This lightbar has been engineered for a 360-degree lighting output with an aerodynamic, low-profile design.


    The TBD0696-8E is programmed with 15 user-selectable flash pattern.


    Eight modules of Gen-Ⅲ LED lights extreme high brightness, single LED power 1W, reliable performance and long service life .


    E9 certification








Lampshade and baseplate




     Non-fading transparent lampshade made by Covestro Makrolon® 2805 Polycarbonate materials(from Bayer Material Science)


    Non-fading transparent lens made by UV Stabilized Polycarbonate materials - Mitsubishi Iupilon®S2000UR.High performance plastic baseplate made by ABS, POLYLAC® PA-757.


    Lightweight substrate were between the lampshades,it also has a cushioning and shock-resistant effecs,it made by (ethylene-vinyl acetate)

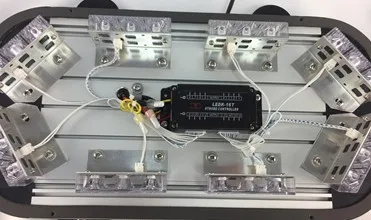

control electric circuit




    High quality electronic components could withstand the test of times.Many of the components come from panasonic,LSHC etc.
The precise and reasonable circuit design guarantees the reliable operation of each part
    Patent design Integrated signal control module and The socket makes the interior line look cleaner and you will never worry about which line you have to pick in.

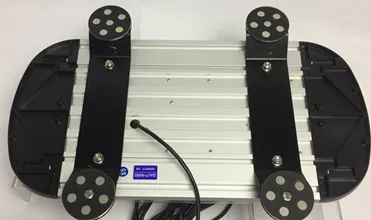

Aluminium baseplate and iron bracket




    The main reason for our choice is the lightweight and non-corrosive characteristics of aluminum baseplate.
    Aluminium baseplate is and iron bracket could ensure the stability and firmness of the product. selection of stainless steel screw also guarantees the service life of the product. The rubber cushion act as a shock absorber and prevents damage to car paint at the same time.


    Use of Rare earth Nd-Fe-B permanent magnet, high efficiency and light weight.




















































Iupilon® S2000UR



Metric




English



Density



1.20g/cc




0.0434lb/in³



Hardness, Rockwell M



65




65



Elongation at Break
@Thickness 3.17 mm



120%




120%



Flammability, UL94
@Thickness 1.59 mm



V-2




V-2



Refractive Index
@Wavelength 589.3 nm



1.585




1.585



Transmission, Visible



87%




87%





 _04_05_07_06_08_09
