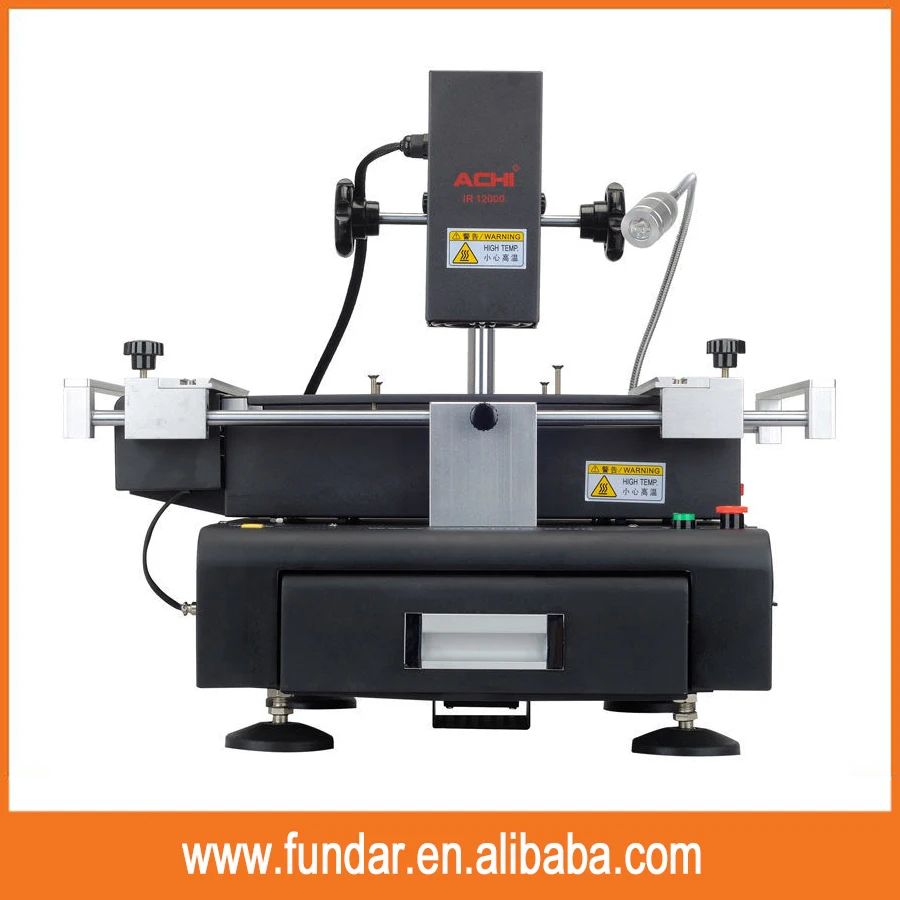

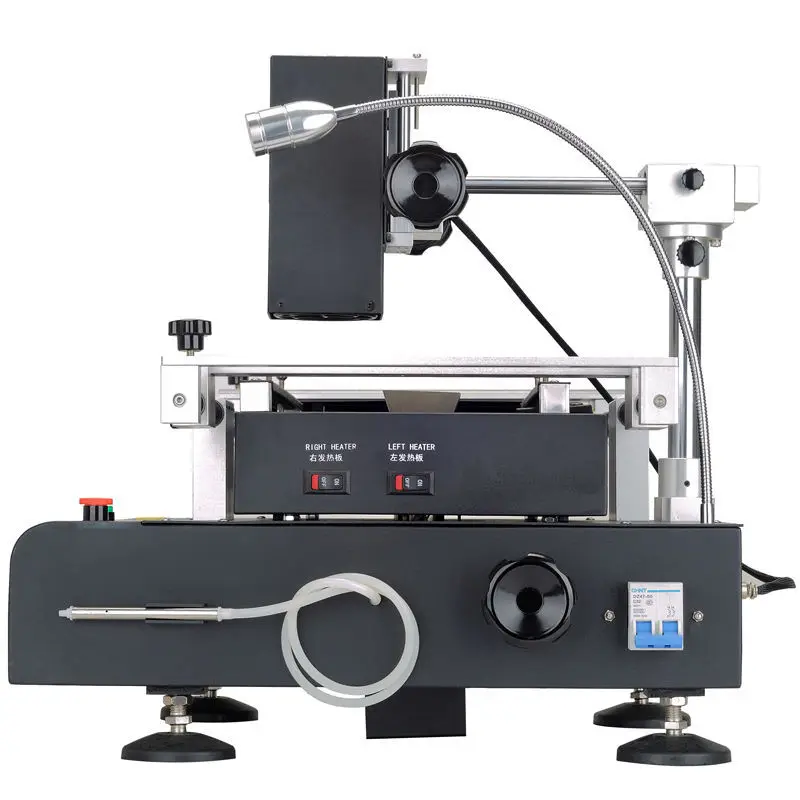

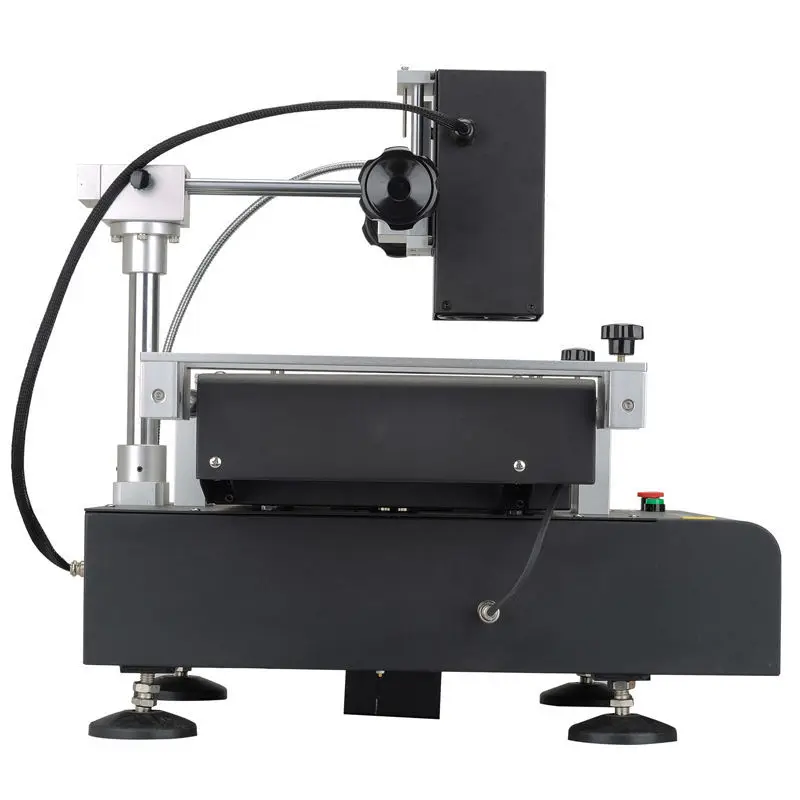

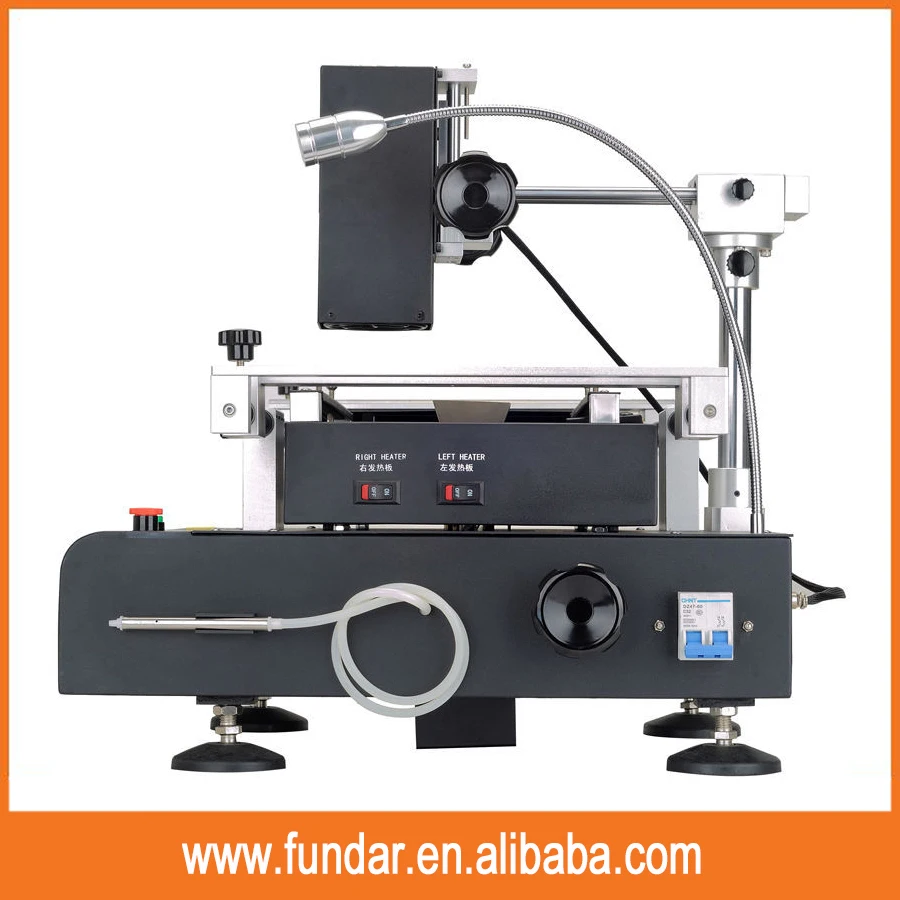

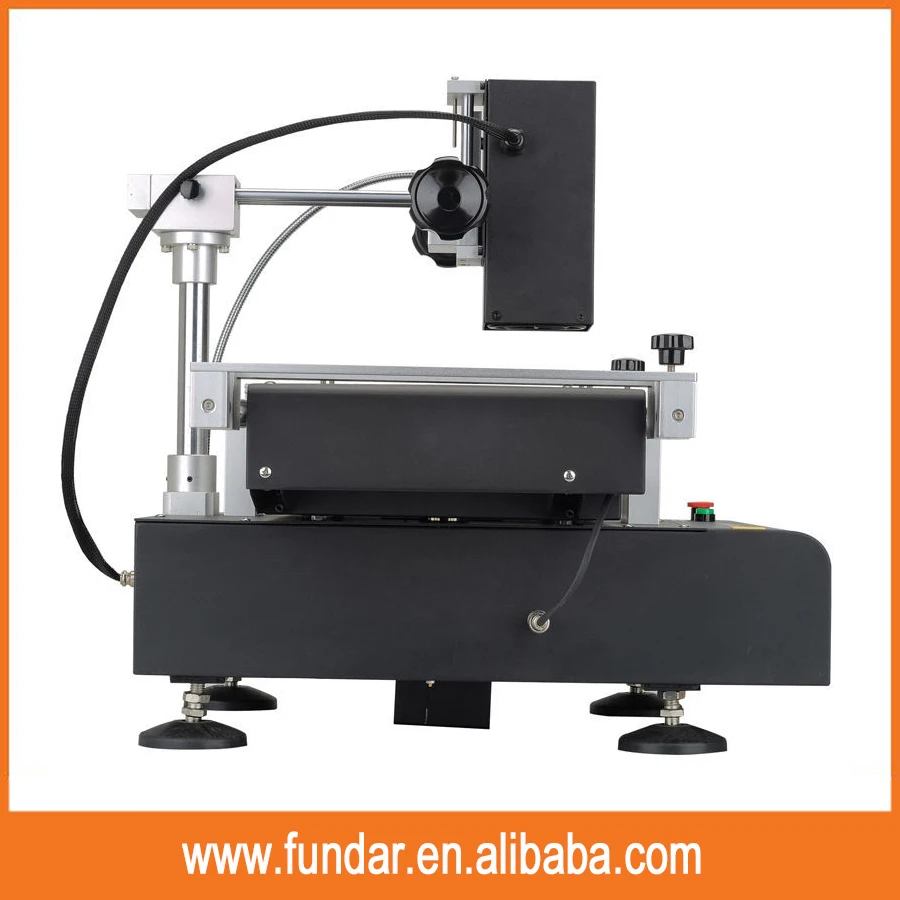

Hot Sell Vacuum Desoldering Tools For Electronics Of ACHI IR12000 BGA Rework Station

Product Overview

Description

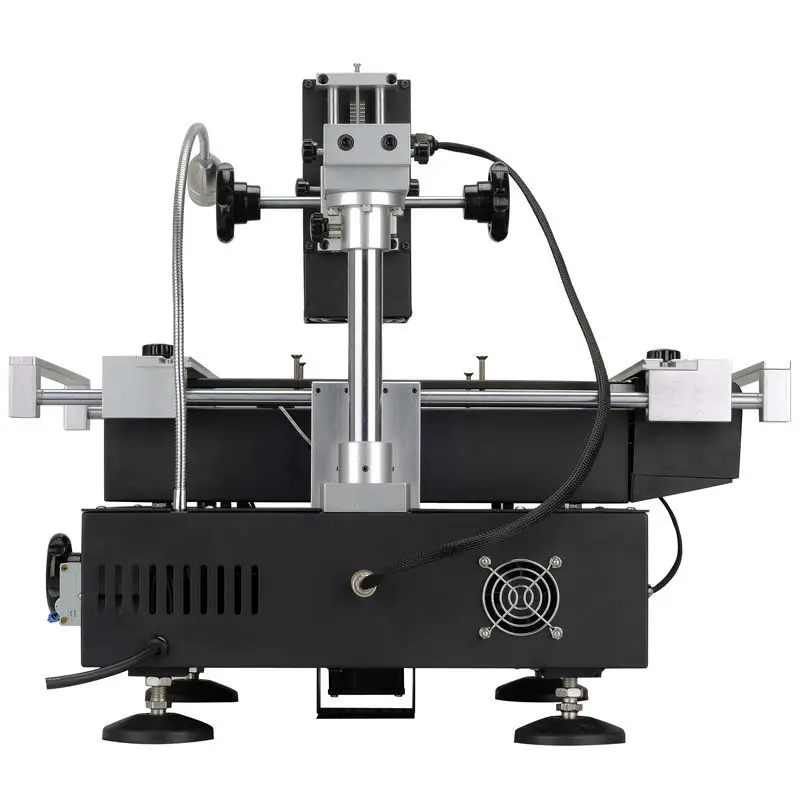

Hot Sell Vacuum Desoldering Tools For Electronics Of ACHI IR12000 BGA Rework Station









Outstanding features of this ACHI IR12000 BGA Rework Station

1. ELSTEIN RFS / 80 400 Ceramic (Made in Germany, CE Passed).

2. 3 temperature zones.

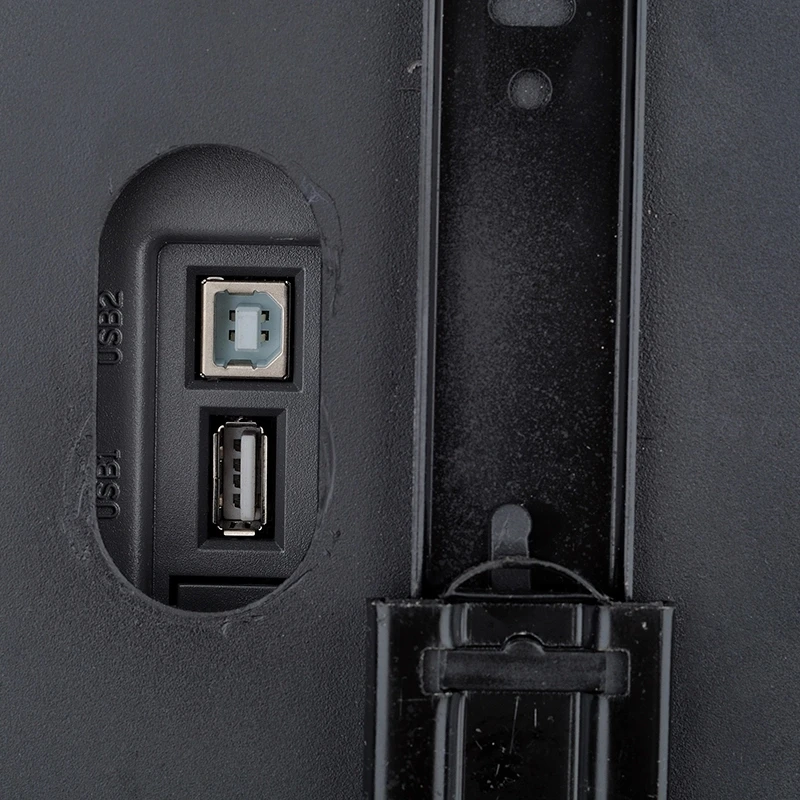

3. USB Port.

4. Top heater can be up, down, left, right.

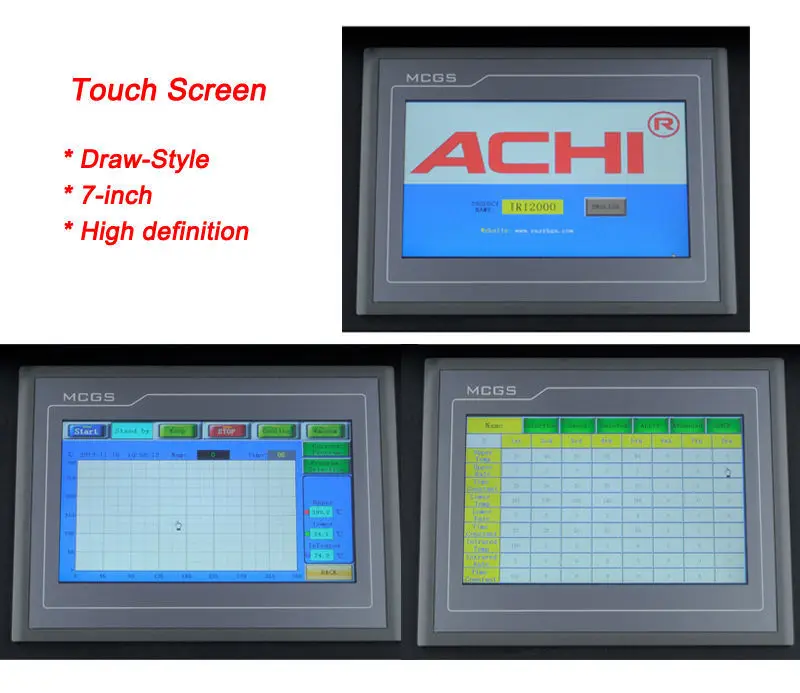

5. Drawer design 7” high definition touch screen.

6. MCGS system, easy to operate and control.

7. Programmable PLC controller.

8. Emergency stop button.

9. Easy operate.

10. With LED light.

11. Operation interface can be English, Spanish, Portuguese.

12. Automatic force air cooling.

13. CE approval.





Total power	3650W
Voltage	220V/110V, AC 220V±10% 50/60Hz
Heating zone	3 zones, top, bottom and preheating

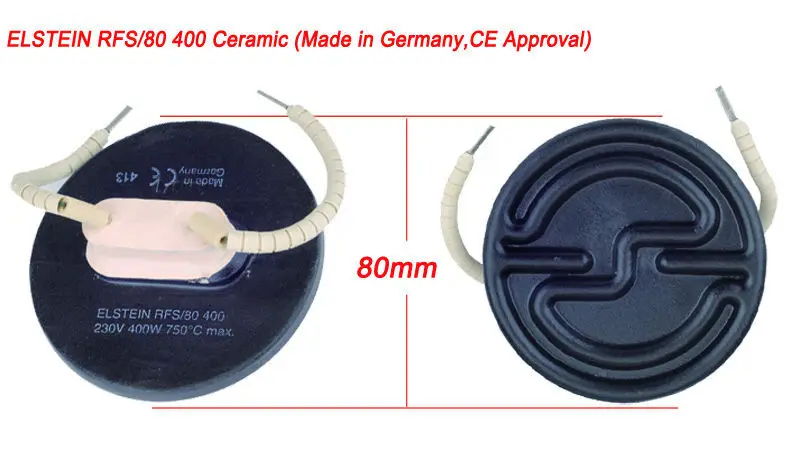

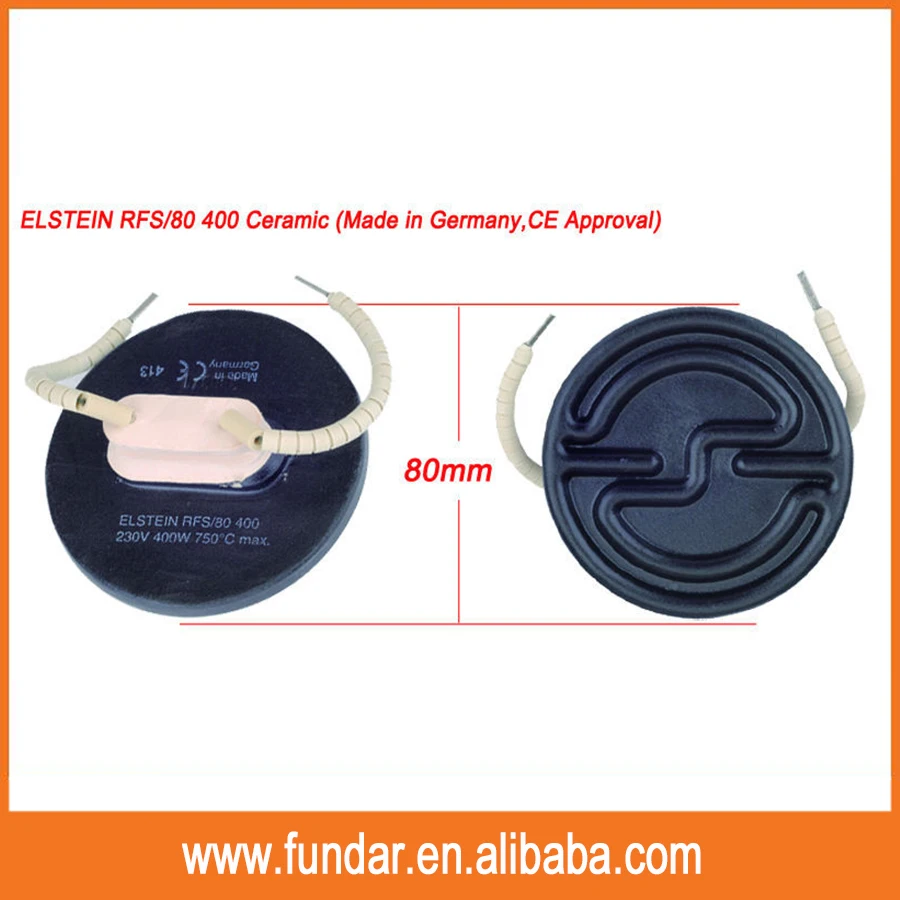

Upper heater ceramic	ELSTEIN RFS / 80 400 Ceramic  (Made in Germany, CE Passed)
Upper heater	Infrared 400W
Size of upper heater	80mm*80mm

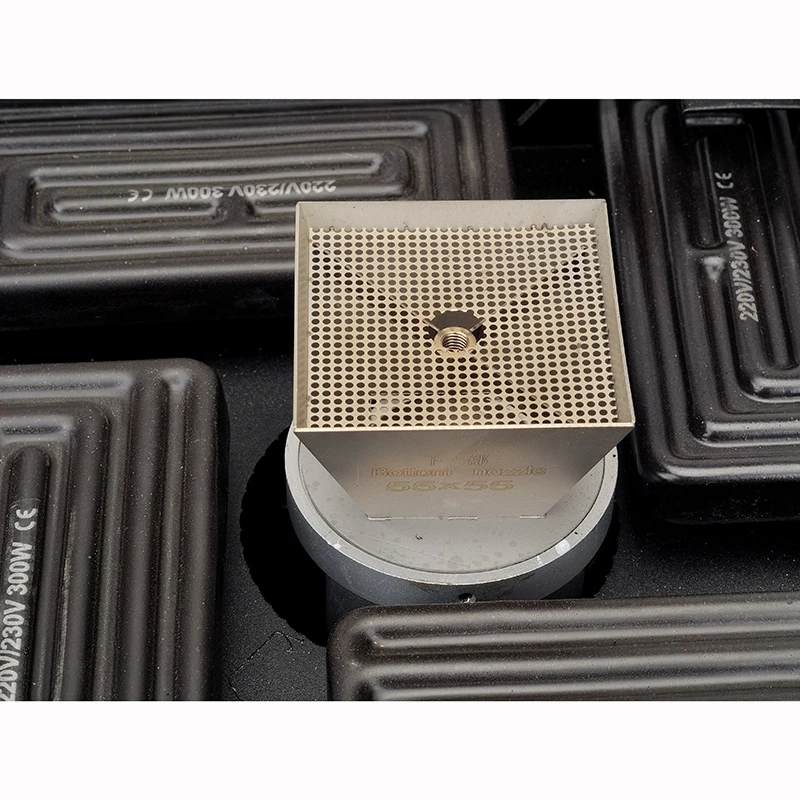

Bottom heater	IR 2400W, Hot Air 800W, total 3200W
Bottom heater size	350mm*210mm
PCB size	Max. 500*400mm / Min. 22*22mm
BGA chip size	Max. 80*80mm / Min. 2*2mm
Positioning	V-groove PCB
Temperature control	K-Type temperature sensor and close loop
Temperature accuracy	±2°C
Curve display	On drawer design 7'' high definition touch screen
Operation temperature	15 ~ 45 °C
Operation humidity	5% to 95%, non-condensing
Machine dimension	635*600*560mm
Net weight	42kg
Package dimension	770*670*460mm
Gross weight	48kg

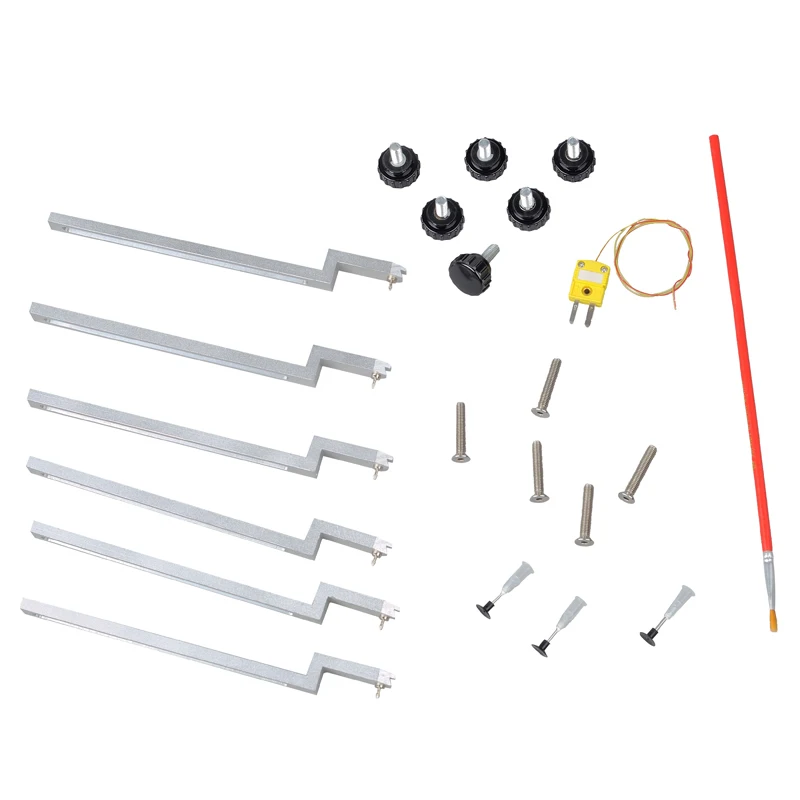

1 x ACHI IR12000 BGA Rework Station

6 x Jig for support main-board

6 x Screws

4 x Small straight-bar

1 x Omega K type of temperature measurement line

1 x Brush

3 x Suction headers







Packing

Packaging material: Carton with foam inside
Packaging size and weight: 770*670*460mm / 48kg

Shipping
A. 3-8 workdays shipping from China by Air / Express (DHL, FedEx, UPS, EMS, etc.)
B. 3-5 workdays shipping from UK & Germany Warehouse to European union countries. No need to pay for customs duties and VAT.
C. We can arrange shipment by sea. Minimum CBM requirement: 1 CBM





User Manual

We provide you the friendly English User Manual for free.

Warranty

1 year free, 2-3 years cost price and free technical support always.

MOQ

1 set welcome, you may want more after a nice try.

Video

We can provide kinds of videos in pre & after sale service.

How to buy

A. Consult us about this product online or by e-mail.
B. Negotiate and confirm the final price, shipping, payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F. Send your order by air or by sea.



1. We provide you with a friendly English User Manual for free.

2. 24 hours technical support by email or call.

3. Warranty: 1 year free, 2-3 years cost price and free technical support always.

4. Free training to make sure you master the operating of this machine.

5. Videos of operating the machine are available.
