Tianjie Acoustic panels Factory Studio room fabric acoustic sound absorber panels for building in thailand
- Category: >>>
- Supplier: Foshan Nanhai Tianjie Acoustic Material Factory
Share on (60759293582):
Product Overview
Description
Related Products
Detailed Images

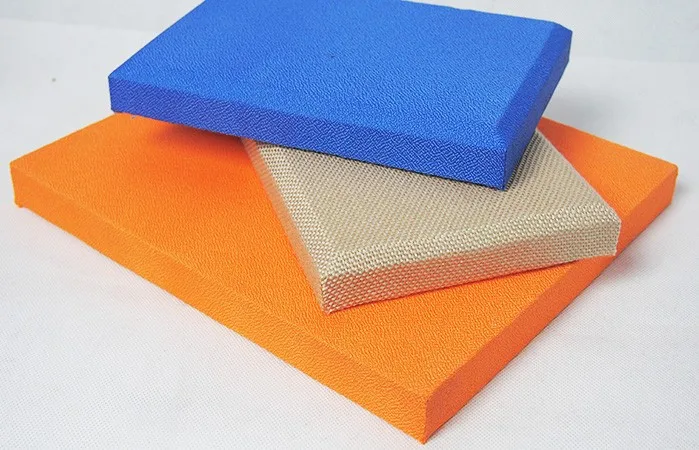

Fabric wrapped acoustic panel
Fabric acoustic Panels are cloth wrapped acoustic panels designed to absorb background noise inside your space, reducing the echoes, and delivering premium sound quality back to your room. The fabric panels are class B1 fire rated, decorative, durable, easy to self install, and ship with a set of clips that make it easy to self install your treatment.
Product name | Fabric wrapped acosutic panel |
Edge | Square Edge,Bevel Edge |
Size | 600*600mm,600*1200mm |
Thickness | 25,50mm |
Finishes | Leather,Fabric (Fire-resistant B grade) |
Materials | 96kg/M3 Owens corning fiberglass/Foam sponge |
Sound absorbing coefficient | 0.8-1.1 |
Fireproof grade | GB8624 2006 B |
Eco-protection grade | E1 |
Installation | aluminum clips, wood frame, glue |
Frame | Resin,Aluminum,wood |
Certification | SGS,ISO9001-2008 |
Test report | Eco protction, sound absorption, flame retardant |

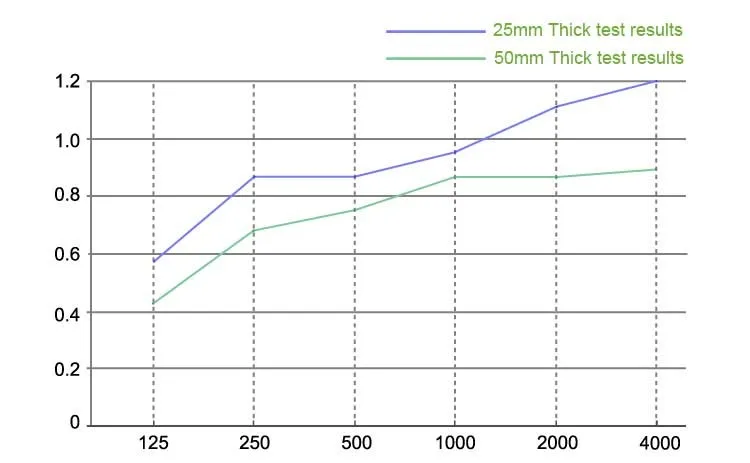

Acoustic performance
25mm Thickness acoustic test result
Test condition | Center frequency | 125 | 250 | 500 | 1000 | 2000 | 4000 |
No cavity | NRC | 0.2 | 0.23 | 0.56 | 0.8 | 0.83 | 0.8 |
100mm cavity | NRC | 0.42 | 0.69 | 0.75 | 0.85 | 0.85 | 0.9 |
50mm Thickness acoustic test result
Test condition | Center frequency | 125 | 250 | 500 | 1000 | 2000 | 4000 |
No cavity | NRC | 0.3 | 0.7 | 0.8 | 0.91 | 0.96 | 1.13 |
100mm cavity | NRC | 0.58 | 0.87 | 0.87 | 0.95 | 1.13 | 1.2 |
Color selection

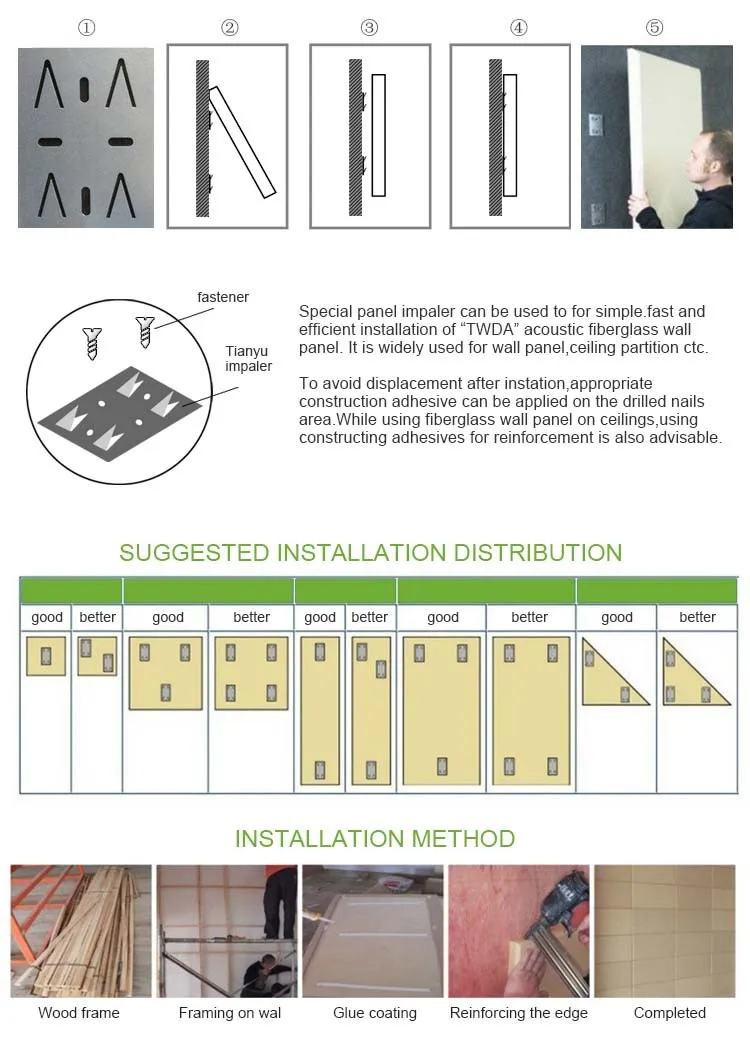

Installation

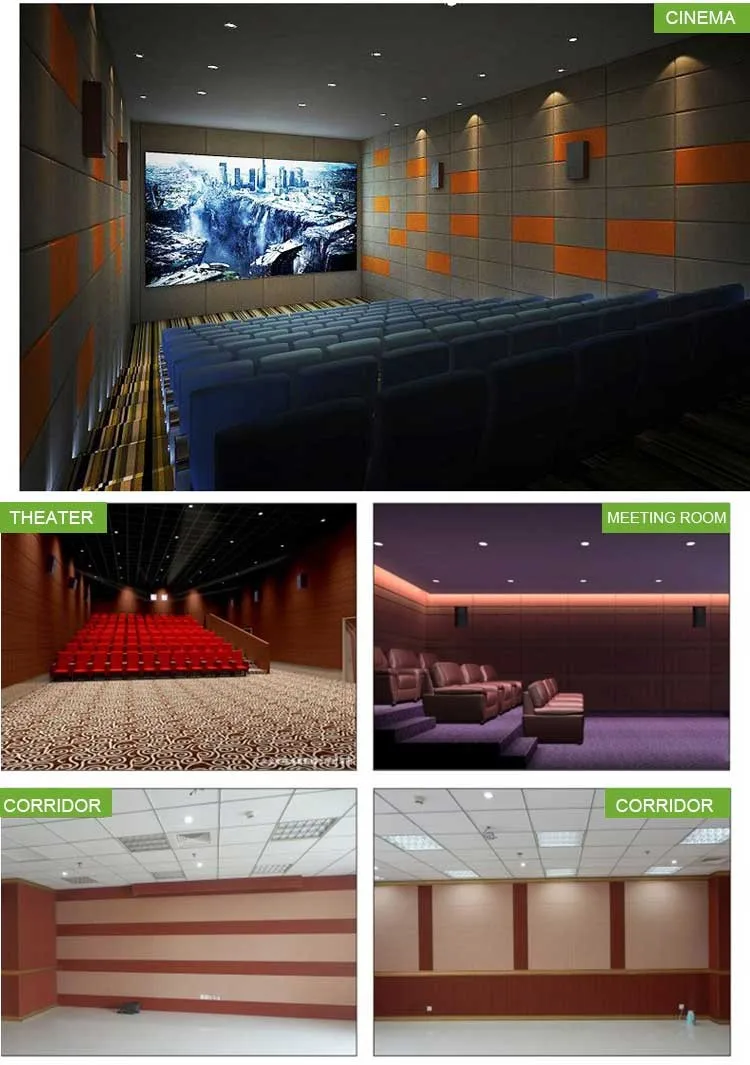

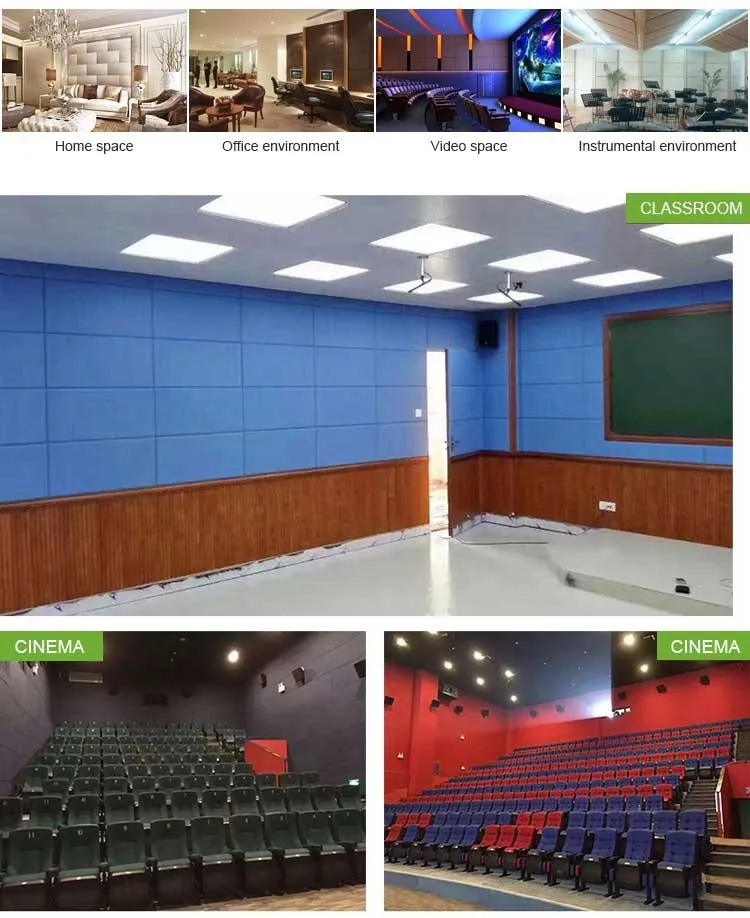

Applicable projects
Interrogation Room, Teleconferencing and Videoconferencing Rooms, Broadcast and Recording Studios, Multi-Purpose Rooms, Home Theaters and Auditoriums.
Certifications

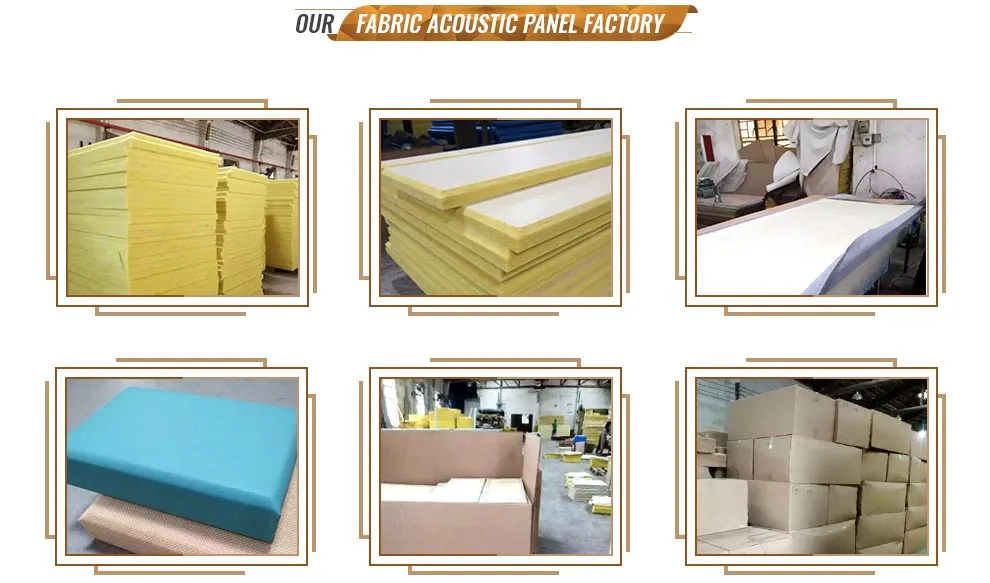

Production &Company
