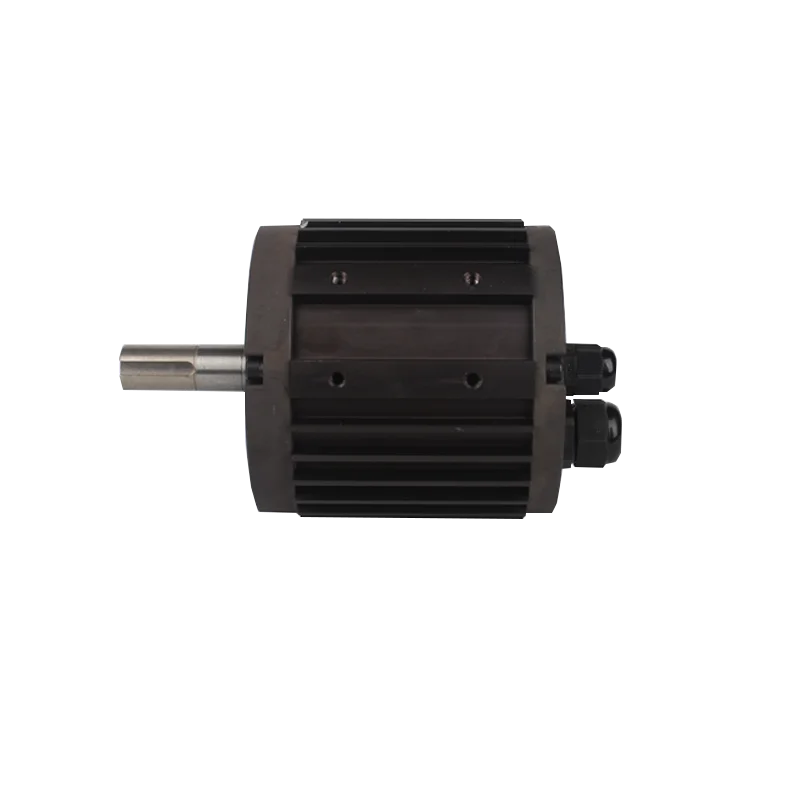

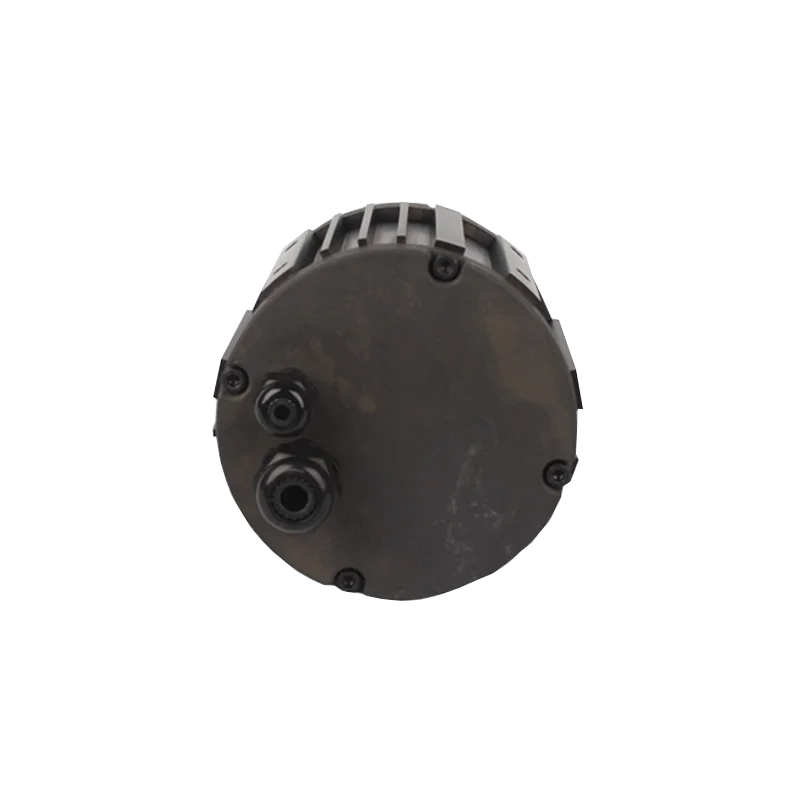

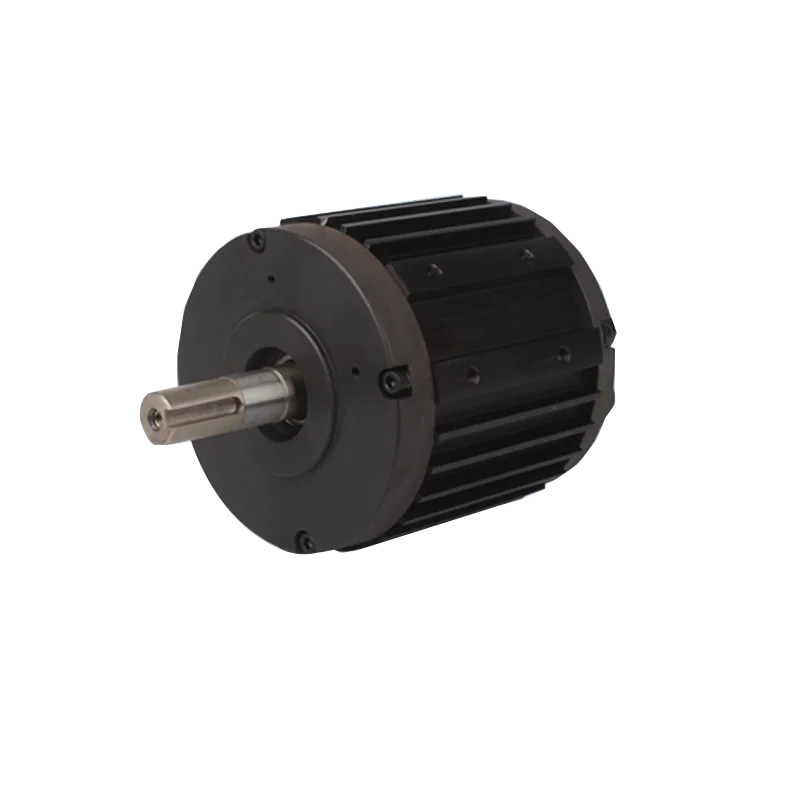

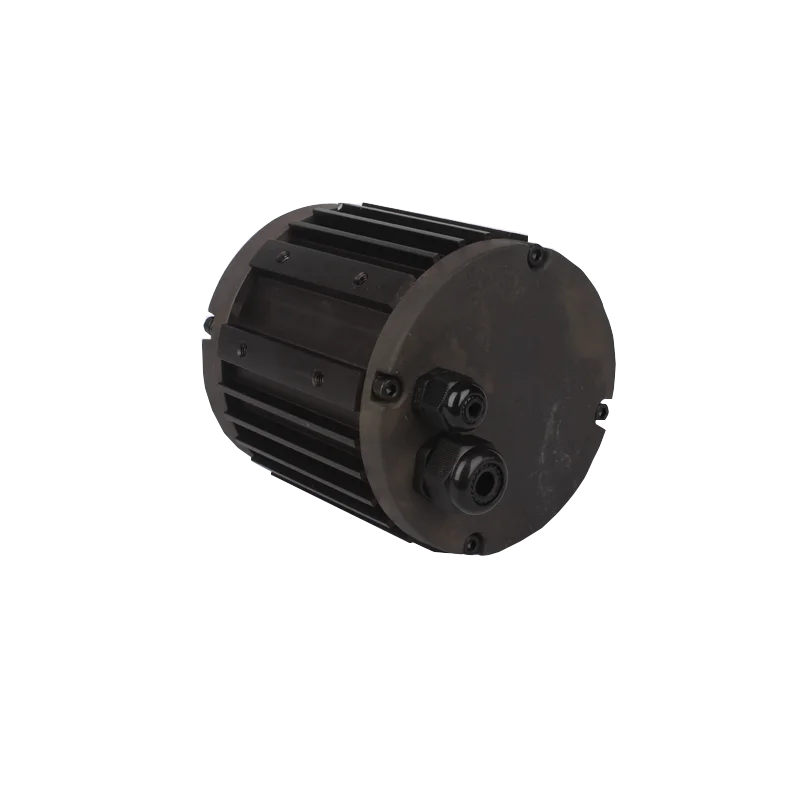

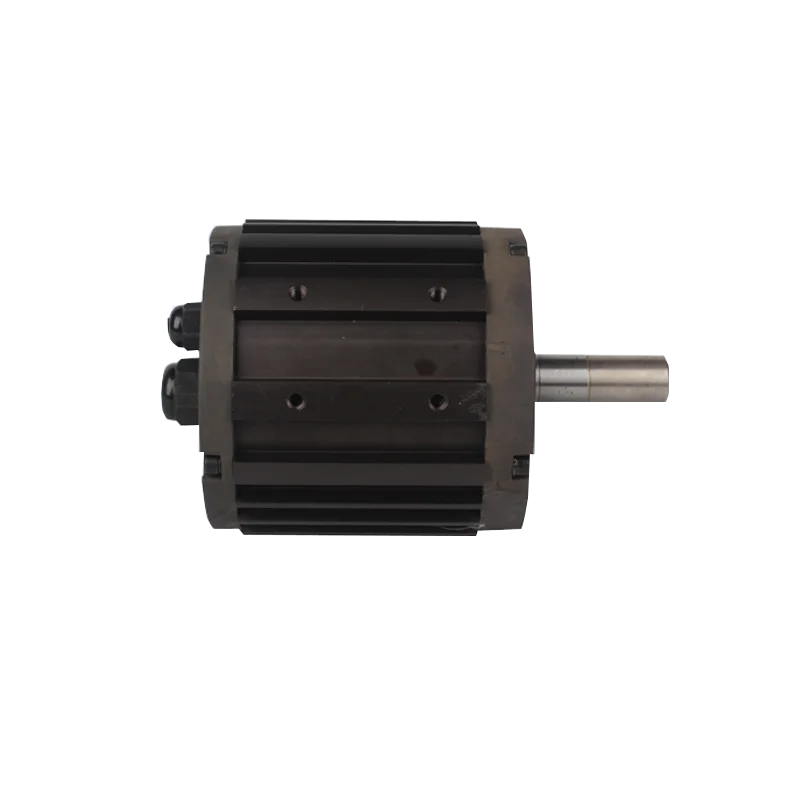

24v 1000w brushless dc motor
- Category: >>>
- Supplier: Changzhou Sunline Machinery Co. Ltd.
Share on (60759299554):
Product Overview
Description
Application
Product Attribute
| SL110BLF Brushless DC Motor | ||||||||
| Technical Specification | ||||||||
| Model | 110BLF(Y)30 | 110BLF60 | 110BLF90 | 110BLF120 | ||||
| Number of poles | 4 | |||||||
| Voltage | V | 48 | ||||||
| No load speed | RPM | 2800 | 2800 | 2800 | 2800 | |||
| Rated torque | N.m | 1.65 | 3.3 | 5 | 6.6 | |||
| Rated speed | 2500RPM | |||||||
| Rated power | W | 420 | 840 | 1200 | 1650 | |||
| Rated current | A | 11.2 | 22.5 | 34 | 45 | |||
| Peak torque | N.m | 6 | 12 | 18 | 23 | |||
| Back-EMF constant | V/KRPM | 12.5 | 12.5 | 12.5 | 12.5 | |||
| Weight | Kg | 4.3 | 5.6 | 6.9 | 8.2 | |||
| Length | mm | 83 | 113 | 143 | 173 | |||
Related
Company Information
Packaging
FAQ
1.Is motor’s size customized?
Yes, for all types of motor’s voltage,power,and so on is customized depending on your specific requirements.
2. How does the speed affect the load of the motor?
For motors, if the speed increases , the load will decreases accordingly.
3.What does the retracted length refers to?
It refers to The length from hole to hole after totally when stroke length is zero.
4.How to choose a suitable motor for my application?
Describe your requirements to the seller. We will help you to do the selection.
5.What is the guarantee?
One year after you get the motors.
6.Does your company provide OEM service?
Yes, we do.
7.How about the payment and shipping?
It is allowed to be negotiated.
