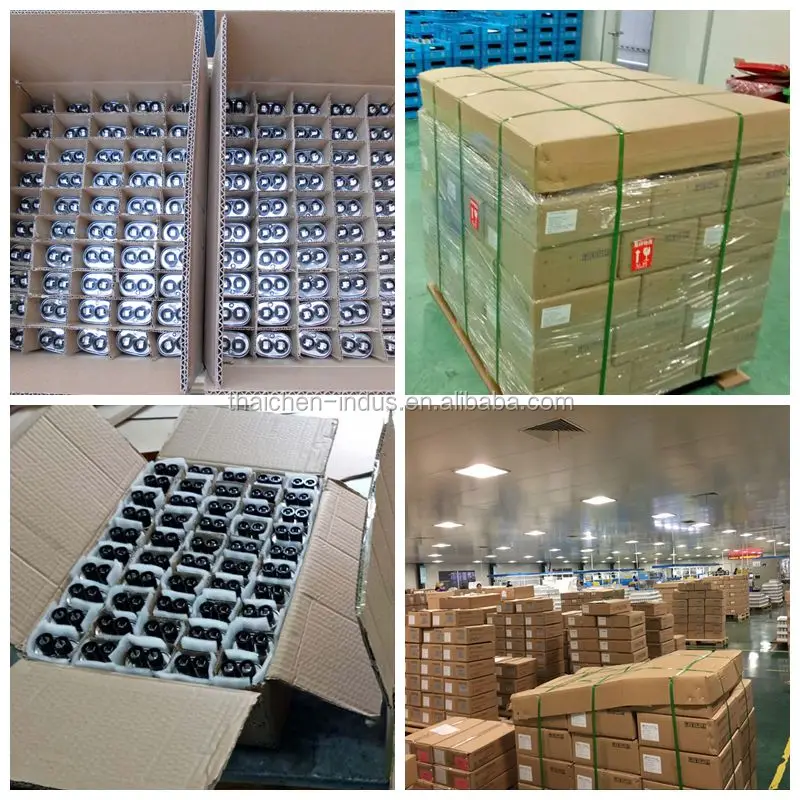

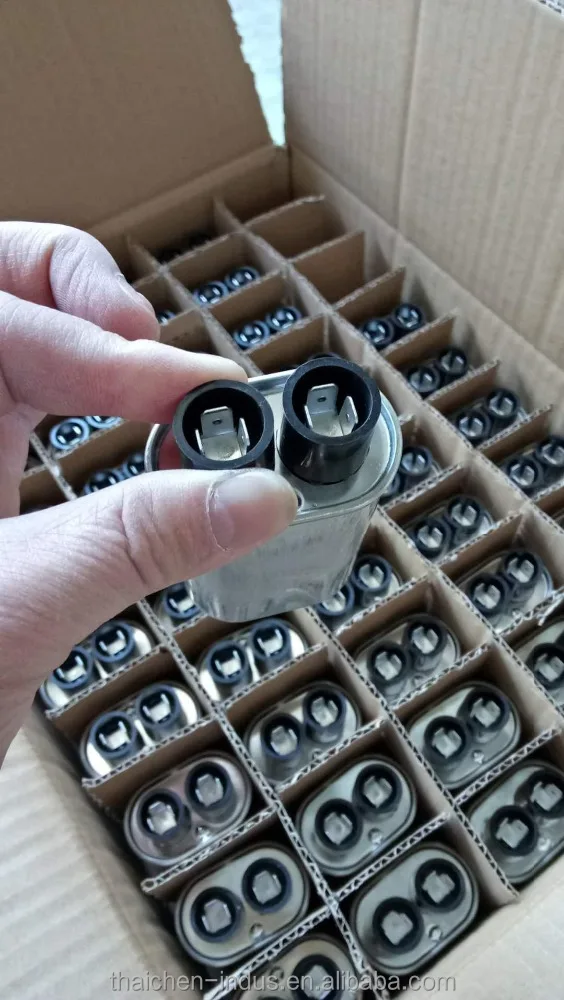

50pcs per carton.cartons will be loaded on pallet.
Product Description

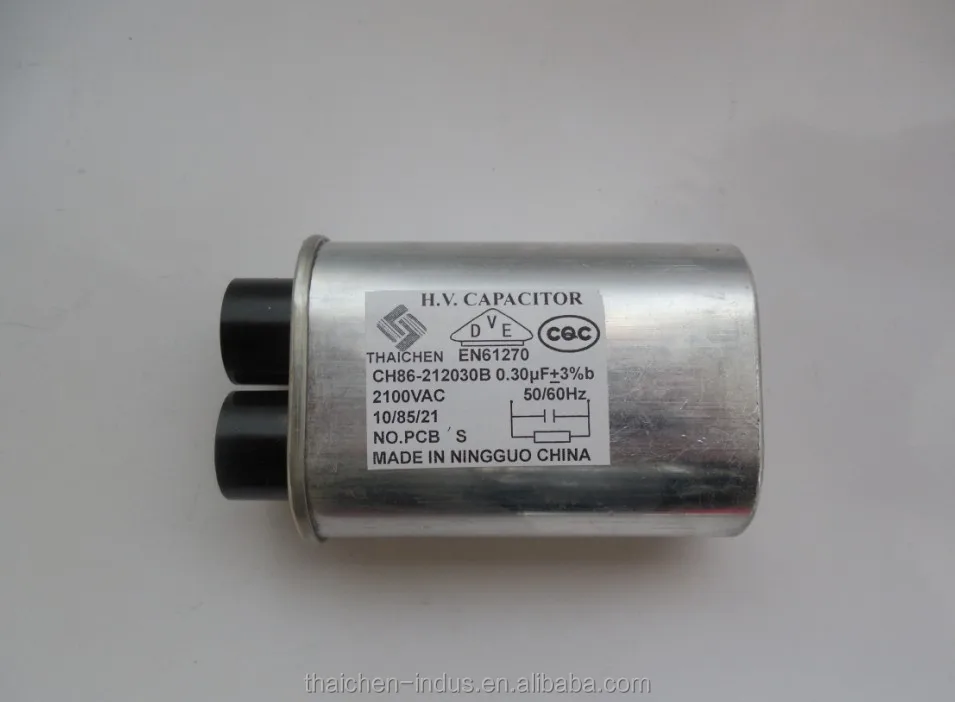

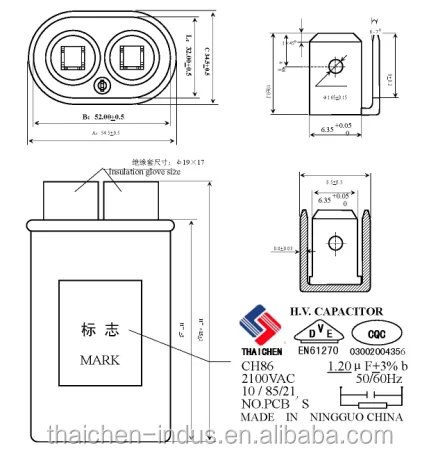

crowave oven capacitor is suitable to be used in the high-pressure AC circuits of commercial microwave oven,commercial microwave oven and household microwave oven etc.other microwave equipments. Microwave capacitor has the structure of oil-immersing composite medium (Polyester/Polypropylene).This capacitor is for microwave oven for home or industry. Its advantages are good heat dispersion, high pressure-resistant, small volume, light weight, few medium waste, high capacitance precision, long-time stable operation under relatively high working electrical pressure, safe and reliable. Capacitor for microwave oven fulfills the standard of IEC612701EN61270VDE0560-22.Main technical parameters are listed as below: Rated Capacitance for capacitors :0.2uF ~ 1.4uF Rated Voltage for capacitors :1500VAC ,2500VAC,3000VAC, 3500VAC.50Hz/60Hz Capacitance Tolerance:±1%±3%±4%(can manufacture according customers request) Testing Voltage(Un):Inter-electrodes: DC:4.3Un 10S T-C(Electrode shells)AC 6000V 60S Usage temperature:-10°C 85°C Discharge Resistance:10 ±10% Specification/Dimension for microwave capacitor:As per the request of the order from customers.
For more information about the high voltage capacitor for microwave oven, Pls visit our website www.thaichen.com for the details.
CH86/CH85 microwave oven capacitors are suitable to be used in the high-pressure AC circuits of household microwave oven and commerial used microwave oven equipments,such as capacitors for foodserivce Microwave food sterilization drying equipment, microwave materials sterilization drying equipment, microwave oral liquid sterilization equipment, microwave wood drying equipment, microwave rubber vulcanization equipment, microwave glass fiber drying equipment, microwave paper drying equipment, microwave waste disinfection equipment, microwave vacuum extraction equipment, microwave vacuum drying equipment, and many other series and varieties.
Detail usage as installed in the following all kinds of microwave oven equipments:
Microwave Tea Making process Microwave food equipment used in Food industry Microwave medical equipment used in Pharmaceutical industry Micirowave used in Wood Processing Microwave heating equipment used in rubber industry,such as the Microwave rubber vulcanization equipment
Microwave equipments for Insecticidal sterilization Microwave equiment used for Desulfurization Microwave Plasma Technology Microwave microwave biological & Microwave scalpel used in Medical Microwave Measurement Microwave used for Ceramic sintering Chemical Microwave is widely used in chemistry, such as microwave digestion, extraction, hydrolysis, catalytic reaction, etc.
Company Information
Ningguo Thaichen Elec-industial Co.,ltd. has specially studied and produced the microwave oven capacitors for more than 20 years.Our company has developed from the previous factory named Ningguo Jiahua Electrical Appliances Co.ltd,which was established in year 1997.During the past 20 years,we have devoted our mind to improve and designed our microwave oven capacitor and acculated the most professional technical and experience in making the microwave oven capacitor in China.With our highest quality and top service, we have winned many famous and excellent customers from UK,USA,GERMANY,JAPAN ,Korea etc..In Chinese market,our Superior technology is designing and making the commerical/industrial micorwave oven capacitors with 2500VAC and 3000VAC ,3500VAC higher voltage. Normaly some microwave oven capacitors manufactuer only can supply the 2100VAC microwave oven capaciors with a stable quality,but couldn't gurantee a stable quality for higher voltage than 2100VAC. So if you want to buy any capacitors with votlage more than 2100VAC, our company are your best choice.
The following are our factory's real scene:
Our Services
CH86/CH85 microwave oven capacitors are suitable to be used in the high-pressure AC circuits of household microwave oven and commerial used microwave oven equipments,such as capacitors for foodserivce Microwave food sterilization drying equipment, microwave materials sterilization drying equipment, microwave oral liquid sterilization equipment, microwave wood drying equipment, microwave rubber vulcanization equipment, microwave glass fiber drying equipment, microwave paper drying equipment, microwave waste disinfection equipment, microwave vacuum extraction equipment, microwave vacuum drying equipment, and many other series and varieties.
Detail usage as installed in the following all kinds of microwave oven equipments:
Microwave Tea Making process Microwave food equipment used in Food industry Microwave medical equipment used in Pharmaceutical industry Micirowave used in Wood Processing Microwave heating equipment used in rubber industry,such as the Microwave rubber vulcanization equipment
Microwave equipments for Insecticidal sterilization Microwave equiment used for Desulfurization Microwave Plasma Technology Microwave microwave biological & Microwave scalpel used in Medical Microwave Measurement Microwave used for Ceramic sintering Chemical Microwave is widely used in chemistry, such as microwave digestion, extraction, hydrolysis, catalytic reaction, etc.
Contact us
Contact Us
Our slogan is: ONLY THE FIRST ! We are committed to be the top manufacturer. For more products and information,please feel free to contact us.
