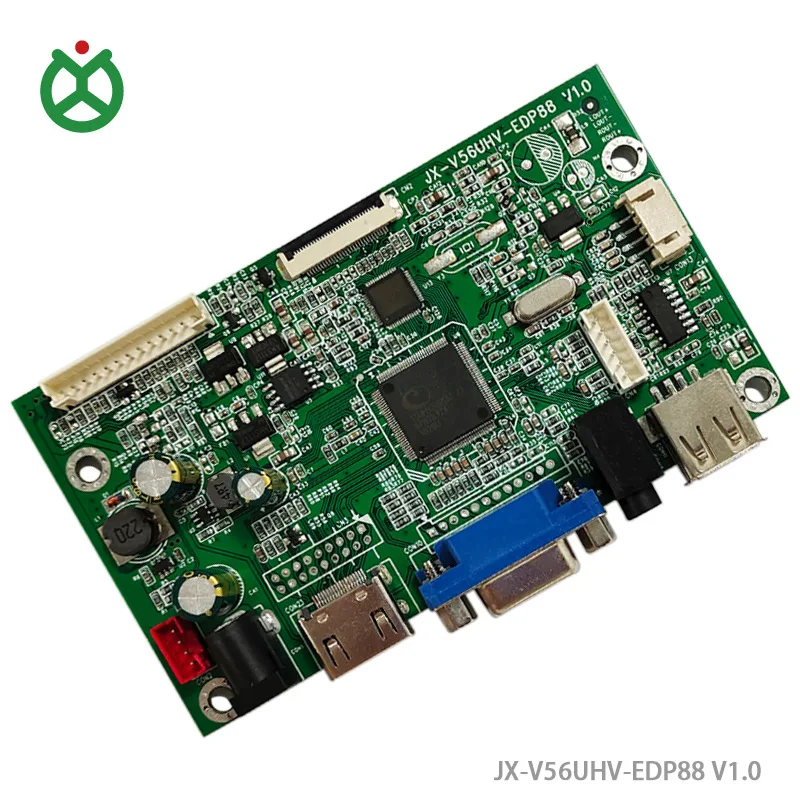

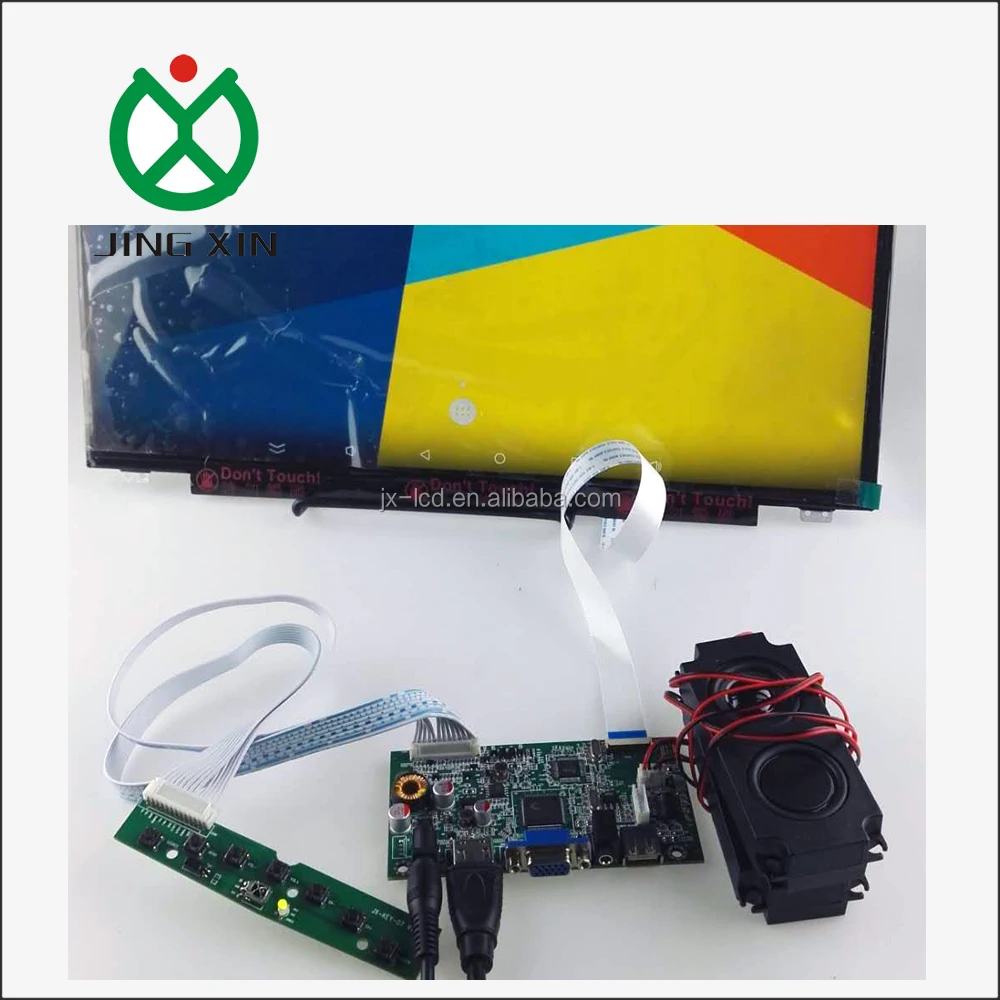

Mstar V56UHV EDP for EDP screen panel controller board with Usb HDMI VGA AV Display LCD monitor Universal Lcd motherboard
- Category: >>>
- Supplier: Shenzhen Jingxin Quartz Technology Co. Ltd.
Share on (60759331099):
Product Overview
Description
JX-V56-UHV-EDP88 for EDP screen with Usb HDMI VGA V56/59 Universal Lcd controller Board
Product Description
Specifications of the Lcd Driver Board:
General description
This LCD monitor board is positioning in the high-end,Using MSTAR Single Chip TV processing IC TSUMV59/56RUU,LVDS changed to EDP signal.With high resolution in little screen panel. multi function.Support full color / sound system ,Mainly for 15.6 and below the size of LCD EDP panel.
The analog audio amplifier:Max output power 2x3w (4 Ohm).
The input signal:VGAx1,HDMI(1.3 ) ,USB(2.0).
Support1366*768--1920*1200, 6/8 bit EDP output .
Multi Country OSD menu language, screen supply power 3.3V.
Main technical parameters
Vidio input | HDMI | resolution | max 1920x1200 | ||||
Video System | PAL/NTSC/SECAM | ||||||
CVBS | Video System | PAL/NTSC/SECAM | |||||
Video level | 1.0 V P-P ±5% | ||||||
PC-RGB | Format | Up to 1920×1080@60Hz | |||||
Audio input | CVBS | L/R RCA Input | 0.2 ~ 2.0 V RMS | ||||
PC Audio | Earphone Input | 0.2 ~ 2.0 V RMS | |||||
THD | 1.5~2% | ||||||
S/N | 80 dB | ||||||
Speaker | Frequency Response | Frequency Response 100Hz~15KHz @±3dB (1KHz reference signal) | |||||
Max output | 2*2.5W(4Ω)THD+N<10%@1KHz (Power Supply: 12V, Audio Input: 0.5V RMS ) | ||||||
Power supply | Input voltage | 12V | |||||
Panel voltage select | 3.3V/5V/12V | ||||||
Backlight voltage | 12V | ||||||
Standby consumption | <0.5W | ||||||
OSD language | Chinese English German French Italian Spanish Russian Arabic Persian and so on. | ||||||
Key function | POWER/MENU/SOURCE/UP/DOWN/LEFT/RIGHT | ||||||
Comb Filter | 3D | De-Interlace | 3D | ||||
TXT | select | V-CHIP,CC,WSS,VPS | select | ||||
Screen resolution | 1920*1200 | ||||||

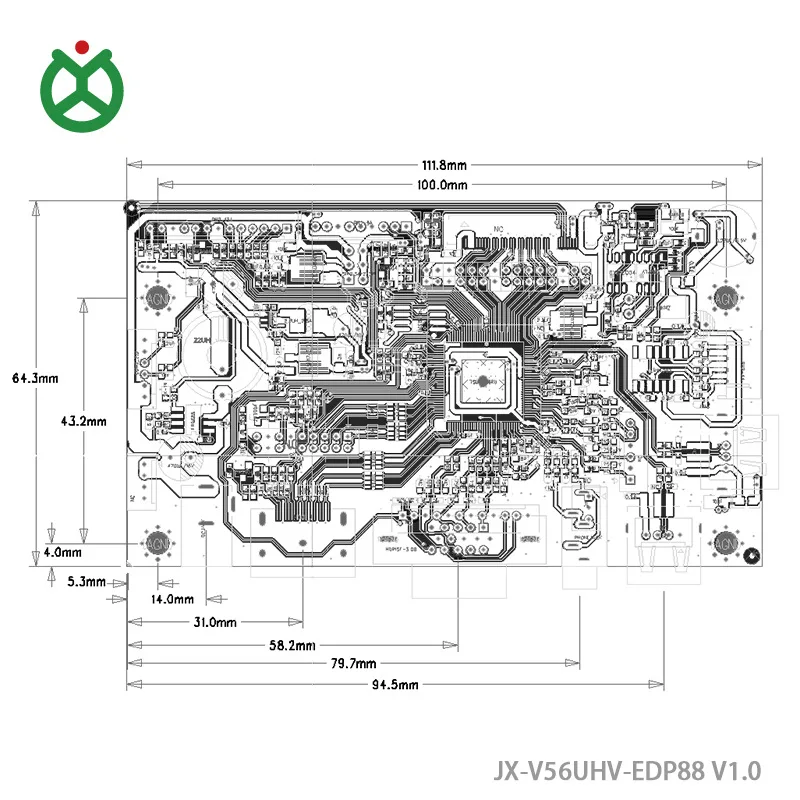

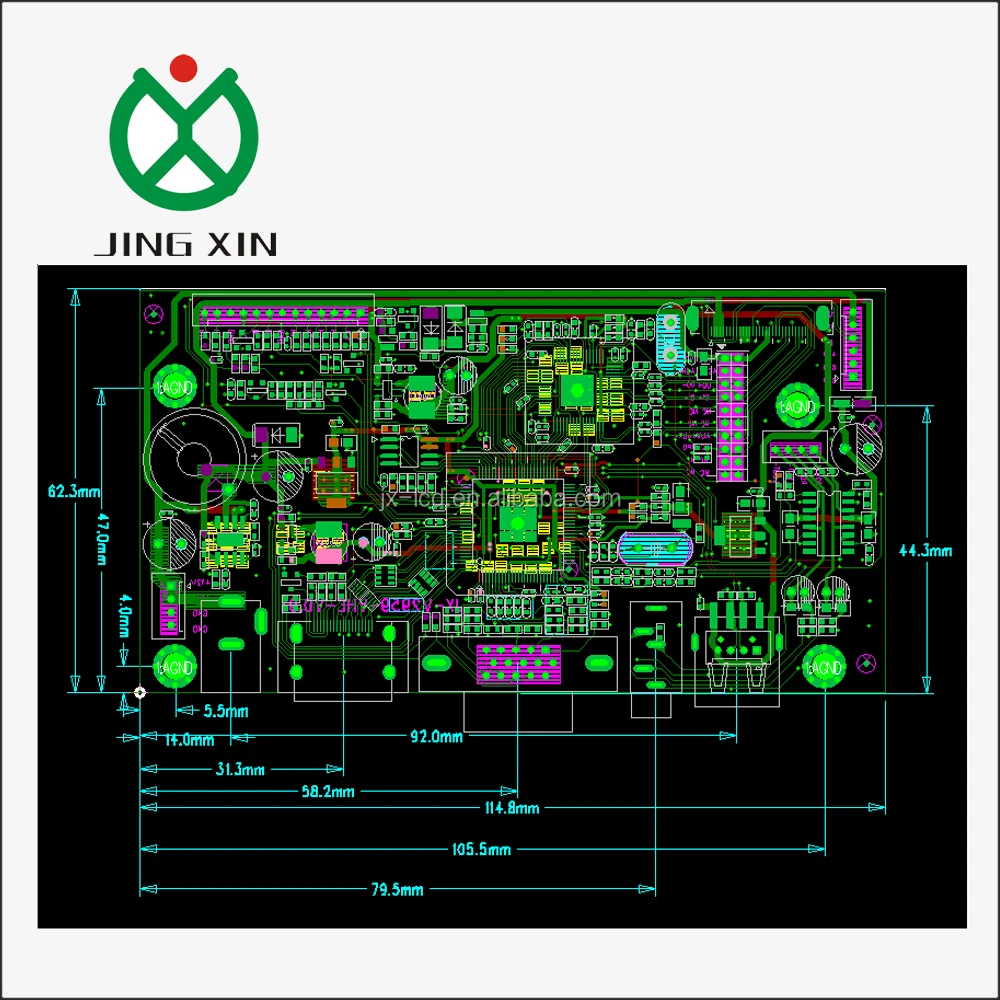

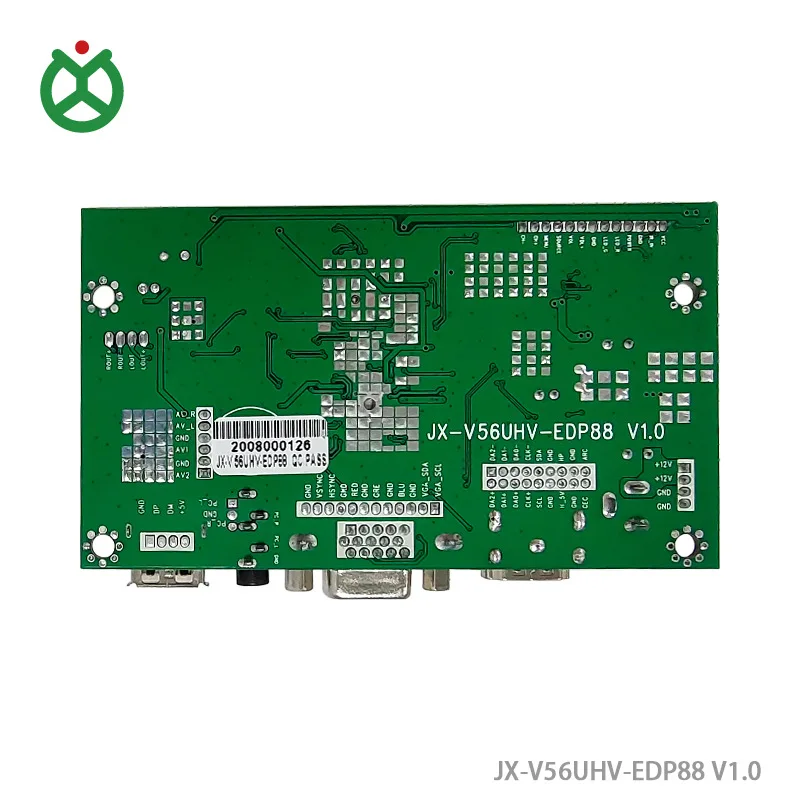

Appearance

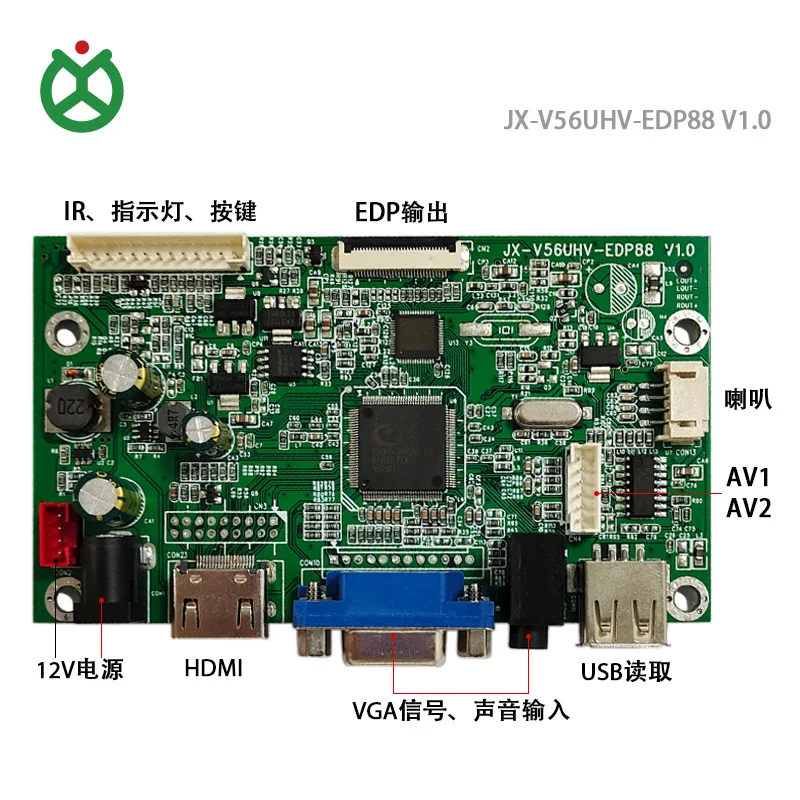

Main interface definitions
order number | describtion | order number | describtion |
1 | The built-in power input needle seat interface DC | 2 | Power input DC block interface
|
3 | HDMI high definition signal input terminal | 4 | VGA signal input terminal |
5 | VGA sound signal input terminal | 6 | USB signal input terminal |
7 | Speaker sound output interface | 8 | Backlight control interface |
9 | EDP signal output FPC block
| 10 | Indicator light, IR, key board input and output interface |
Indicate light, IR,Key input connector
EDP output connector

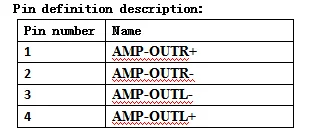

Spreak outputconnector
