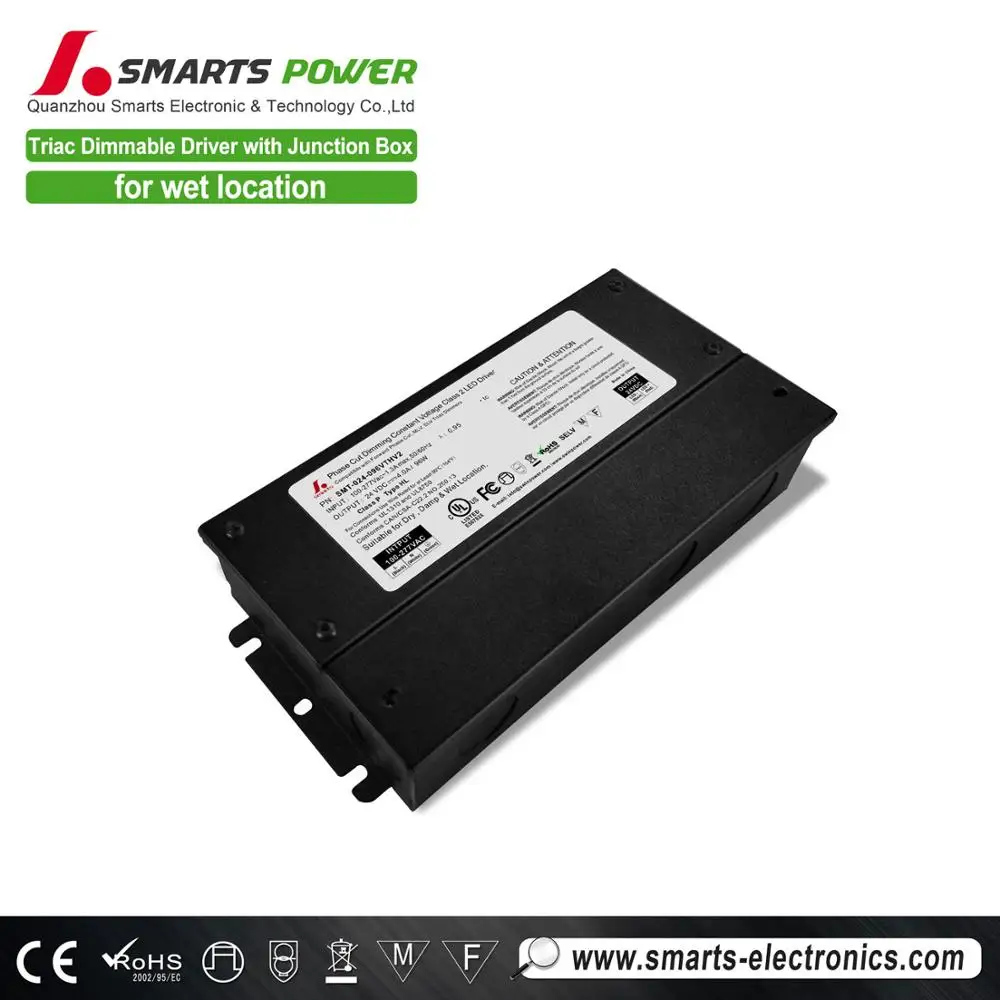

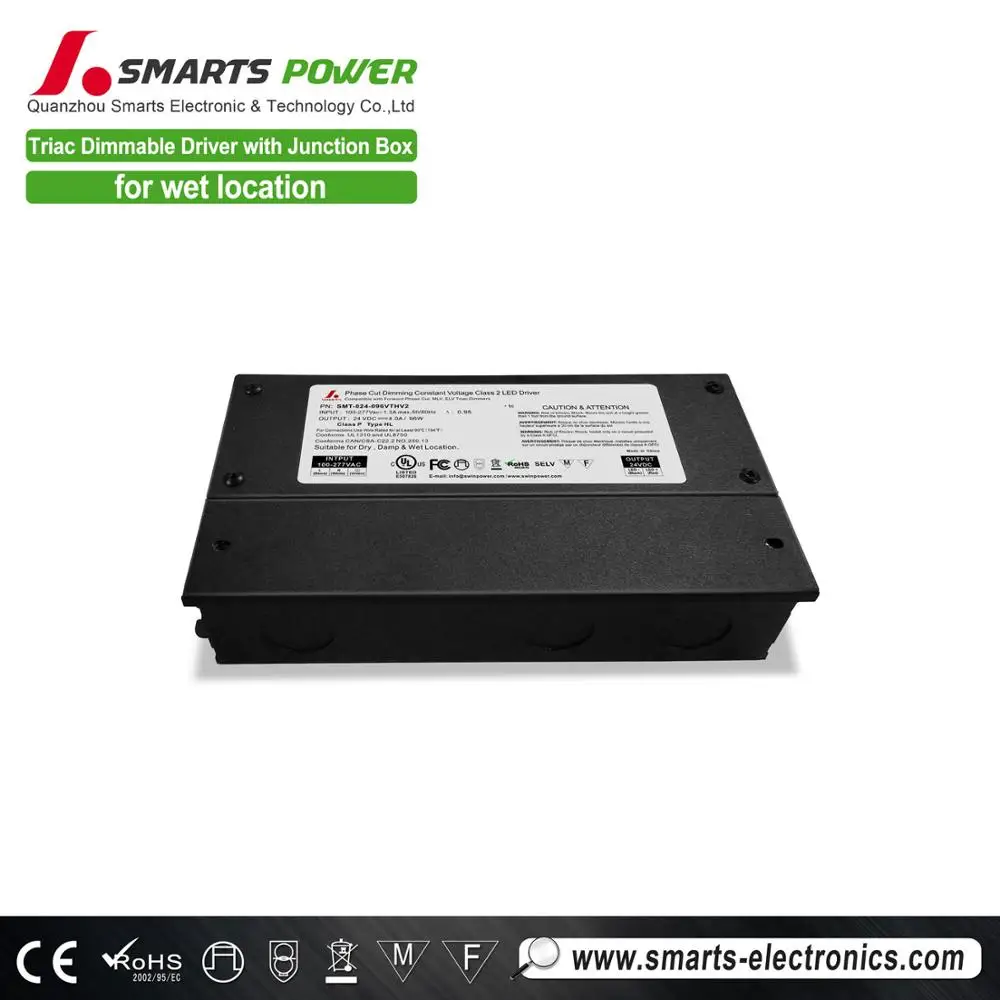

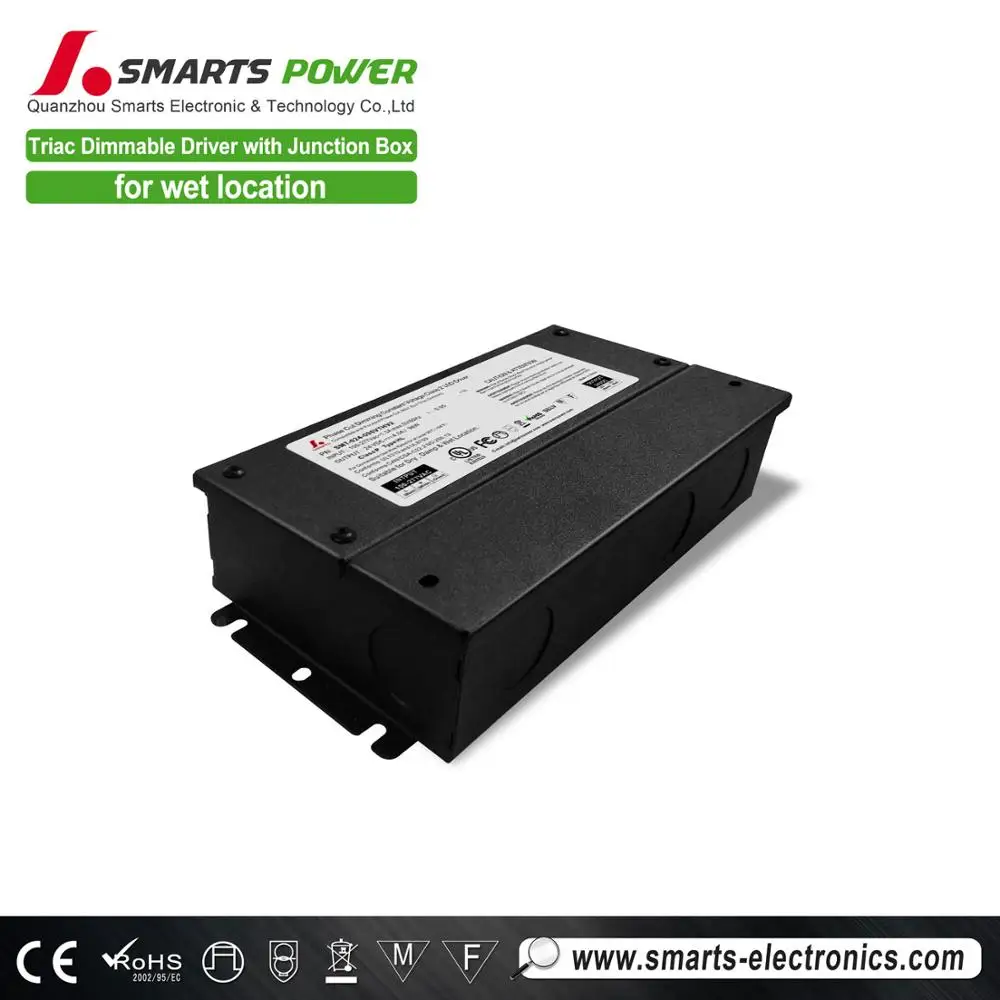

96 Watt 277V input 24VDC constant voltage led driver triac dimmable
- Category: >>>
- Supplier: Quanzhou Smarts Electronic & Technology Co. Ltd.
Share on (60759331950):
Product Overview
Description
96 Watt 277V input 24VDC constant voltage led driver triac dimmable
Product Description
Features
·Output constant voltage
·Input voltage range 100-277VAC
·Built-in PFC function, PF> 0.95
·Efficiency > 84% /load:0~100%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor installations
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers available
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
Model | SMT-012-100VTH | SMT-024-096VT | |
Output | DC Voltage | 12V | 24V |
Voltage Accuracy | ±0.5V | ±0.5V | |
Rated current | 8.3A | 4.0A | |
Rated power | 100W | 96W | |
Input | Voltage Range | 110~277V AC | |
Frequency Range | 47~63HZ | ||
Power Factor ( Typ.) | PF ≥0.98/110V , PF ≥0.95/277V | ||
Full Load Efficiency | >84% | >84%
| |
AC Current(Typ.) | 1.3A @110VAC | ||
Leakage current | < 0.5mA | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over voltage | ≤ 140VAC(90~135V) , ≤ 270VAC(170~265V) | ||
Environment | Working TEMP. | -40~+60℃ | |
Working Humidity | 20~90%RH,non-condensing | ||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety&EMC | Safety standards | UL8750+UL1310 | |
Withstand voltage | I/P-O/P:3.75KVAC | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | FCC Part 15 B | ||
Others | Weight | 1.3Kg | |
Size | 220*93*41mm (L*W*H) | ||
packing | 10PCS/CTN 385*335*200mm 20PCS/CTN | ||
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC & 277vac input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation . | ||
IP20 |
| ||

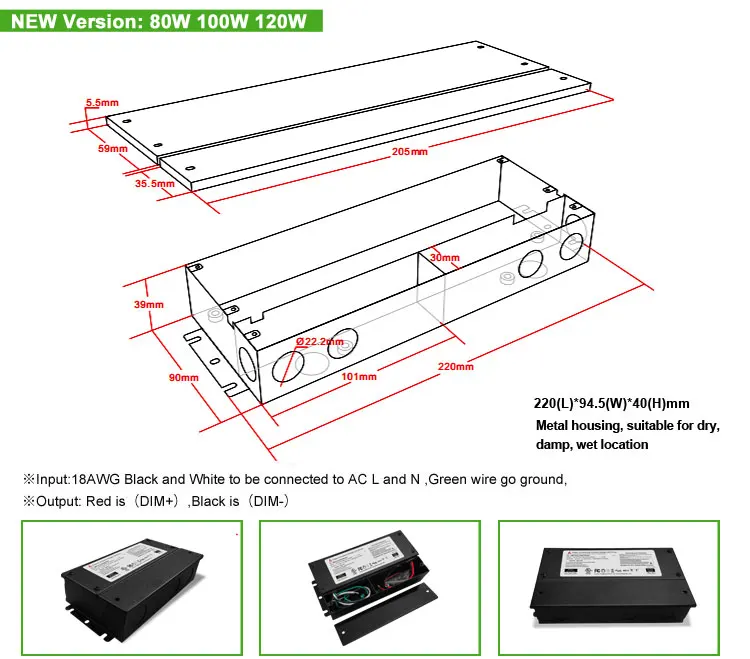

Mechanical Specification
Dimming Operation
1) The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.
2) Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
3) lease try to use dimmers with power at least 1.5 times as the output power of the driver.
Simple Connection Diagram
