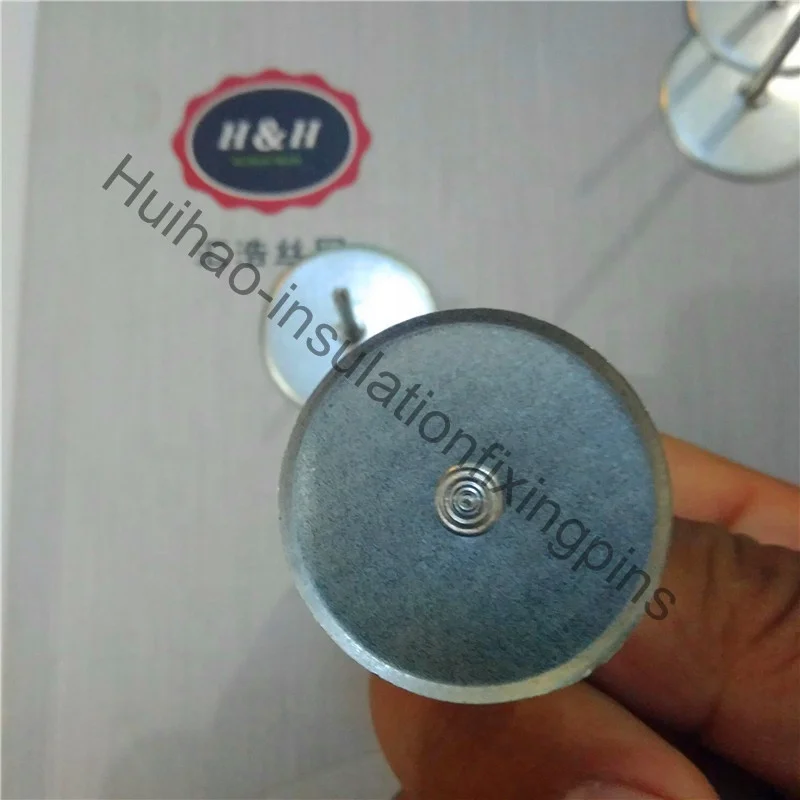

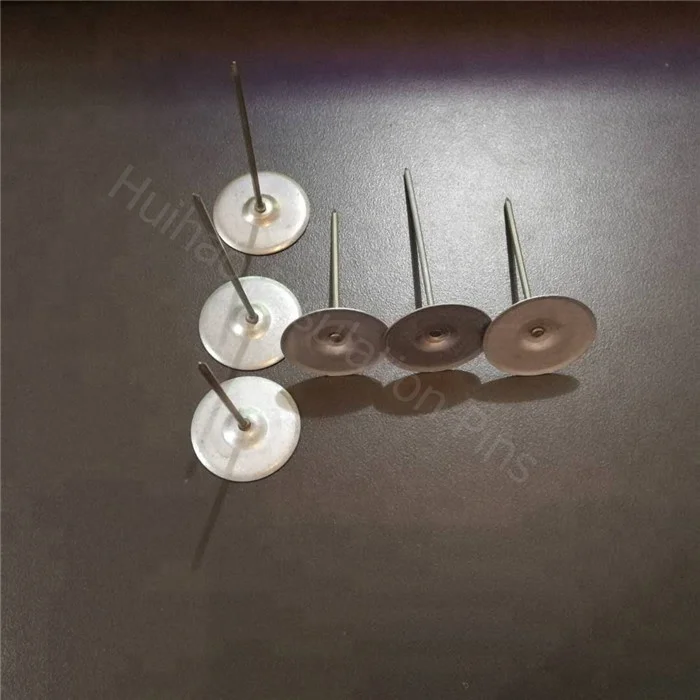

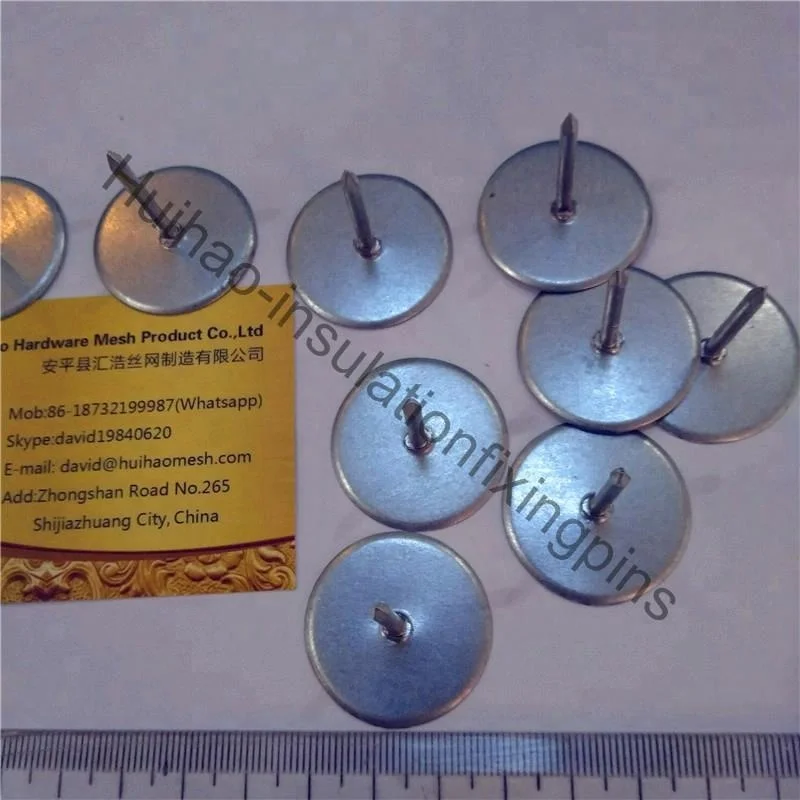

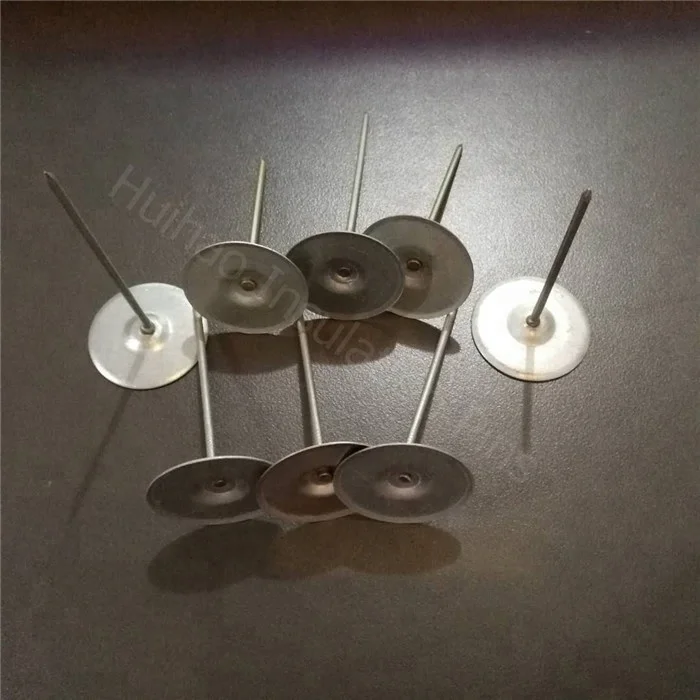

Cup Head Pin GI Steel Perforated Rock wool Pins Insulation Fastener Applied Ductwork

Gold Seal Pins hold the duct liner in place and seal the hole created during insertion. Heat activated gold adhesive on the underside of the washer secures the pin to the liner facing during the welding process.
• Adhesive coating insulates the underside of the washer to allow welding on foil faced insulation.
• Do not store at or above 110F or pins may stick together.
• Gold Seal Pins also feature "dished washers" and precision formed
points to insure consistent penetration of duct liner.
• Gold Seal Pins are designed for use with all FG, RH, PBF, MF, CDMF Pinspotters.

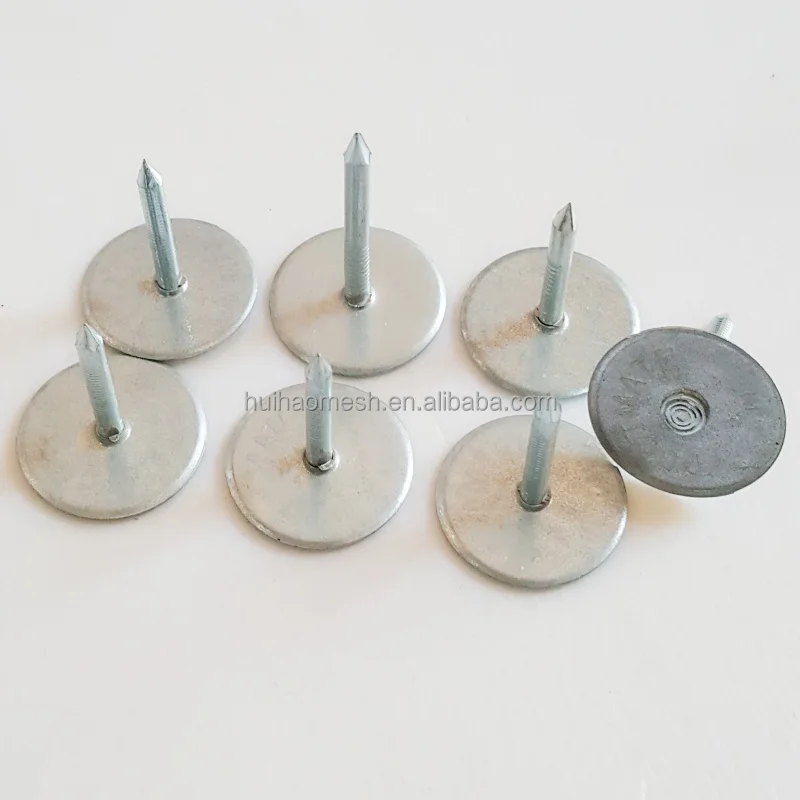

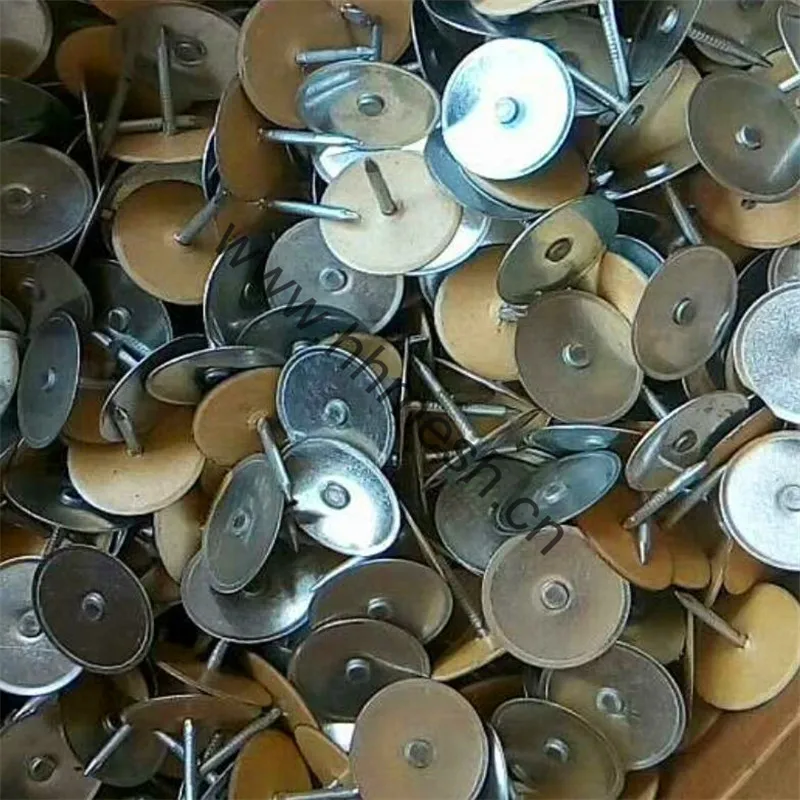

Cup head weld pins

Head insulated :a kraft paper under head

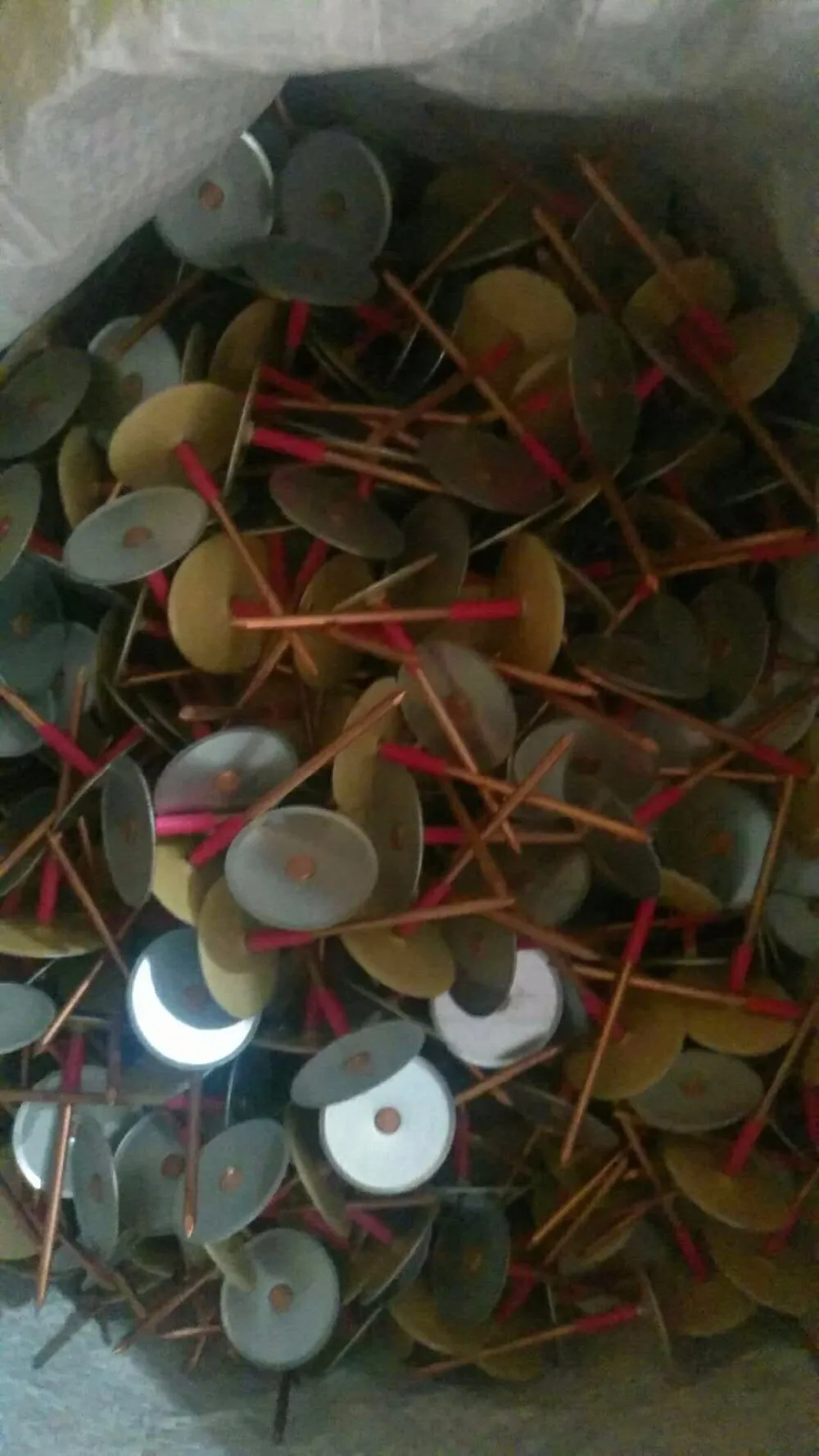

Cup head weld pins

Head insulated +Pin insulated

a plastic sleeve on pins

Composition and Materials
The fastener head, shank and point are manufactured from a special carbon alloy steel. A 1" diameter retaining cap fabricated from cold rolled steel is mechanically affixed to the driven end of the fastener.

Industry Standards
PowerPoint Weld pins meet and exceed the latest SMACNA (Sheet Metal and Air Conditioning Contractors National Association) standards, published in their HVAC DUCT CONSTRUCTION STANDARDS 1995, for low and high velocity ductwork. They are used by leading air-conditioning, sheet metal and mechanical contractors for ductwork in commercial buildings.

Corrosion Resistance
PowerPoint Weld pins are plated with .0002" to .0003" of zinc and receive a final chromate dip. This plating exceeds current SMACNA standards for corrosion resistance.

Retaining Cap
The beveled edge retaining cap is sufficient in size and design to depress the surface of the insulation without tearing or cutting it. The cap does not protrude into the air stream to create noise or interfere with air movement in the duct.

Temperature Range
PowerPoint Weld pins function properly over normally accepted operating range of temperatures of 32 degrees F to 250 degrees F and are not adversely affected at temperatures of 0 degrees F to 550 degrees F.

SS304 self-locking washers

Price :USD0.05-0.108/pc

MOQ:5000pcs

Metal clips with plastic cap for fixing welding pins

Price :USD0.106-0.208/pc
MOQ:5000pcs

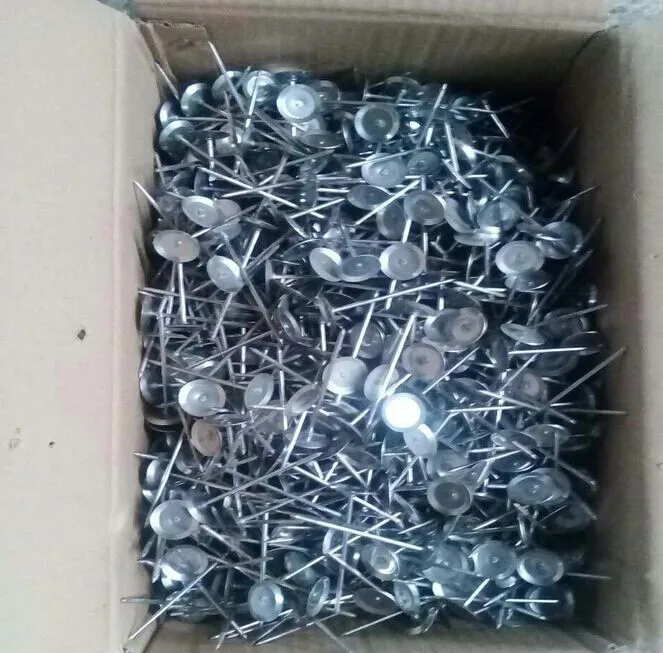

1.500pcs per bag, 10 bags per carton.72 cartons per pallet
2.1000pcs per carton, 48 cartons per pallet.
3. to be your requirements

Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.

Factory of GI Steel Perforated Rock wool Pins Insulation Fastener Applied Ductwork Cup Head Pin For Fireproofing Jackets

Workshop of GI Steel Perforated Rock wool Pins Insulation Fastener Applied Ductwork Cup Head Pin For Fireproofing Jackets

One-to-one order service
Door to door logistics service
Cartographic confirmation service
Processing customization service
Packaging design service
Document making service
Inspection and inspection service

common inspection facilities

micrometers

vernier caliper

thread plug

thread ring gauge

common inspection measurements

exterior inspection:surface finish judgement

size inspection:within common difference

thread inspection:mainlander the precision of the thread,inspected by Go/No gogage

physico-chemical inspection facilities

salt-fog test machine

rally machine

hardness machine

spectrum analyzer

toolmaker microscope

altimeter

projector

stud welder

physico-chemical inspection measurements

decay preservation inspection:mainly under the test of salt-fog experiments to inspect the surface finish and the reservation from decay

intensity inspection

material inspection

thread inspection

hardness inspection

welding inspection

1.How to make a inquiry of round/cup head pins ?
You need to provide material, plate size ,washer size ,nail size and the quantity to ask an offer, you can also indicate if you have any special requirement. The formal quotatiom list will be send to you after receiving the inquiry .

2. What is the Payment Term ?
Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment term we can also discuss.
