Product Overview

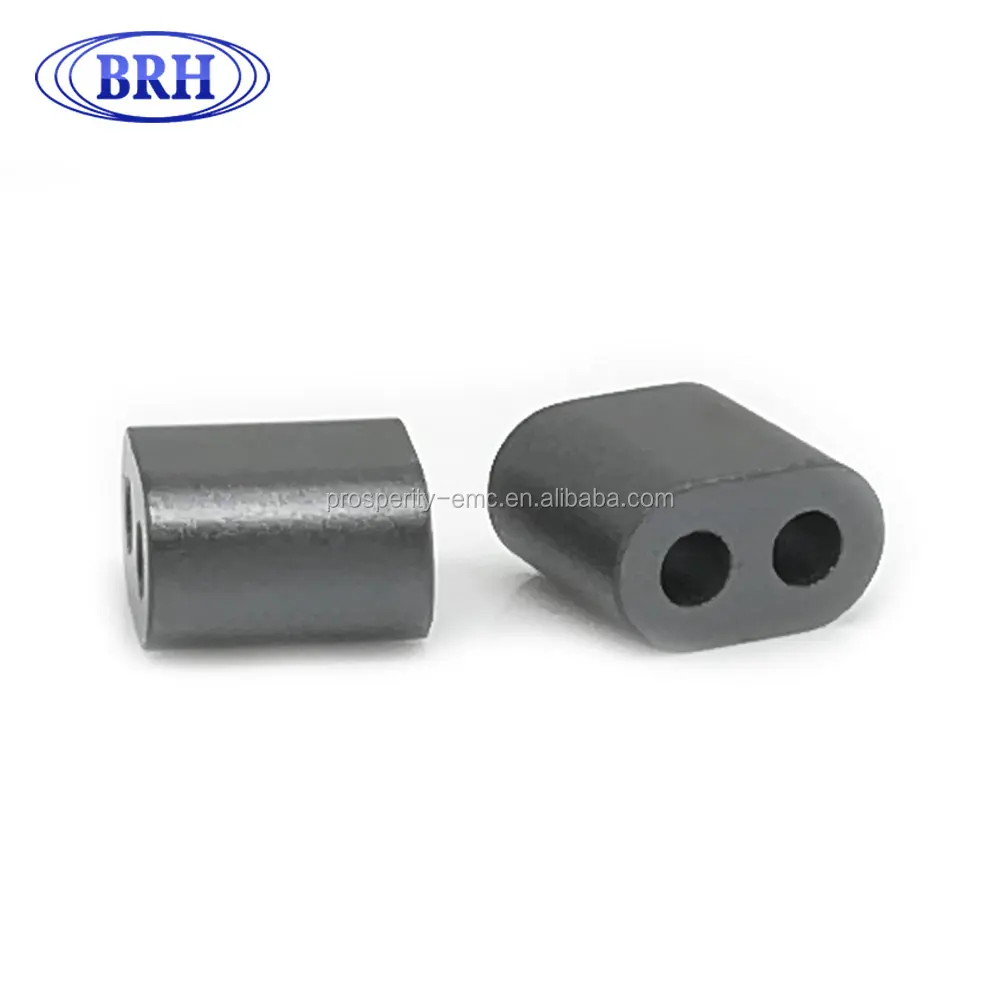

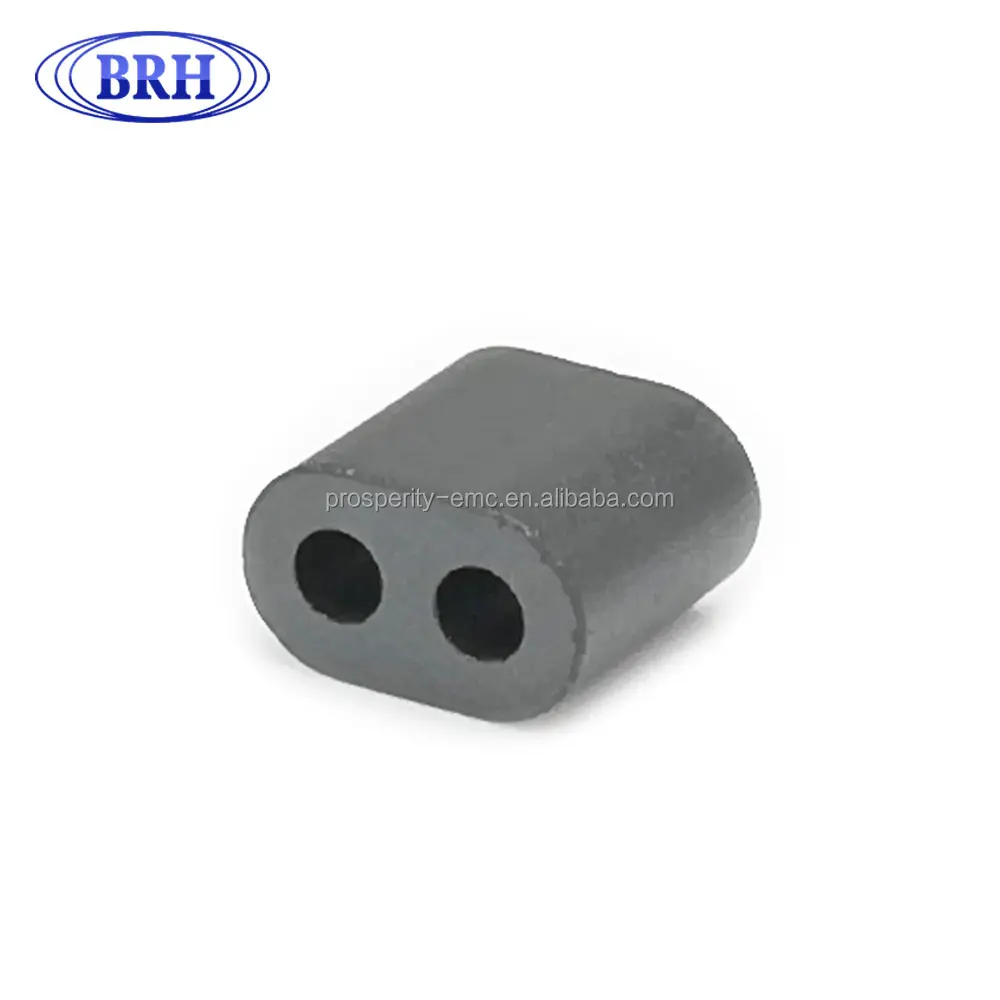

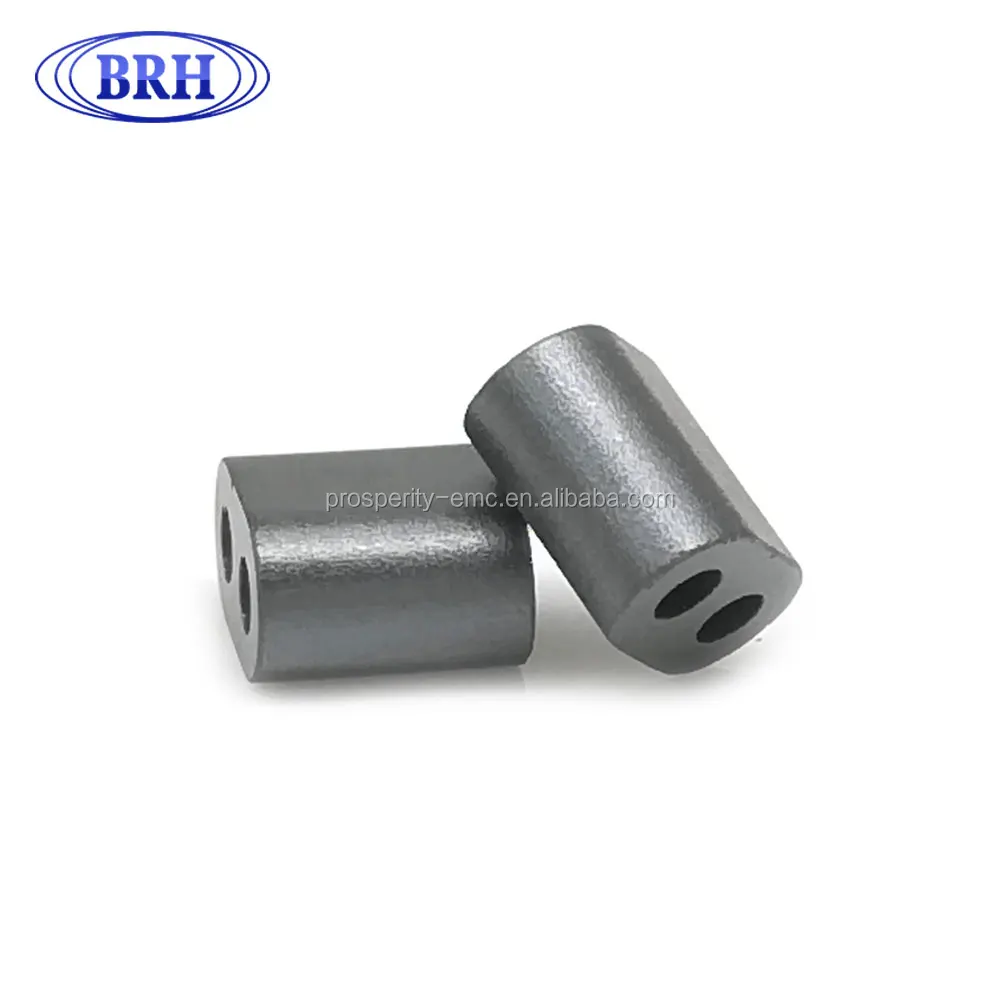

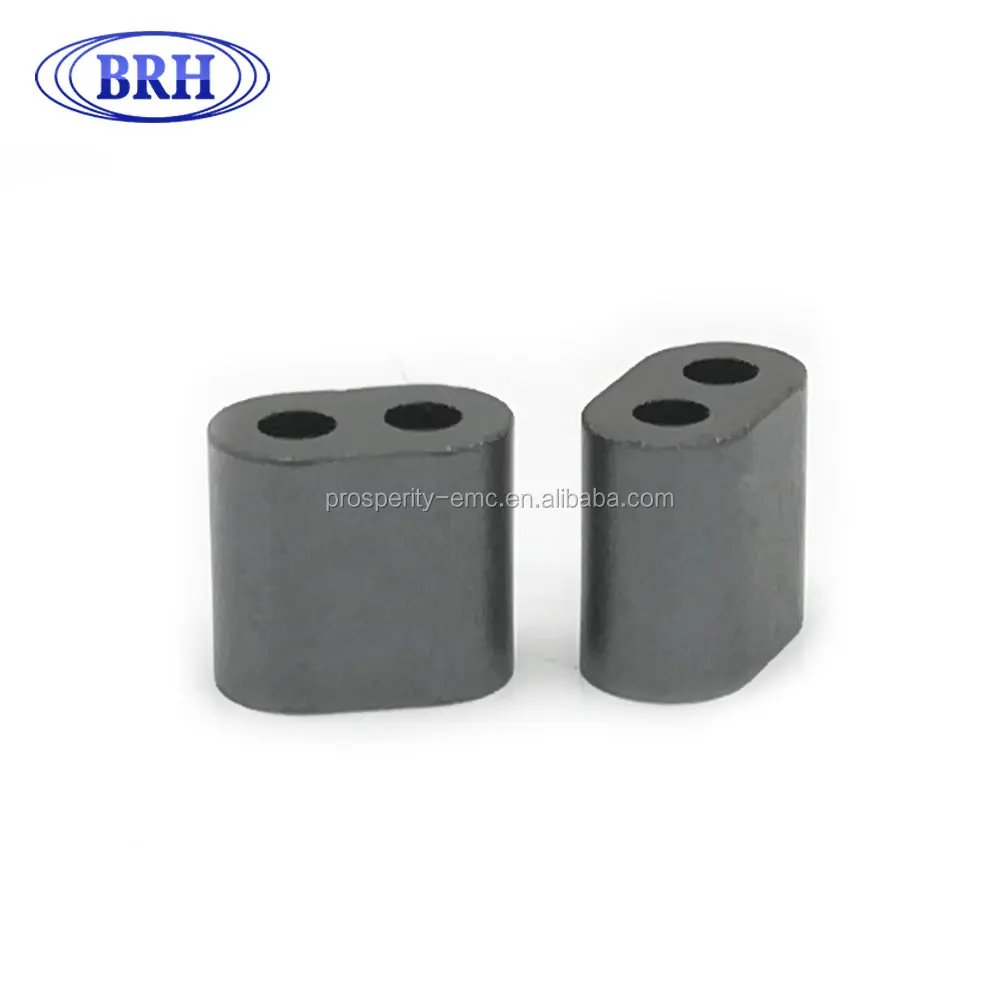

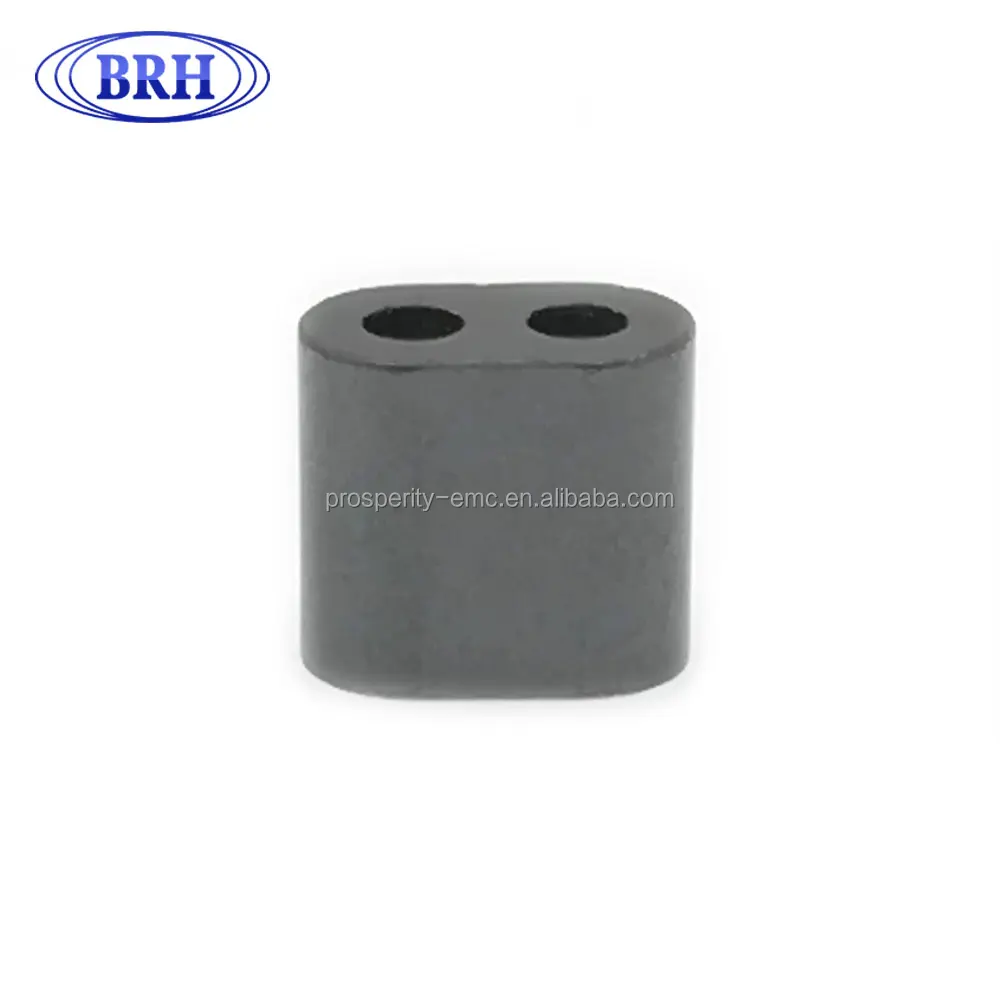

Description


Description
\t

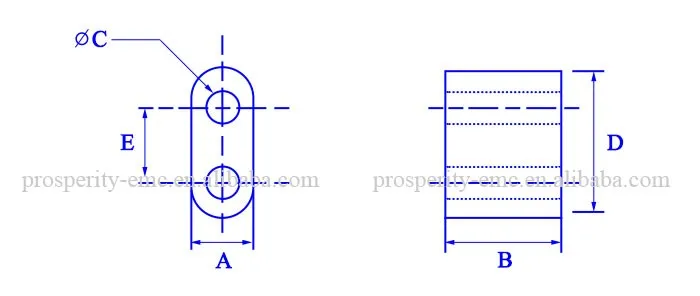

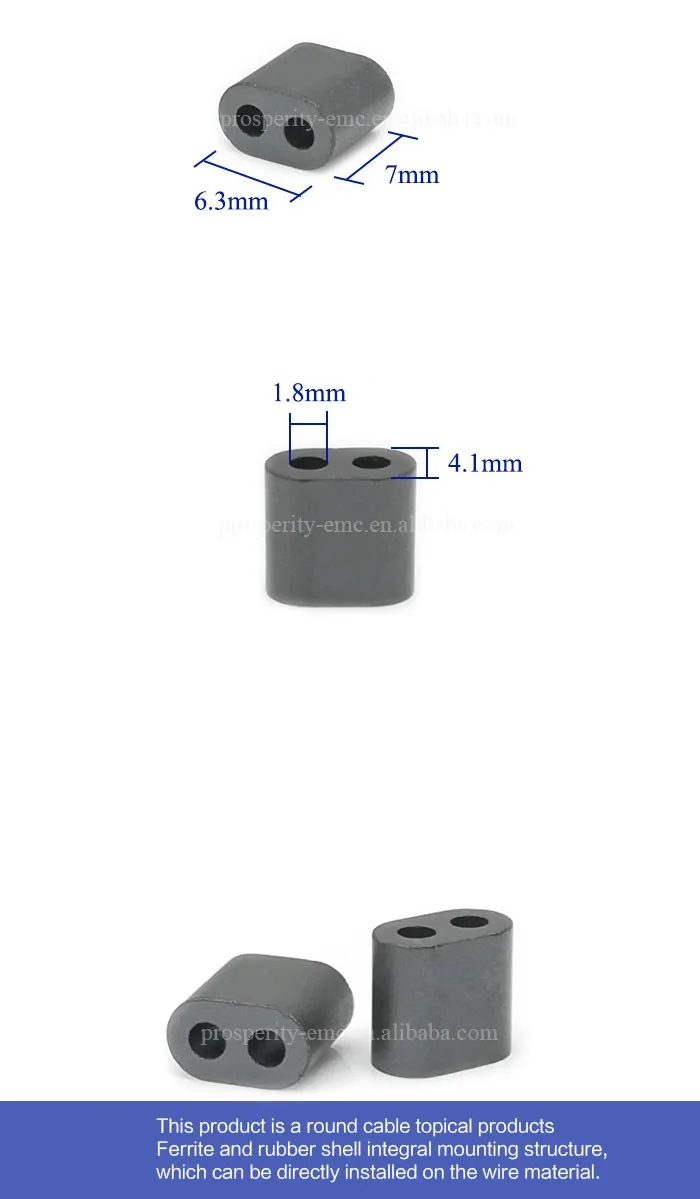

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
D
\t
A2 RID 4.1*6.3*7-1.8
\t
4.1±0.4
\t
6.3±0.5
\t
1.8±0.3
\t
7.0±0.5

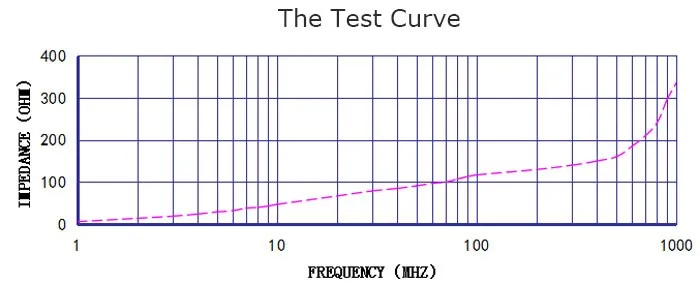

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 RID 4.1*6.3*7-1.8
\t
25 MHz
\t
52Ω MIN
\t
100 MHz
\t
86Ω MIN
\t
TEST INSTRUMENTS
\t
E4991A+16194A
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
Ω AT 25MHz
\t
Ω AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
 m/m
\t
D
 m/m
\t
Suggest
\t
52Ω MIN
\t
86Ω MIN
\t
4.1±0.4
\t
6.3±0.5
\t
1.8±0.3
\t
7.0±0.5
\t
1
\t
71.01
\t
108.01
\t
4.08
\t
6.33
\t
1.73
\t
6.94
\t
2
\t
72.02
\t
107.02
\t
4.08
\t
6.31
\t
1.72
\t
6.93
\t
3
\t
72.01
\t
108.03
\t
4.08
\t
6.35
\t
1.73
\t
6.93
\t
4
\t
71.03
\t
108.04
\t
4.07
\t
6.32
\t
1.72
\t
6.92
\t
5
\t
72.01
\t
107.03
\t
4.08
\t
6.33
\t
1.73
\t
6.94
\t
6
\t
72.01
\t
108.05
\t
4.07
\t
6.31
\t
1.73
\t
6.92
\t
7
\t
72.03
\t
107.03
\t
4.08
\t
6.32
\t
1.73
\t
6.92
\t
8
\t
72.01
\t
108.02
\t
4.08
\t
6.33
\t
1.72
\t
6.94
\t
9
\t
72.05
\t
108.02
\t
4.07
\t
6.31
\t
1.73
\t
6.93
\t
10
\t
72.01
\t
108.04
\t
4.08
\t
6.32
\t
1.72
\t
6.92
\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
71.82
\t
107.73
\t
4.08
\t
6.32
\t
1.73
\t
6.93
\t
R
\t
1.04
\t
1.03
\t
0.01
\t
0.04
\t
0.01
\t
0.02
\t
The above test data for reference,Actual results may differ due to different production batches
