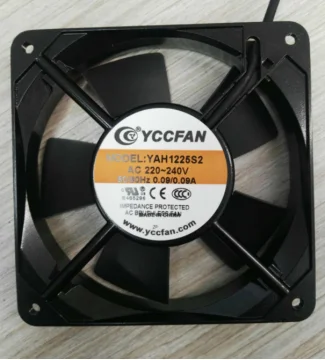

110v 220v AC cooling fan 120mm 120x120x25mm 12025 cooler motor

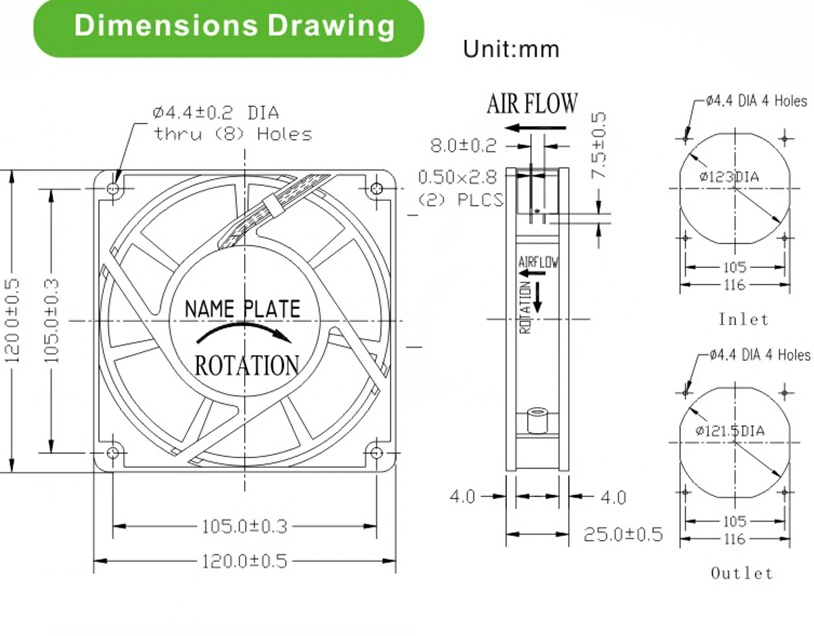

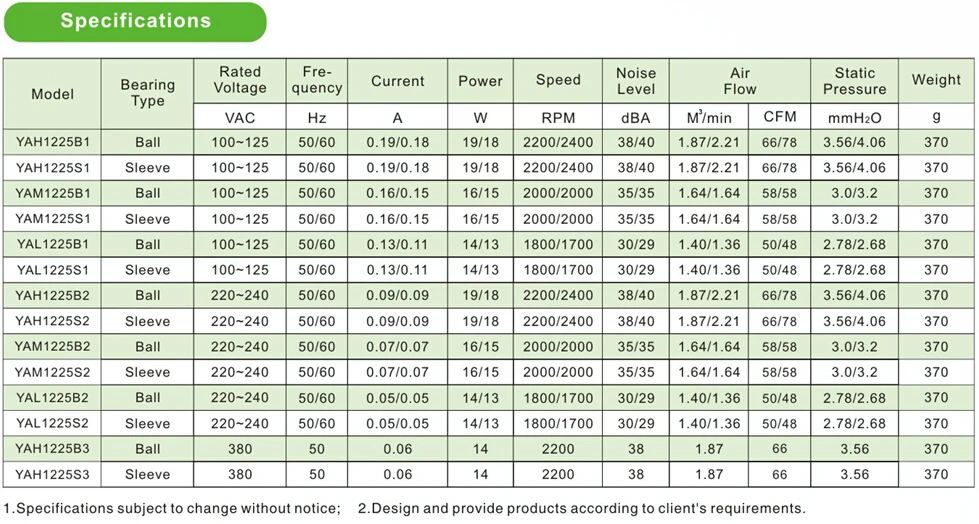

  120x120x25mm fan specifications

Customized

1. Rated voltage: 110v 125v , 220v 240v 380v  voltage can be made if need.

2. Air flow, air pressure, speed and rated voltage can be customized as customer's requirement

3. Privated Labelling: All of axial fan are able to be Private labeled.

4. 2 wires, 3 or 4 wires (PWM / FG / RD function ) can be made if needed.

5. Sleeve bearing : 30000hours @ 25°C temperature

    Hypro bearing :  30000hours @ 40°C temperature

    NMB Ball bearing :50000hours @ 40°C temperature

6. Size: L x W x Thickness(We can produce 20mm to 250mm cooling fan)

Voltage: DC(3V, 5V, 7V, 9V, 12V, 18V, 24V, 48V...)
AC(100-125v, 220-240v, 380v)

Bearing Type: Sleeve Bearing( 30,000 hours in 25℃ operation temperature with 1 year warranty)
Dual Ball Bearing( 50,000 hours in 40℃ operation temperature with 2 years warranty)

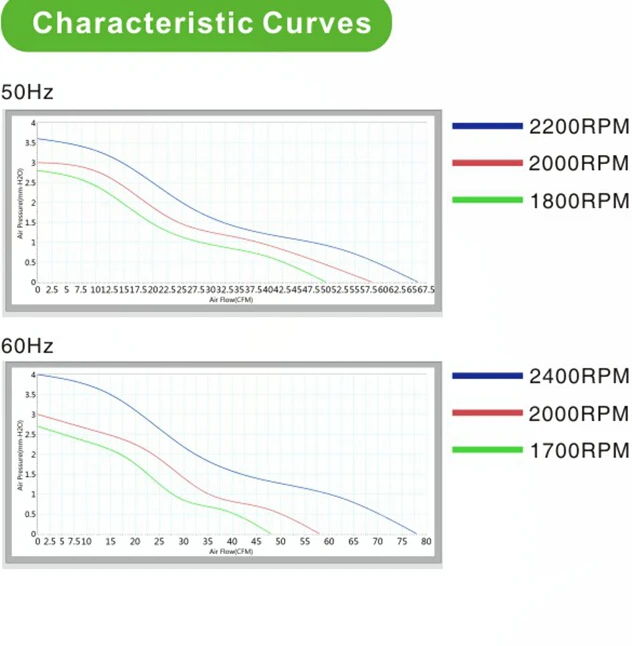

Parameter: Speed(RPM), Air Flow(CFM), Noise(dBA),

Power Joint: Terminal Type
Lead Wire Type (+, -, Tachometer Sensor, Lock Alarm, Speed Control )

Dustproof & Waterproof: IP xx(IP 68 is the highest level)

AC FAN is powered by 110V 220V 380V voltage , YCCFAN manufacture dc fan from 20mm - 254mm.

For more information,pls check below lists to find you need, feel free to e-mail me questions.

---------------------------------------------------------------------YCCFAN------------------------------------------------------------------------------

--------------------------------------------------------------------Your Correct Choice-----------------------------------------------------------------

-------------------------------------------------------------------YCCFAN'S SERVICE------------------------------------------------------------------

 high performance fan 220v 120x120x25mm 110volt AC cooling fan price

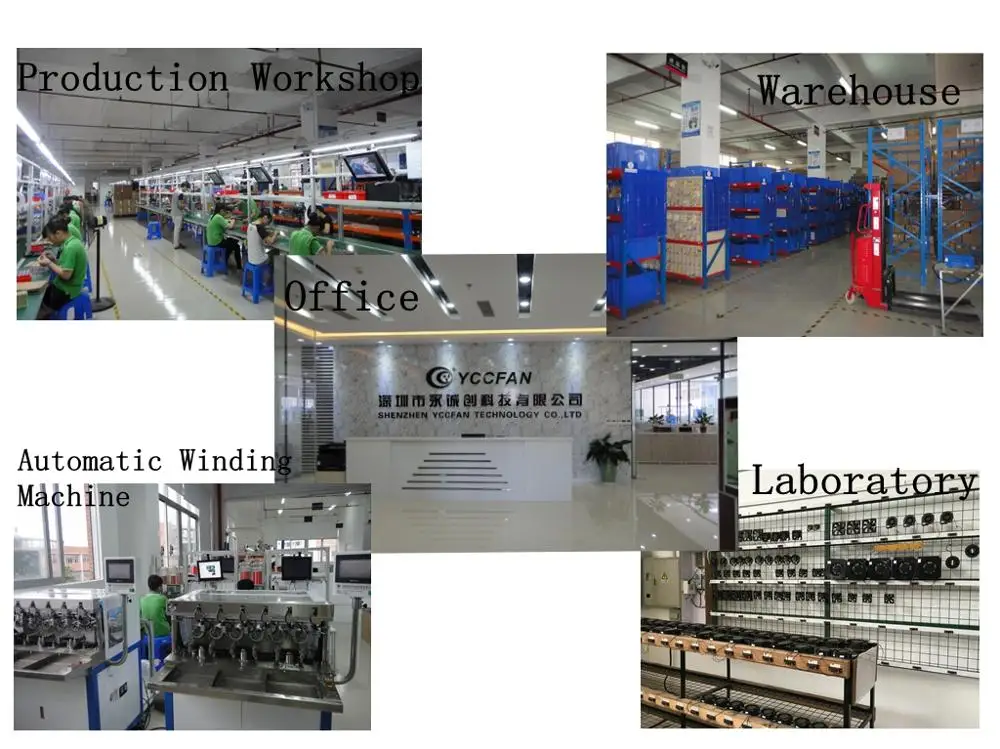

   YCCFAN,founded in 2006, located in Shenzhen,China. AC/DC/EC brushless fan and DC blower fan manufacturer.

Plant area 6000square meter,employ 240staffs,monthly capacity 1 million pieces.

Our

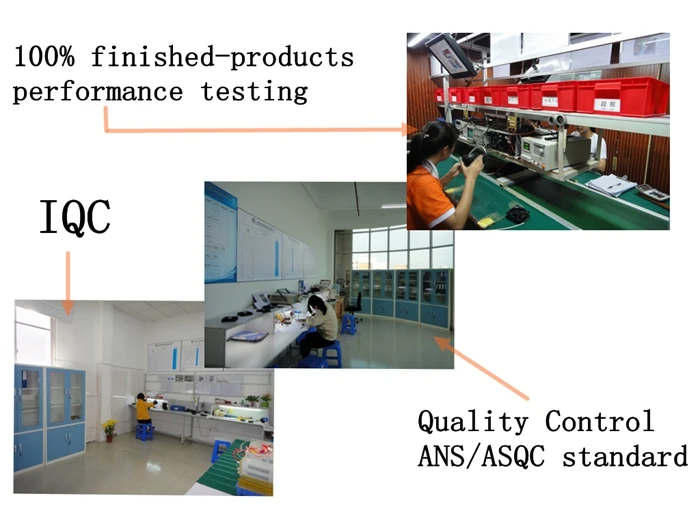

  Company advocate " Zero Defect" and " Do things right at first time", Production Dept strictly implementation of RoHS environmental requirements and ISO9001 & ISO14001 quality management.  QC group check randomly the products from production line every 2 hours.

Every year, YCCFAN invest 50% of turnover to purchase experimental and detecting instrument.

Meanwhile we R&D new products and improve structure and performance.

high performance fan 220v 120x120x25mm 110volt AC cooling fan price

  UL & CUL & CE & RoHS & SGS & ISO9001 & ISO14001 &3C and more to be continued.

  10 + Exhibitions in Mainland yearly    /    4 Exhibitions in HongKong Yearly
   Also attended the exhibitions in Europe,USA,Korea,Russia......

Help us to provide preferably product fan for you:
1    Fan Type, DC/AC
2    Case Size (Dimensions)
3    Speed
4    Air Flow
5    Noise Level if situation needs
6    Rating Voltage, 3v/3.3v/5v/9v/12v/48v/115v/220-240v/380v
7    Bearing, Sleeve/2Ball/VAPO
8    Wire, 2 lead wires/3 lead wires/4 lead wires (PWM control/FG signal output/RD Alarm)
9    Wire Length
10   Connector or not
11   Target Price
12   Just contact me freely if any request,I will get back to you soon.
