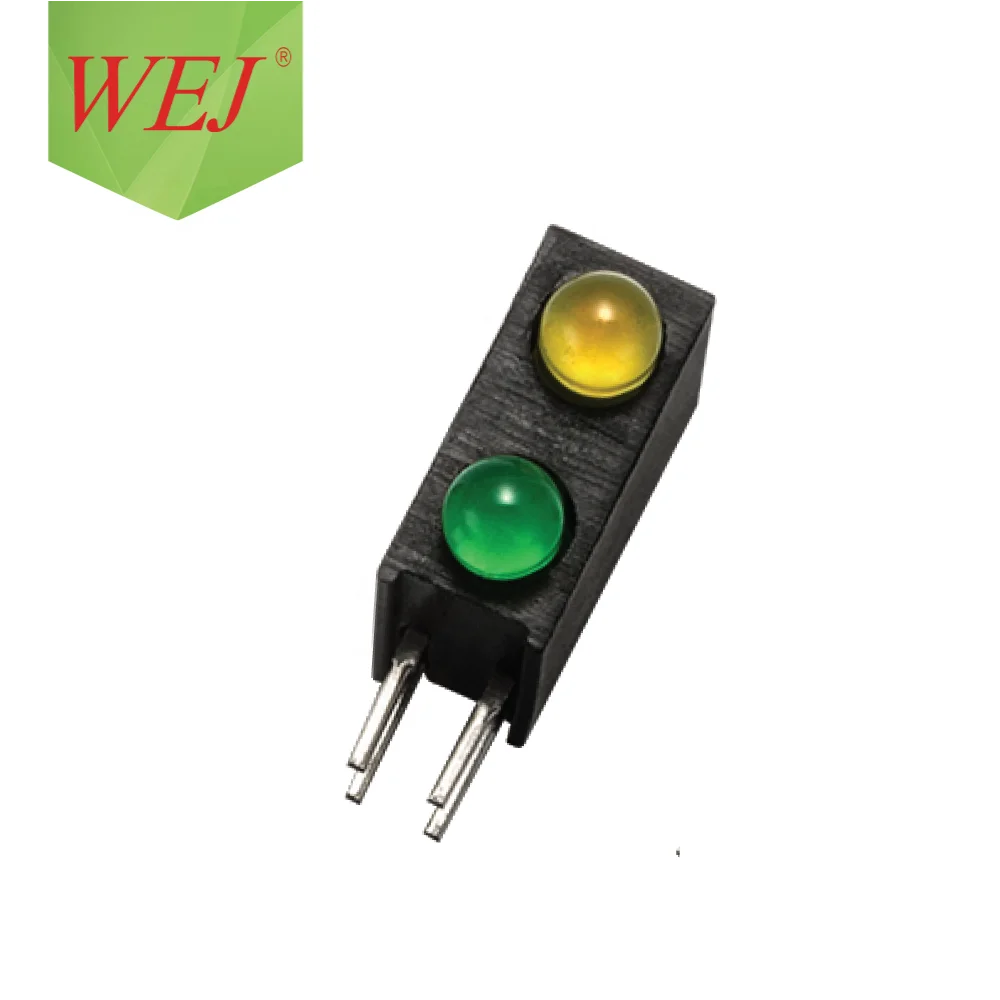

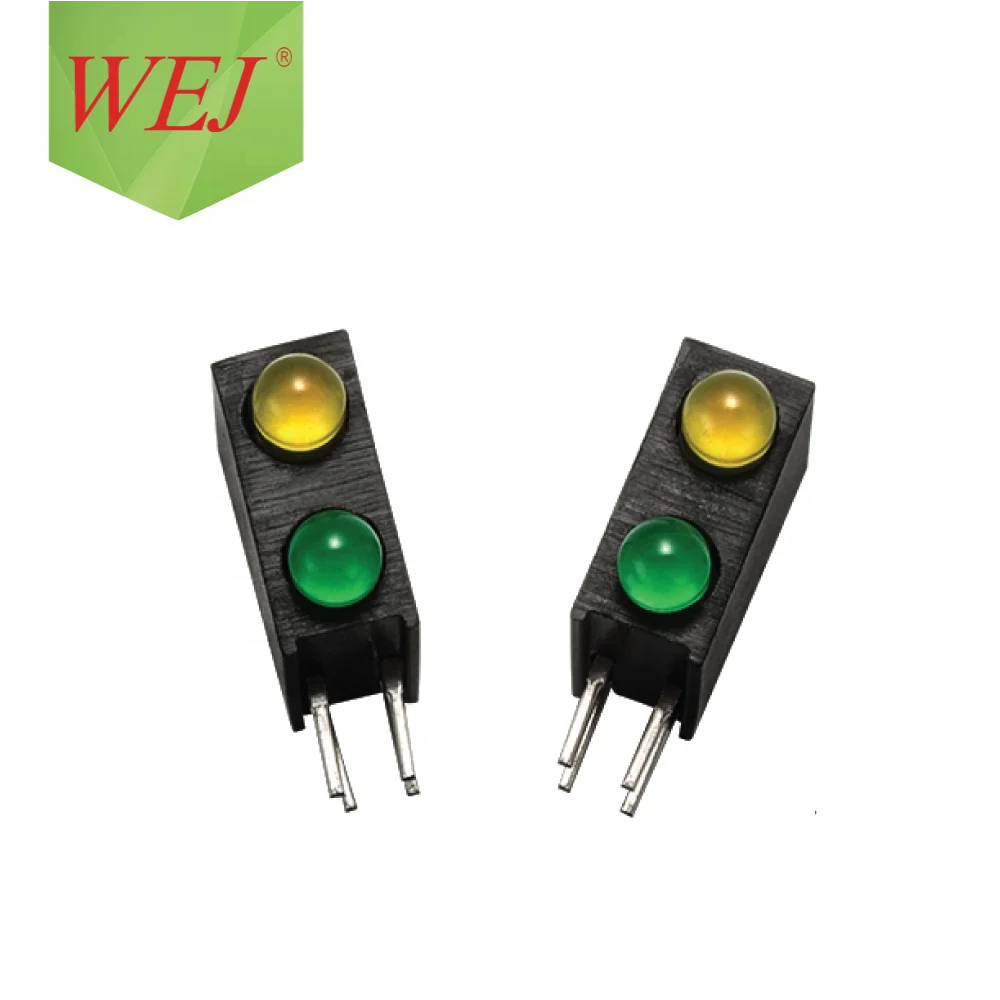

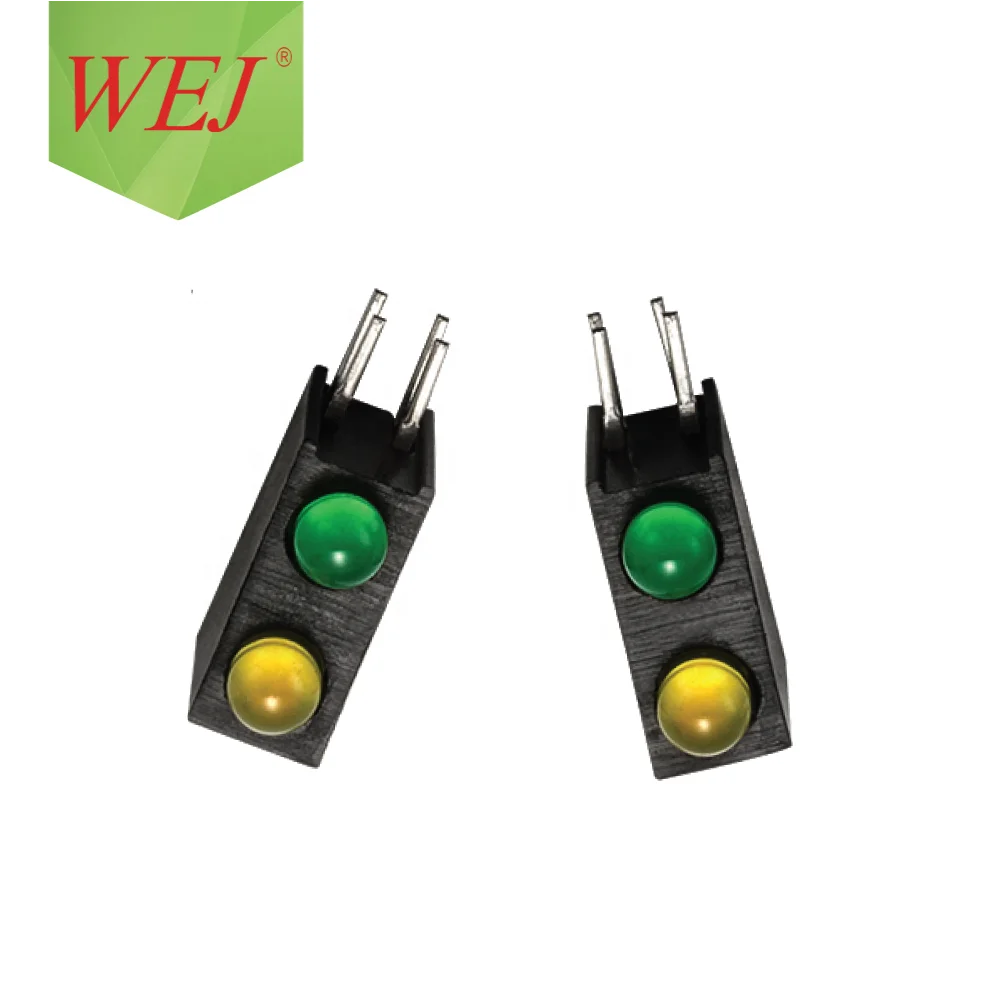

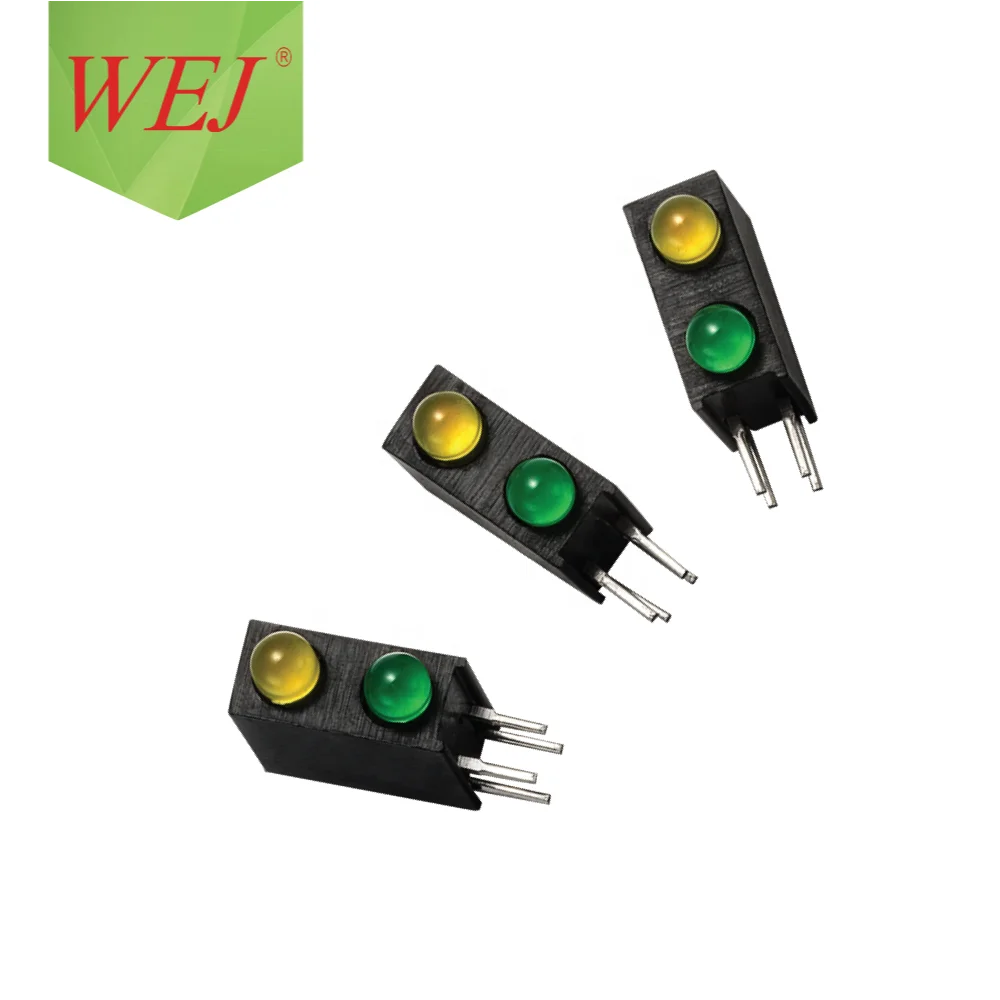

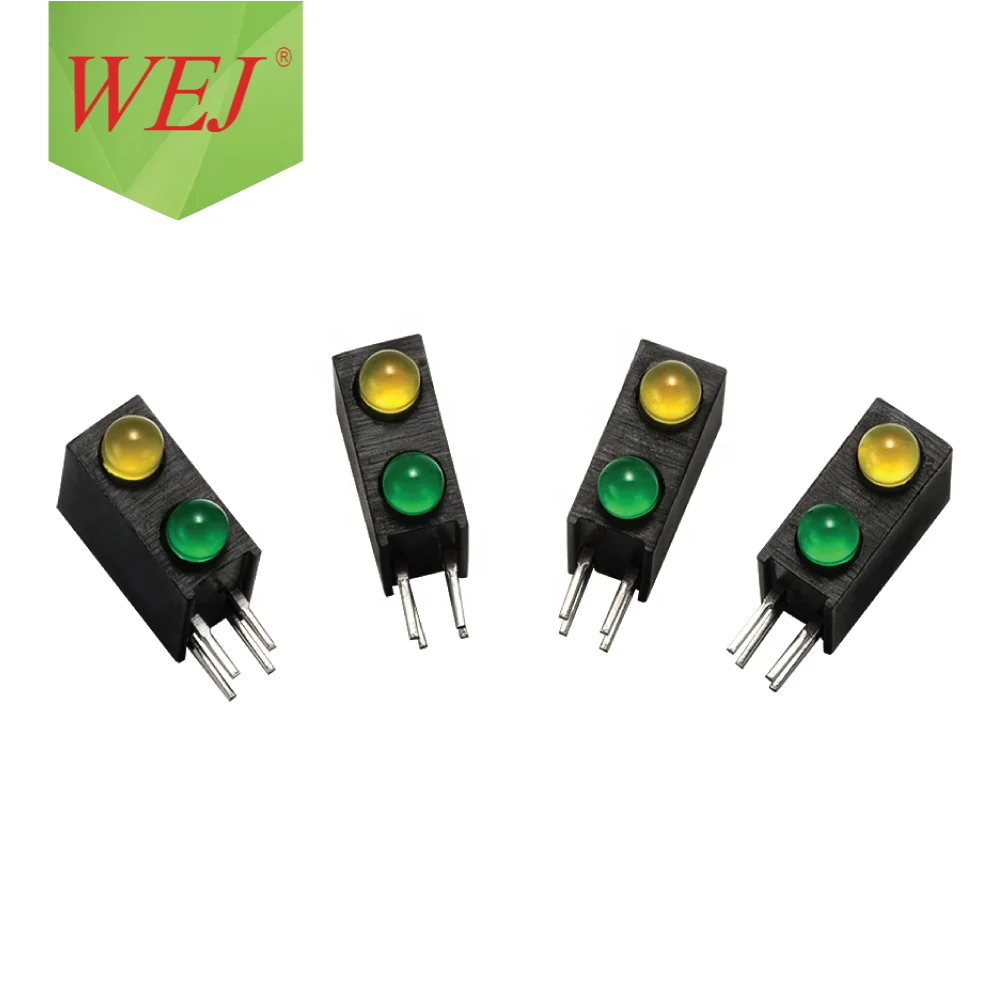

3mm Red&Green Bi color LED lamp holder for indicator

Share on (60759423049):


Price:RUB 2.30

Quantity:


Product Overview

Description

Product Information
3mm Red&Green Bicolor LED with lamp holder


Lamp Type LED chip Chip Material AlGaAs
Model Number

WEJ3B4RHD-H8

Emitted Color Red and Green bi-color
Wave Length R:620-630nm    H:568-573nm Resin Color Water Clear
Forward Voltage R:1.8-2.4v       H:1.8-2.4v Forward Current 30mA
Reverse Voltage 5V Power Dissipation 72mW
Peak Forward Current 100mA Viewing Angle R:40º            G:45º
Reverse Current 10μA Working Temperature -25℃~+85℃
Diameter 3mm Storage temperature -40℃~+100℃





3mm Red&Green Bicolor LED lamp holder Features

Soft  light

Standard dimensions

Low power consumption;

High reliability and stability.

Flexibility in optical design and mechanical design.



3mm Red&Green Bicolor LED  lamp holder Applications

Optical indicator;Indoor lighting;Interior automotive lighting;Backlight for LCD,switch and Symbol,display;Light pipe application;Advertisement

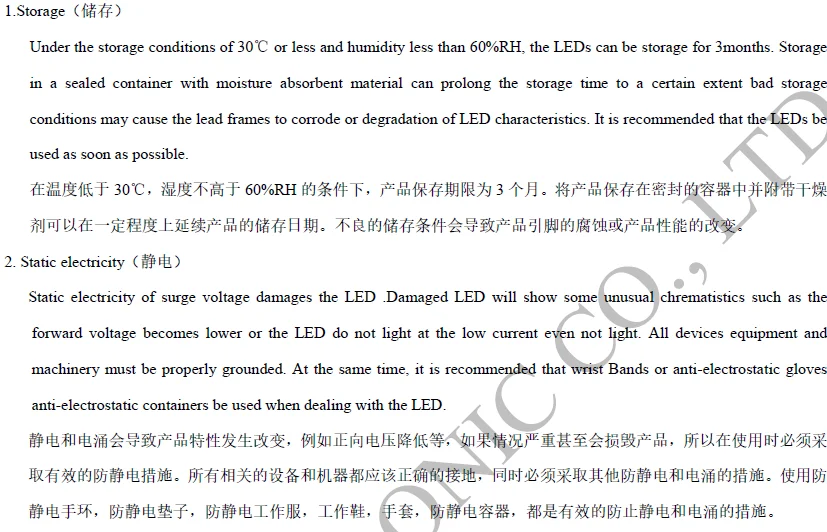

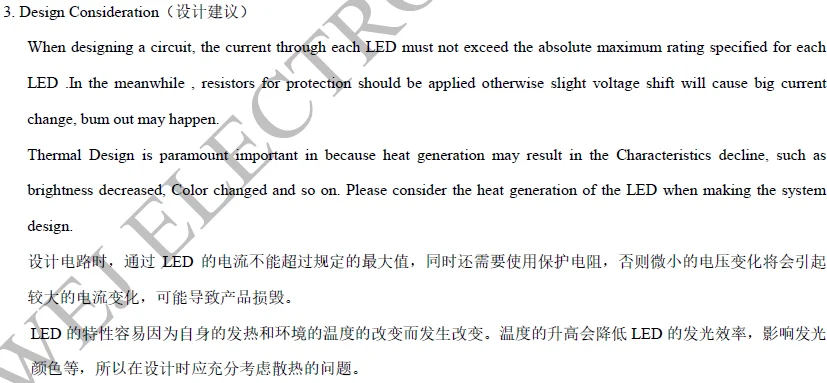

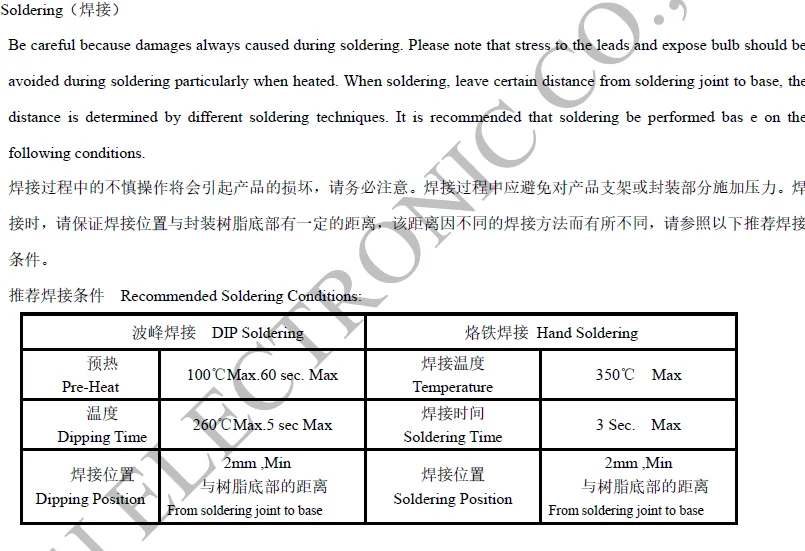

Precautions:

556677

Related Products


                            IR & PD & PT                                                            DIP LED                                                              Lamp LED Holder


                                 SMD LED                                                              Chip LED                                                              Bridge Rectifiers


                    Diodes & Transistors                                                    LED Spotlight                                                   LED Night Light

Why choose us?


Fair&Certification


Payment&Shipping


FAQ



1. What will be the best price terms?

We can accept FOB, EXW, CIF normally and other terms according to customers special requirement.



2.How long does it take to customize a sample?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize



3. Could you please send me the sample for the same . So that i could see and analyze its quality?

Yes. We can send samples first, samples need to be charged if the value is higher



4.How soon will my order shipped?

Generally, upon the receipt of payment, goods will be shipped out within 2 working days for samples. (Note: Exact delivery time mainly depends on the carrier services.



5.How much will the express delivery cost?

The shipping discount are different because of different weight, volume and destination, we will choose the cheapest and safest way according to your detailed requirement. For the exact cost, please contact us freely.



6.How to choose LED light source ?

Lumens(LM), light efficency(LM/W), life span((hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.



7.What’s your Delivery Time?

In generally , the delivery time :3-5days.



8.How do I track my shipment?

We ship your purchase before the end of the next business day after you have checked-out. We would send email with tracking number, so you can check the progress of your delivery at the carrier’s website.
