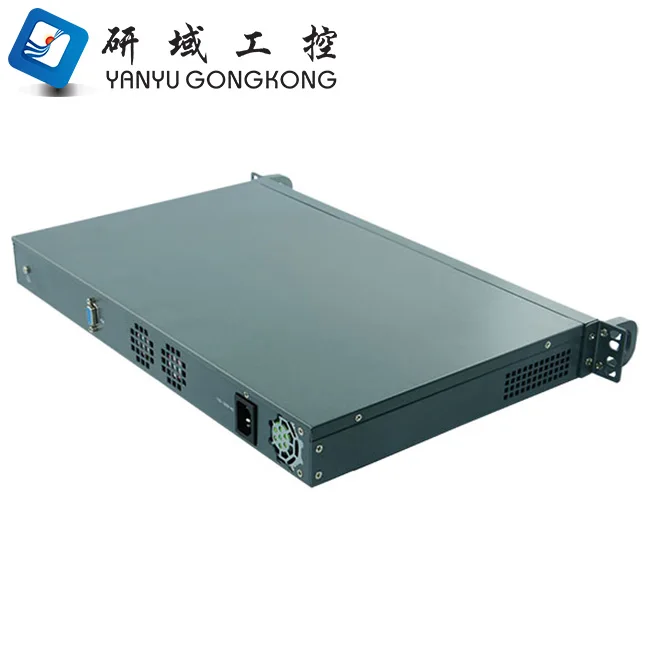

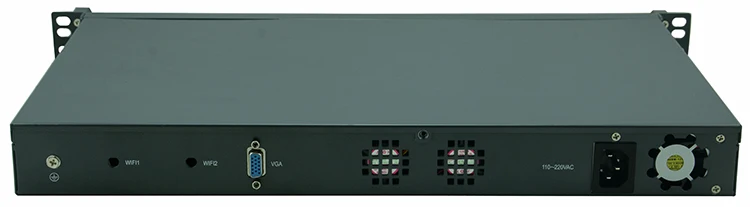

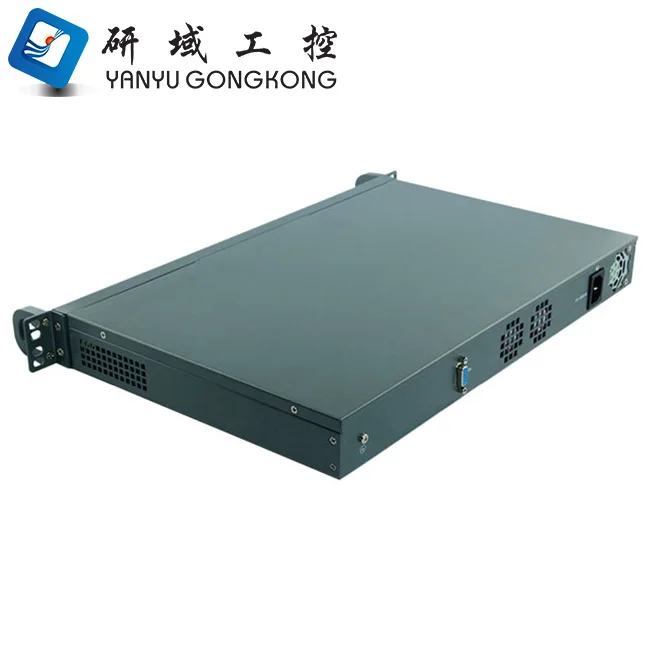

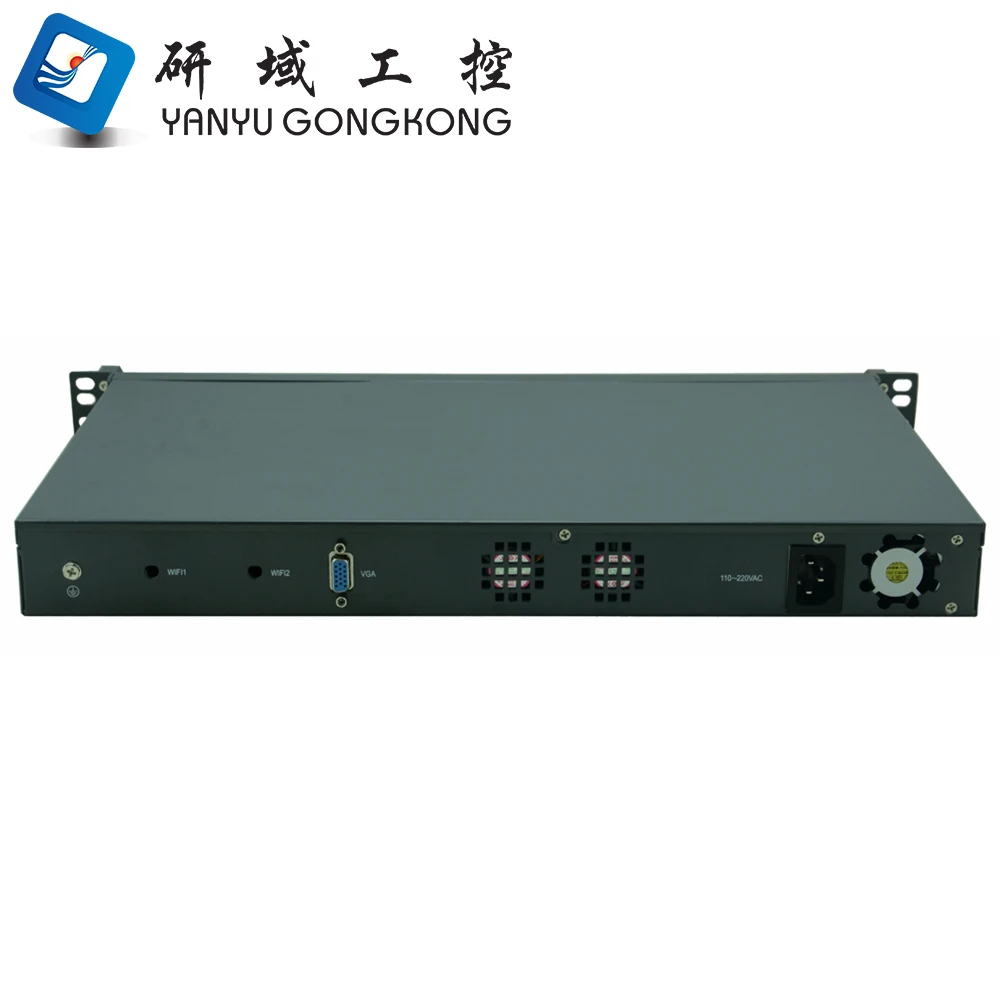

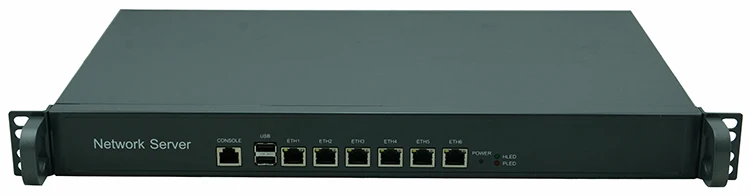

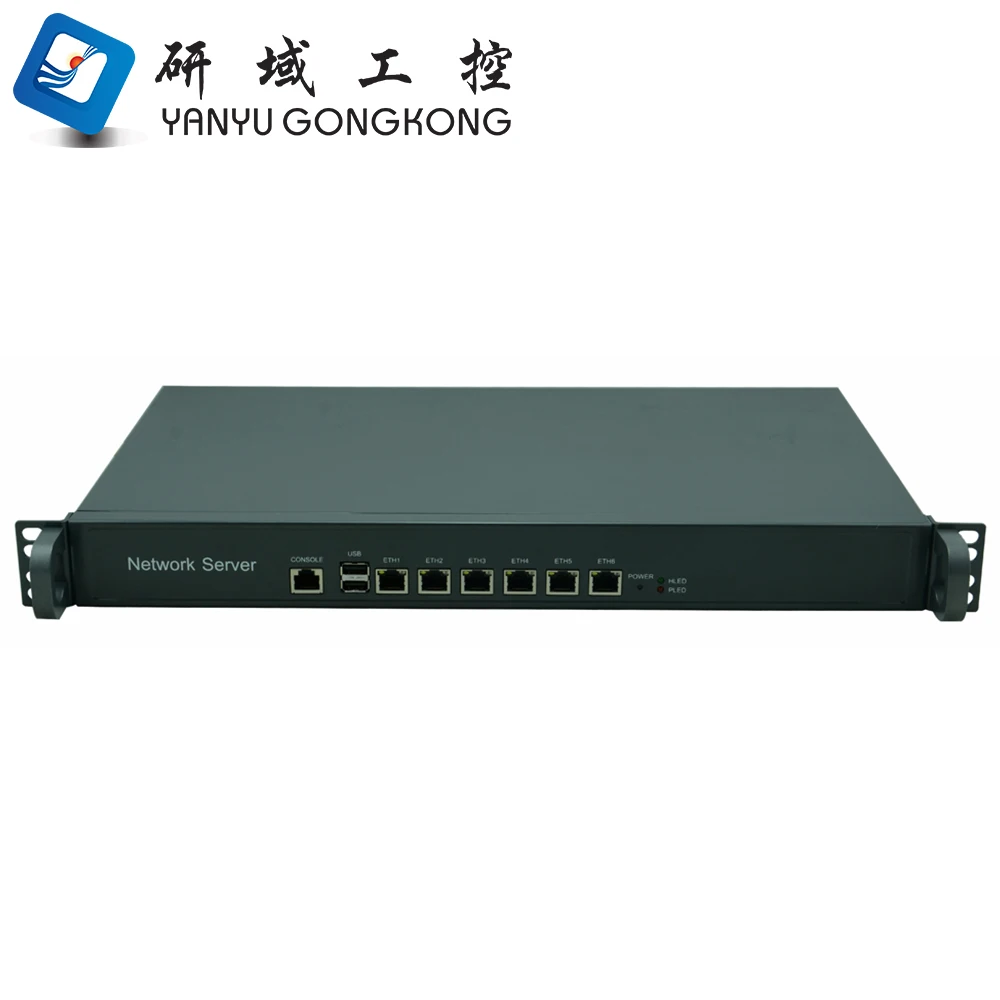

R670Z LGA1155 1U WiFi VGA 6 LAN Network Server Firewall pfSense Appliance
- Category: >>>
- Supplier: Yentek (shenzhen) Technology Co. Ltd.
Share on (60759592170):
Product Overview
Description
Intel IoT Solution Alliance Affiliate Member
Intel Intelligent System Alliance Member
ISO9001:2015 Quality Management Certified
ISO14001:2004 Environmental Management Certified
National High Tech Enterprise With Professional and Experienced R&D Team
R670Z LGA1155 1U WiFi VGA 6 LAN Network Server Firewall pfSense Appliance
Features
1U Standard chassis, fan cooling fin structure
High quality galvanized steel plate, compact structure, flexible installation
Support Intel LGA1155 2th/3th gen Core i3/i5/i7/Xeon/Pentium/Celeron processor
1xVGA, 2xUSB2.0, 1xCOM
Adopt 82583V chipset, support 6* Gigabit Ethernet port
Dimension:430mm*280mm*44.5mm
Specification
| Model No. | R670Z | |
| Chassis | Color | Black |
| Dimension | 430mm*280mm*44.5mm (L*W*H) | |
| Structure | 1U Standard chassis | |
| Material | High quality galvanized steel sheet | |
| Installation | 1U standard rack mounting method | |
| Motherboard | Model | H67SL_B |

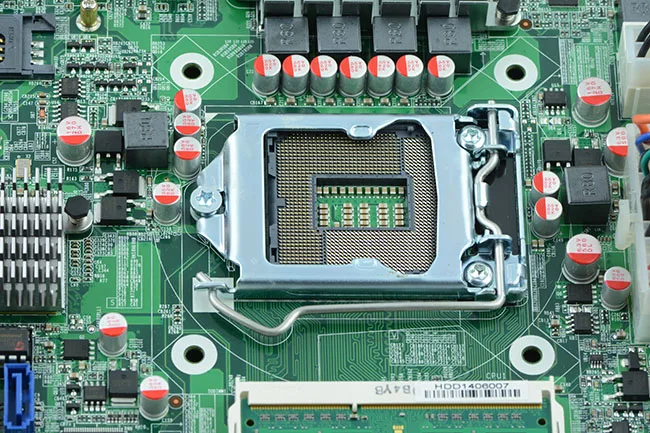

| Processor | Support Intel® LGA1155 2th/3th Core i3/i5/i7/Pentium/Celeron processor | |
| Chipset | Adopt Intel® H67 high speed chipset | |
| Graphics | Integrated Intel® HD Graphics, support 1*VGA display output | |
| Storage | Memory | 2* DDR3 memory slot, support dual channel 1333/1066MHz, max 16GB per slot |
| HDD | Support 2*2.5" / 1*3.5’ HDD expansion | |
| CF | Support 1*CF card expansion | |
| SSD | Support 1*MSATA SSD expansion | |
| Sound Card | Sound Card | N/A |
| Network | Ethernet | 6* Intel 82583V, 1000/100/10Mbps |
| WiFi | 1* Mini-PCIE slot, support WiFi, 3G module | |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB2.0 interface | |
| LAN | 6* RJ45 Gigabit Ethernet Port | |
| Power Switch | 1*Power switch | |
| LED | 1* HDD LED, 1* Power HDD | |
| Display | 1* VGA display output | |
| Power Supply | 1* ATX Power input interface | |
| Power Supply | Input | AC 110V ~ 220V |
| Output | AC 110V ~ 220V | |
| Type | ATX power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Windows7, Windows8, Windows10, Linux | |
Order Information
| No. | Model | Processor | Motherboard | Memory | SSD | LAN | COM | USB | Power | System |
| 1 | R41LZ | / | G41XE | / | / | 6*82574L | 1 | 2 | ATX PSU | / |
| 2 | R670Z | / | H67SL | / | / | 6*82583V | 1 | 2 | ATX PSU | / |
| 3 | R750Z | / | B75SL | / | / | 6*82583V | 1 | 2 | ATX PSU | / |
Company Informaiton
YANYUGONGKONG, MEMBER OF INTEL INTELLIGENTSYSTEMS ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.
Our products include: mini-itx motherboard, nano-itx motherboard, all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC, All-in-one PC, Embedded PC ,Vehicle computers, Cloud Terminal, Networking Security, OPS Mini PC Computer, OEM / ODM available.
Our Services
1. As a professional manufacturer / OEM Factory and supplier of mini pc / motherboard / firewall appliance over 11 years.
2. Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
3.Our products are 100% original and have strict QC inspection before shipment.
4.Professional and efficient sales team to serve for you diligently.
5.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 3years maintenance warranty for our products.
FAQ:
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,Western Union,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.
5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work keep working 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to keep working 24*7 hours.
8. Are you a factory or trading company?
A: YANYUGONGKONG
MEMBER OF INTEL® INTELLIGENTSYSTEMS ALLIANCE, is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS server, etc.
Computer, OEM / ODM available.
9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
