Bellows coupling servo motor bellows coupler

Product Overview

Description

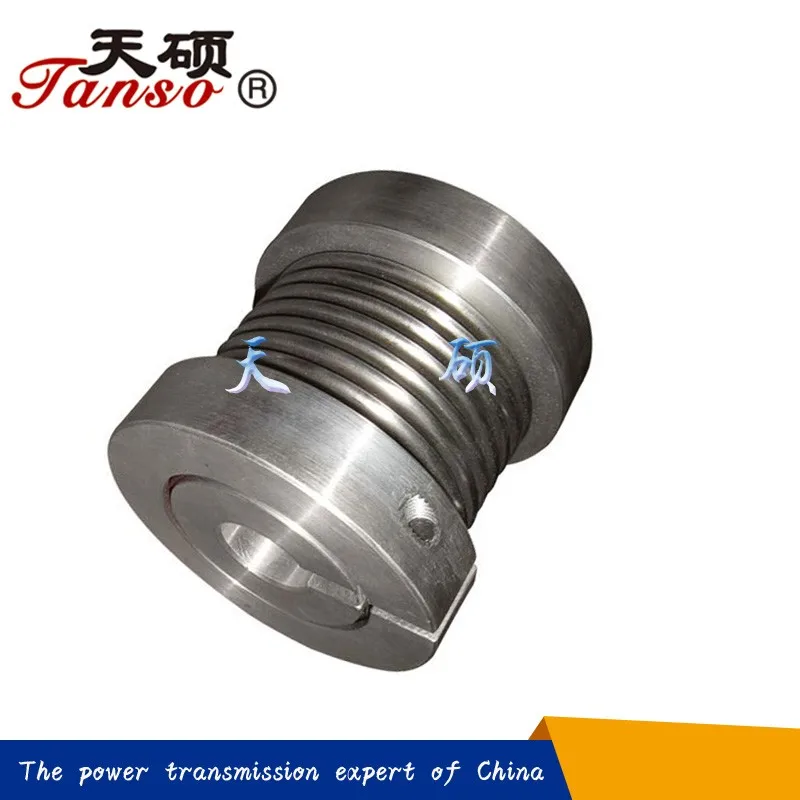

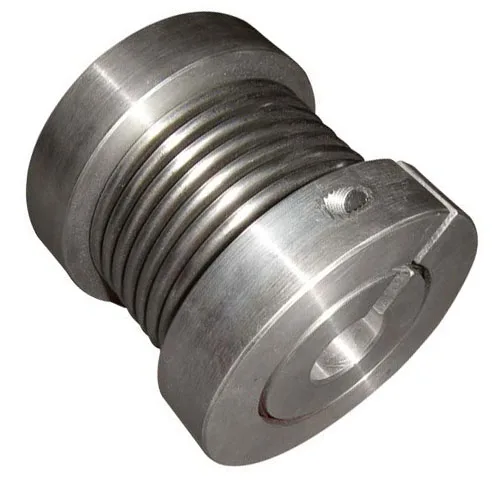

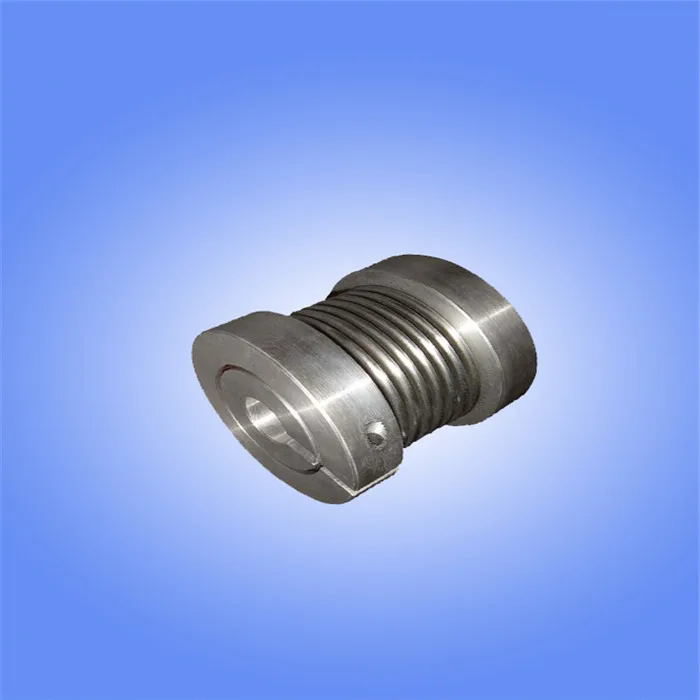

A bellows coupling is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other. This design utilizes a single piece of material and becomes flexible by removal of material along a spiral path resulting in a curved flexible beam of helical shape.

Features of TS1 bellows coupling:

1.No gap,high torque,anti-oil and anti-corrosion resistance

2.Identical clockwise and anticlockwise ratational characteristics

3.Absorb vibration,parallel,angular and axial misalignment

4.High temperatures,high torque capacity and excellent response

5.Keep constant work under misalignment

6.Stainless steel,good performence





Model	Φ d1Φd2 Bore diameter	ΦD	L	L0	Bolt
					L1	L2	L3	M
TS1BC-44	8 10 12 14 16 18 20	44	53	17	7	14.5	16	M5
TS1BC-54	12 14 16 20 22 25	54	68	20	9	20.5	18	M6
TS1BC-74	16 18 20 22 25 28 30 36	74	78	22	11	27.5	20	M8
TS1BC-84	18 20 25 28 30 35 38 40 45	84	106	26	12.5	35	22	M8

Model	Rated Torque (N·m)	Max.Torque (N·m)	Max.Rotational Frequency (rpm)	Parallel misalignment mm	Angular misalignment	Axial misalignment mm	Wrench Torque (N·m)
TS1BC-44	30	60	9000	0.3	0.5	2.8	10
TS1BC-54	45	90	7000	0.3	0.6	2.8	16
TS1BC-74	120	240	5500	0.4	0.8	2.8	24
TS1BC-84	180	360	4000	0.4	0.8	2.8	45
