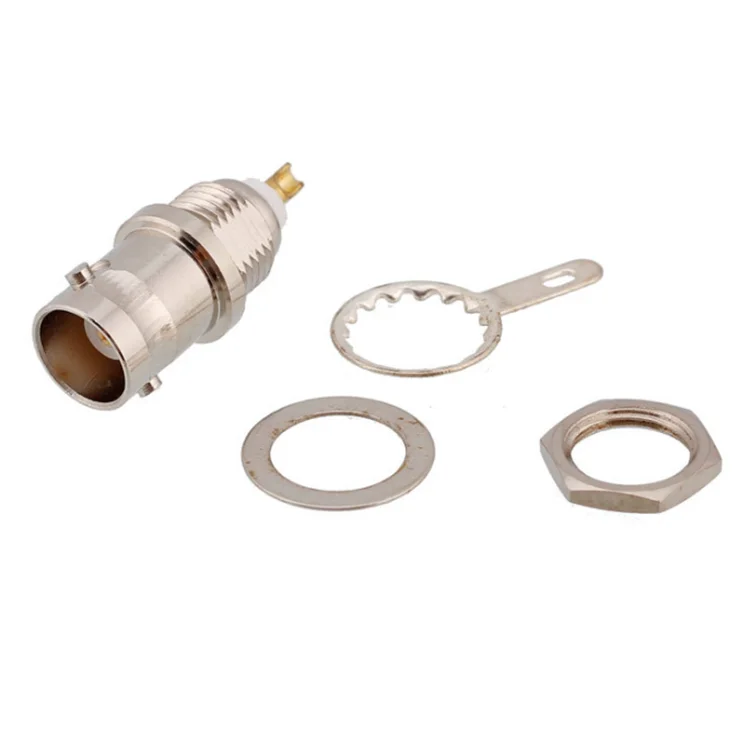

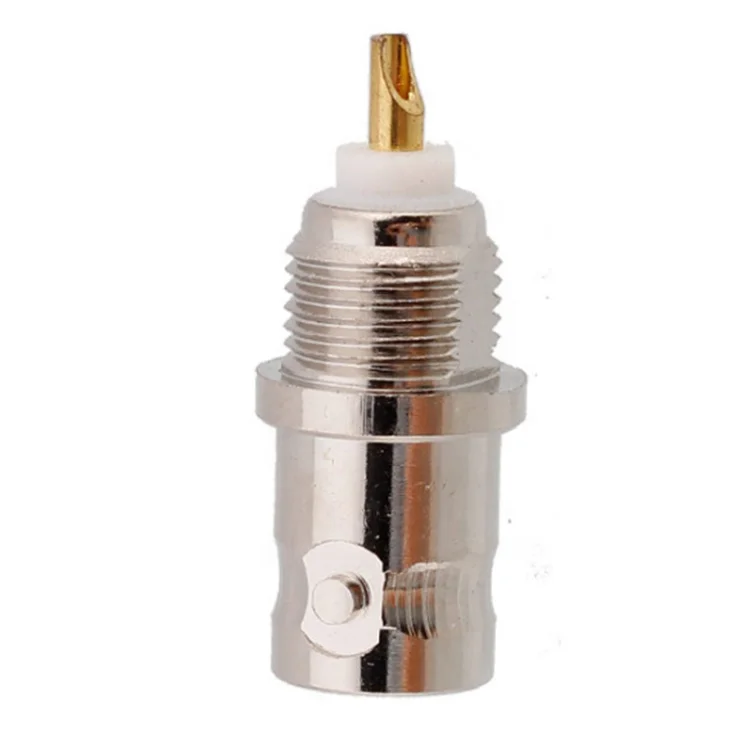

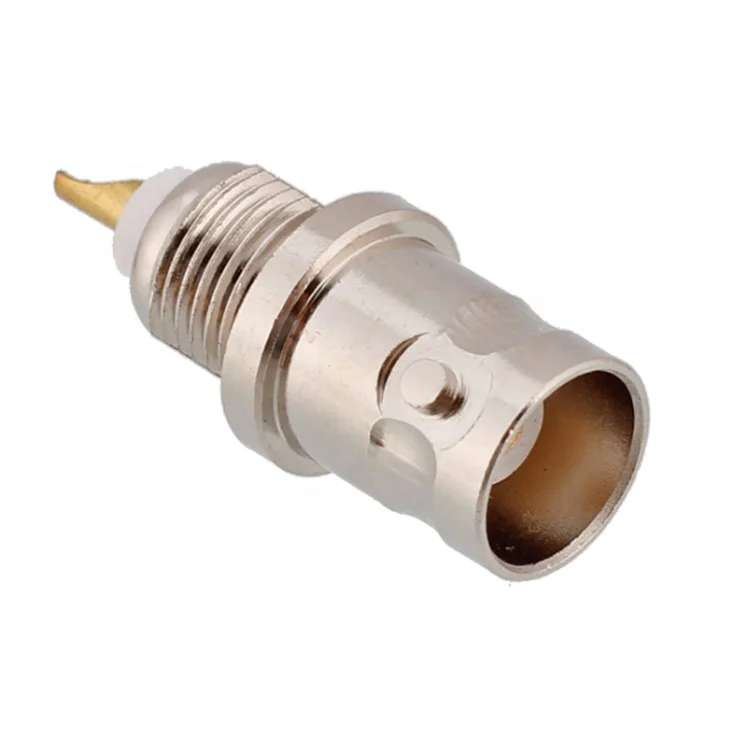

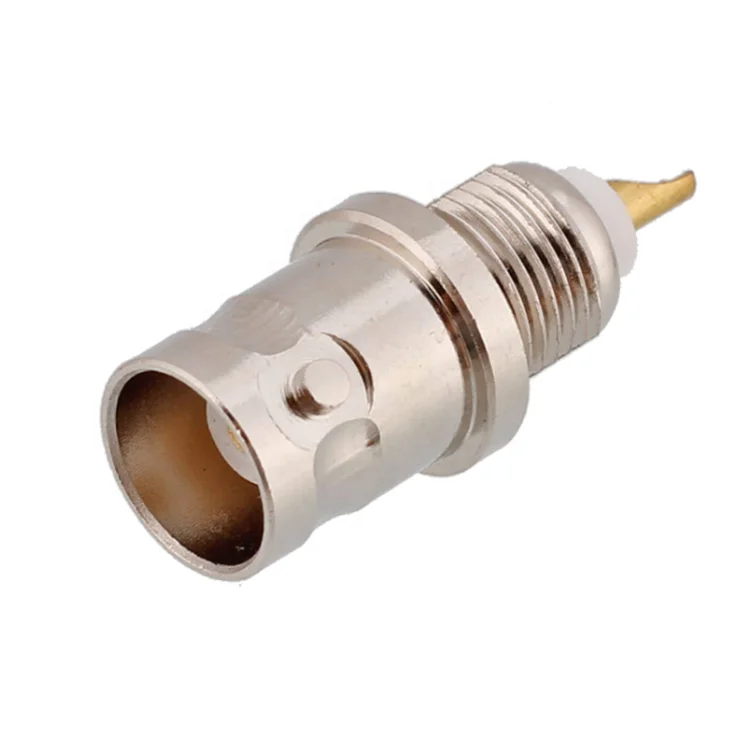

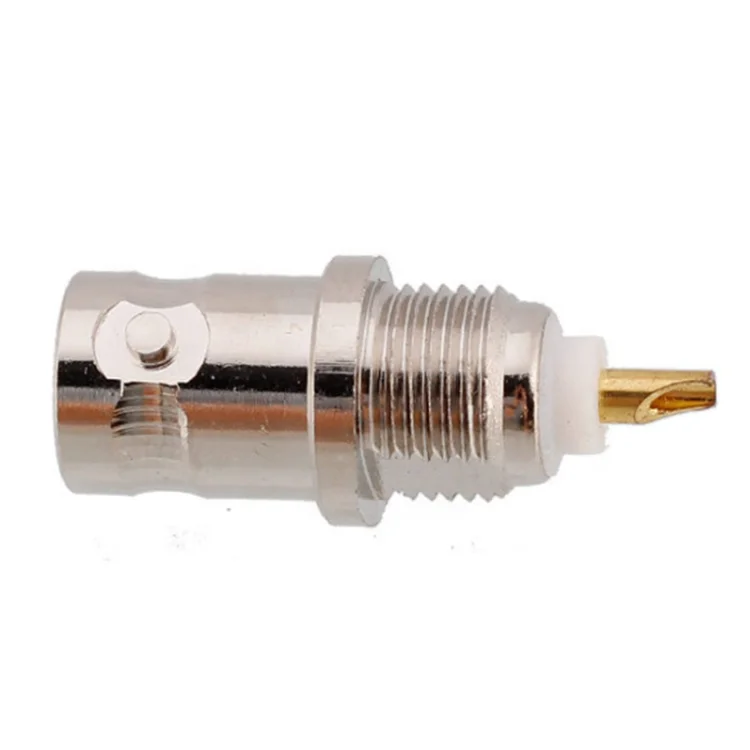

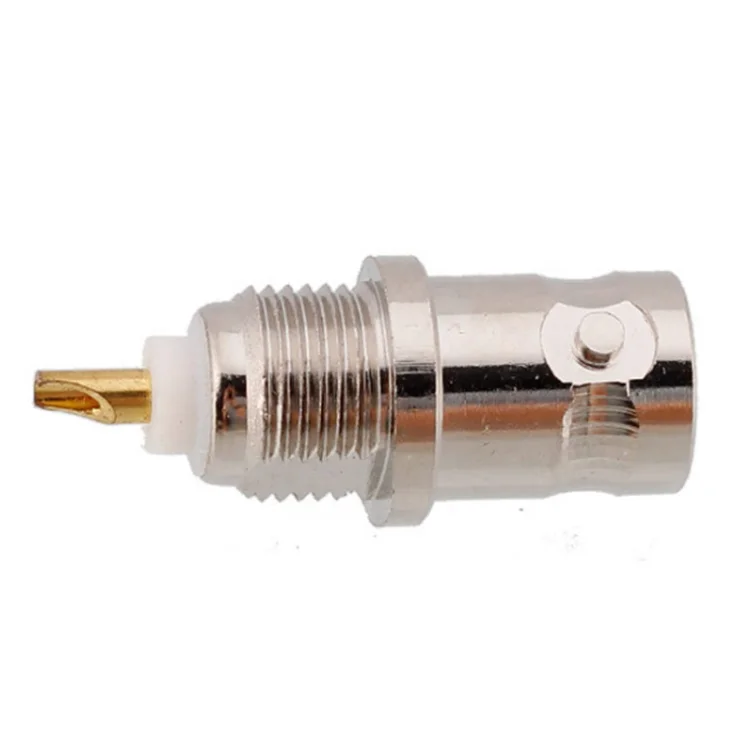

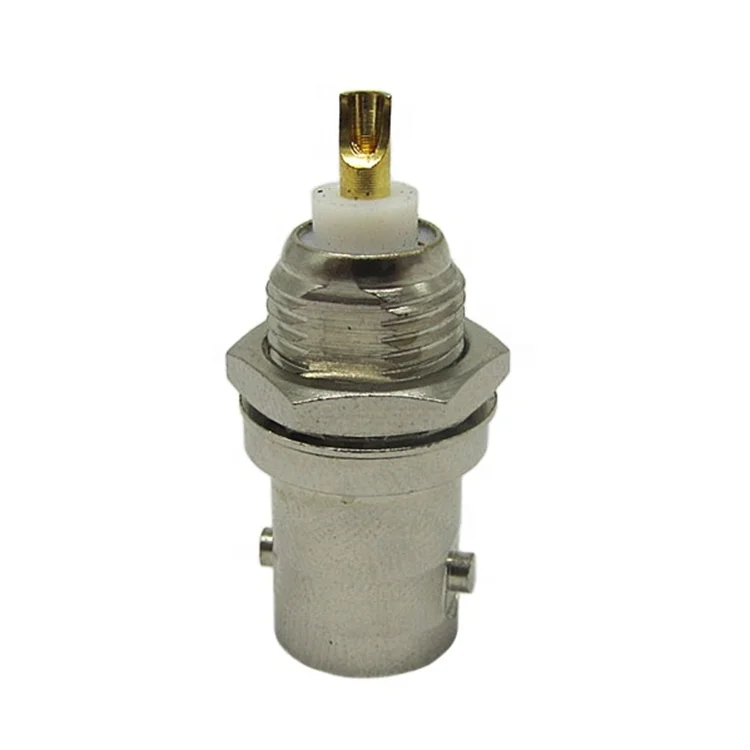

High quality full brass RF Coaxial BNC female connector with washer and nut

Share on (60759757400):


Price:$0.29 - $0.32

Quantity:


Product Overview

Description













Product application.




RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.















































Product Name


RF coaxial BNC female connector with washer and nut


Material of connector


Pure copper


 Plating


plated nickel


 Impedance


50Ω


Temperature Range


-55℃—155℃


Vibration


98m/S2(10—2000Hz) 10g


Insulation Resistance


more than 5000MΩ


Durability


more than 500(cycles)


Outline size


Standard


















































Connector adapter and cable matching form




Connector adapter




Cable type




N/SMA



RG175



BNC/TNC



RG174 / RG316 / CNT100 / LMR100



SL16(N/UFH)



50-10DFB



MCX/MMCX



RG59 / LMR240 / CNT240



SMB/SSMB



RG142/RG223 / CNT195 / LMR195 / SYV50-3 / 50-3DFB /R G58 / U



SMC/M5



SFF50-5 / SYB50-7 / 0-7DFB / CNT300









Our factory locates in Jiangsu Province. In order to push sales, Shenzhen office is established in Oct of 2008. We specializes in producing RF connector, Coaxial cable , Aviation Plug, banana plug, binding post and so on.We have adanced technology,superior equipment,overall quality control and thoughtful service system.Based on our country and market-oriented,our products sell well in Europe,America ,Australia,the middle East,India and Turkey.

















Production plant




Our manufacturing plant is located in Jiangsu, Changzhou. We have ten years of production experience.






Our office




In order to better promote sales, in 2008, October, we set up offices in Shenzhen, specializing in serving overseas customers























Production workshop








Mechanical equipmen











Staff and customers
























Q: Are you trading company or manufacturer ?



A: We are factory.



Q: How long is your delivery time?



A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?



A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?



A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
