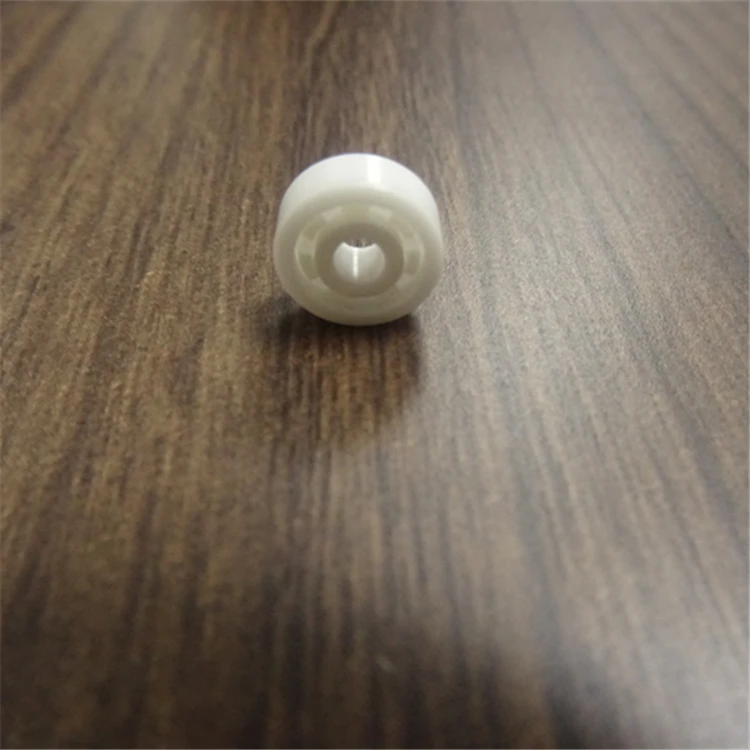

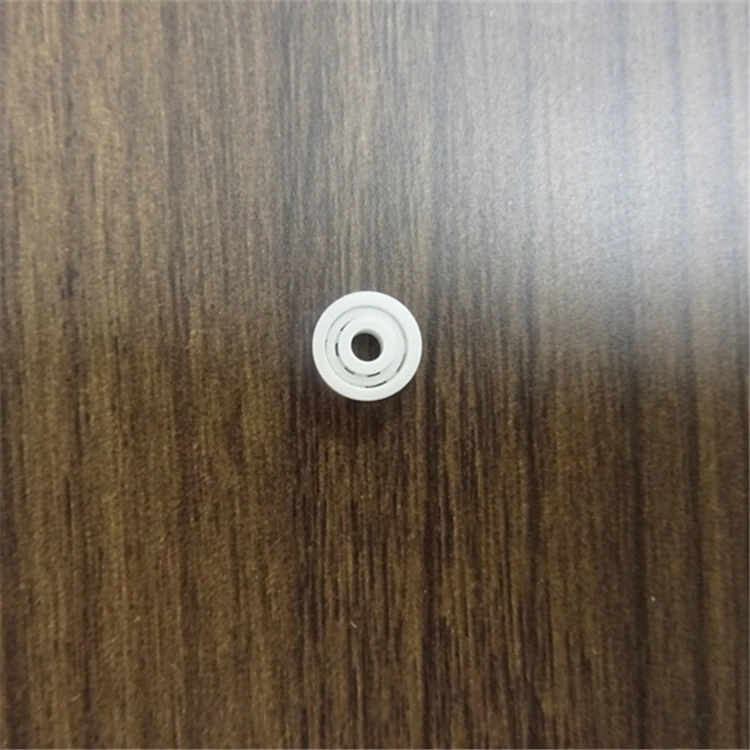

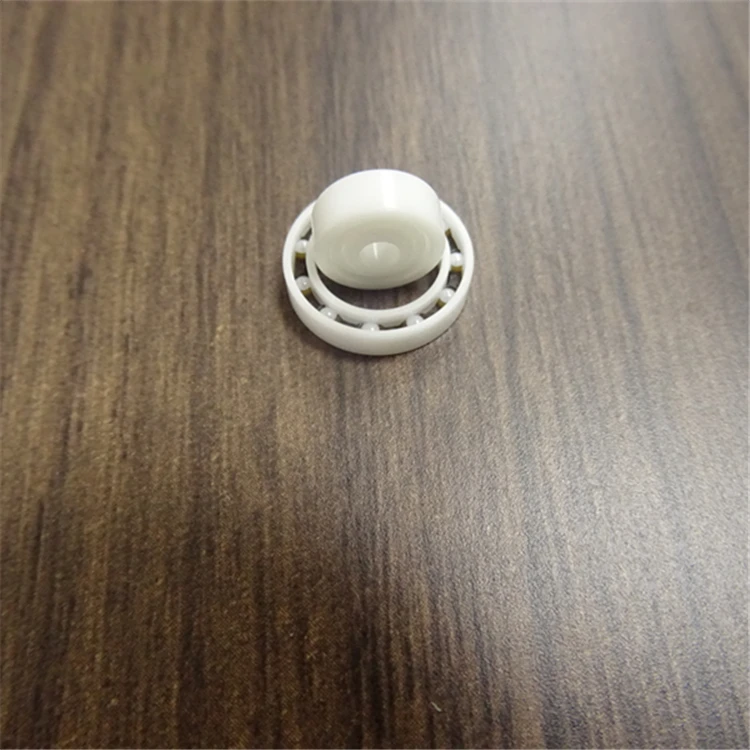

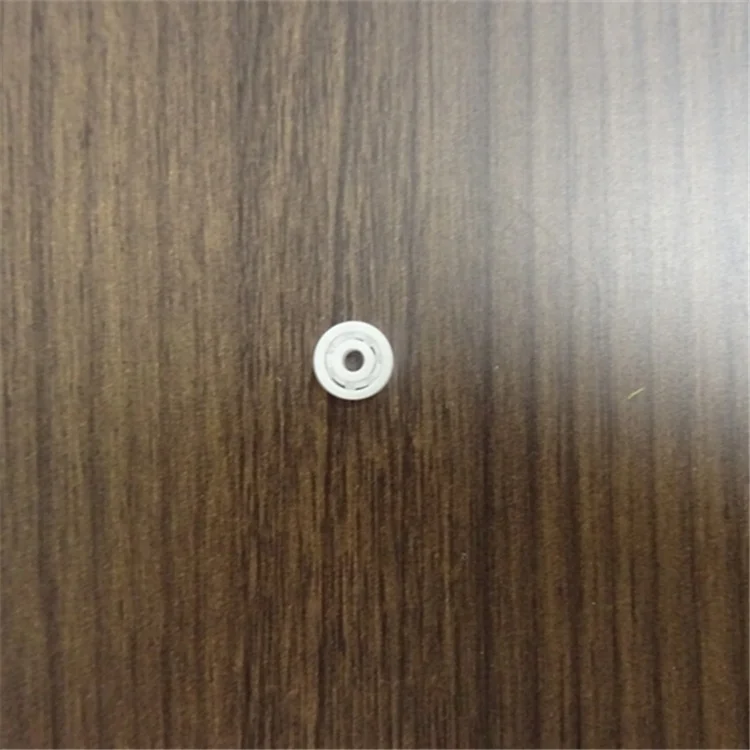

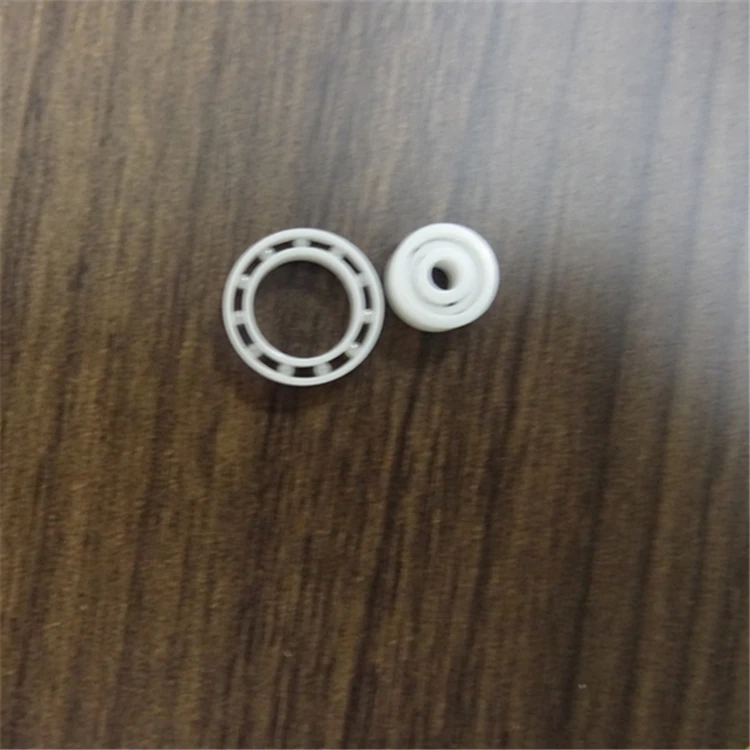

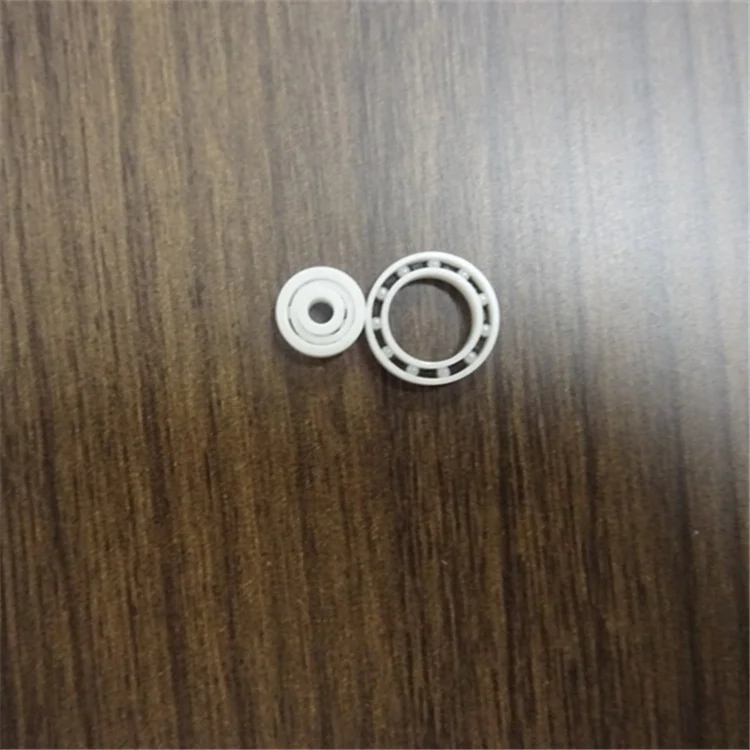

Высокотемпературный микро подшипник 636 полностью Керамический шарикоподшипник с глубоким желобом
- Category: >>>
- Supplier: Jinan Maolei Bearing Co. Ltd.
Share on (60759804707):
Product Overview
Description
If you have drawings, we can customize various non-standard ceramic bearing for you according to your requirements.
The related models:
Bearing No | Size | Mounting Dimensions(mm) | N.W | N.W | ||||
mm | da | Da | ra | (kg) | (refer) | |||
d | D | B | min | max | max | ZrO2 | Si3N4 | |
684CE | 4 | 9 | 2.5 | 4.8 | 8.2 | 0.1 | 0.0005 | 0.0003 |
694CE |
| 11 | 4 | 5.2 | 9.8 | 0.15 | 0.0013 | 0.0007 |
604CE |
| 12 | 4 | 5.6 | 10.4 | 0.2 | 0.0017 | 0.0009 |
624CE |
| 13 | 5 | 5.6 | 11.4 | 0.2 | 0.0023 | 0.0013 |
634CE |
| 16 | 5 | 6 | 14 | 0.3 | 0.004 | 0.0022 |
685CE | 5 | 11 | 3 | 6.2 | 9.8 | 0.15 | 0.0009 | 0.0005 |
695CE |
| 13 | 4 | 6.6 | 11.4 | 0.2 | 0.0019 | 0.001 |
605CE |
| 14 | 5 | 6.6 | 12.4 | 0.2 | 0.0027 | 0.0015 |
625CE |
| 16 | 5 | 7 | 14 | 0.3 | 0.0038 | 0.0021 |
635CE |
| 19 | 6 | 7 | 17 | 0.3 | 0.0066 | 0.0036 |
686CE | 6 | 13 | 3.5 | 7.2 | 11.8 | 0.15 | 0.0015 | 0.0008 |
696CE |
| 15 | 5 | 7.6 | 13.4 | 0.2 | 0.003 | 0.0016 |
606CE |
| 17 | 6 | 8 | 15 | 0.3 | 0.0046 | 0.0025 |
626CE |
| 19 | 6 | 8 | 17 | 0.3 | 0.0063 | 0.0034 |
636CE |
| 22 | 7 | 8 | 20 | 0.3 | 0.0108 | 0.0058 |
687CE | 7 | 14 | 3.5 | 8.2 | 12.8 | 0.15 | 0.0017 | 0.0009 |
697CE |
| 17 | 5 | 9 | 15 | 0.3 | 0.004 | 0.0022 |
607CE |
| 19 | 6 | 9 | 17 | 0.3 | 0.0059 | 0.0032 |
627CE |
| 22 | 7 | 9 | 20 | 0.3 | 0.0098 | 0.0053 |
637CE |
| 26 | 9 | 9 | 24 | 0.3 | 0.0185 | 0.01 |
688CE | 8 | 16 | 4 | 9.6 | 14.4 | 0.2 | 0.0025 | 0.0014 |
698CE |
| 19 | 6 | 10 | 17 | 0.3 | 0.0056 | 0.003 |
608CE |
| 22 | 7 | 10 | 20 | 0.3 | 0.0093 | 0.005 |
628CE |
| 24 | 8 | 10 | 22 | 0.3 | 0.013 | 0.0072 |
638CE |
| 28 | 9 | 10 | 26 | 0.3 | 0.022 | 0.012 |
689CE | 9 | 17 | 4 | 10.6 | 15.4 | 0.2 | 0.0027 | 0.0015 |
699CE |
| 20 | 6 | 11 | 18 | 0.3 | 0.0065 | 0.0035 |
609CE |
| 24 | 7 | 11 | 22 | 0.3 | 0.011 | 0.006 |
629CE |
| 26 | 8 | 11 | 24 | 0.3 | 0.015 | 0.0081 |
639CE |
| 30 | 10 | 13 | 26 | 0.6 | 0.028 | 0.015 |
Ceramic bearings
Ceramic bearings have characteristics of strong resistance against all kinds of acid, alkali, salt and other corrosive medium erosion, against high temperature, wear-resistant, lightest structure weight, high limiting speed, low noise, electrical insulation, dimensional stability at high temperature, small starting torque etc. They can be used in worse lubrication working condition with a long operating life. They are widely applicable in aviation, aerospace, marine, petrolium,chemical, mechanical, automobile, motocycle, metallurgy, electronics, textiles pumps, pharmaceutical, food machinery, medical equipment, national defence and military technology, etc.,thus becoming a new kind of high-tech products material, with great social and economical valid.
For deep groove ball bearings, the basic type is 6000 series, 6200 series, and 6300 series. The ring and ball material can be SSIC, SI3N4 and ZRO2 ceramic material. Different materials are used in different working confitions, such as media, working temprature, rotating speed, load and other conditions. The cage could be PEEK, PTFE, or no cage, as pehe working conditions.
*Ceramic Bearings have two types of ceramic bearing, hybrid ceramic bearing and full ceramic bearing.The hybrid ceramic bearing has steel inner and outer rings with ceramic balls.
*Ceramic Bearings, Si3N4 stands for the silicon nitride ceramic material and is black colored,
Ceramic Bearings, SiC stands for the silicon carbide material and is alsoblack colored.
*Ceramic Bearings, ZrO2 stands for the zirconium dioxide, also known as zirconia or zirconium oxide, they are white colored, a ZrO2 ball looks exactly like a pearl.
The ceramic material is not stronger than steel, but ceramic bearing are lighter and have lower friction than steel, which makes ceramic bearing go faster with lower heat generated.
Features of Full Ceramic ball Bearings:
1.Ceramic bearing has high temperature resistance, cold resistance, wear resistance, corrosion resistance, resistance to magnetoelectricity insulation, since no oil lubrication, high speed and other characteristics .
2.Full ceramic bearing have excellence performance as special electrical and magnetism resistance, wear and corrosion resistance, lubrication and maintenance free when working, especially high and low- temperature application. etc. Could be used in awful environment and specially condition.
Specification of Full Ceramic ball Bearings:
1.High precision and long life
2.Low Vibration
3.Low noise
Application of Full Ceramic ball Bearings:
Widely used in sports equipment, theme park attractions, printing presses, office equipment, home equipment,cranes, giant roller-coasters, marine uses etc.
Parameters of Full Ceramic ball Bearings:
| Name | Full Ceramic ball Bearings |
| Seals Type | OPEN/ZZ/2RS |
| Material | ZrO2,SI3N4 |
| Cage material | Ceramic,PTFE,Nylon,Steel |
| Clearance | C0,C2,C3,C4,C5 |
| Vibration | Zv1,Zv2,Zv3 |
| Precision | P0,P6,P5,P4 |
| Greese | Lithium soap base grease or as customer's requirement |
| Application | Home appliances, low noise and high speed electric motors,automotive components, pumps, machinery. |
| Certifications | ISO9001 quality management system |
| Package | 1) Single box + outer carton + pallets 2) Tube package + outer carton + pallets 3) According to customer request |
| Service | 1) OEM 2) After-Sales Service 3) 24 hours service |
| Payment Term | 1) T/T : 50% deposit , 50% before shippment. 4) Others |
Packaging and shipping
A: tube package + outer carton + pallets
B: single box + outer carton + pallets
C: tube package + middle box + outer carton + pallets
D: According to your request
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Jinan Maolei Bearing co.,Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.
