Full HD video small camera professional 1080p with USB3.0 for conference system

Product Overview

Description

Full HD video small camera professional 1080p with USB3.0 for conference system

We are a professional manufacturer of Color HD/SD Video Conference Camera since 2005-----www.oneking.cn



• Private Tooling  design High Definition PTZ camera
• Fast and smooth video handling
• Work & Standby LED indicator
• Speed Match
• Auto/Manual focus/brightness/WB
• RS-232C/VISCA Protocol
• Lens/Dome OSD menu
• Boundary scanning
• Swap video format button
• USB3.0 Video output
• Pin 6 to receive IR signal

Performance:

• 1/2.5"Primary CMOS, 2.1 M compatible
• 10xoptica zoom
• f = 4.5 –45 mm F1.8 – 2.2
• HOV 51.8° degree
• 1920x1080p@30
• Pan ±175°
• Tilt±120°
• 64 preset positions
• 4 cruise lines
• DC 12V, 2A

Dimension:

• L 124mm x W 120mm x H145mm
• 220x175x220mm (Package)
• N. Weight: 1.4kgs
• G. Weight: 1.7kgs

Installation:

• Desktop
• Ceiling mount
• Standard Tripod accessory



Image Sensor	Sensor	1/3" Primary CMOS, 2.1 M compatible
	Minimum Scene illumination	0.1Lux at
	White Balance	AUTO/Manual
	Gain Control	AUTO
	Back-light compensation	ON/OFF
	Electronic shutter	1/5~1/4000S
	S/N Ratio	>50db
Lens	Focus	AUTO
	Iris	AUTO/Manual
	Zoom	10 X Optical ZOOM
		f = 5 – 50mm F1.8 – 2.2
Horizontal Angle of view		51.8
Video Output		USB3.0
Video format		1080P@30,1080P@25, 1080I@60,1080I@50,720P@60,720P@50
Control Decoder		EIA/RS-485
Communication		EIA/RS-232(Bidirectional)
PTZ Control Protocol		VISCA,PELCO-P,PELCO-D
Baud Rate		9600/38400 bps
Patrol tours		4
Preset		64
Save status after Power off		Support
Speed Matching Function		Support
OSD Menu		Support
Image Auto Flip		Support
Pan Speed		0-100 degrees/s
Tilt Speed		0-80 degrees/s
Pan Rotation Angle		359degrees
Tilt Rotation Angle		240degrees
Auto Pan Scan		Support
Boundary Scan		0-359degrees(Programmable)

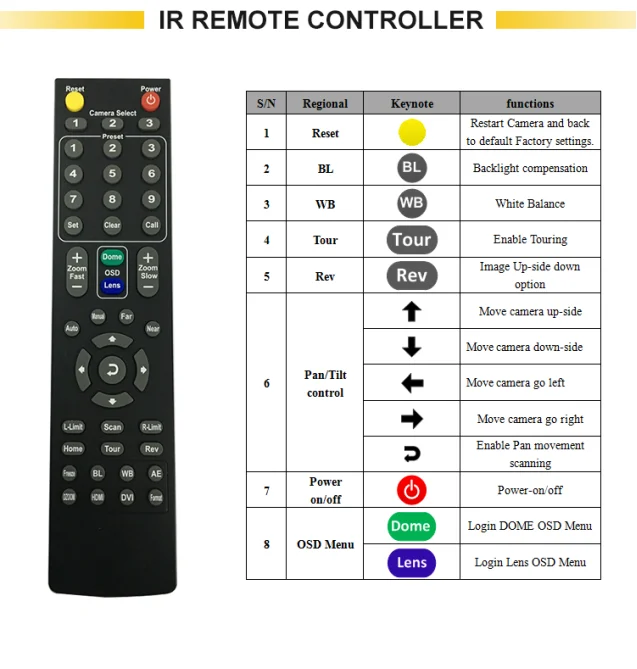

Remoter Control		IR Wireless remote control P/T/Z
Power		DC12V ±10% 1.2A
Operation Temperature		-10~60
Environmental humidity		0-95%RH(non-condensation)
Length X width X high		124x120x145mm/220x175x220mm(NET/PACKAGE)
Weight		800g/1300g(NET/PACKAGE)











 Company Information of  remote control OEM HD conference room video camera HD380 :

• Business Type: Manufacturer, Trading Company
• Main Products:  Network Camera, Mini PTZ Camera, Vandal Proof PTZ Camera,
• HD PTZ Speed Dome Camera, HD Video Conference Camera
• Location:  Guangdong, China (Mainland)
• Year Established:2005
• Year start exporting: 2005
• Number of Employees: 101 - 200 People
• Total Revenue: US$2.5 Million - US$5 Million
• Main Markets:  Southeast Asia, Northern Europe, Western Europe, South Asia, Mid East
• Certifications: ISO9001
• Product Certifications: CE,CB,FCC





Compatibility:

As we tested with Amcap S/W, Skype, Microsoft Lync, VSEE, Vidyo, DEBUT Software,

most of them are Video Conferencing system application, and it works perfect.

 Other HOT cams:

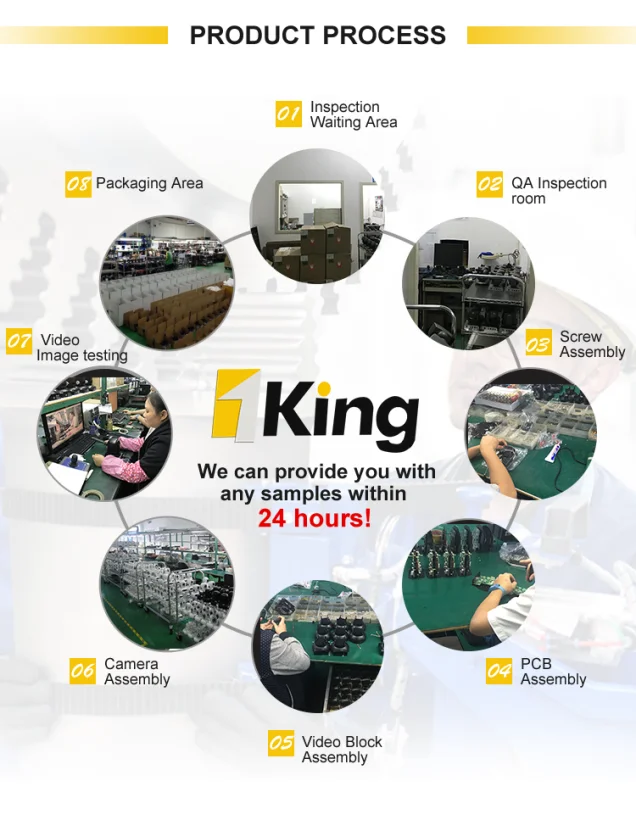

Product Process

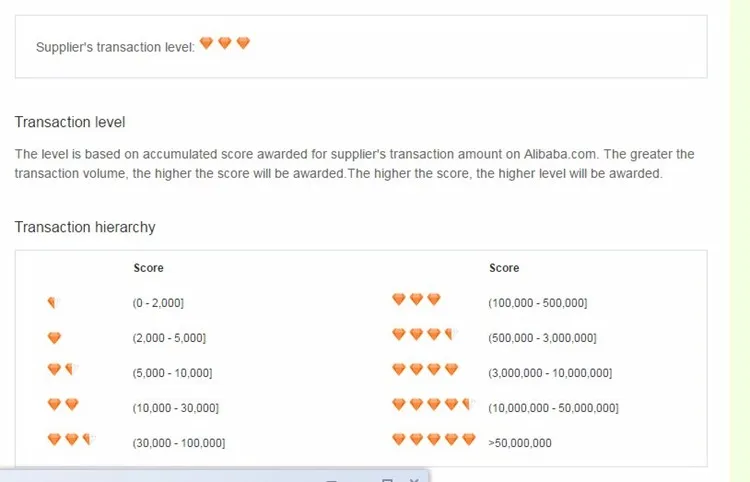

Transaction Level:

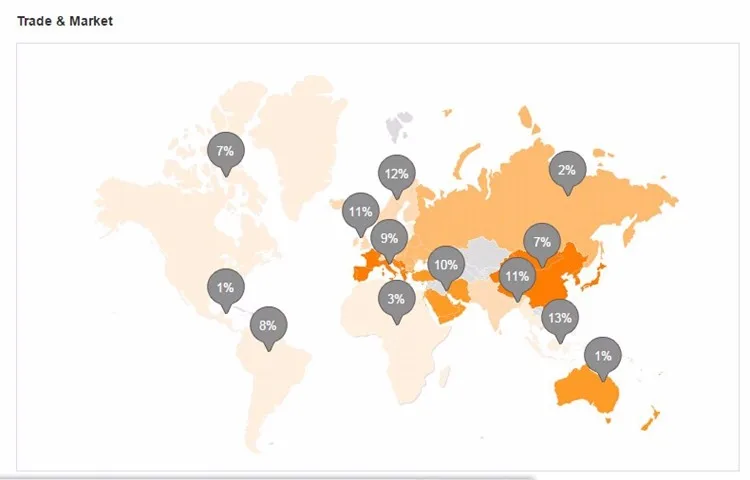

Market Distribution:
