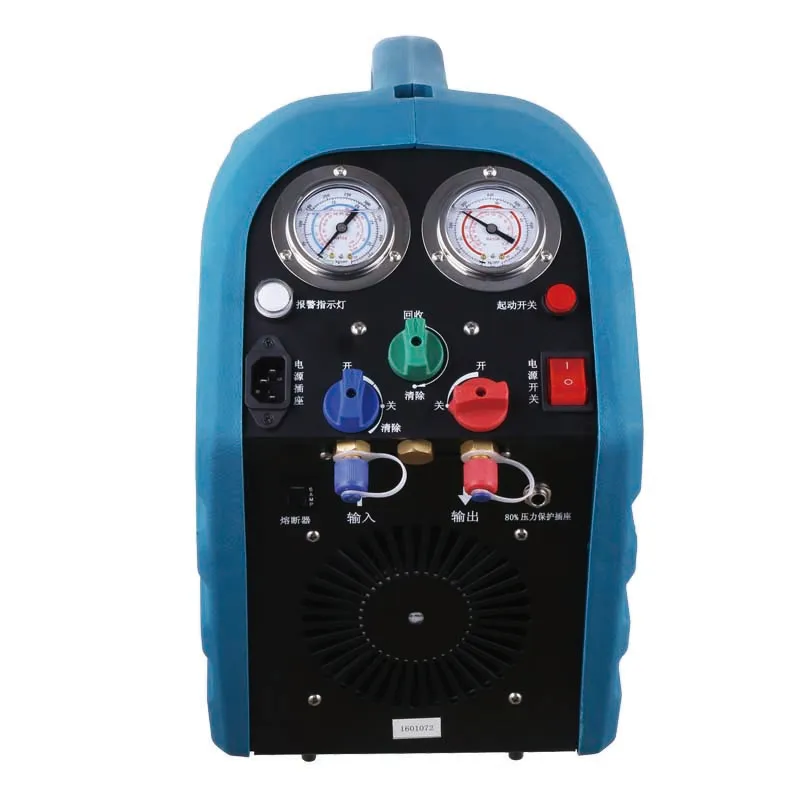

HBS Refrigerant Recovery machine HVAC single cylinder refrigerants Recovery device

Quick Detail:

Refrigerant recovery unit - Power: 110v 60Hz；220v/50hz; Compressor: 1/2hp, direct drive,Horizontal bar oil-free, air-cooled; Capabilities: Push-Pull, Liquid, Vapor; Motor speed: 1450rpm@60Hz; High pressure shut-off: 38bar/558psi; Operating temperature: 32-104 ℉; Overall dimensions: 18.1"x8.9"x13.6"; N.W.: 32lbs
Used as ac refrigerant recovery system, freon reclaimer machine, and R134a recovery machine etc.

Main Feature:

(1) Can recover R22, R134A,R407CR404A,R410A, etc. All kind of general Refrigerants;
(2) The design of a oil less lubricated high efficiency compressor can directly recover the refrigerant of gaseous, liquid or gas-liquid mixture;
(3) Large fan and high efficiency condenser design, recovery and injection speed;
(4) It can be recycled to negative pressure and recycled more thoroughly;
(5) Multi-function valve design can automatically remove the residual refrigerant in the machine.
(6) The external design of large filter can effectively remove moisture and impurities after the refrigerant is recycled;
(7) Complete high voltage protection, current protection, providing security for the operation of the system;
(8) Humanized portable design, it is very convenient to carry out;
(9) The shell USES rotary disposable molding technology, with high strength, impact resistance and strong practicability;
(10) High power motor design can work 24 hours a day;
(11) The refrigerant recycling is complete, and the suction pressure reaches -0.04mpa and the recovery is completed automatically;
(12) High efficiency compressor design, faster speed.

Specification:

Refrigerant Recovery Machine Project			HBS-1A
Refrigerant gas	Cat III:	R12 R134A R401C R406A R500
	Cat VI:	R22 R401A R401B R402B R407C R407D R408A R409A R411A R411B R412A R502 R509
	Cat V.	R402A R404A R407A R407B R410A R507
Voltage			220 ~ 240V/AC/ 50 ~ 60Hz
Motor			1/2HP AC
Motor Speed			1450rpm/1750rpm
Maximum current			4A
Compressor			oil-less,Air-cooled,1 piston style
Recovery rate (kg/min)			category III	category VI	category V
	Vapor	0.23kg/min	0.25kg/min	0.26kg/min
	Liquid	1.57kg/min	1.81kg/min	1.85kg/min
	Push/Pull	4.64kg/min	5.57kg/min	6.22kg/min
High pressure switch			38bar/550psi
Low pressure switch			Optional
Oil separator			Optional
80% Liquid overcharge protector optional			80% Liquid overcharge protector optional
Operation temperature			0 °C- 40 °C
Size			460mm*226mm*345mm
Net weight			14.5kg

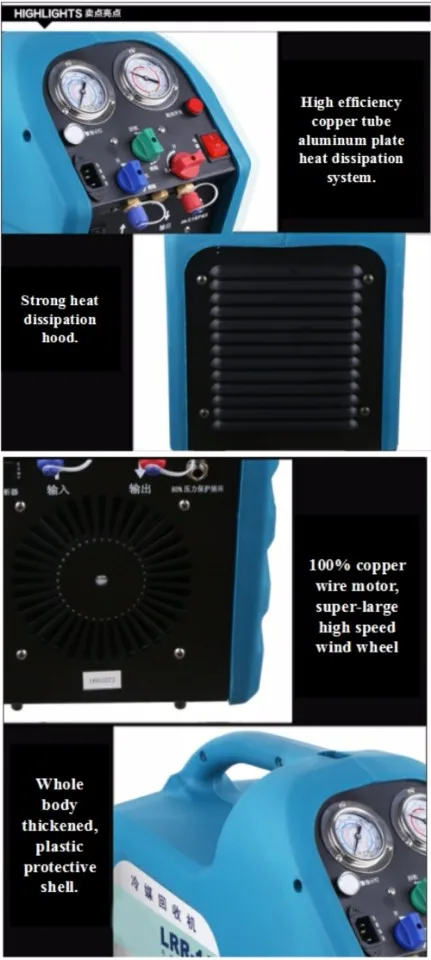

Details

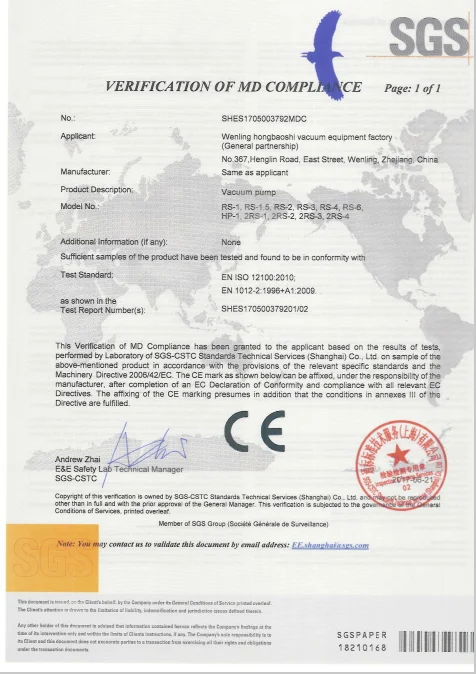

Certification

Our Team

Packing & Delivery

Packaging
Size
Weight
Packaging Details	one pcs packed in a carton box.  if ucstomer has special require, we can do as customers' requirement. We can print customer's logo on the box.

Contact us

WENLING HONGBAOSHI VACUUMEQUIPMENT FACTORY

Zhe jiang Address:East Industrial Zone Wenling Zhejiang

Name: Zero Lin

Phone: +86 13957635461

Wechat:+86 13957635461

Whatsapp:+8613957635461

QQ: 2120865441

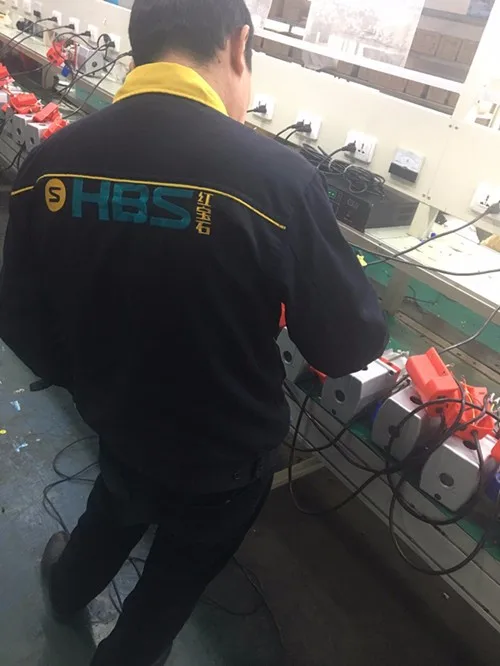

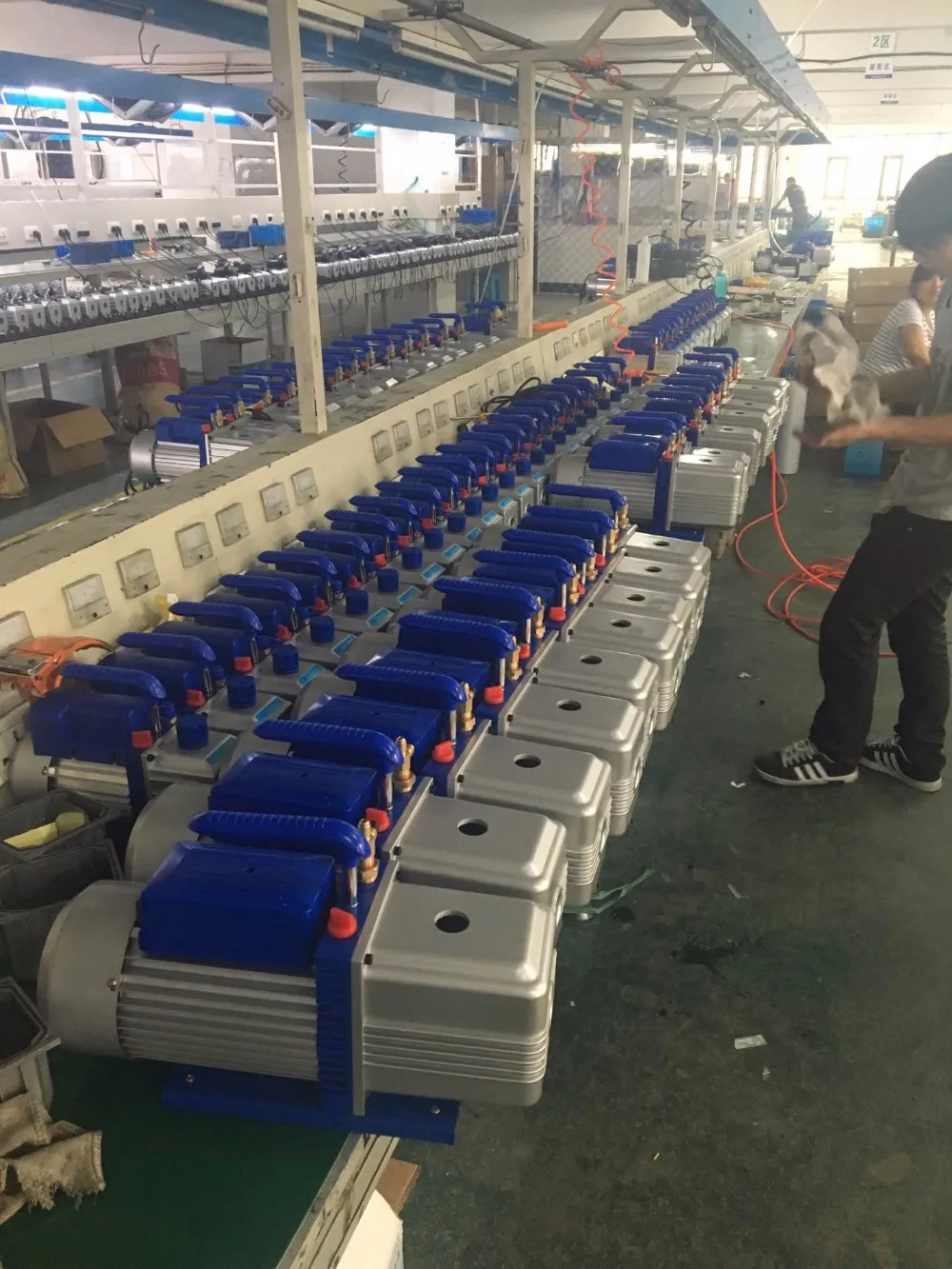

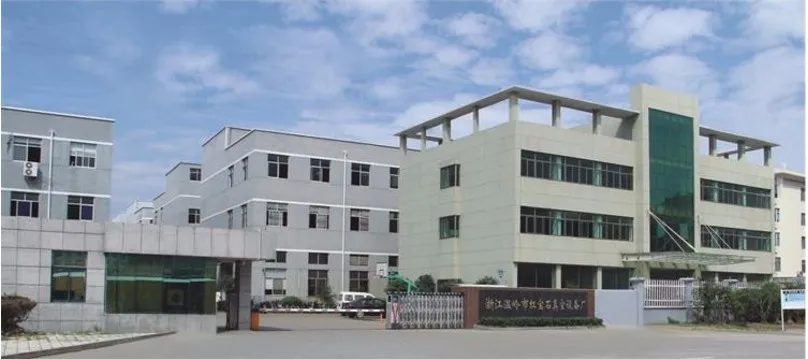

Our factory
