Hydraulic Sheet Coil Slitting Machine
- Category: Coil Slitting Machine >>>
- Supplier: Foshan YXH Tube Mill & Mould Co. Ltd.
Share on (60760015042):
Product Overview
Description
Quality · Efficiency · Energy
Passed the IS09001:2000 international standard certification
Product Description
| Hydraulic Sheet Coil Slitting Machine | ||
| Material | Stainless Steel |  |
| Thinkness Range | 0.2-2.0mm | |
| Width | 150-800mm | |
| Entry Material | 460-520mm | |
| Recoiler Material | 480-510mm | |
| Max Diameter | 1500mm | |
| Max Weight of Entry material | 8T | |
| Max Weight of Recoiler Material | 8T | |
| Cutting Speed | 0~120m/min | |
| Horizonta beat | ±0.01mm | |
| Vertical beat | ±0.01mm | |
| Voltage | 380V | |
| Container size | 1×20GP | |
 | Component Foshan Manufacturers Steel Strip Slitting Machine Made in China include these parts: | |
| 1. Feeding trolley | 1 set | |
| 2. Hydraulic uncoiler | 1 set | |
| 3. Side guards & Slitting Machine | 1 set | |
| 4. Loop traversing crane | 1 Group | |
| 5. Separation device and the tension generator | 1 Group | |
| 6. Separation device & hydraulic recoiling machine | 1 Group | |
| 7. Discharge port trolley | 1 set | |
| 8. Hydraulic system | 1 set | |
| 9. Power control system | 1 set | |
| 10. Other components | 1 set | |
Description:The series production is used for the metal plate decoiling, slitting and winding into several volumes needed width coil plate. Suitable for processig of cold rolled and hot rolled carbon steel,silicon steel, tinplate, stainless steel and the surface of all kinds of metal plate after plating. The Slitting Line PLC control, human-machine interface, according to a high degree of automation,simple operation and reliable.
Simple working chart
CAD chart
Pictures

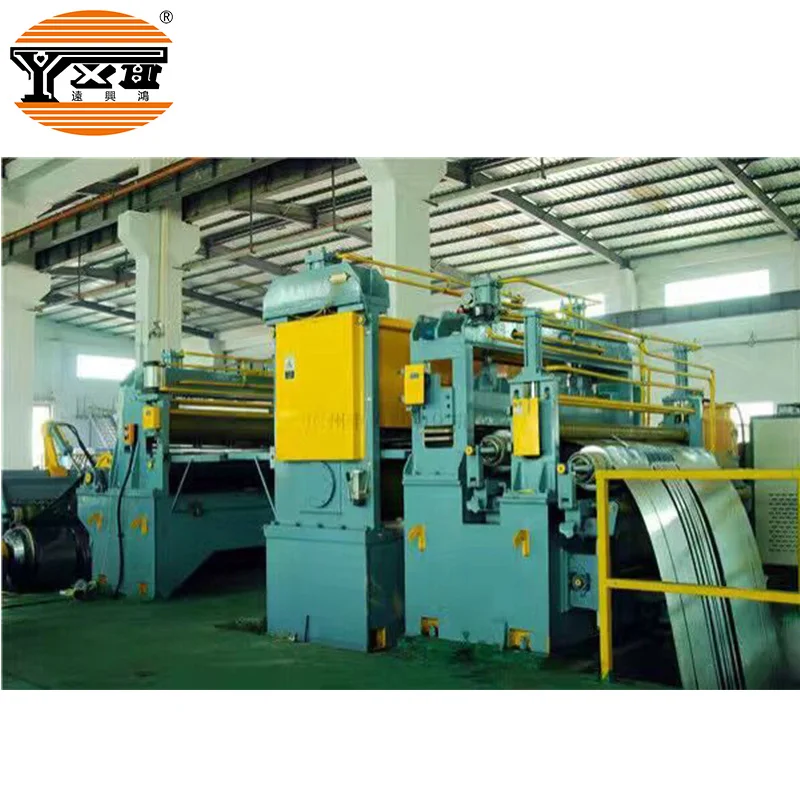

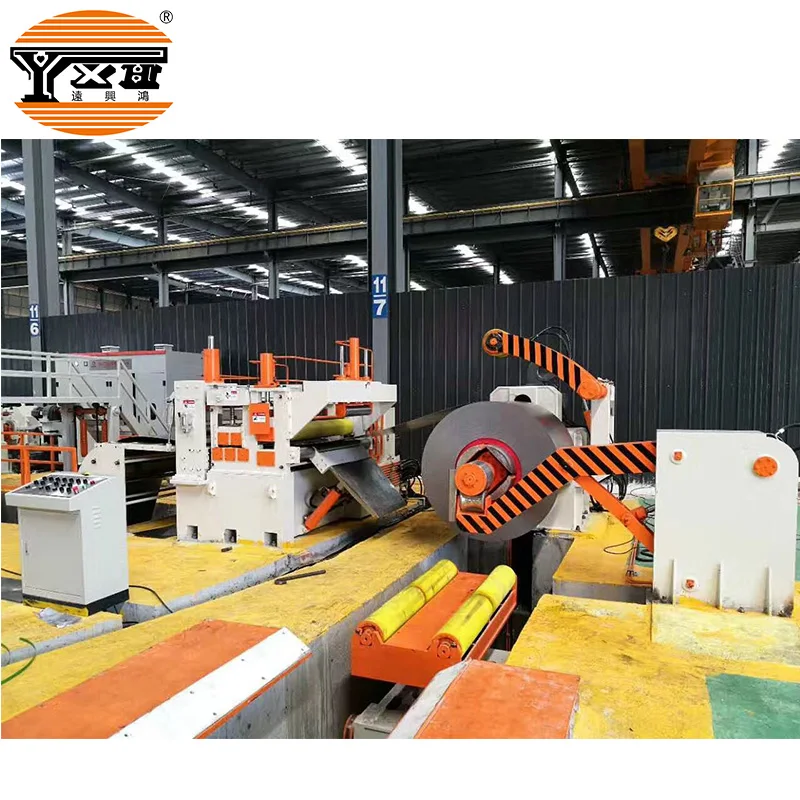

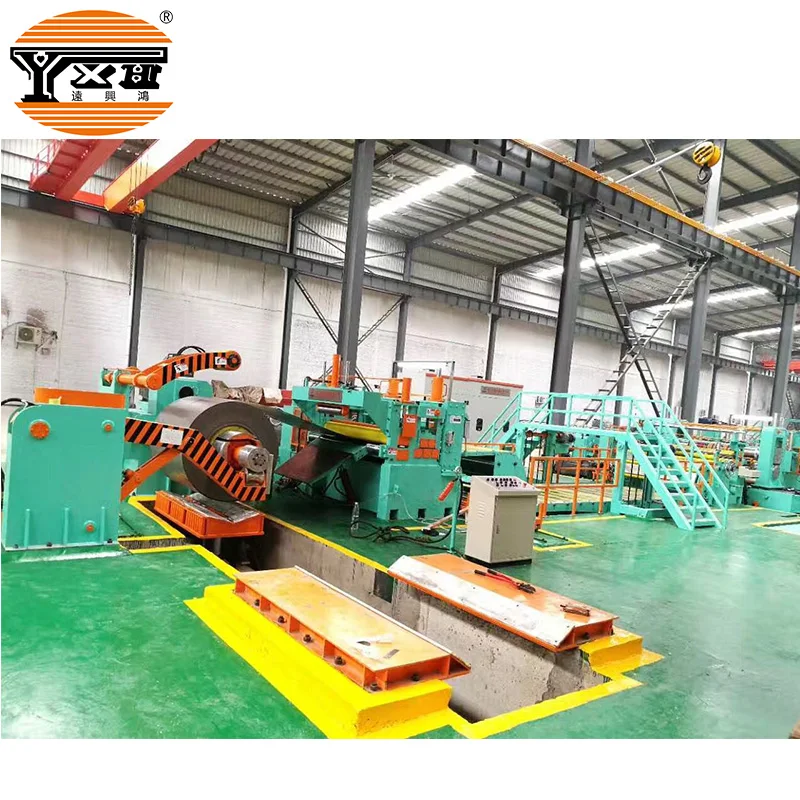

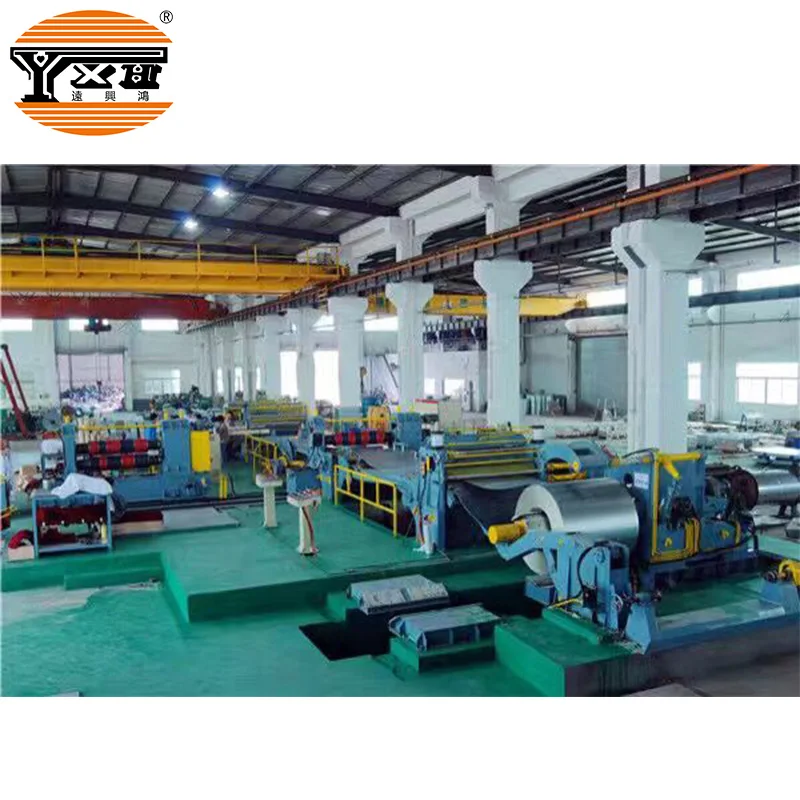

- Panorama

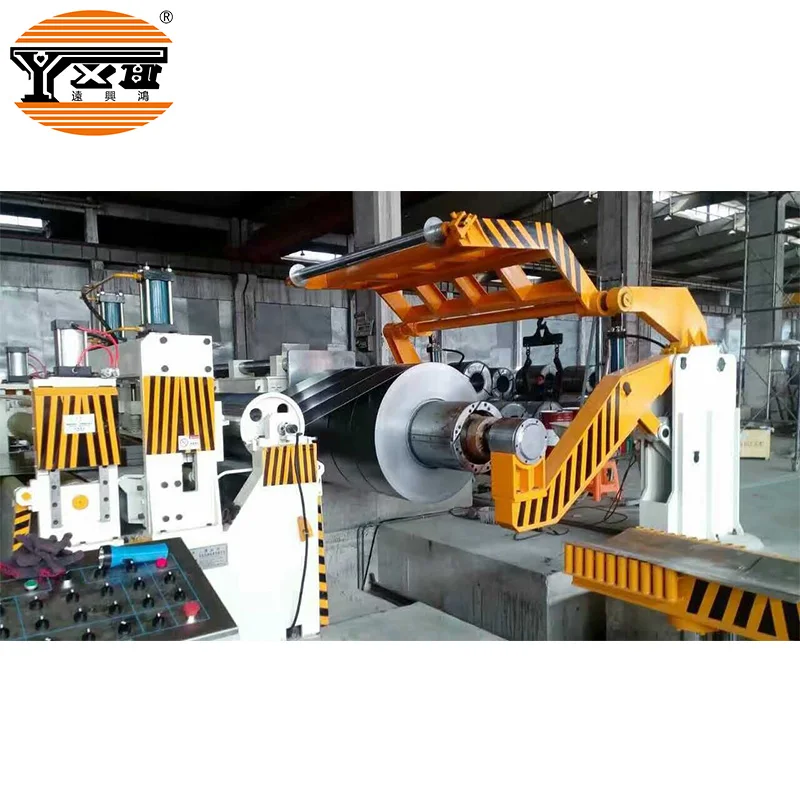

- Details
Packaging & Shipping
Packaging
For pipe embossing machine, we use fumigation boxes to support the machine;
- Use plastic film to wrap the whole machine to protect the machine from damp.
Shipping
For the big order, we choose the container transport;
For the small order, we choose the bulk cargo transportation.
Our Services
 | We can: (1) Help you train your staff. (2) Design your plant and calculate power consumption. (3)Send engineers to help you install the machines and train your staff online. (4) Introduce the high quality raw material suppliers to you Special notice: The warranty time is one year. If you have any question in operating the machines, you can call us or send E-mails, we will solve the problem for you ASAP. |
