1678 numbering machines perforation
- Category: Other Printers >>>
- Supplier: Shanghai Xsheen Machine Electron Technology Co. Ltd.
Share on (60760022760):
Product Overview
Description

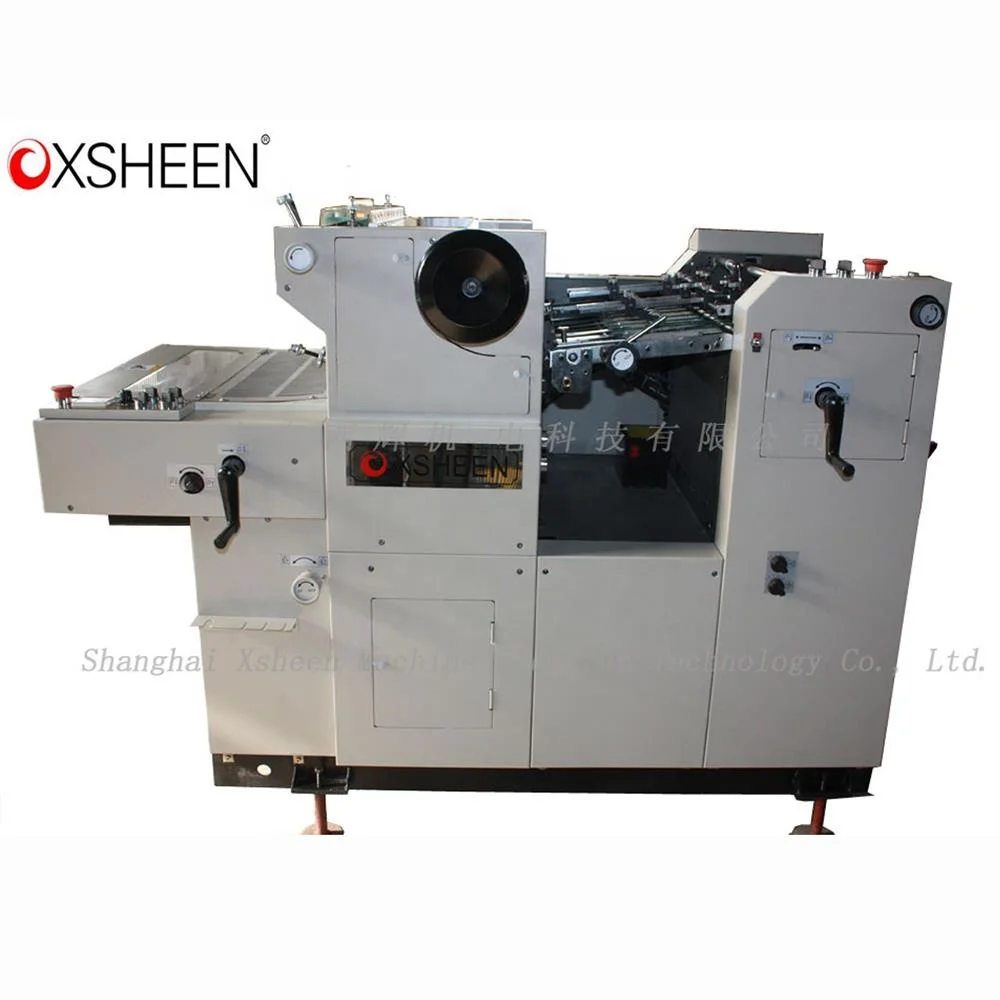

numbering machines perforation
Features
1. Lateral and Vertical Perforation can be done at the same time;
2. Perfect Numbering Position & Legible Print with resin plate printing;
3. Numbering Speed up to 8,000 sheets per hour;
4. LCD computer controlling system is optional
5. Brand Parts: France Components (Schneider) & Japanese Bearings (NHK);
6. Oil Free Vacuum Pump adopts Japanese Technology;
7. Positive Limitation Protection is adopted to make sure safe operation;
8. Automatic Powdering & Blower system;
9. High quality Feeding Rubber-tired & Double Sheets Detection Device;
10. Chrome plated Technology and Stainless Steel Material are used to protect the roller
Technical data
Model | XHDM480 | XHDM570 | XHDM630 | |
Max. Paper Size | 470x360mm | 560x400mm | 620x440mm | |
Min. Paper Size | 180x150mm | |||
Paper Weight | 28-250gsm | |||
Printing Speed | 2000-8000 sheets/hour | |||
Ink Roller | 6 rollers(ink form rollers: 2pcs) | |||
Number capacity: | Lateral: 7 row x 7 column=49 Vertical: 5 row x 8 column=40 | Lateral: 7 row x 8 column=56 Vertical: 5 row x 10 column=50 | Lateral: 7 row x 9 column=63 Vertical: 5 row x 11 column=55 | |
Perforation | Min. space between lateral perforating knives: 10mm Min. space between vertical perforating knives: 30mm | |||
Power for main motor | 0.75KW | 0.75KW | 1.5KW | |
pump motor power | 0.75KW | |||
Power Supply | 220V/50HZ | |||
Dimensions | 1780x935x1120mm | 1900x1020x1120mm | 2060x1150x1120mm | |
Net Weight | 280kg | 320kg | 370kg | |
Model | XHDM720 |
Max. Paper Size | 720x440mm |
Min. Paper Size | 180x150mm |
Paper Weight | 28-250g |
Printing Speed | 2000-8000 sheet/hour |
Ink Roller | 6 rollers(ink form rollers: 2pcs) |
Number capacity: | Lateral: 7 row x 10 column=70 Vertical: 5 row x 12 column=60 |
Perforation | Min. space between Lateral Perforating knives: 30mm Min. space between Vertical Perforating knives: 25mm |
Power for main motor | 1.5KW |
Power for pump motor | 1.5KW |
Power Supply | 220V 50HZ |
Dimensions | 2060x1170x1120mm |
Weight | 800kg |
Operation video link :
//www.youtube.com/watch?v=hEMNE5yjAZk

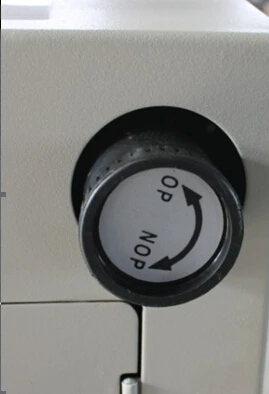

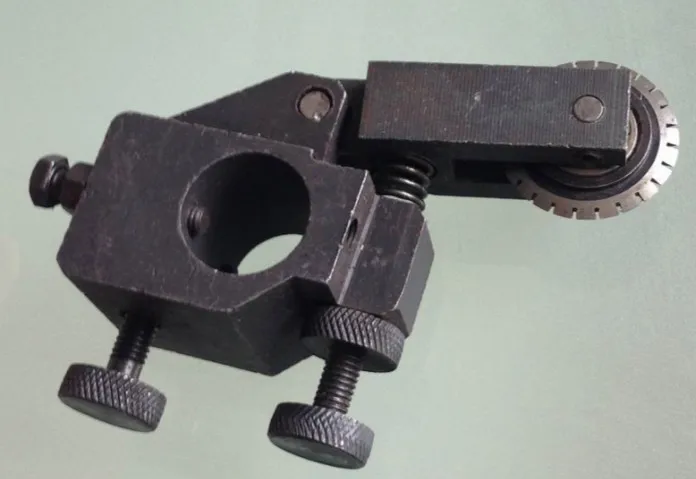

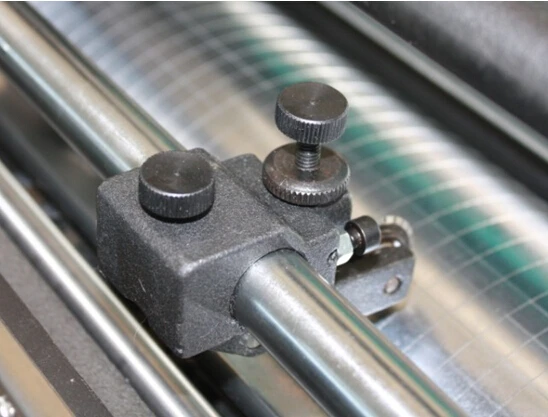

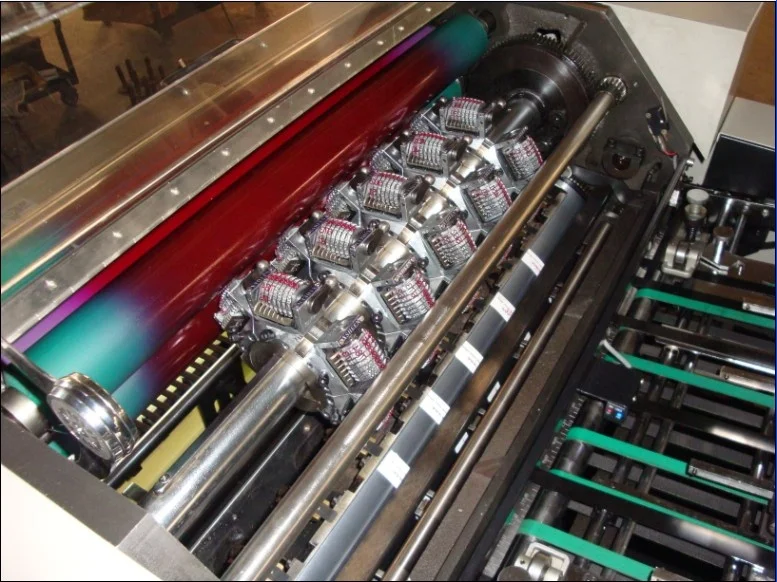

Numbering machines perforation details
About XSHEEN Technology
Any questions, please feel free to contact us by telephone or whatsapp: +86 18621990329
